Atlanta Build by Nick's TrixBronco Build Specifications
Services performed by Nick’s Trix Custom Fabrication:

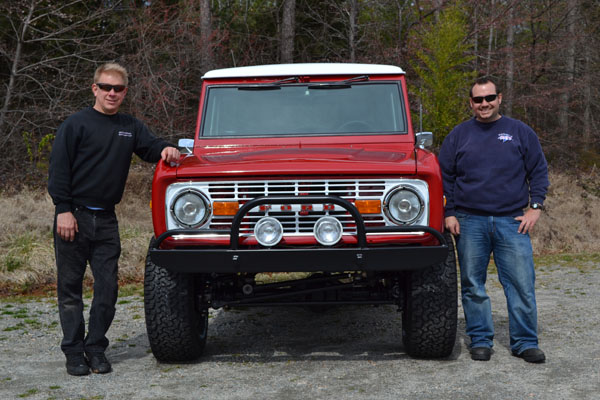

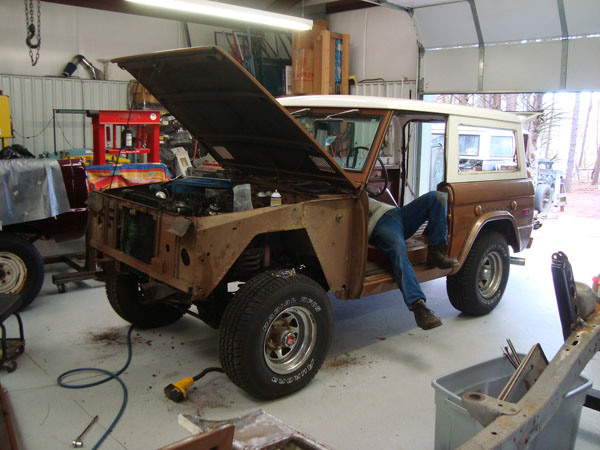

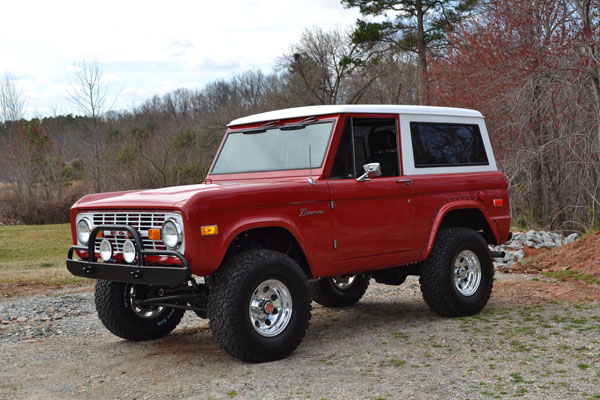

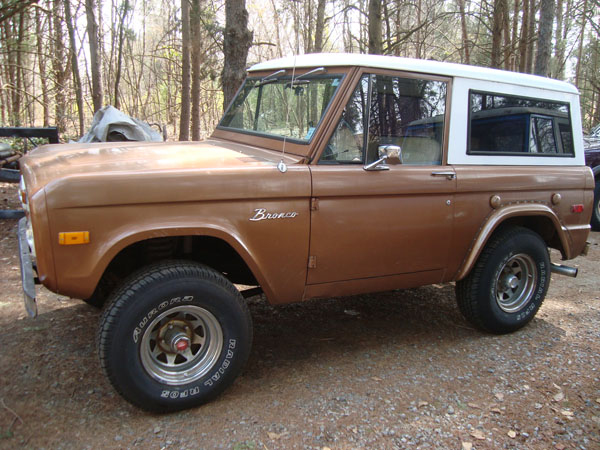

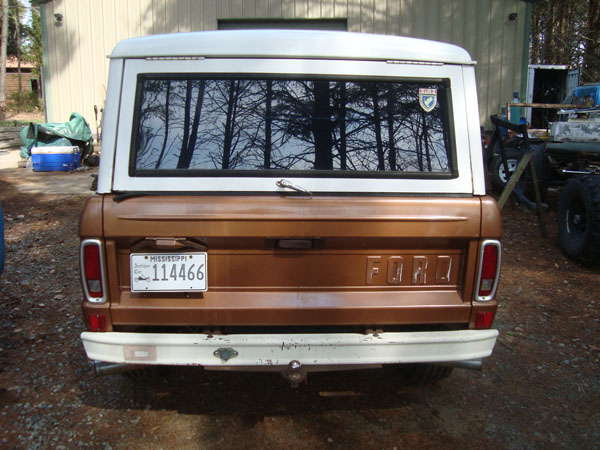

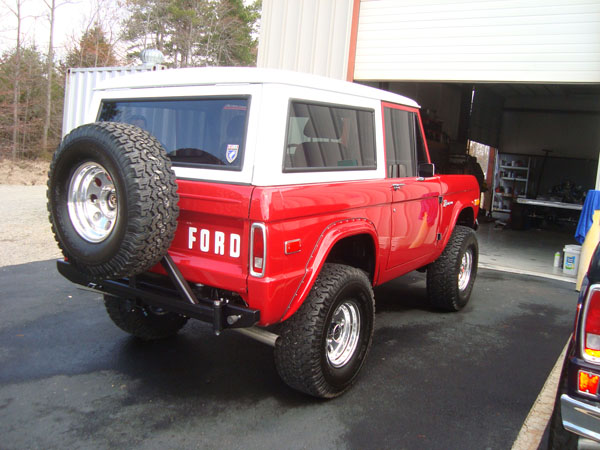

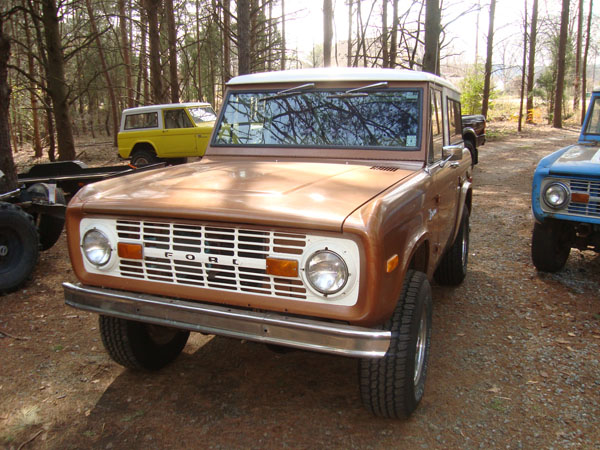

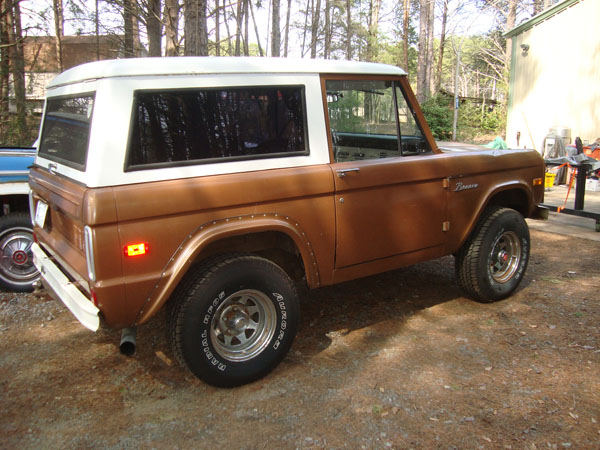

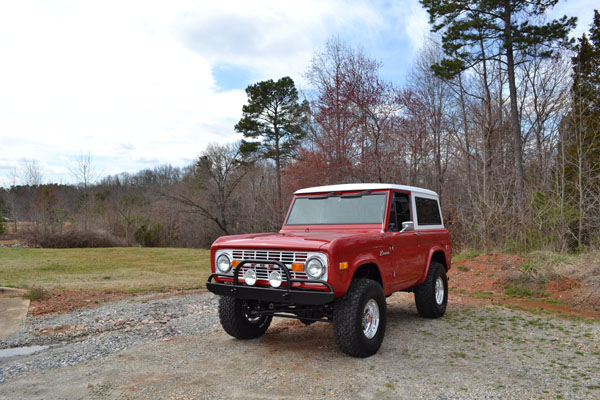

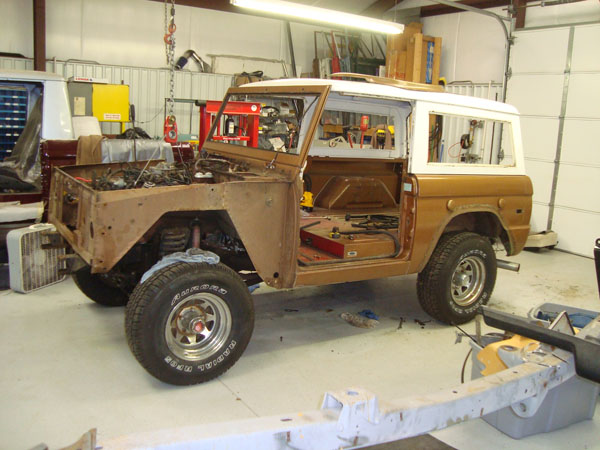

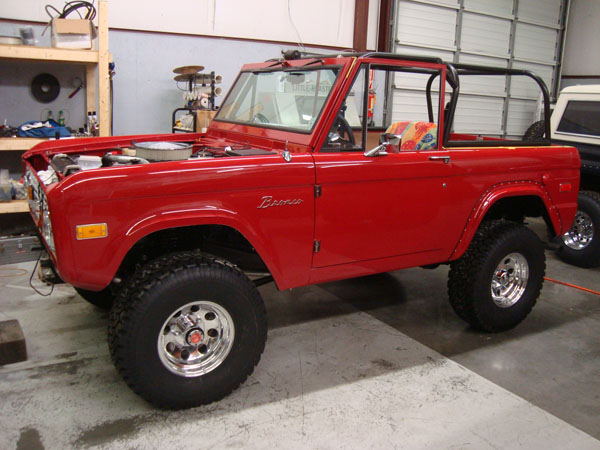

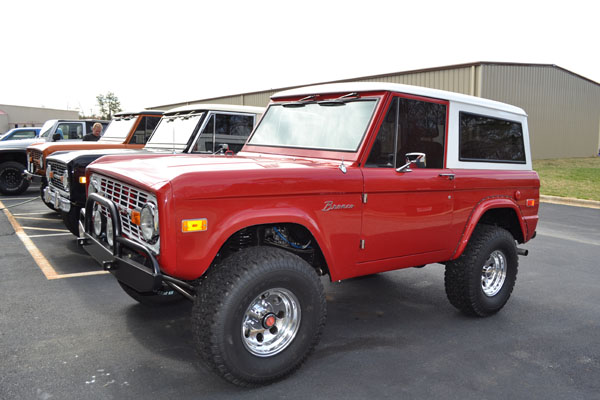

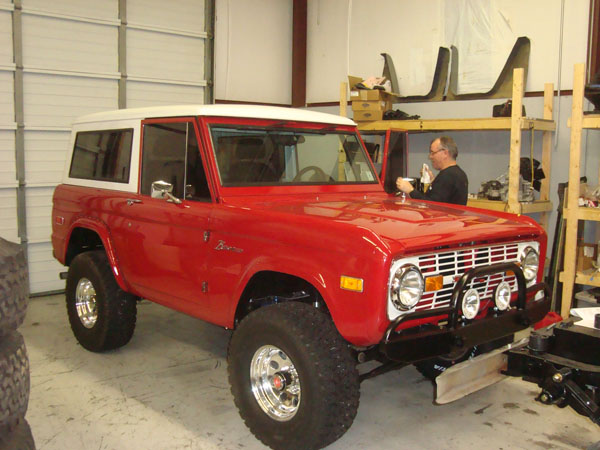

Here is a nice 1973 Ford Bronco that came into our shop for the works! After a ton of devotion and time the "TUPE" build is clearly one of our best to date. Enjoy the latest from Nick's Trix!

 Bronco Build Photo Gallery
01 02 03
04 05 06
07 08 09
10 11 12
31 14 15
16 17 18
19 21 22
23 24 25
26 27 28
29 30 31
32 33 34
35 35a 36
37 38 39
40 41 42
43 44 45
46 47 48
49 50 51
52 53 54
55 56 57
58 59 60
61 62 63

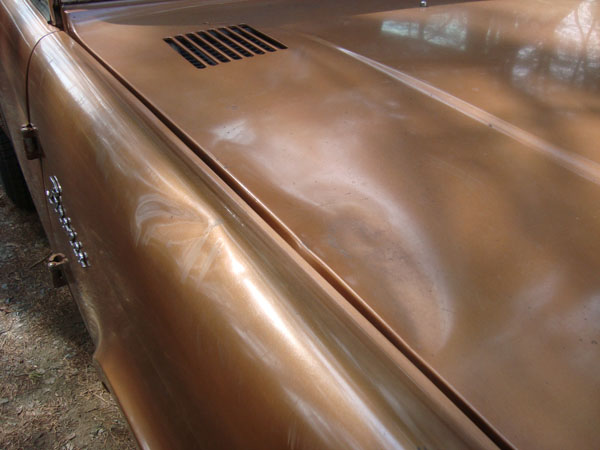

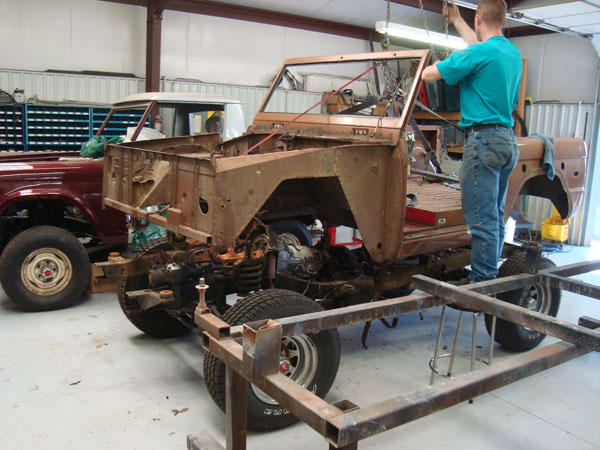

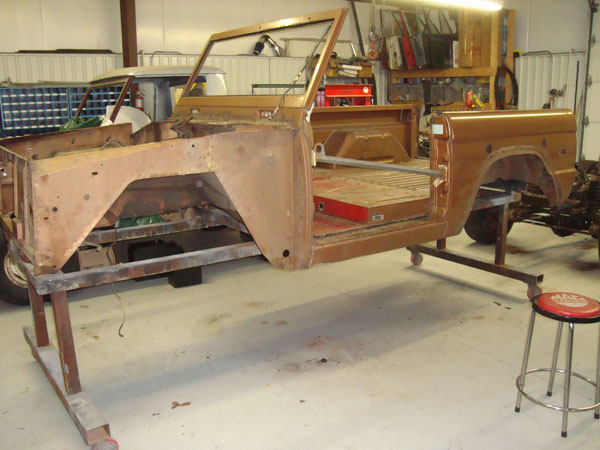

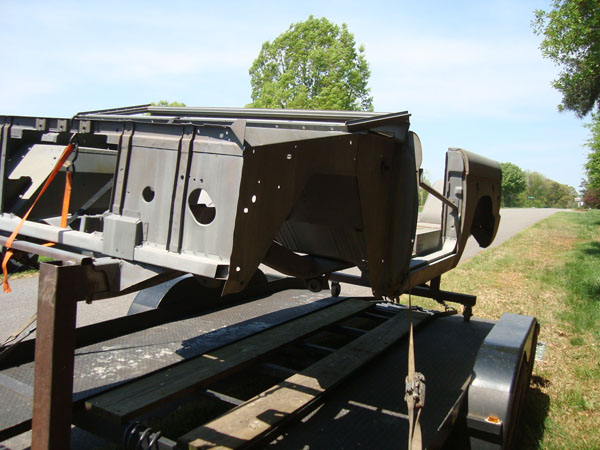

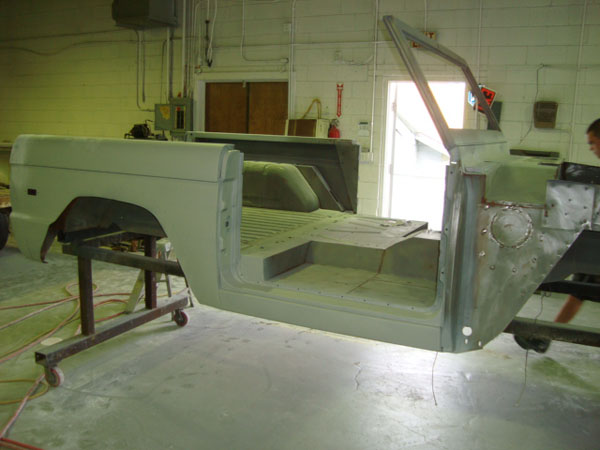

  • Body was stripped by Diversified Finishers

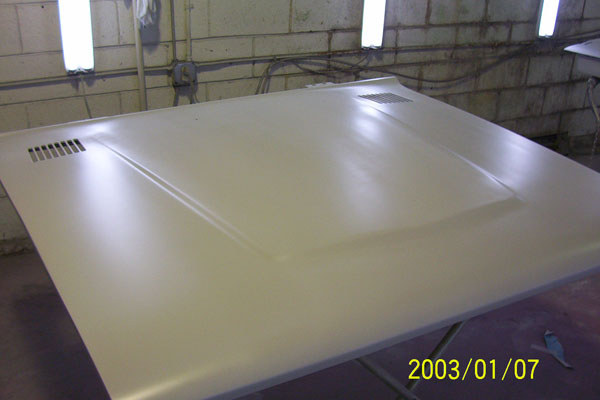

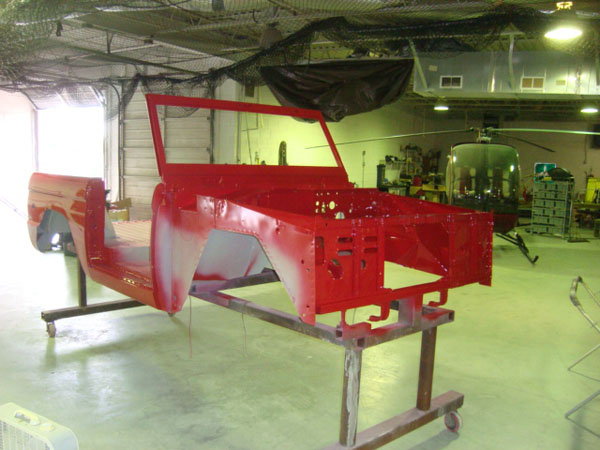

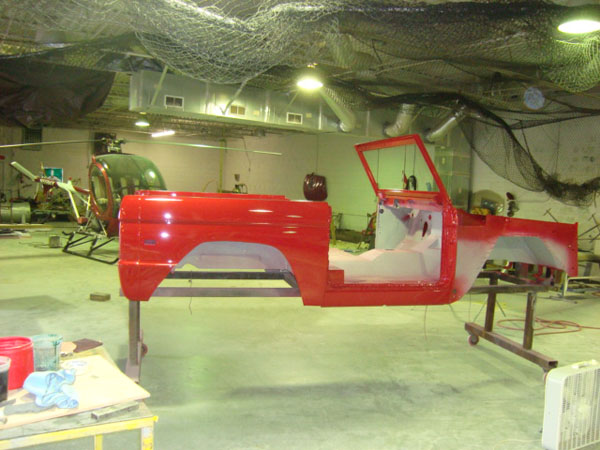

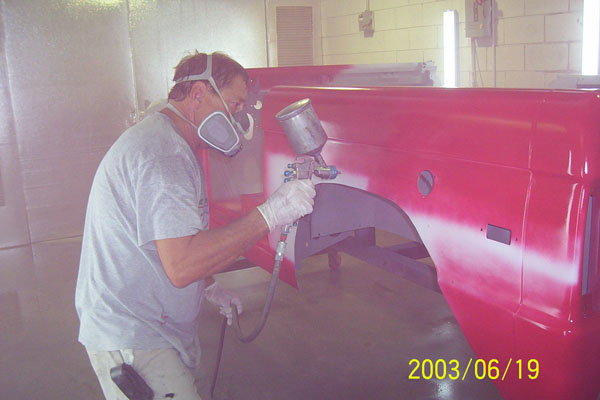

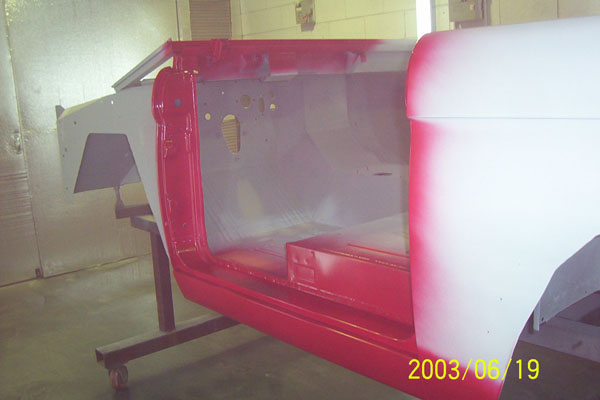

  • Body & paint by Chuck Schenck Autobody
  • Paint PPG DBC base coat/clear

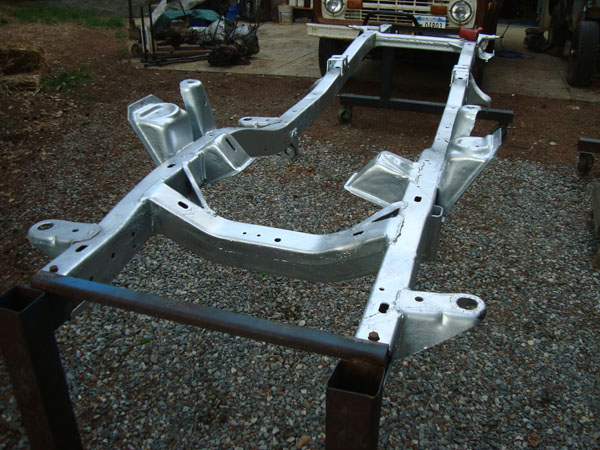

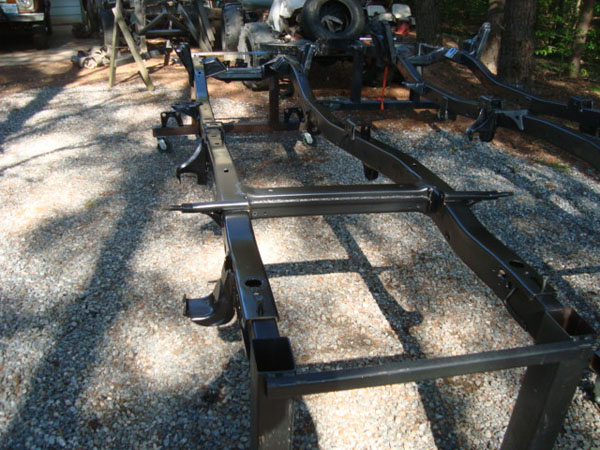

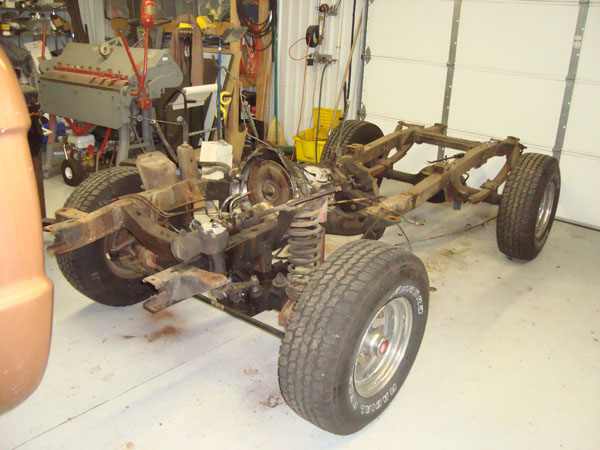

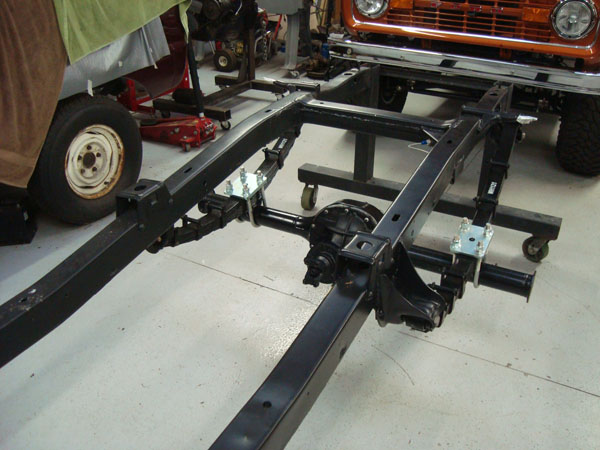

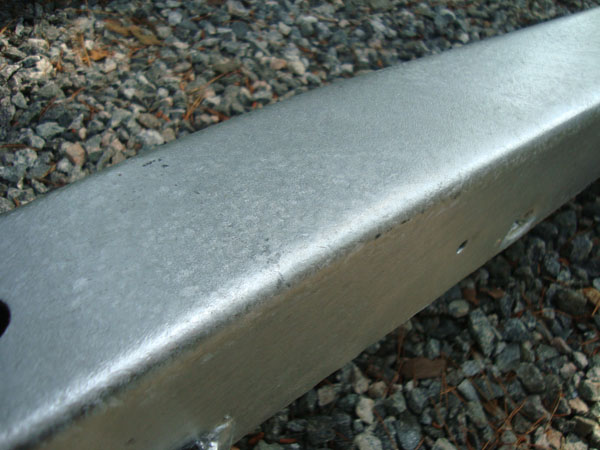

  • Chassis is hot dip galvanized
  • Running gear and chassis all painted in PPG DP90 Epoxy

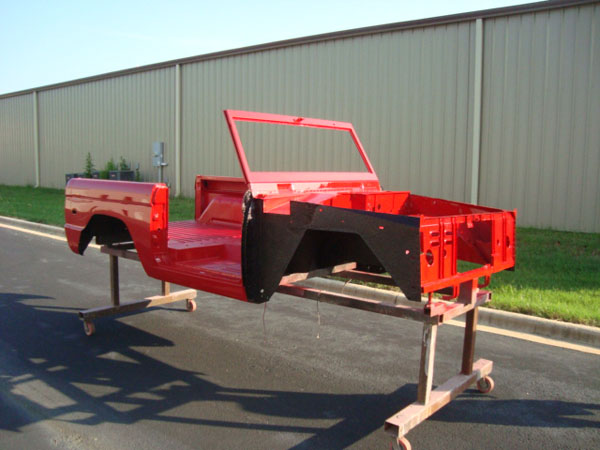

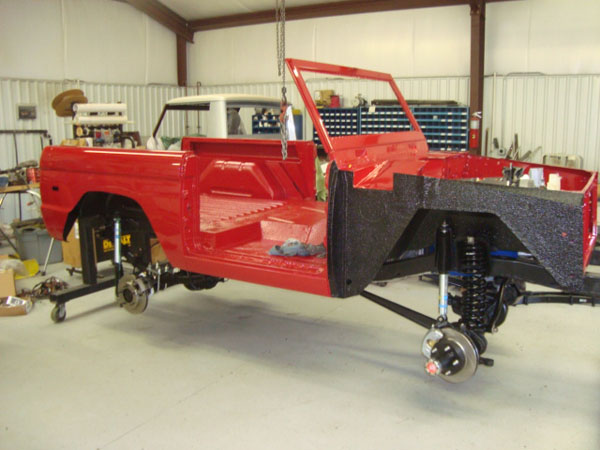

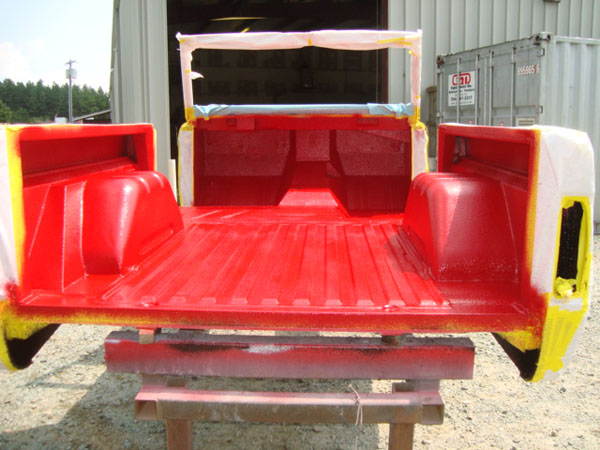

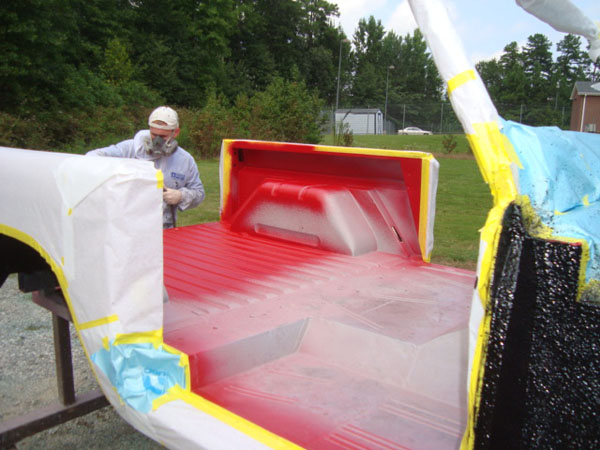

  • Bed liner sprayed inside & full underside
  • Inside tinted body color. Scorpion Bed Liner used exclusively
  • SEM seam sealers used exclusively

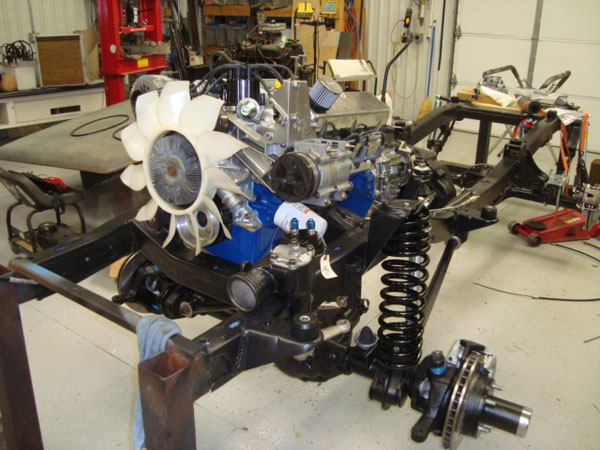

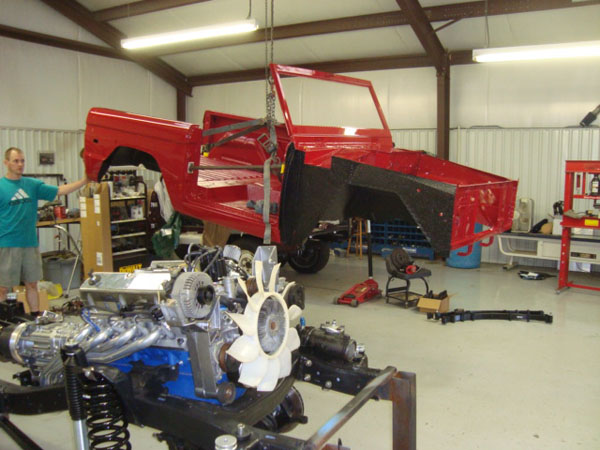

Drivetrain

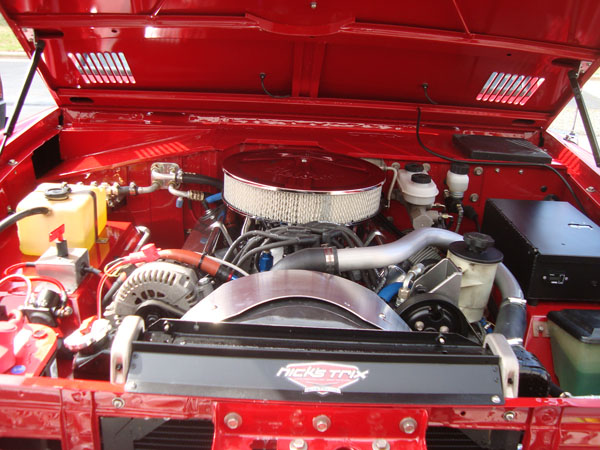

  • “The Business Man’s Special”
  • 302 rated at 310 hp
  • Built by Campbell Gear Tech
  • Roller conversion & valve train
  • Aluminum heads and intake
  • Forged pistons
  • Stainless valves
  • Explorer serpentine front dress
  • RetroTek Fuel Injection package
  • Headers & magnaflow mufflers
  • Optima Red Top battery

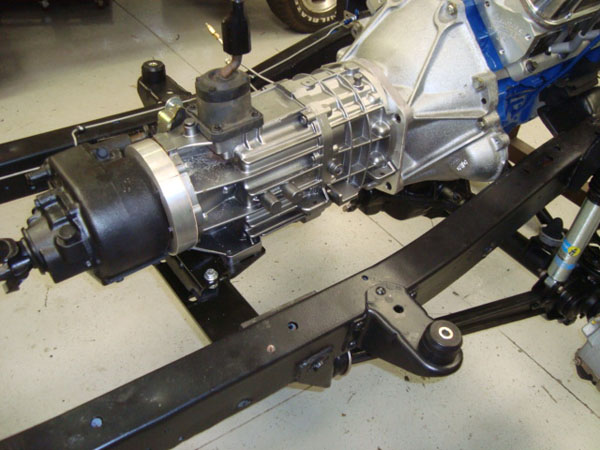

  • NV 3550 5 speed trans.
  • Hydraulic clutch package with Tilton parts
  • Custom shifter package
  • Dana 20 transfer case/completely rebuilt
  • 4:30 gear ratio with Trac Loc differentials
  • gear work by Corey Transmission

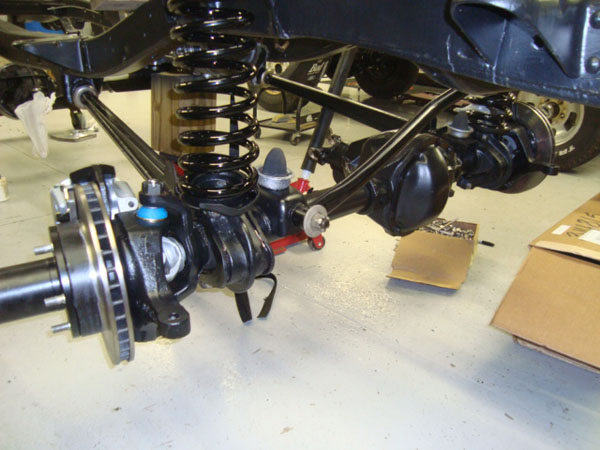

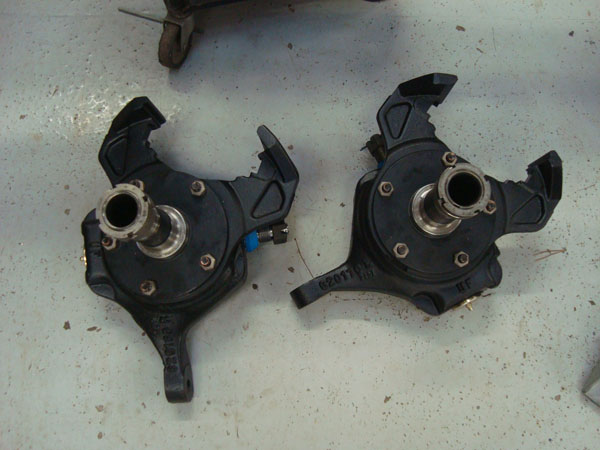

  • 4 wheel disc brakes
  • HD extended drive shafts by Carolina Powertrain
  • HD custom NT steering linkage
  • Quick ratio steering box
  • Moog Ball joints & tie rod ends
  • Fluid transfer using Goodridge hose & fittings
  • 23 gallon fuel tank
  • High efficiency radiator by Mckinney Radiator
  • 8x15 Mickey Thompson alum wheels
  • 33 inch BF Goodrich All Terrain Tires
  • 2.5 inch lift using Wild Horses springs
  • Bilstein shocks
  • Urethane bushings throughout
  • NT 1 inch billet body lift
Interior

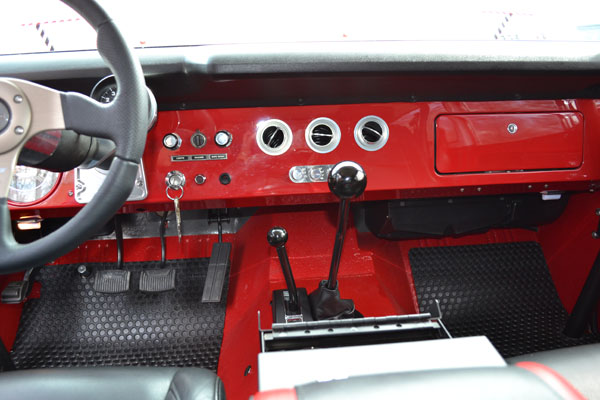

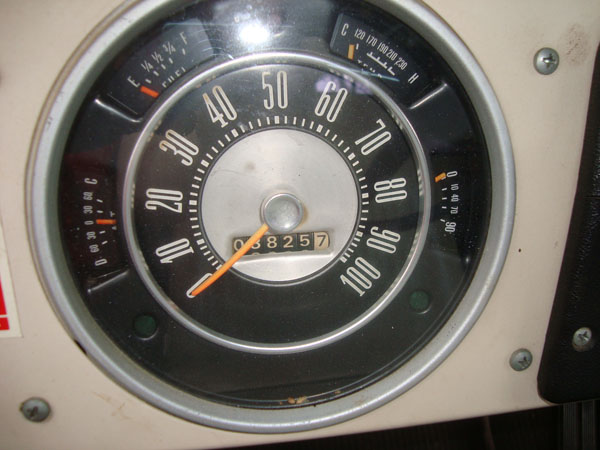

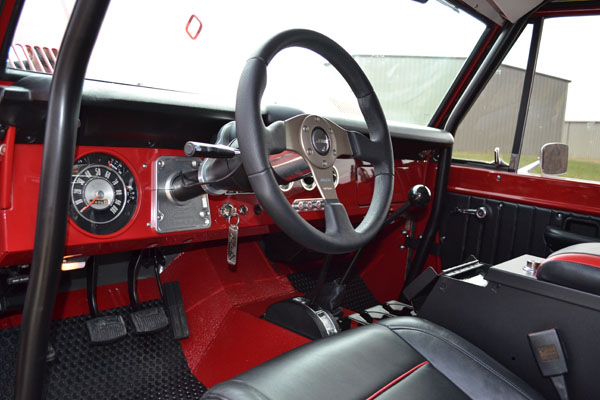

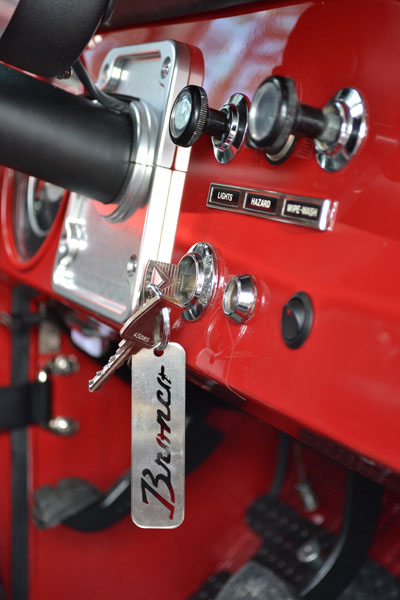

  • Custom dash layout with billet components
  • Air conditioning package using Vintage Air components
  • Full power & heated seats covered in black leather/red piping

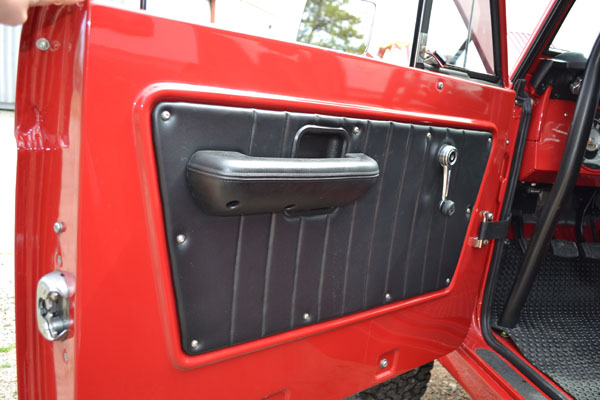

  • Custom headliner, side panels & door panels
  • Interior work by Lake Norman Hot Rods/ The Boat House

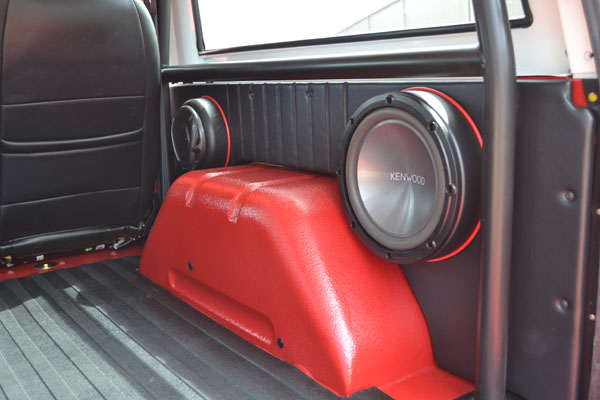

  • Kenwood stereo package in Tuffy consol

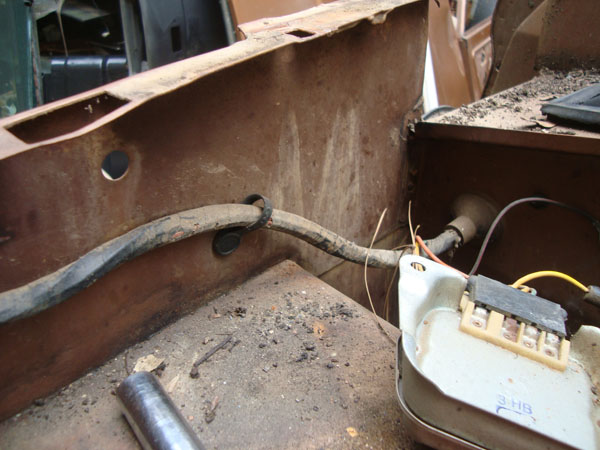

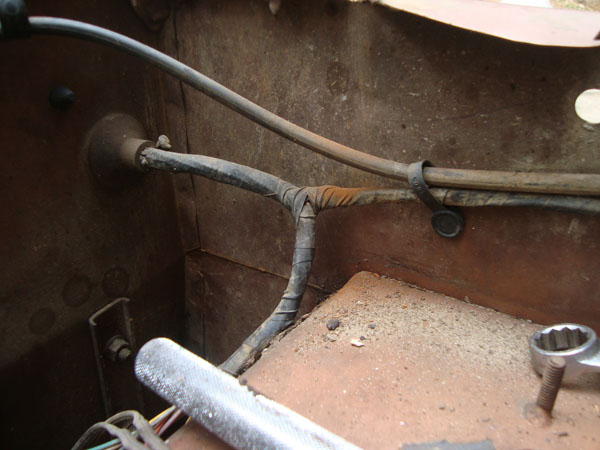

  • Custom wiring harness using weather pac connectors
  • Hour meter
  • Tinted glass by Russo’s
  • Tilt column with Momo steering wheel

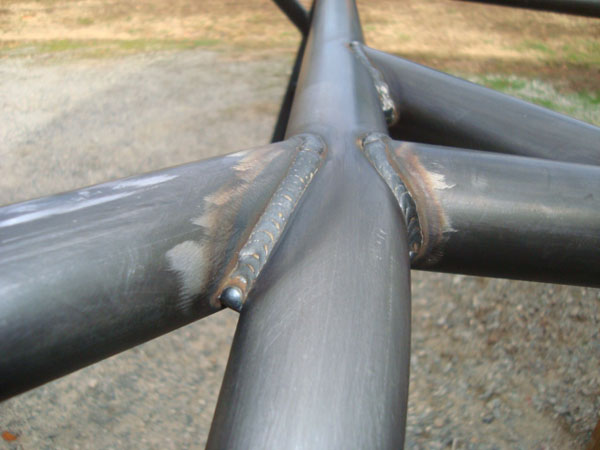

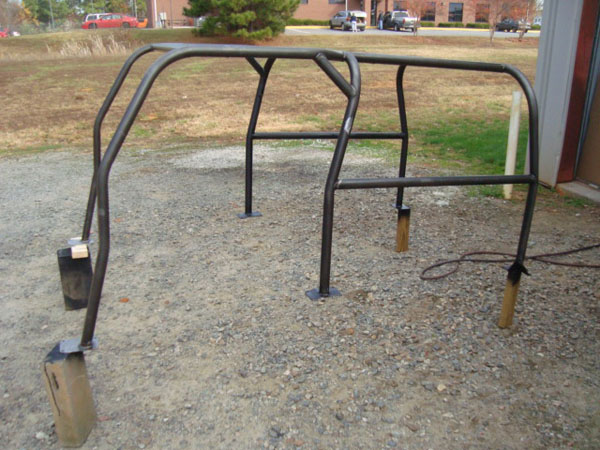

  • NT family cage package
Body

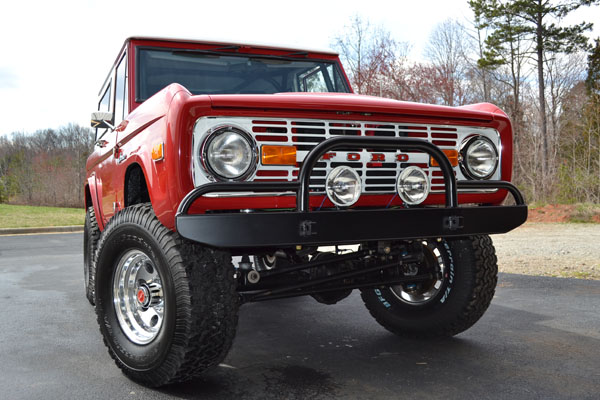

  • Bumpers by Cross Enterprises
  • Duff fender flares
  • Nickel plated components and hardware throughout
  • Hella driving lights
  • H4 european style headlights
