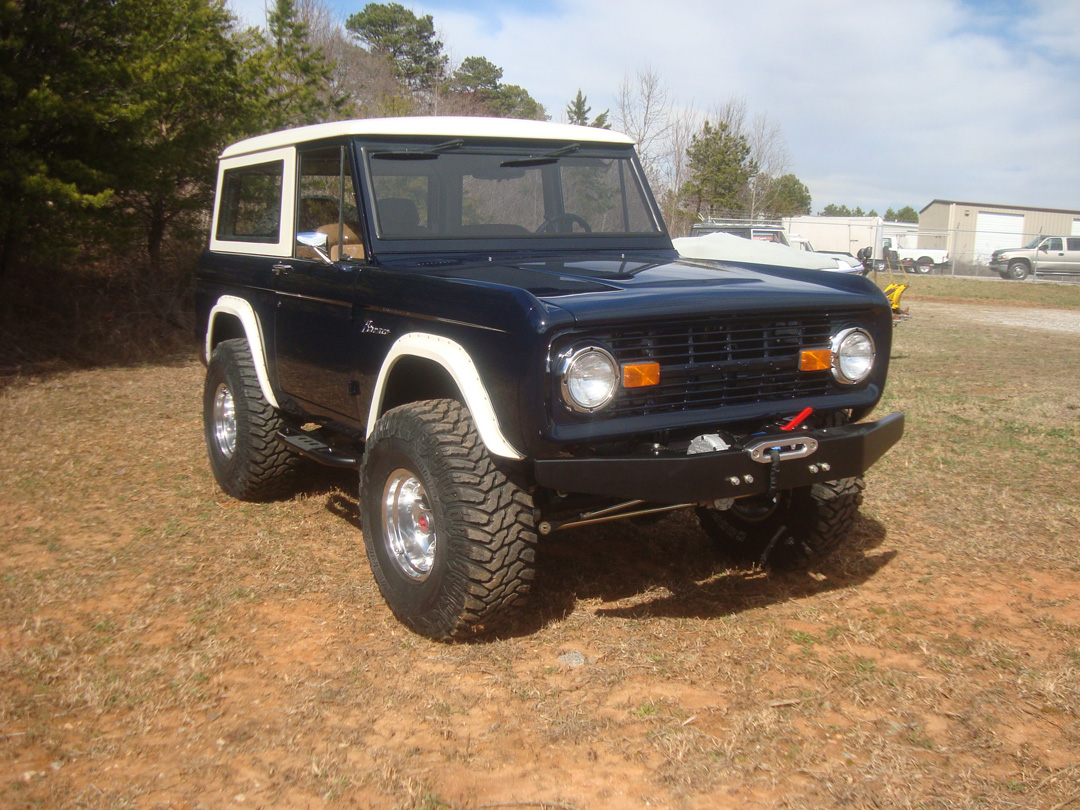

Nick's Trix - "tigerbait" Early bronco RestorationBronco Build Specifications

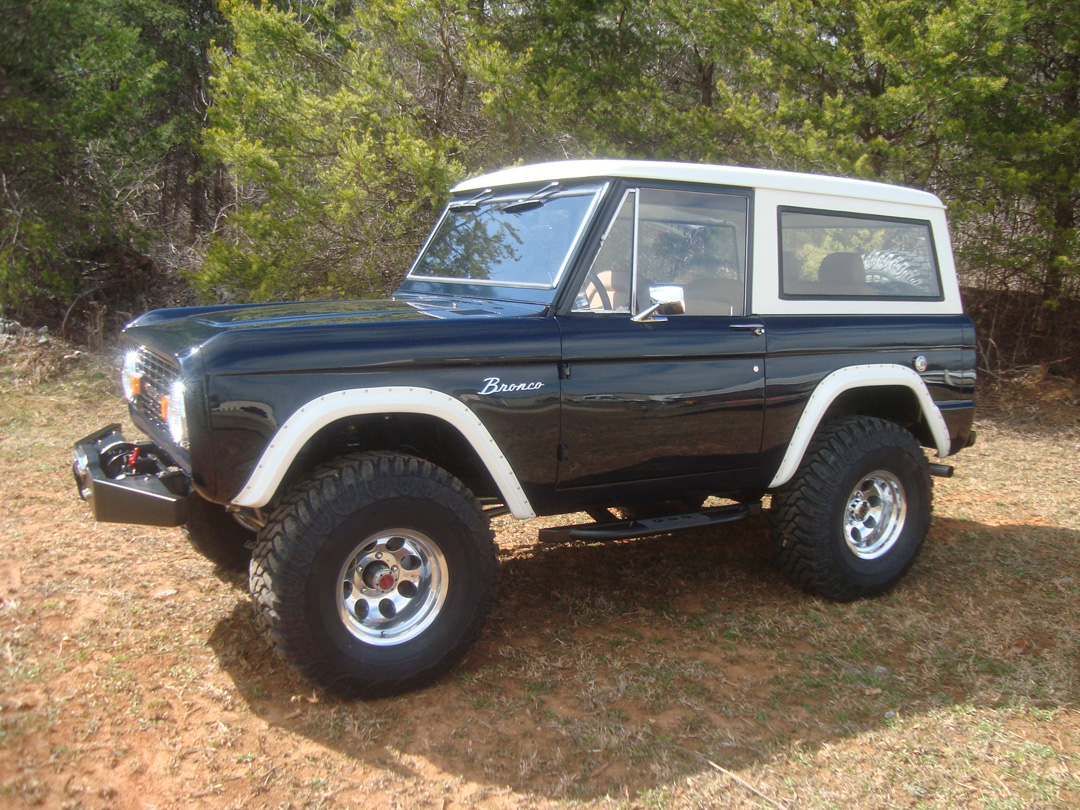

“Tiger Bait”

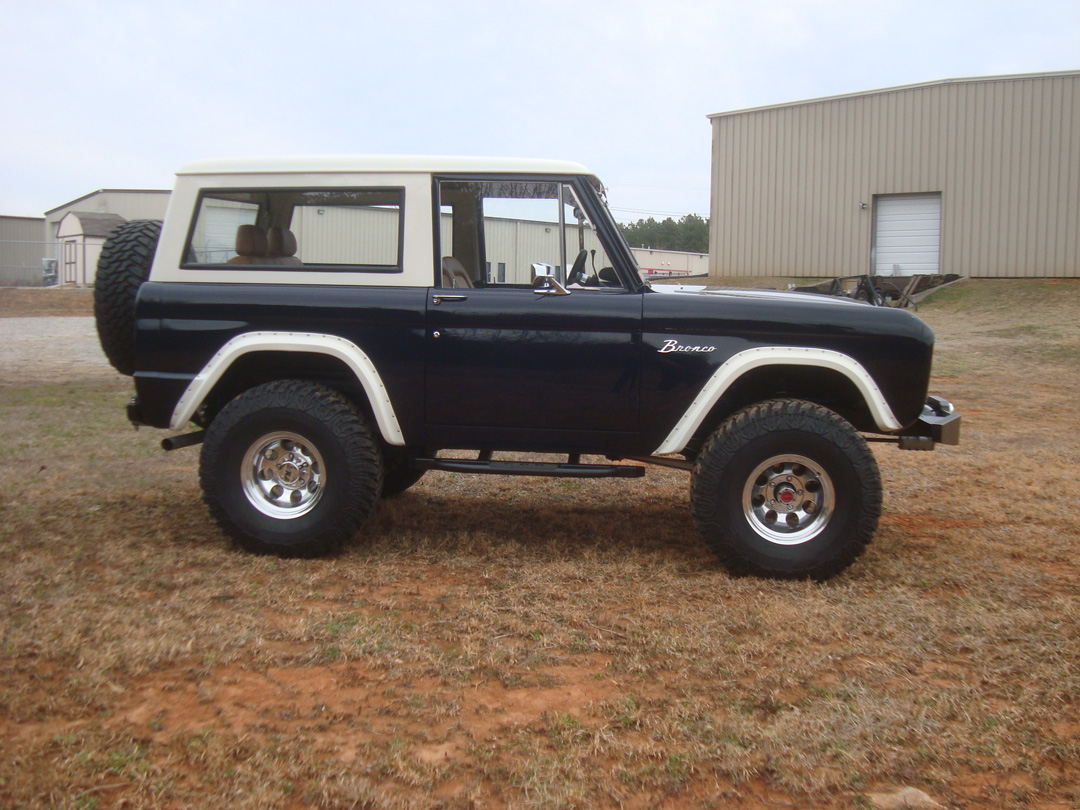

1969 Ford Bronco custom built by
Nick’s Trix Custom Fabrication 2013-14

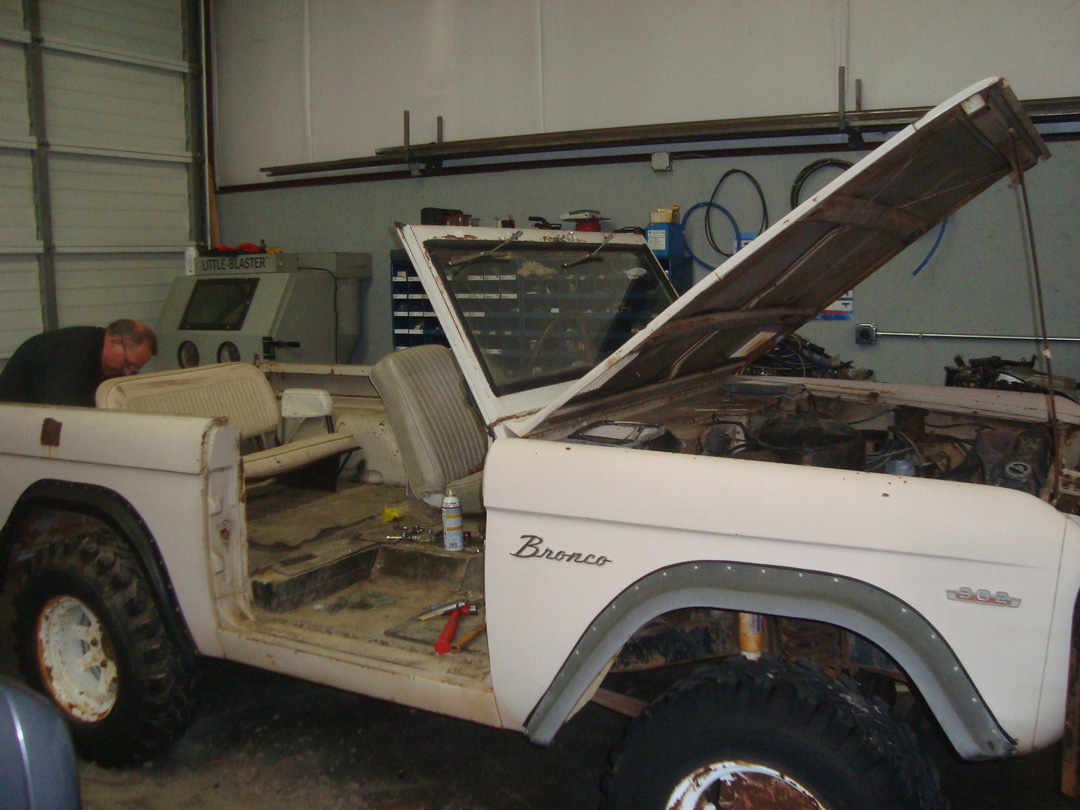

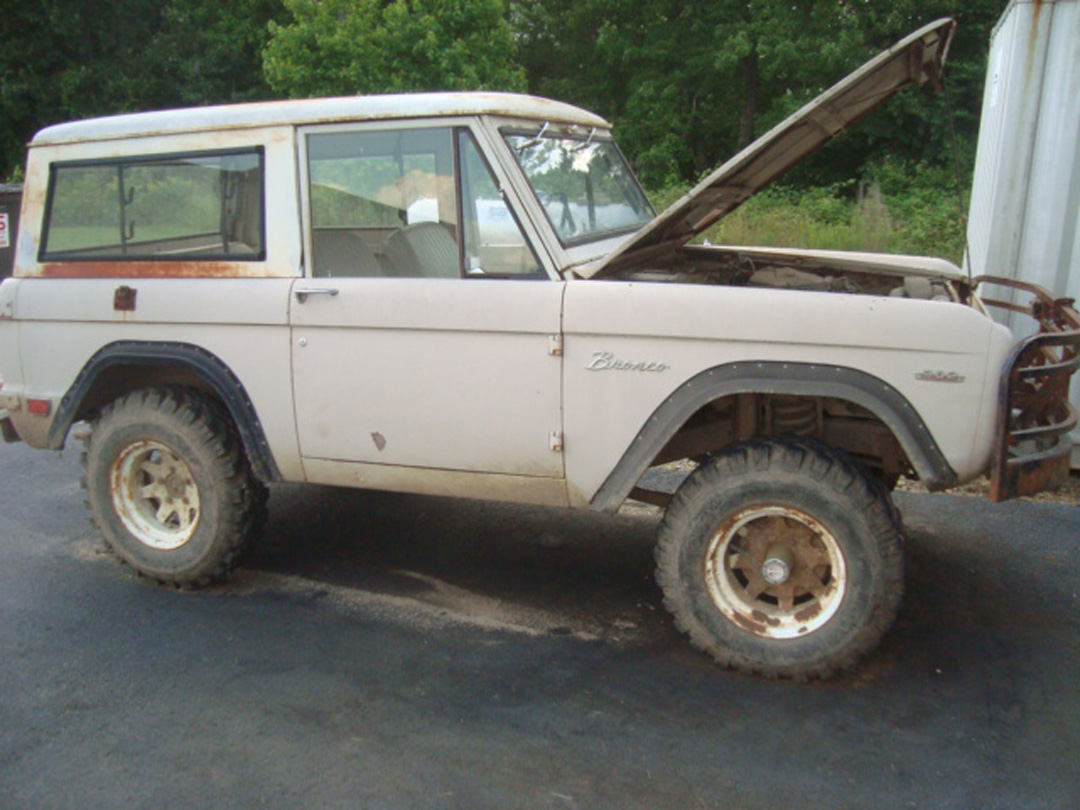

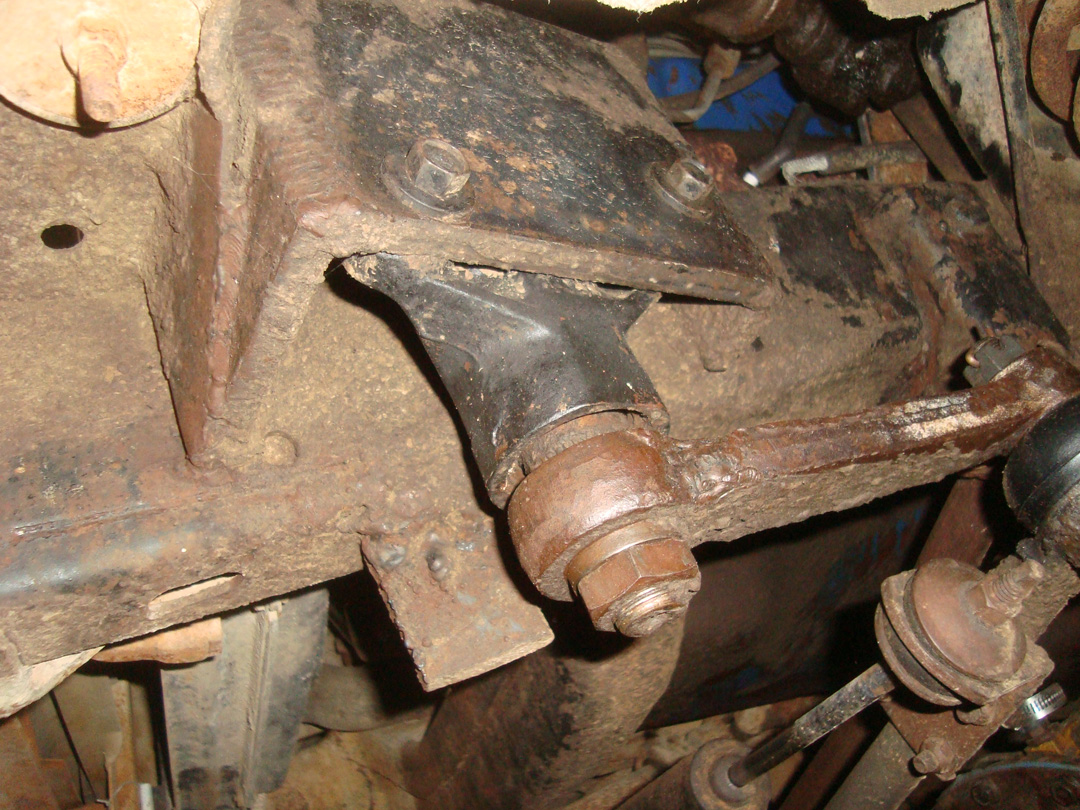

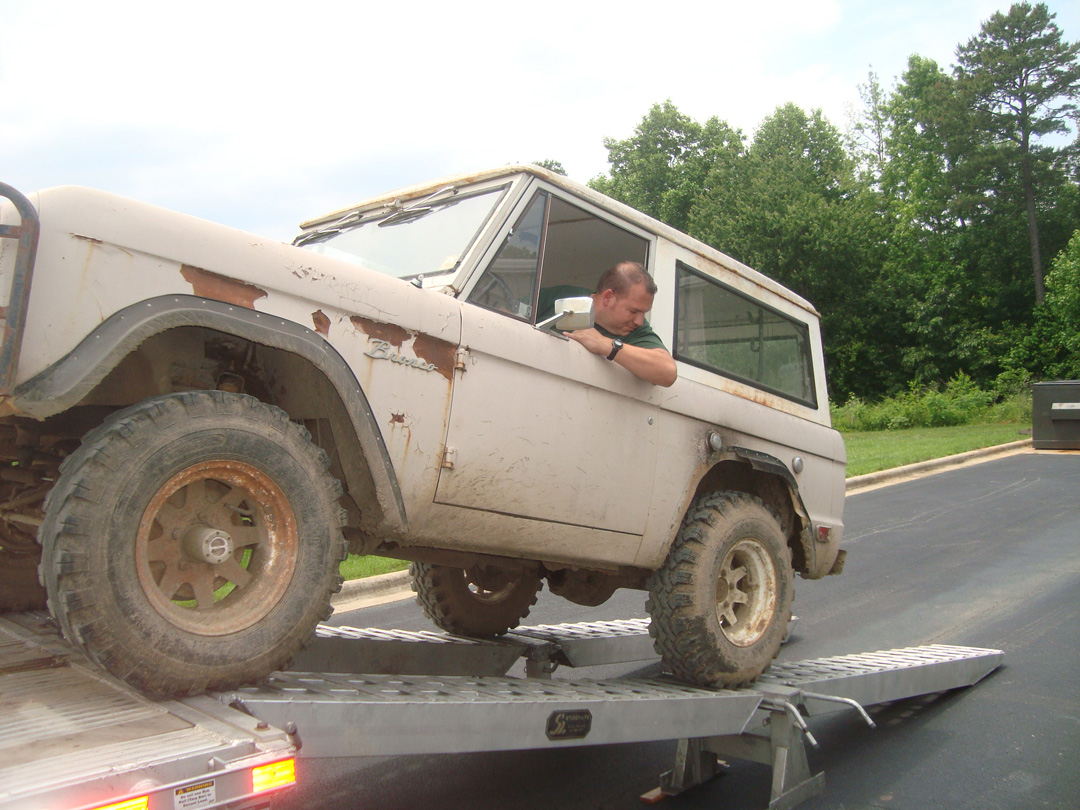

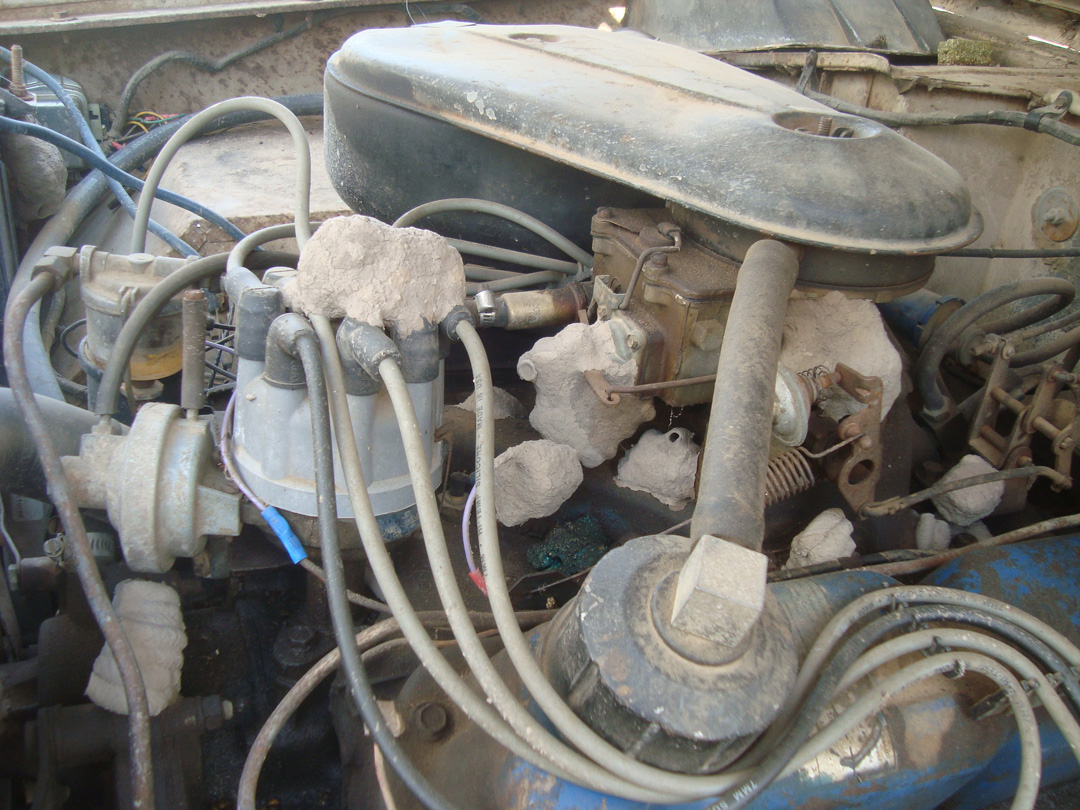

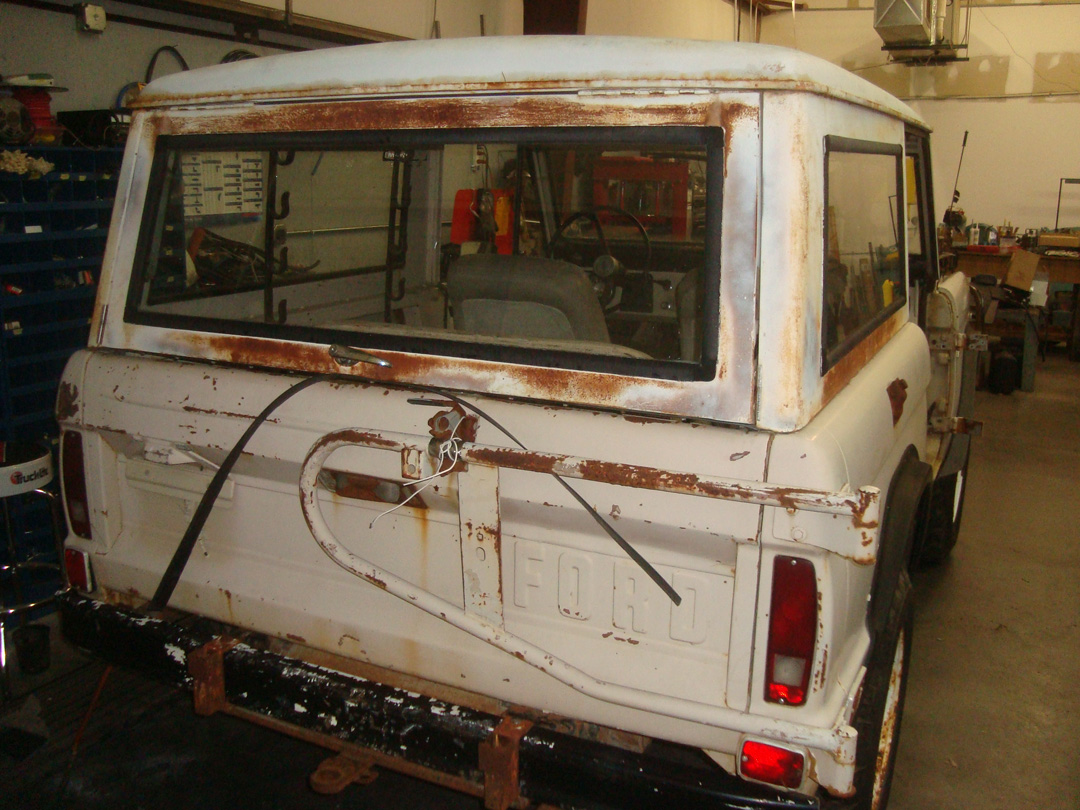

This truck had spent its whole life at an exclusive hunt club on an island on the Mississippi river. Through the years it's hauled many a truck load of hunters through the thick mud and brush to get to those prime hunting spots.

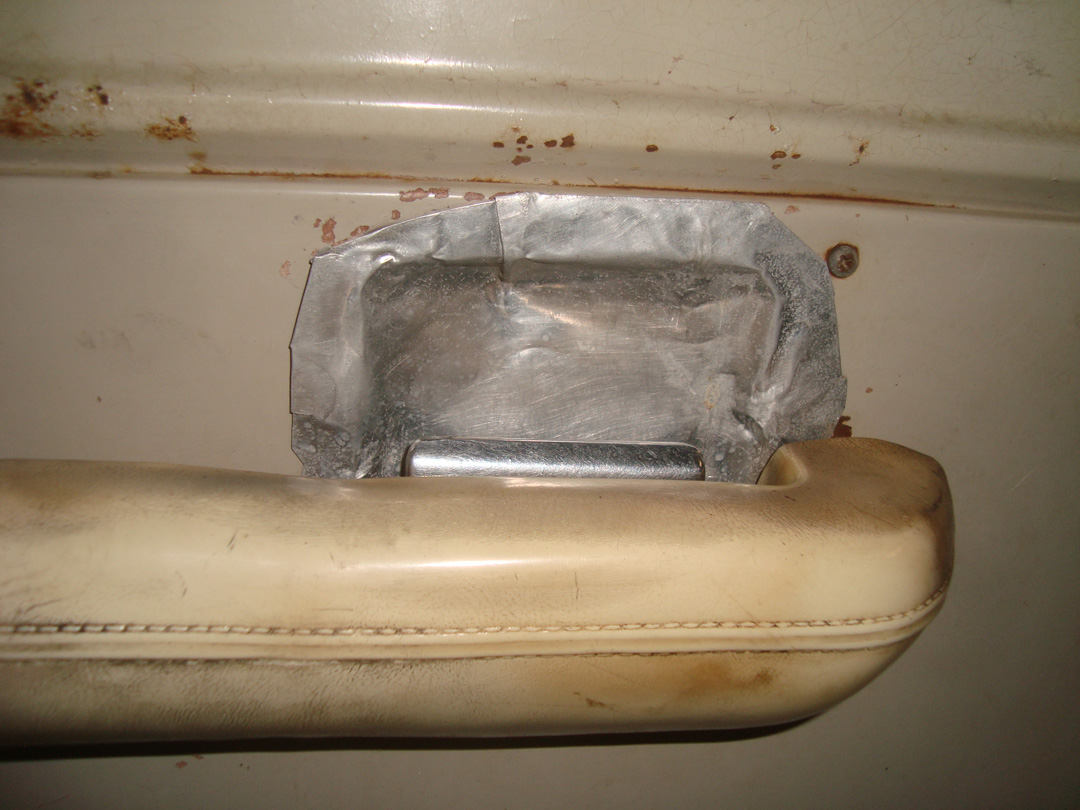

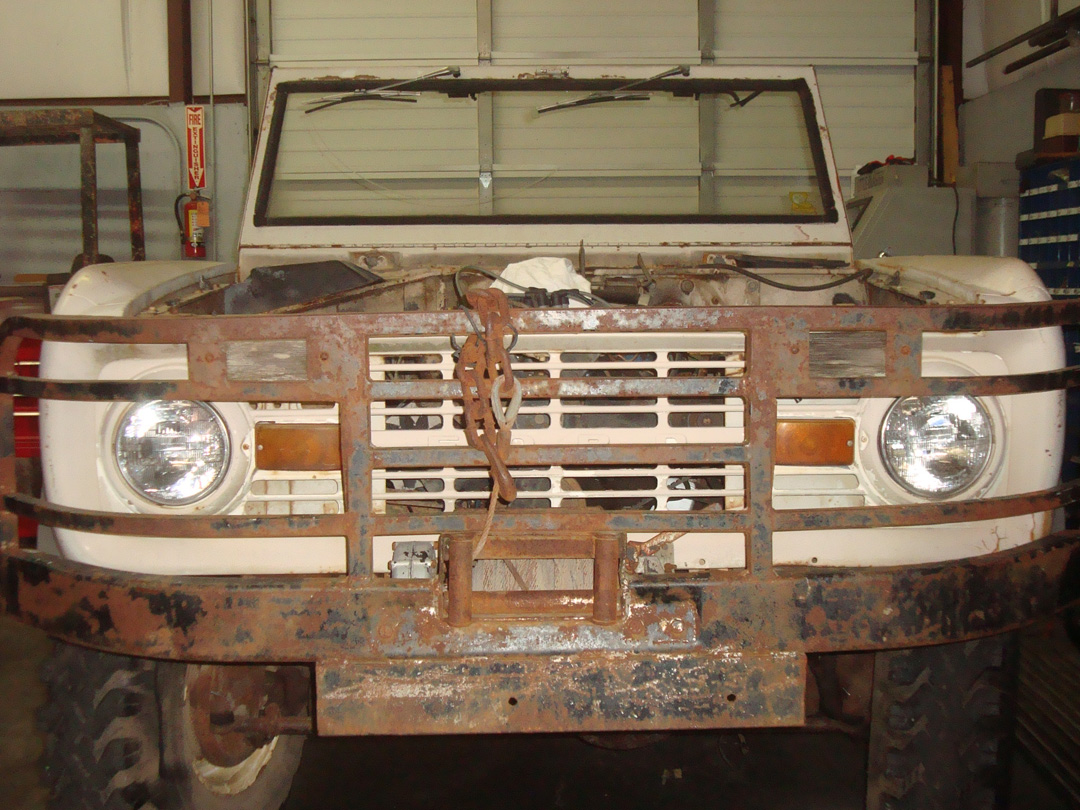

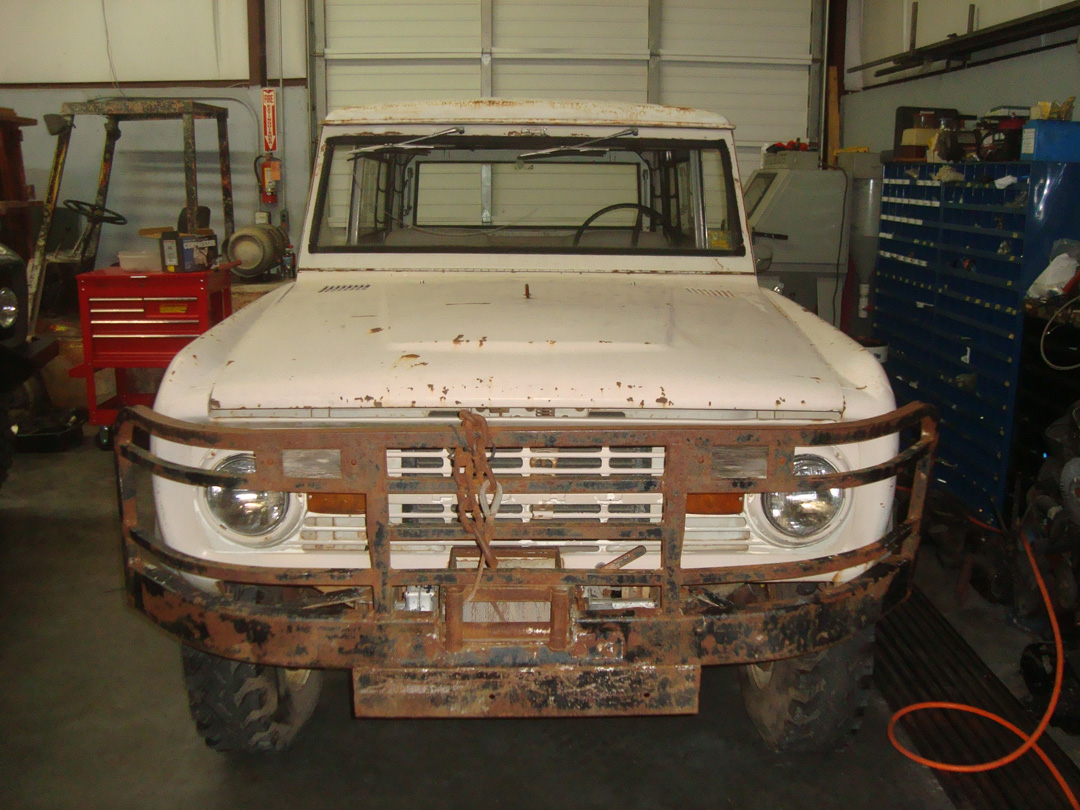

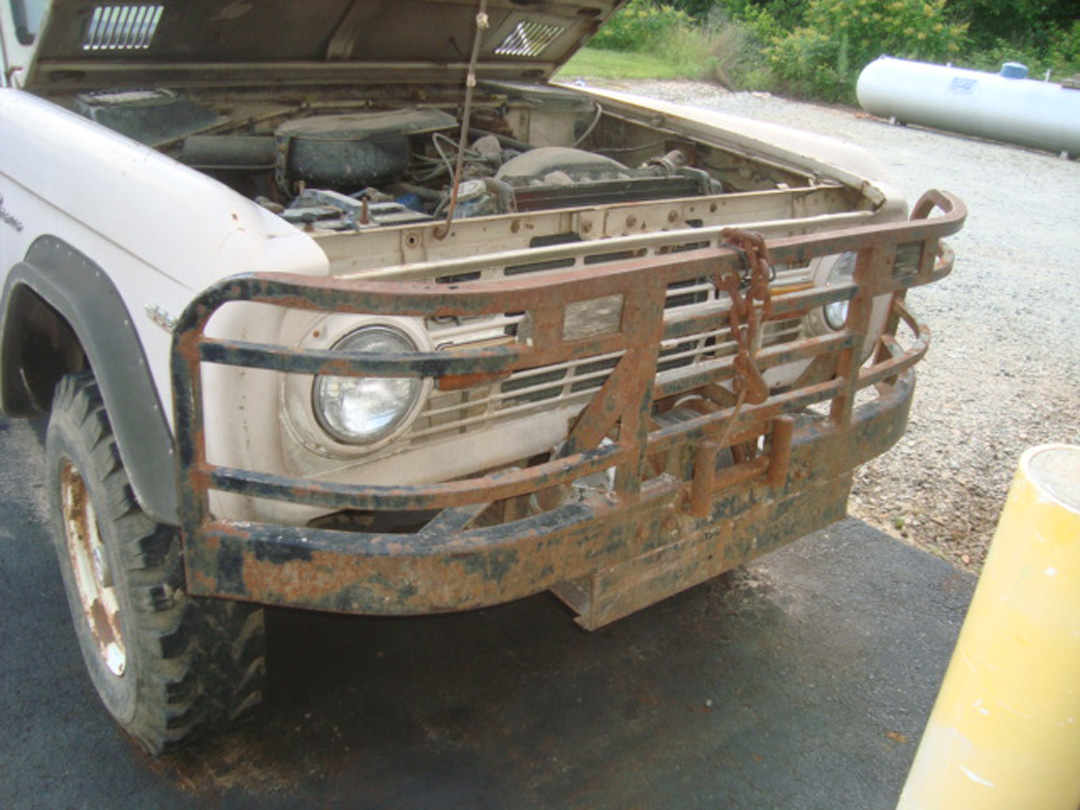

The large bully bar up front was used to haul outboard motors from the lodge to the john boats. This Bronco had many repairs and modifications that where done on the island with what was available to work with.

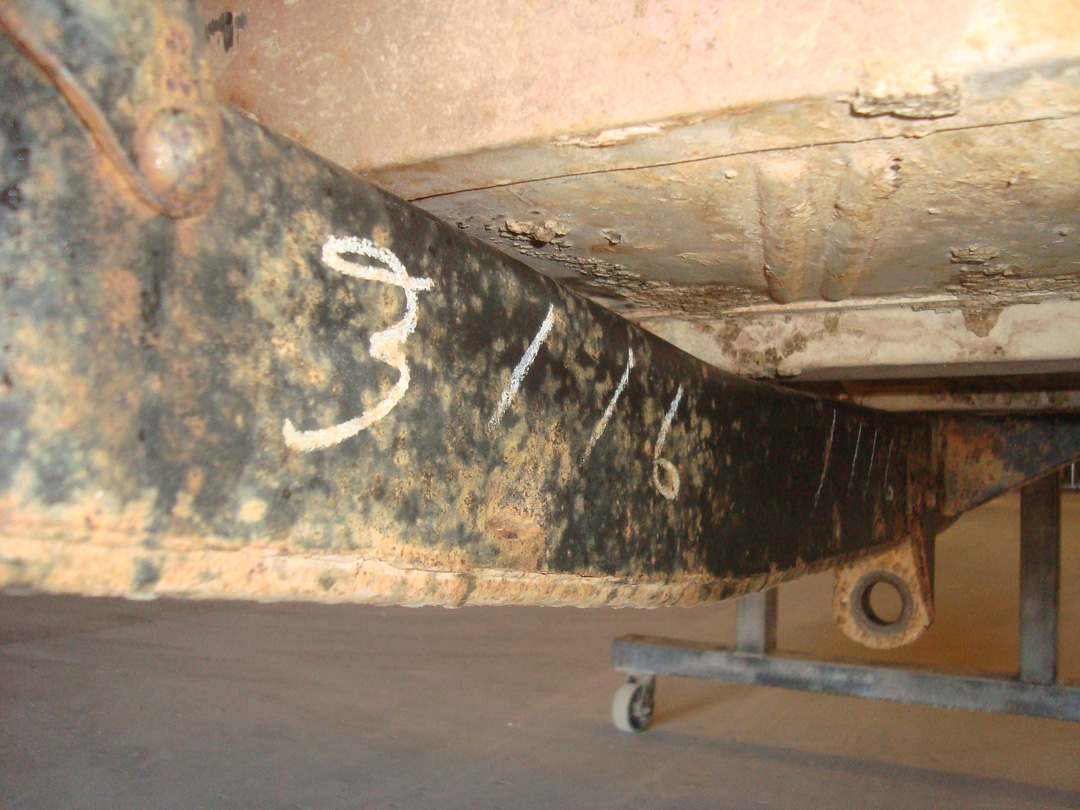

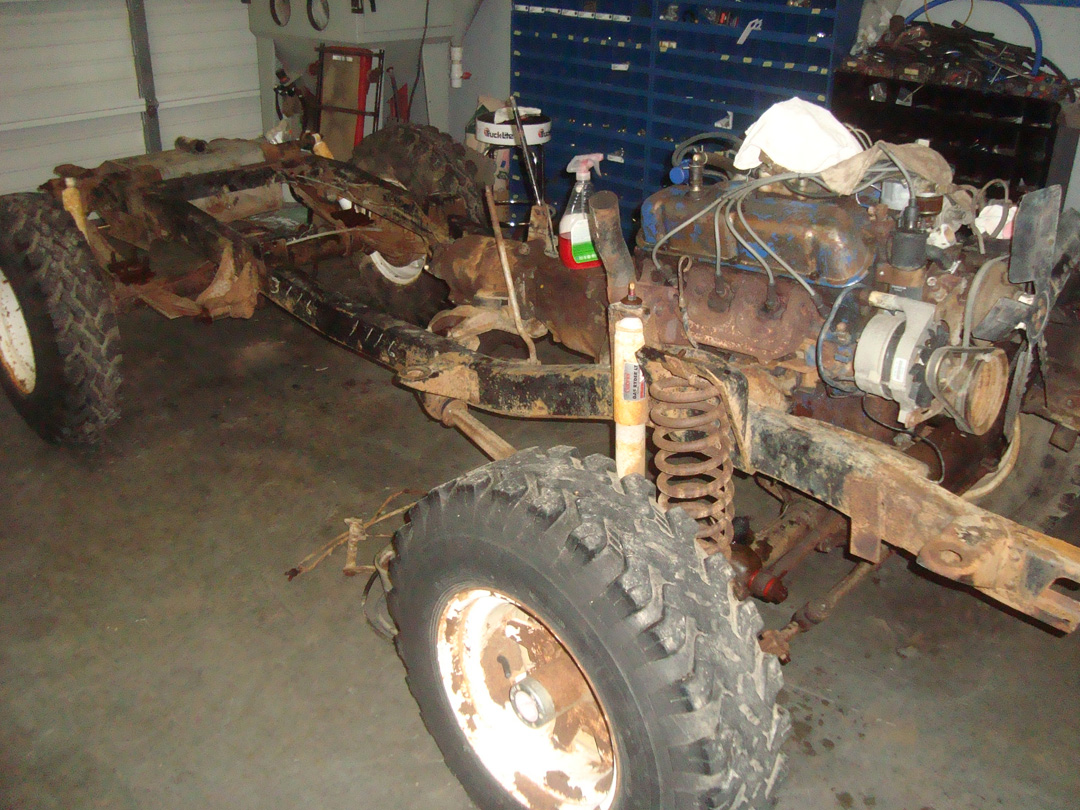

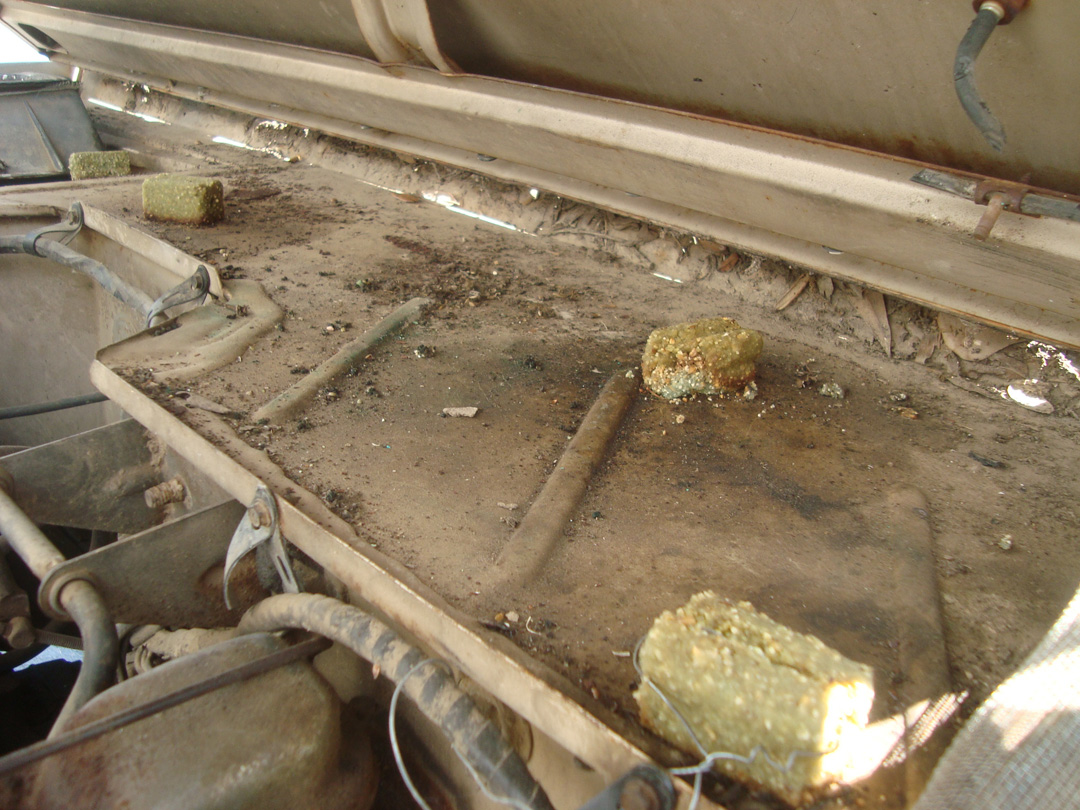

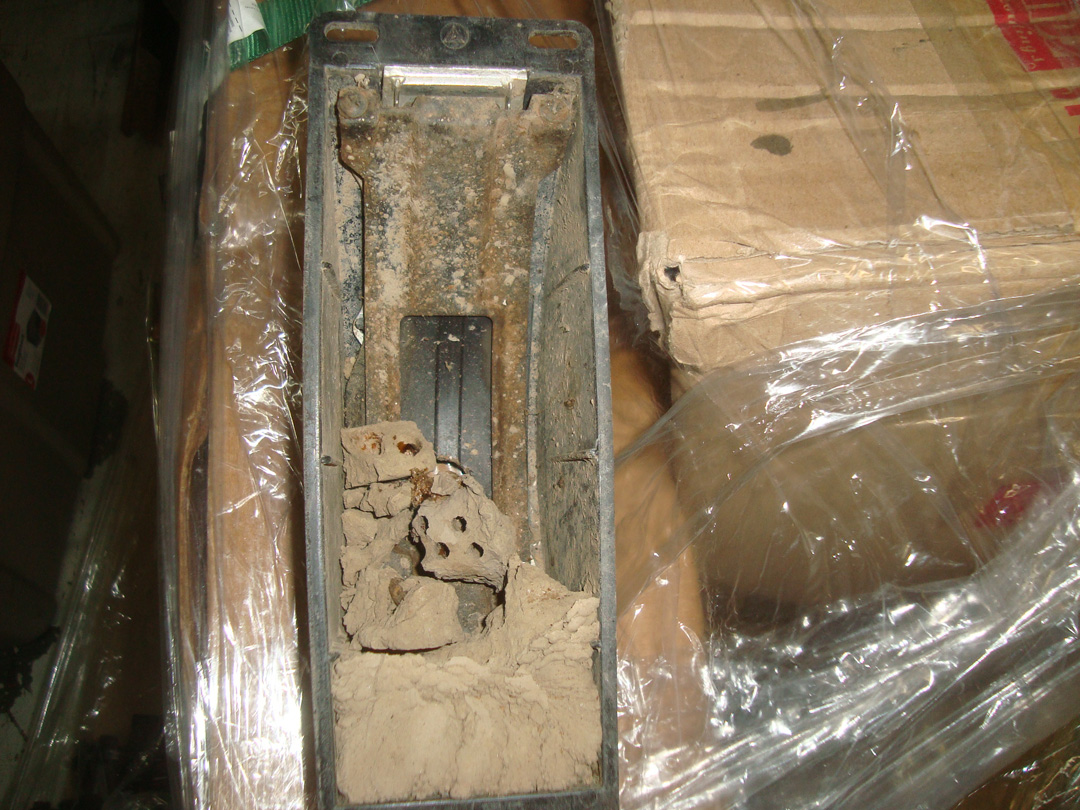

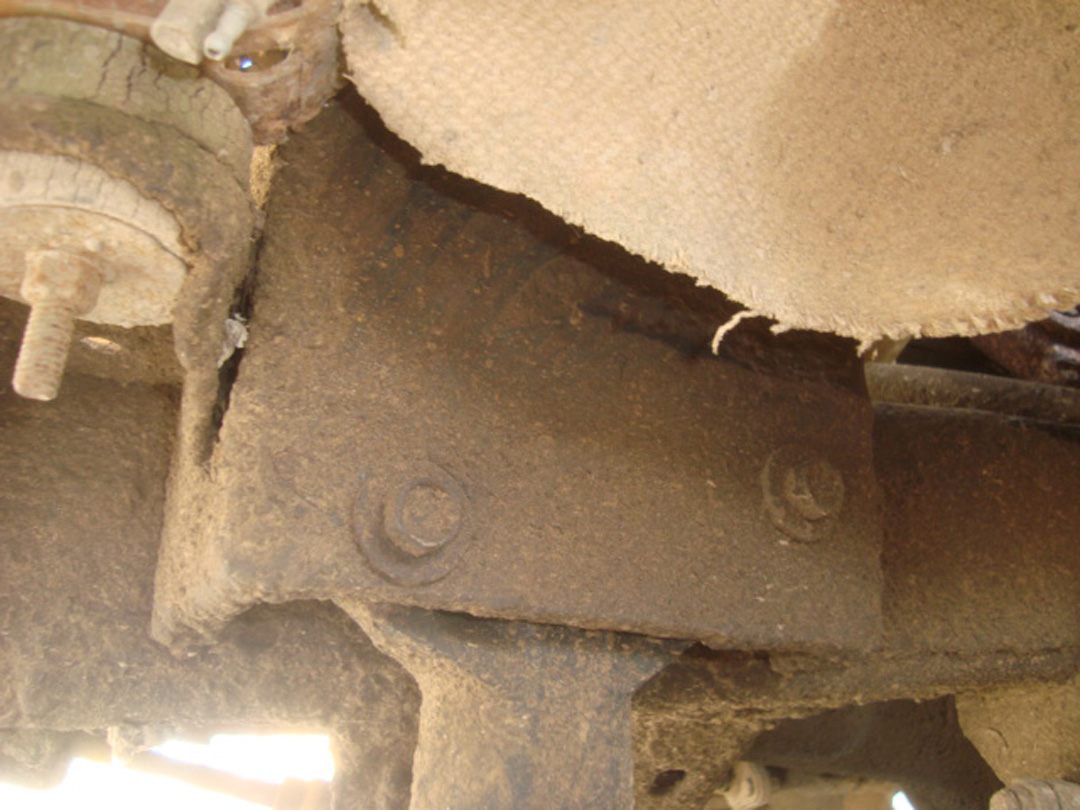

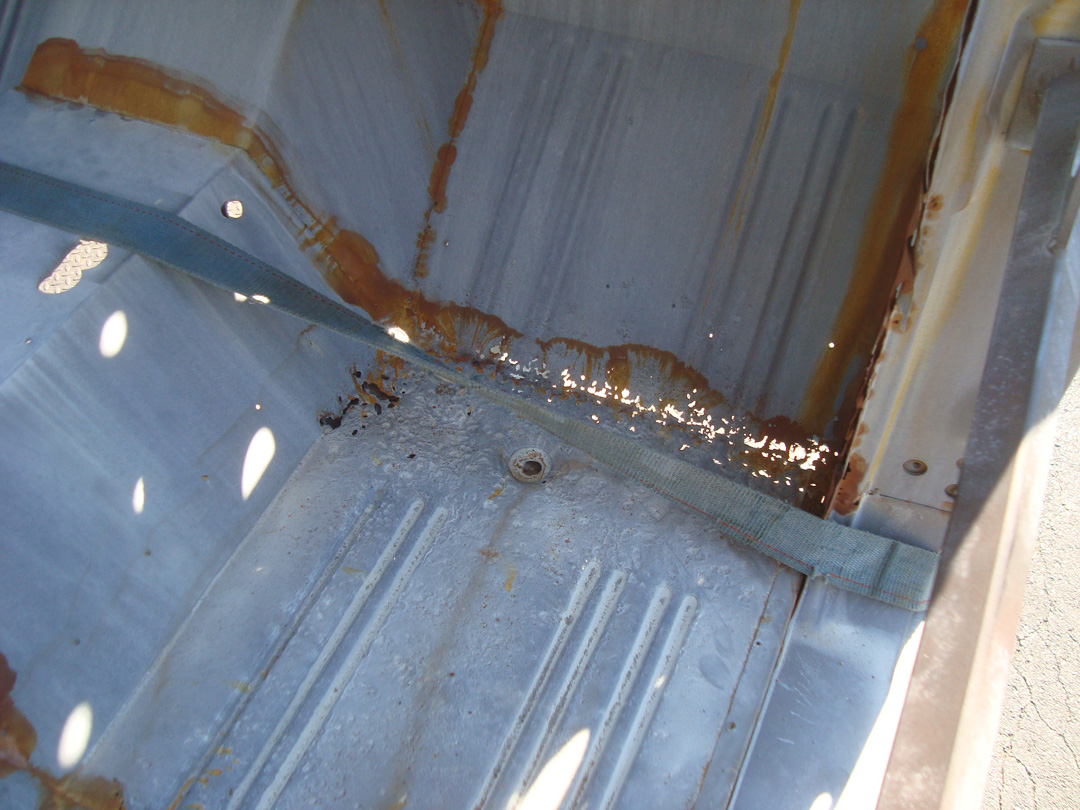

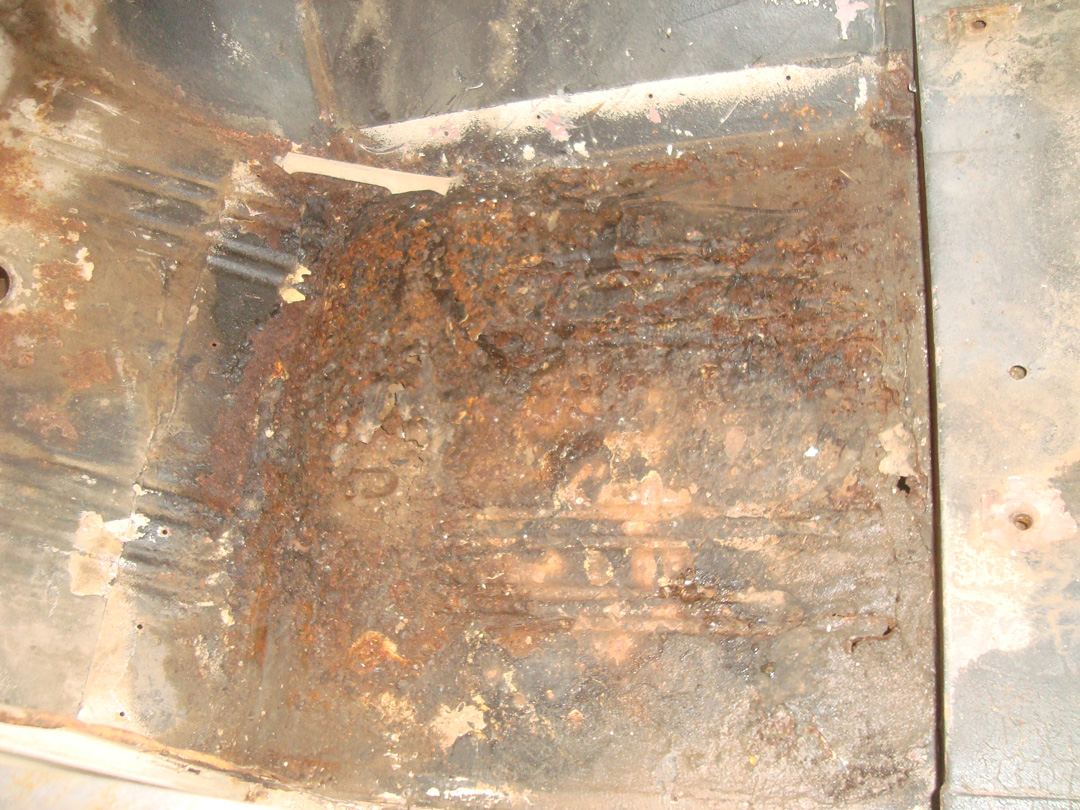

"Tiger Bait" was used hard and put away wet and muddy many times through its 40+ years. The new owner will now be using it as a corporate cruiser and keeping it on the mainland. He wanted a balance of modern and vintage and is very excited about ushering the truck into it's next phase of life.

It's always fun to see them transform from a diamond in the rough to a jewel.

Oh, the stories they could tell if they could talk....

eng

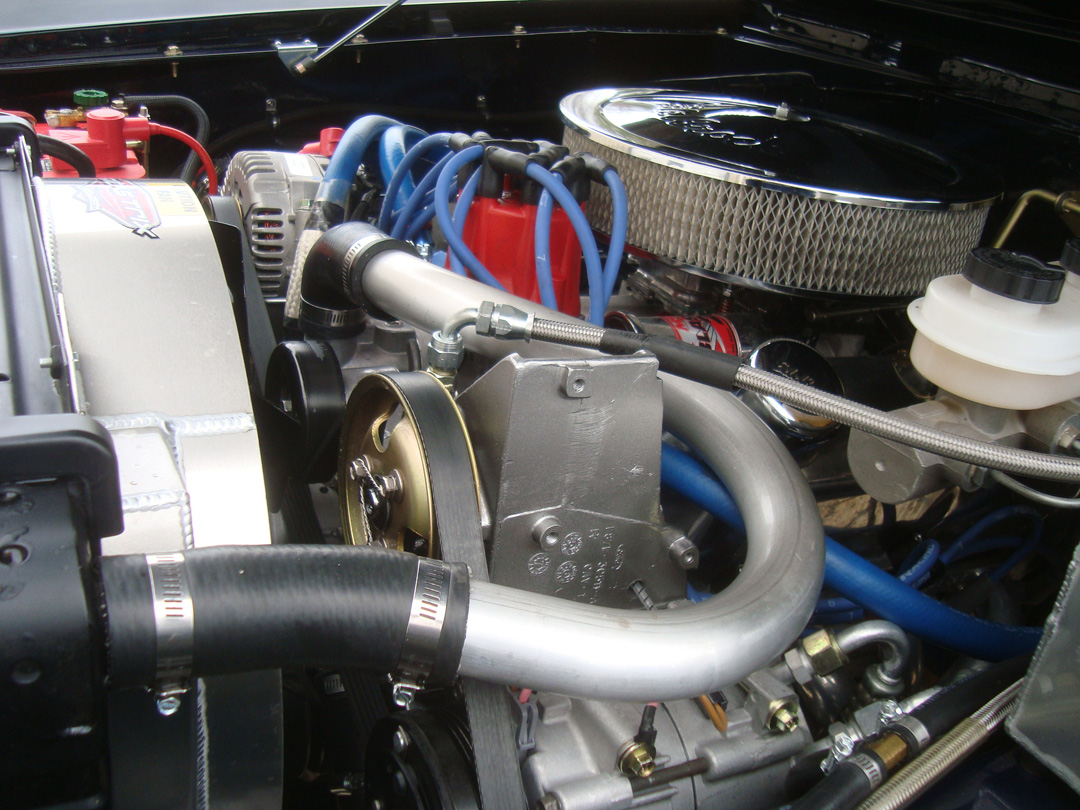

  • 5.0 Roller built by Campbell Gear Tech

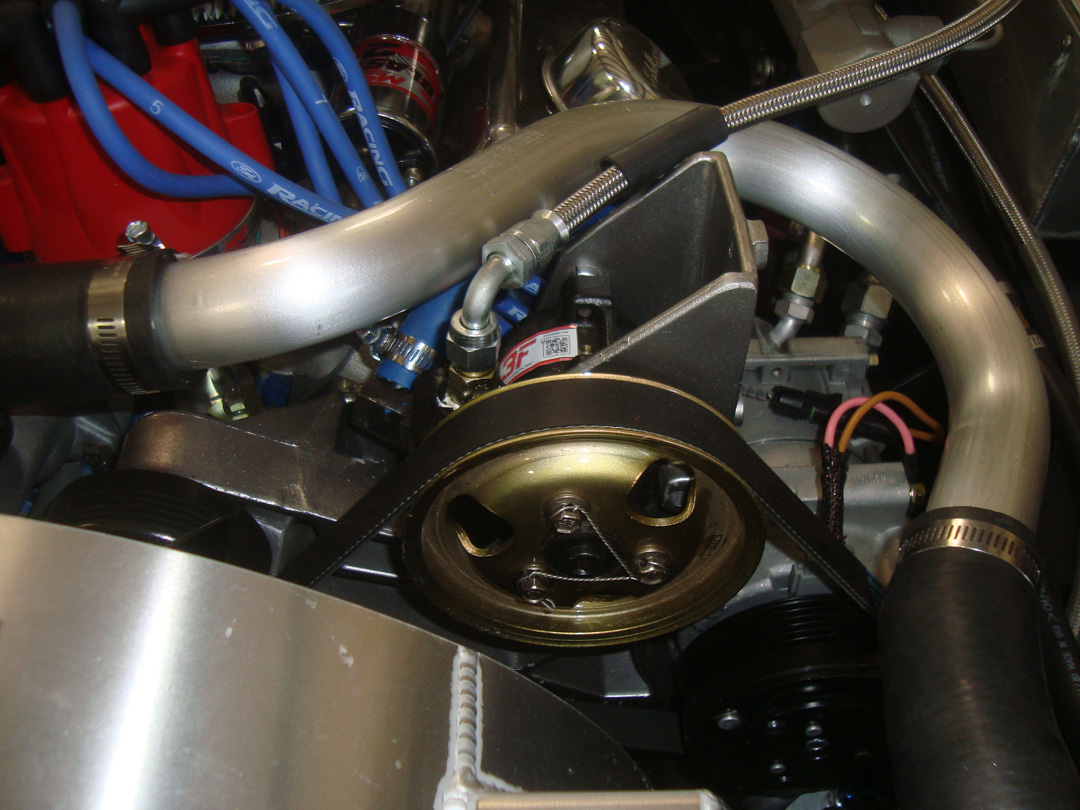

  • Explorer serpentine
  • Edelbrock alum cylinder heads
  • Comp Cam & roller valve train
  • Summit Carb with Weiand Intake
  • MSD E curve distributor
  • High Efficiency radiator by McKinney

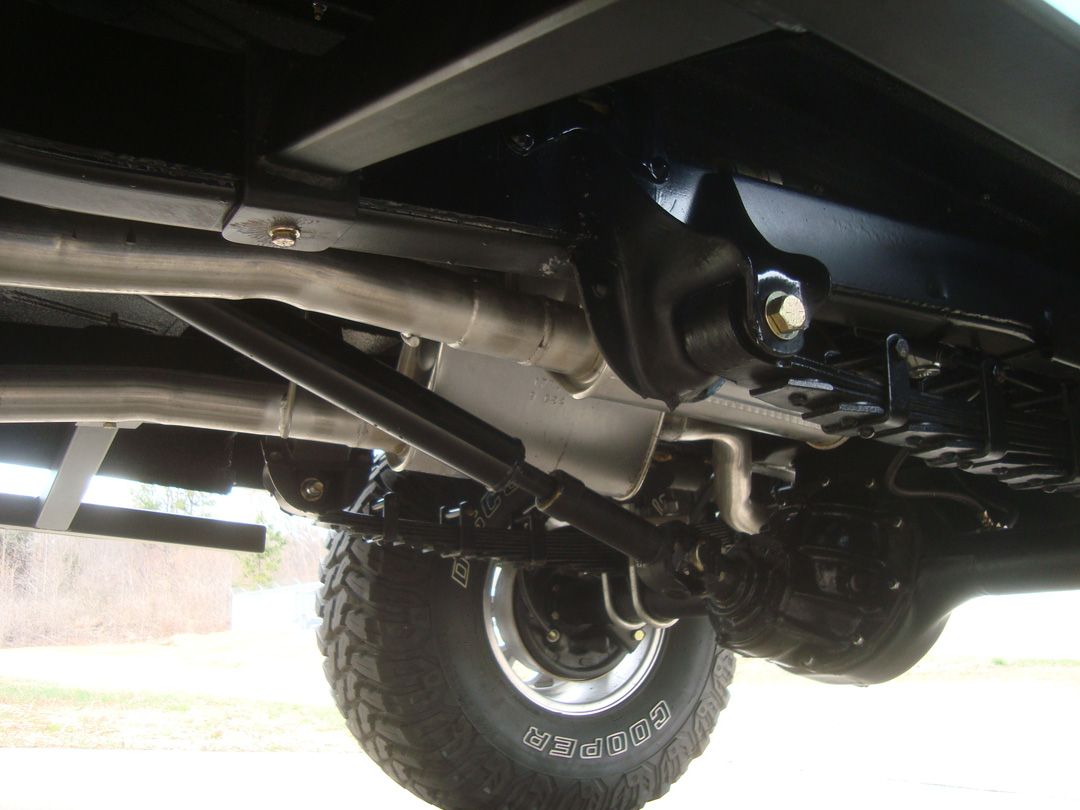

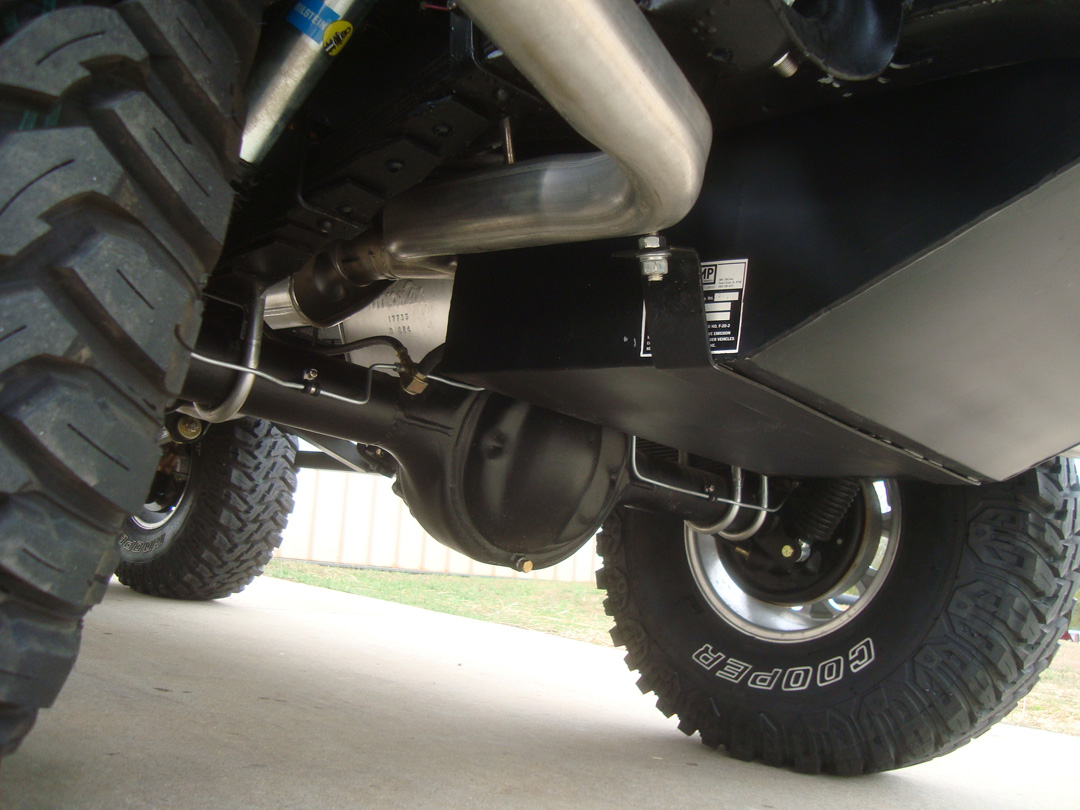

  • Shorty headers, Magnaflow mufflers & exhaust by Ation Engineering

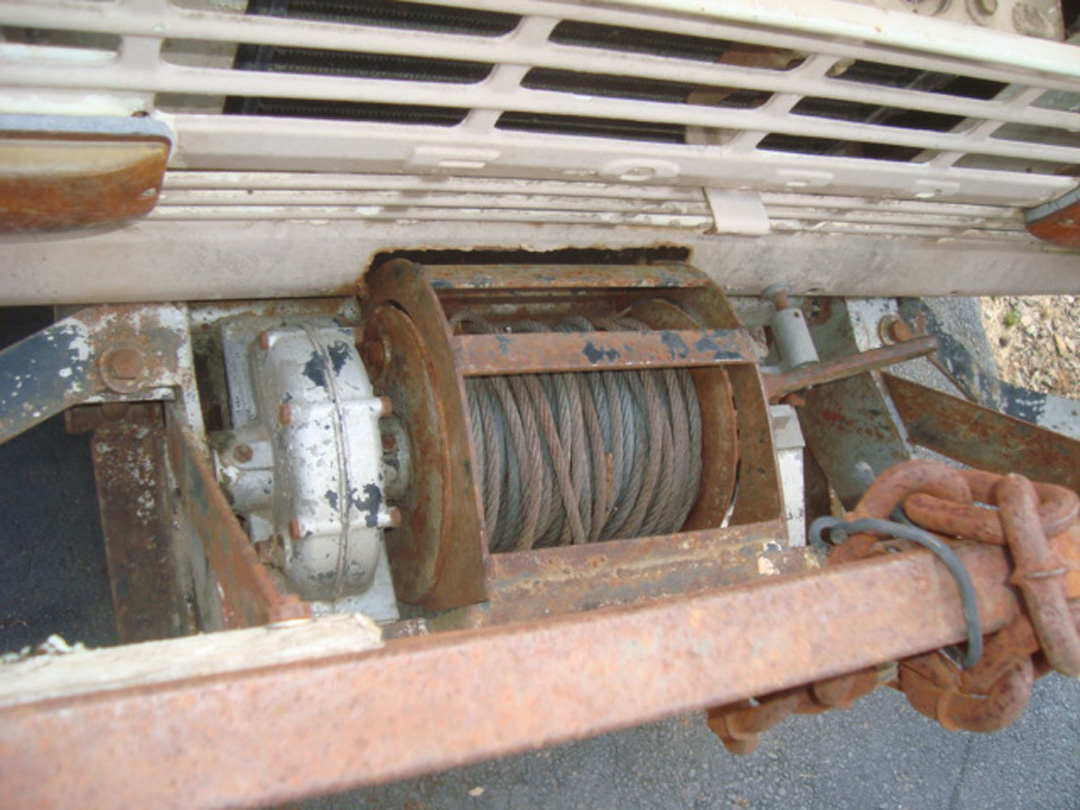

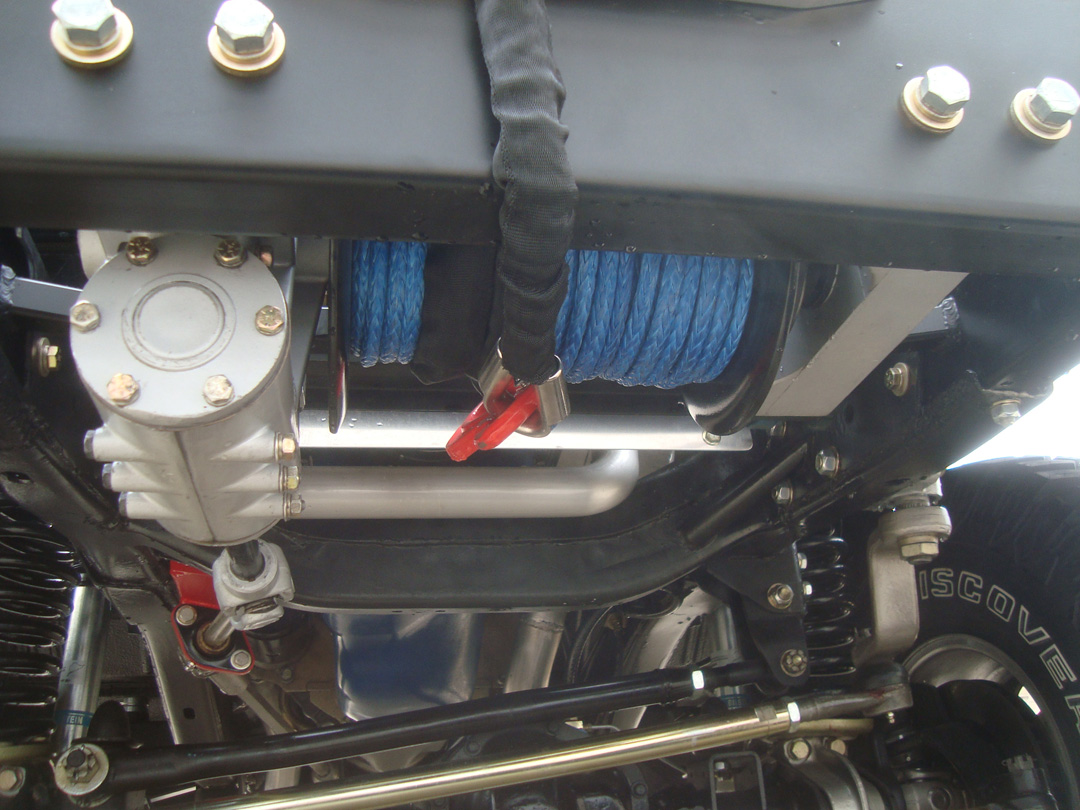

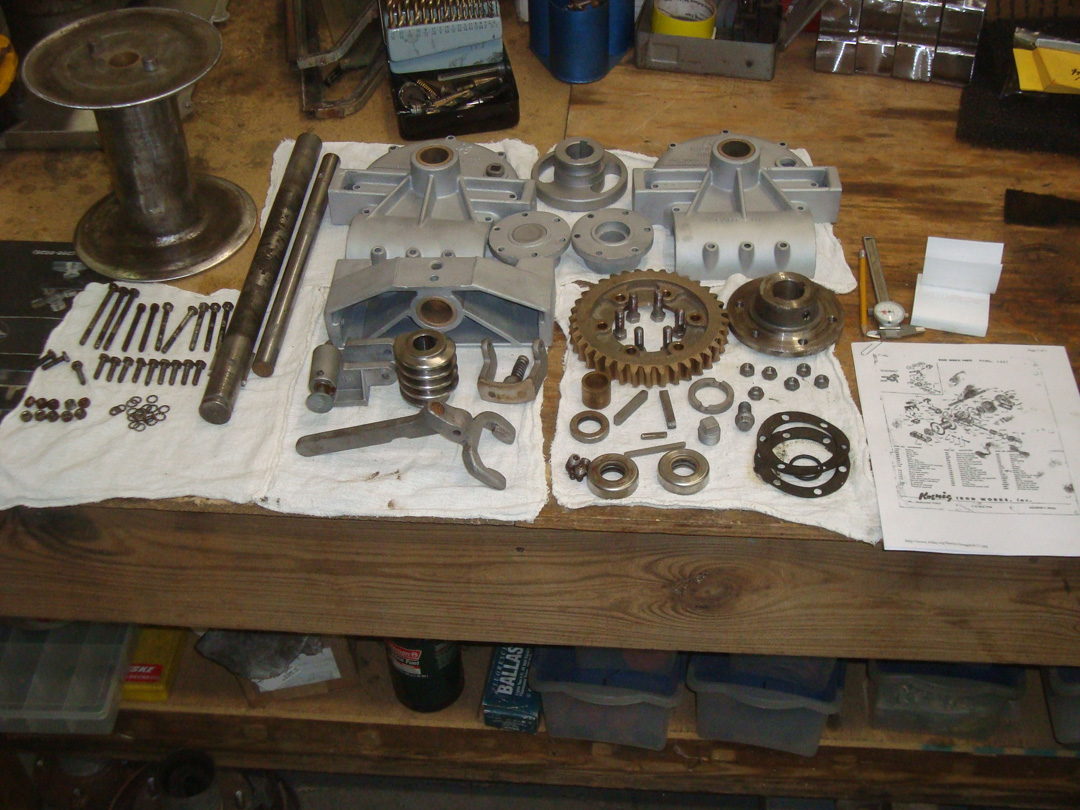

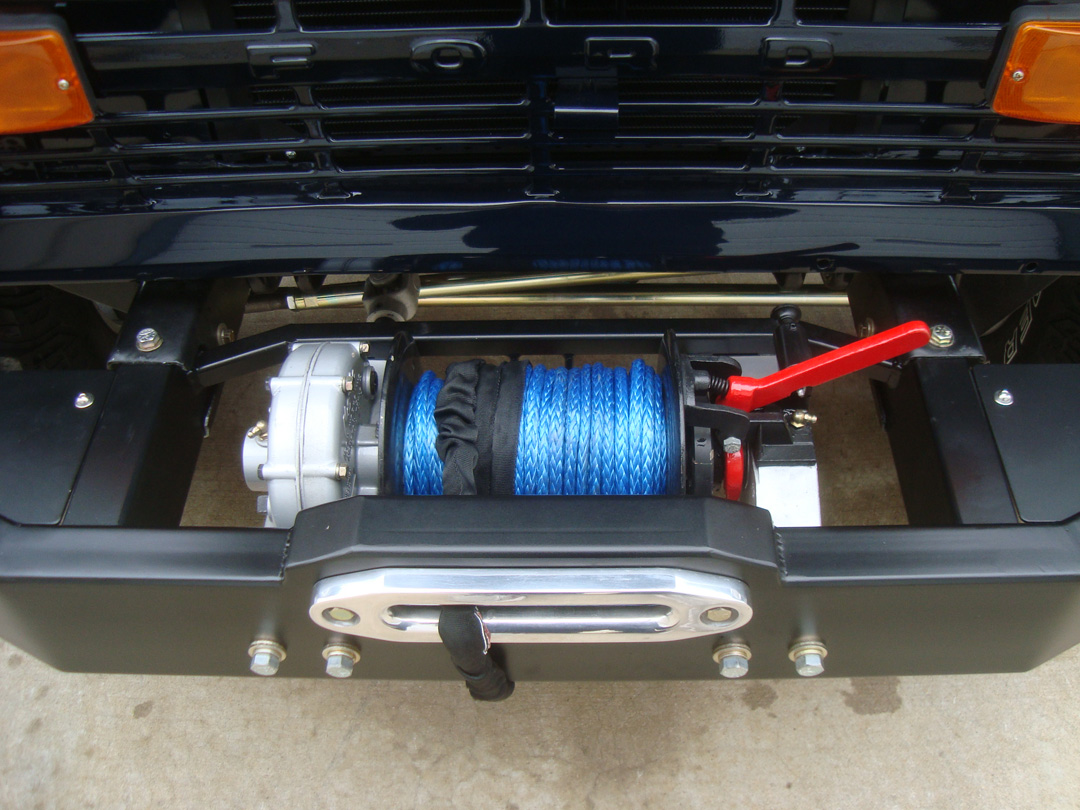

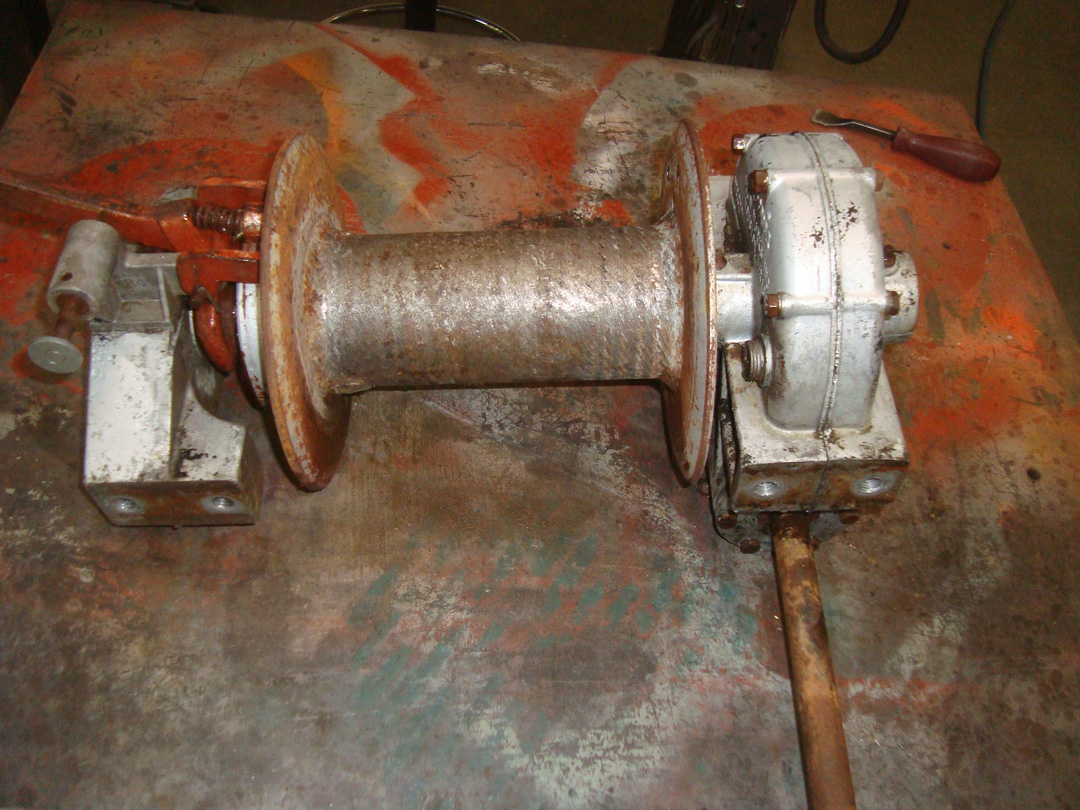

  • Rebuilt Koenig PTO and uses synthetic line
  • 23 gal Fuel tank
  • Plumbing with Goodridge lines & fittings

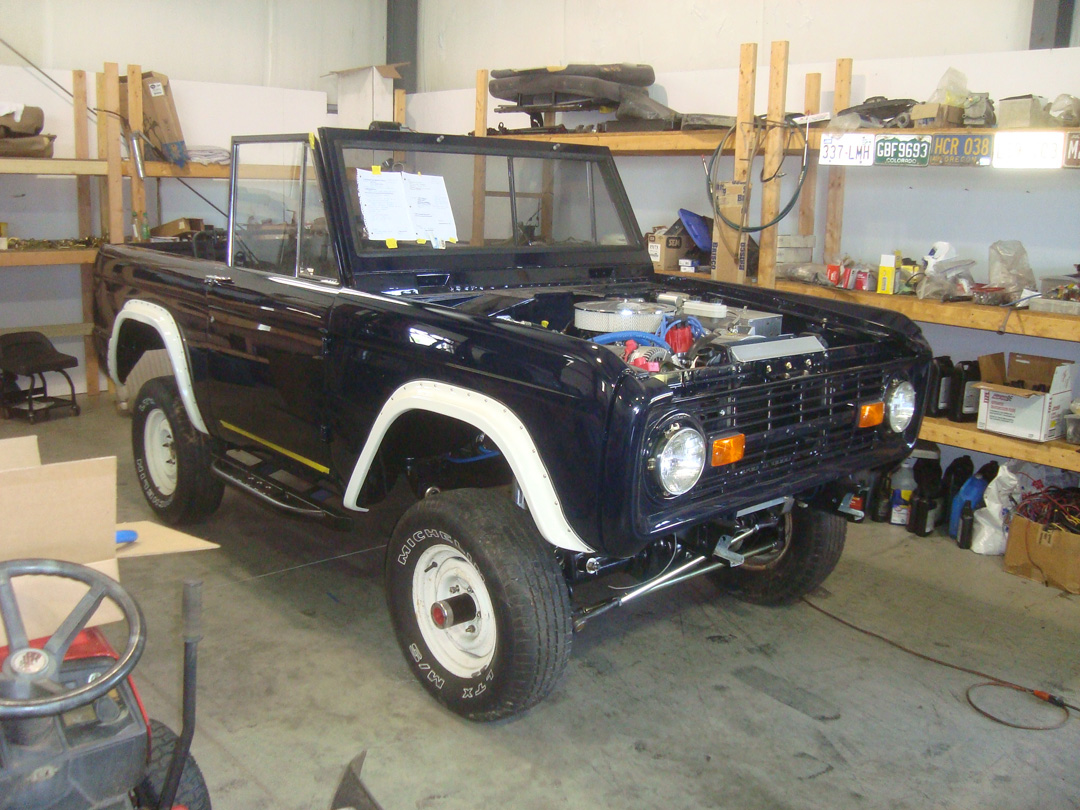

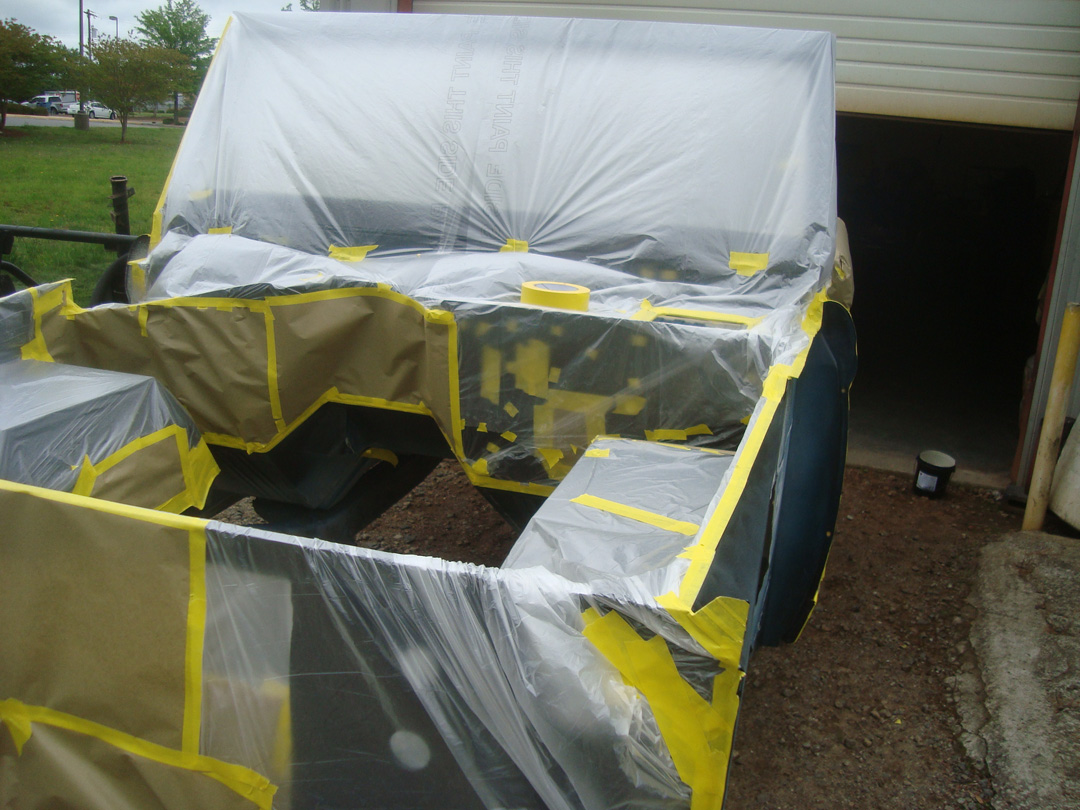

  • Color: Ford/Lincoln Midnight Blue & Wimbledon White by PPG

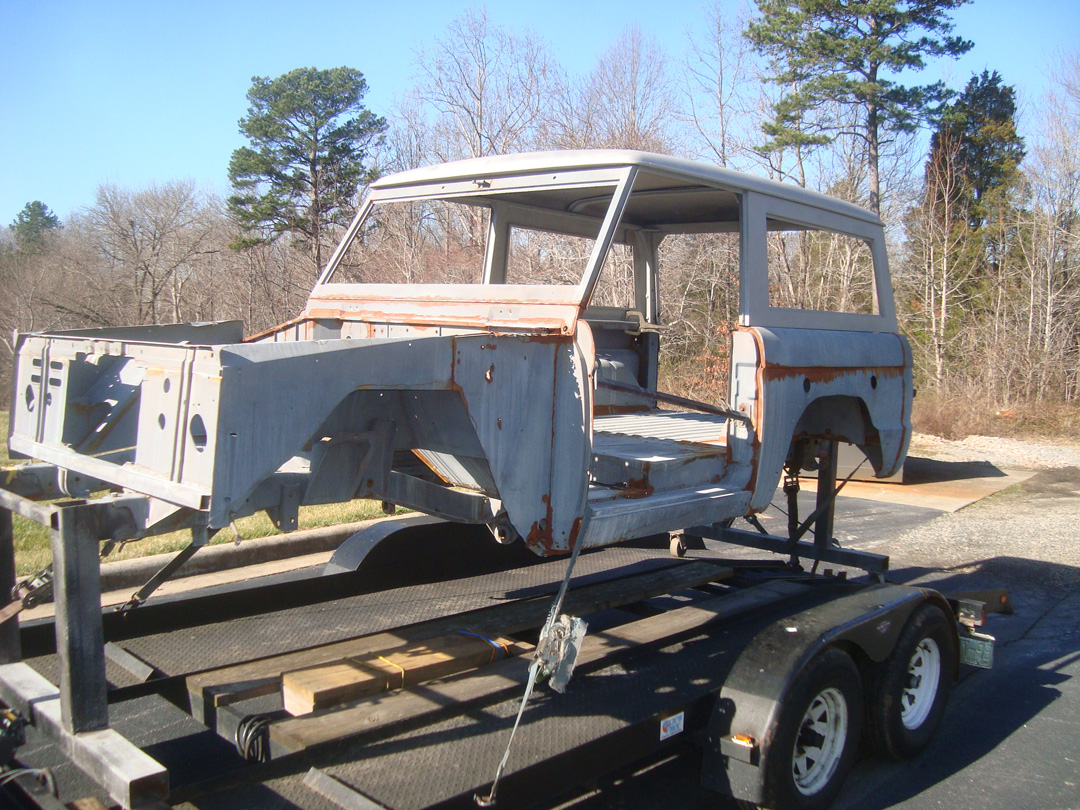

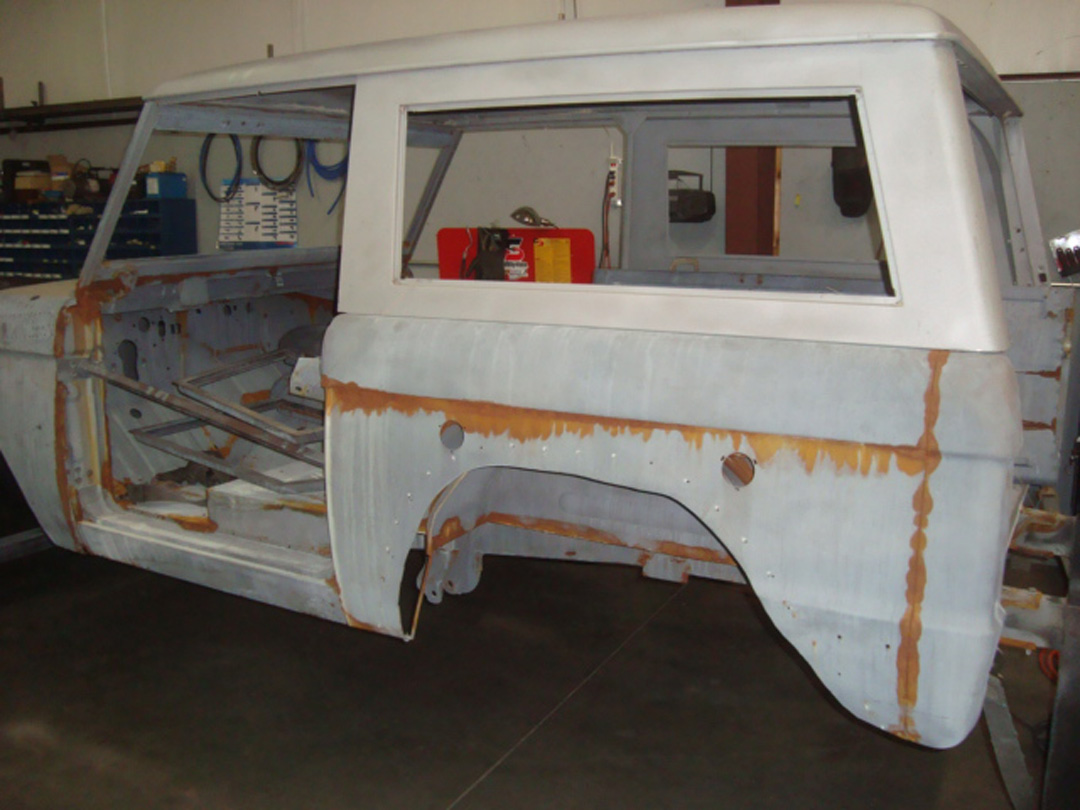

  • Stripped by Diversified Finishers
  • Refinished by Chuck Schenck Autobody

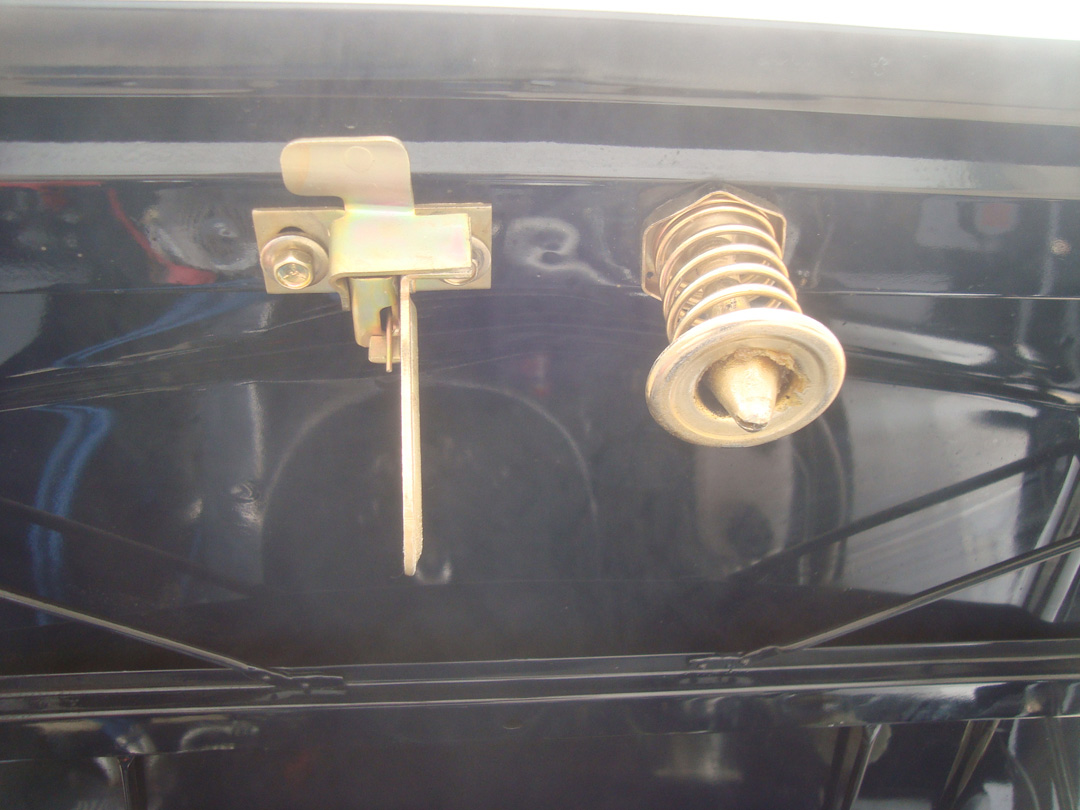

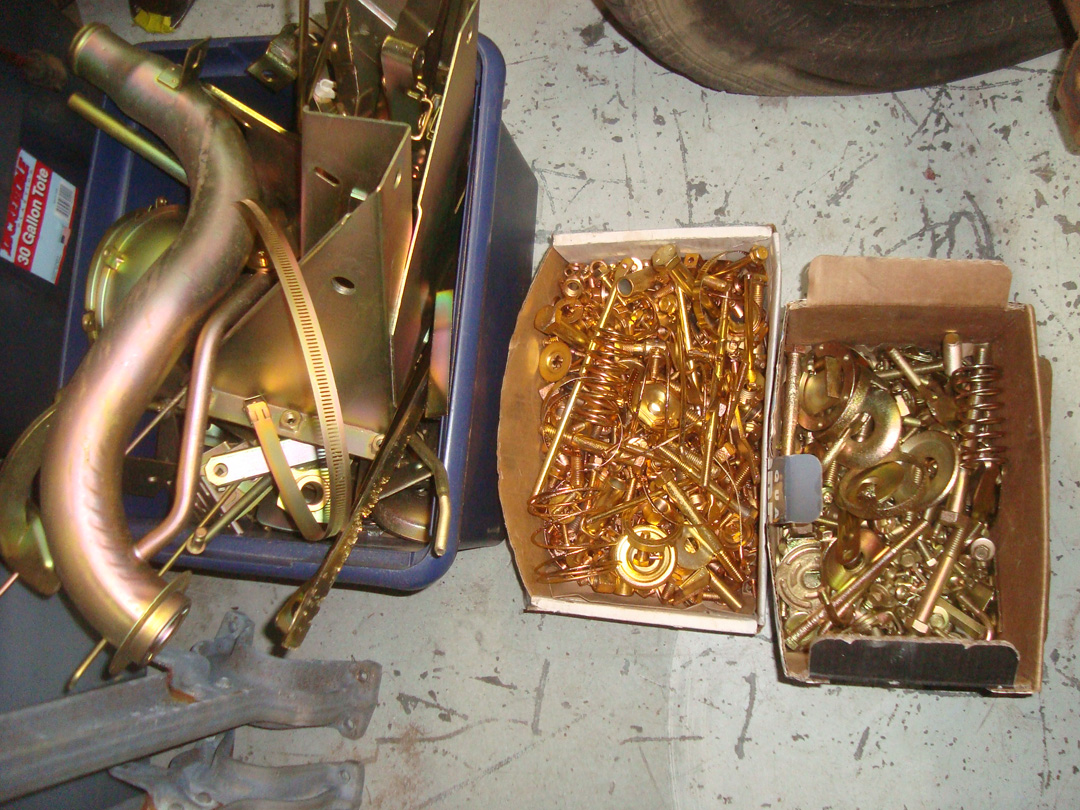

  • All hardware refinished in Zinc or replaced with stainless

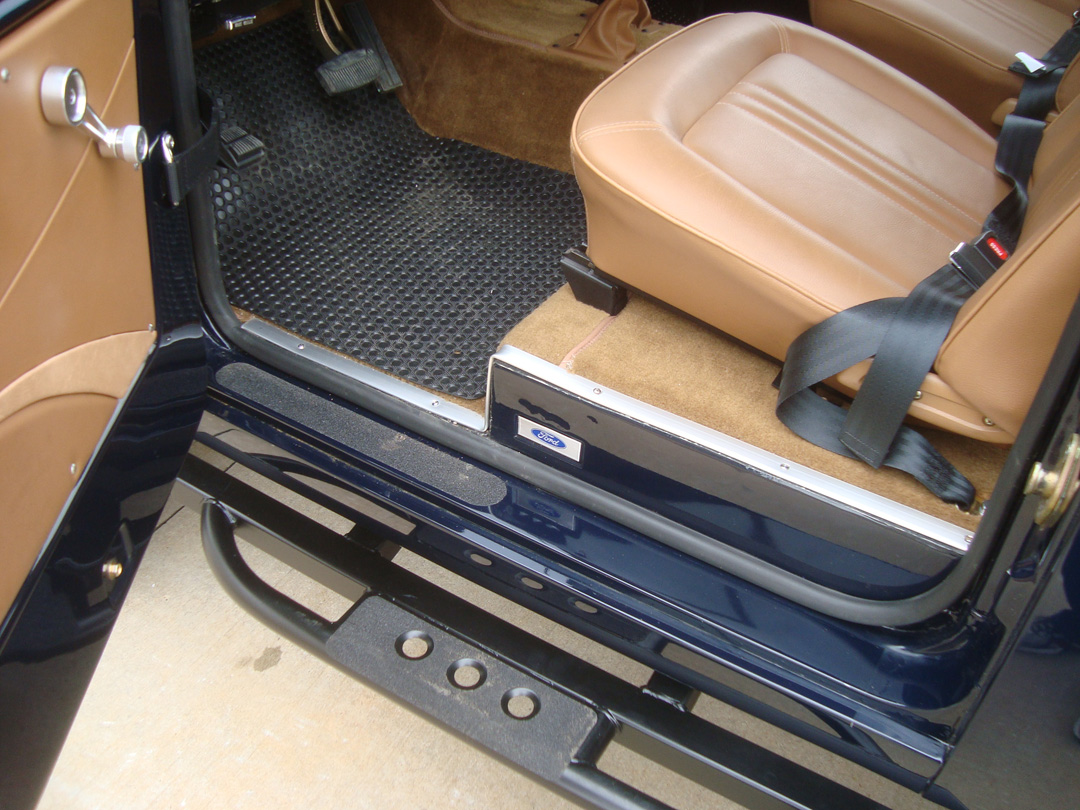

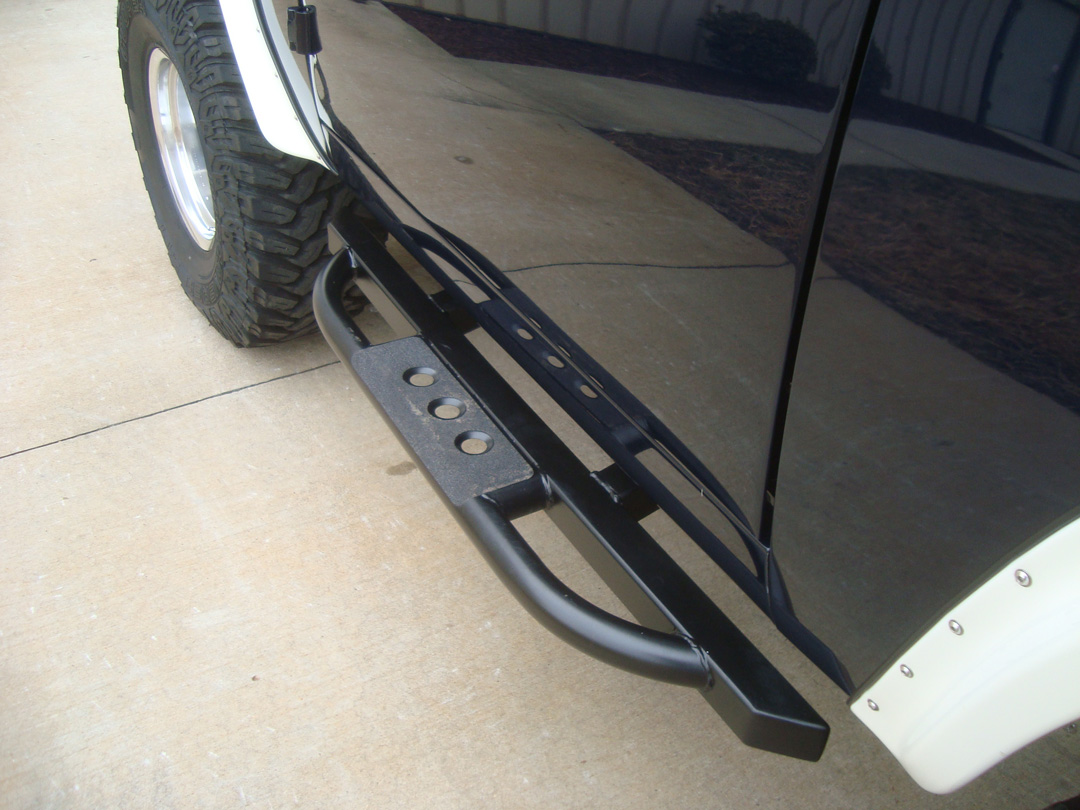

  • NT side steps

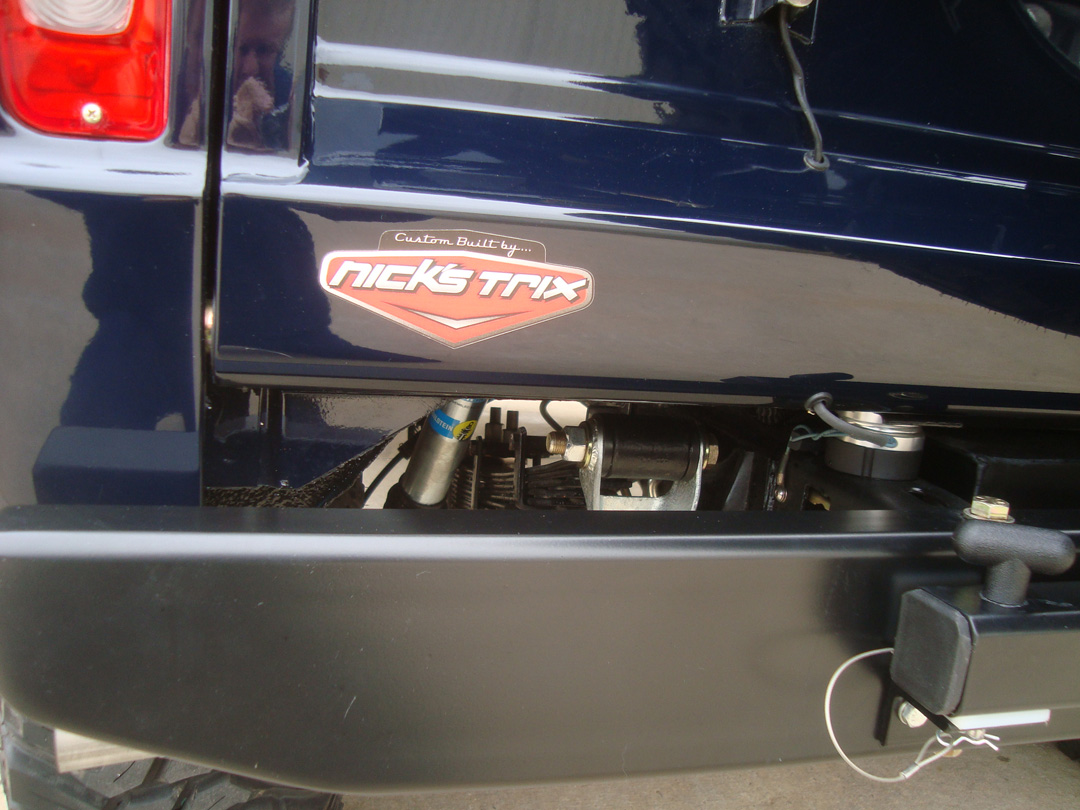

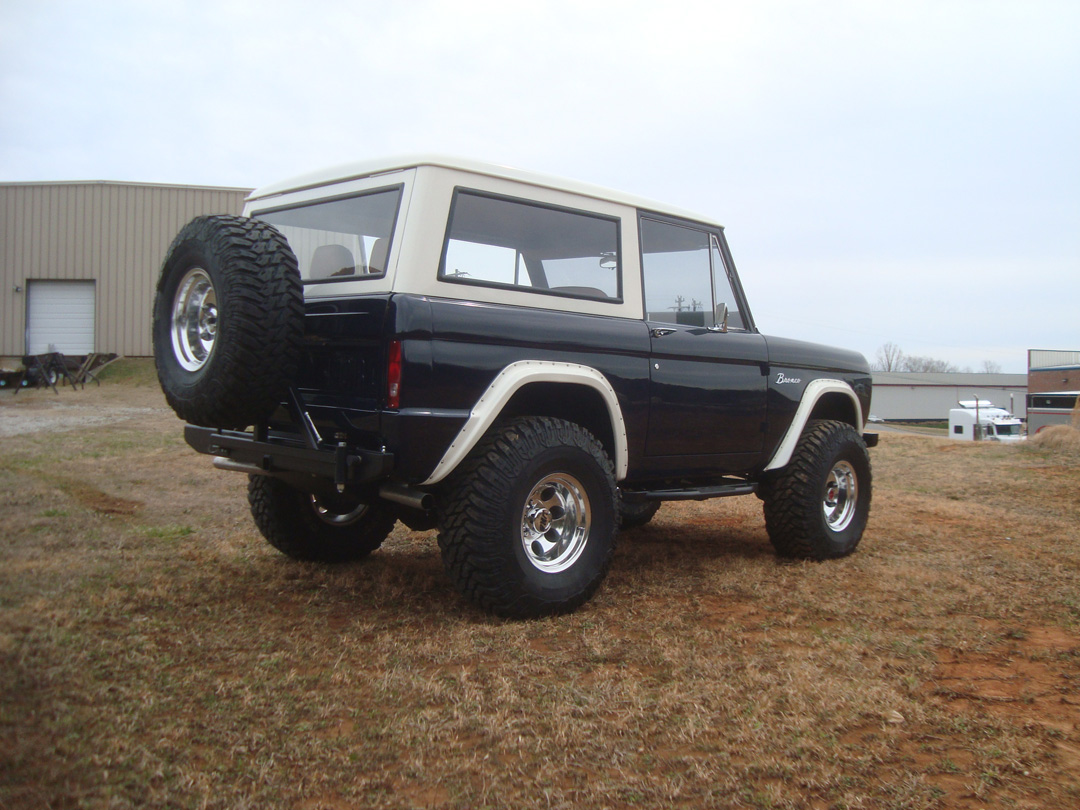

  • Cross Enterprises rear bumper & tire carrier

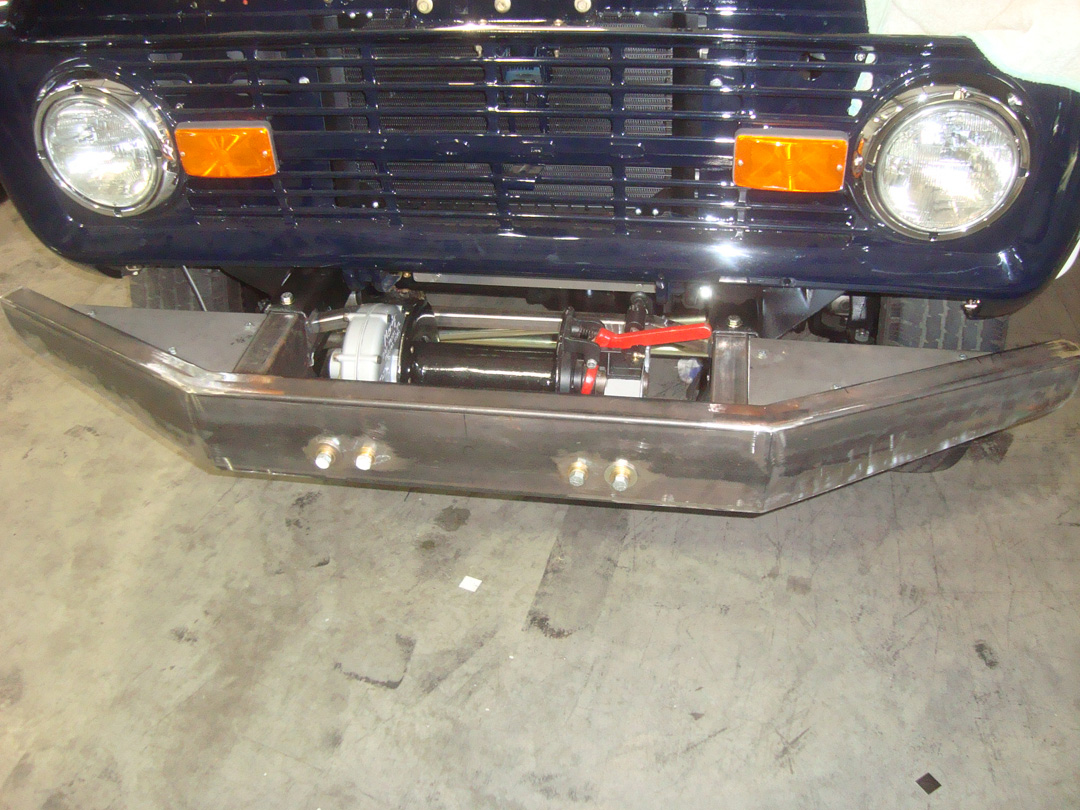

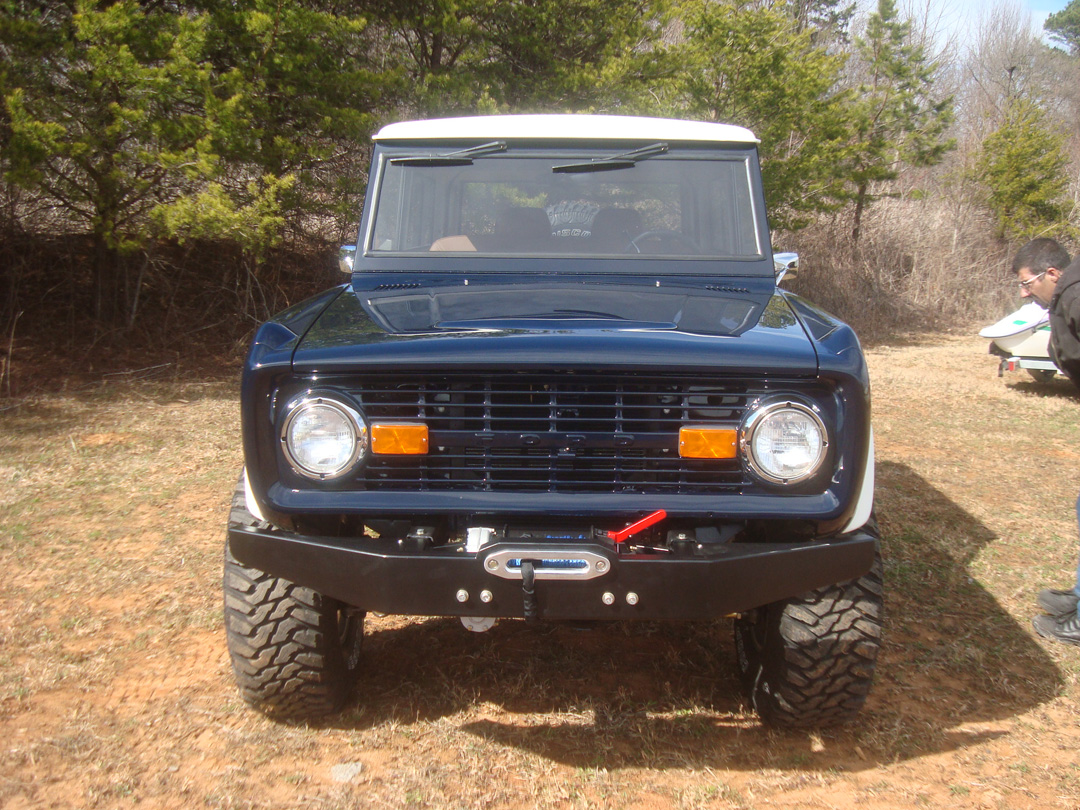

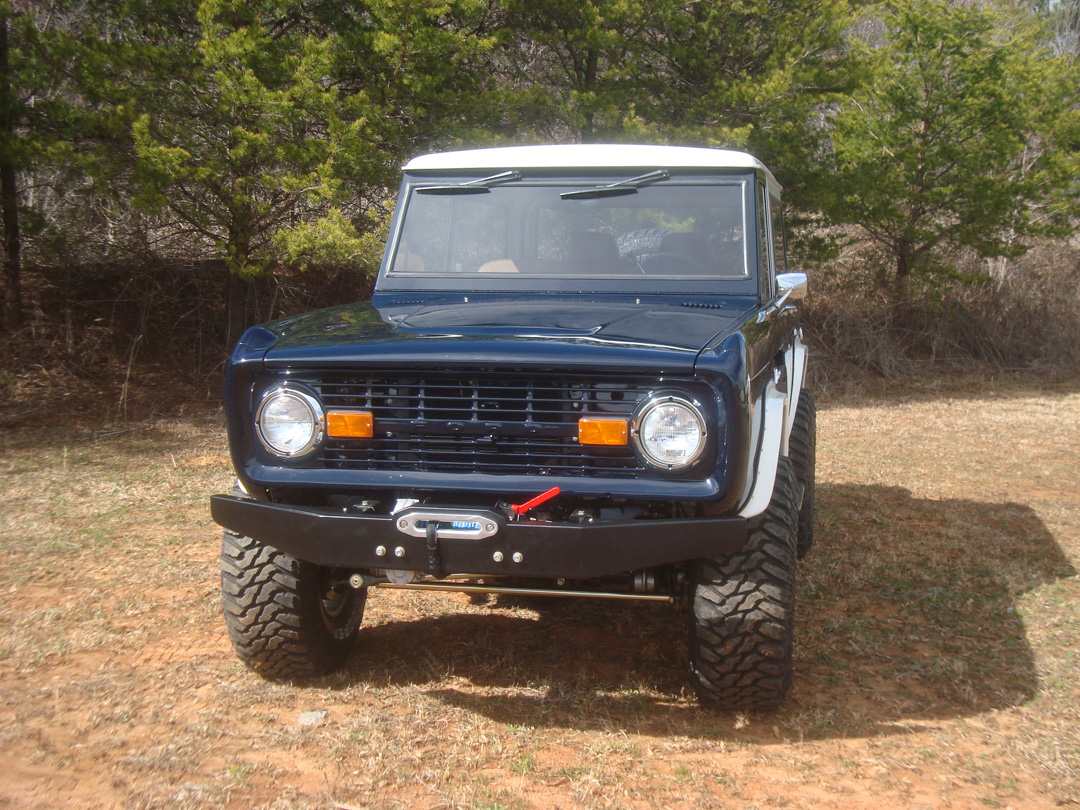

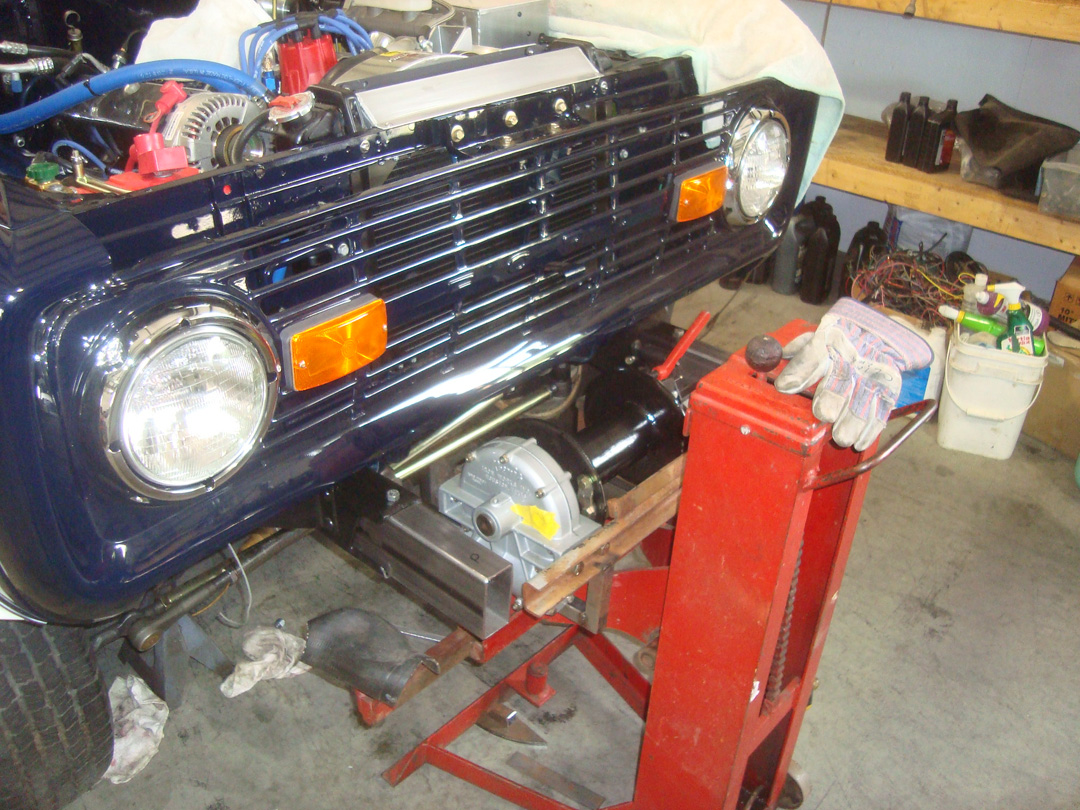

  • NT custom front winch bumper

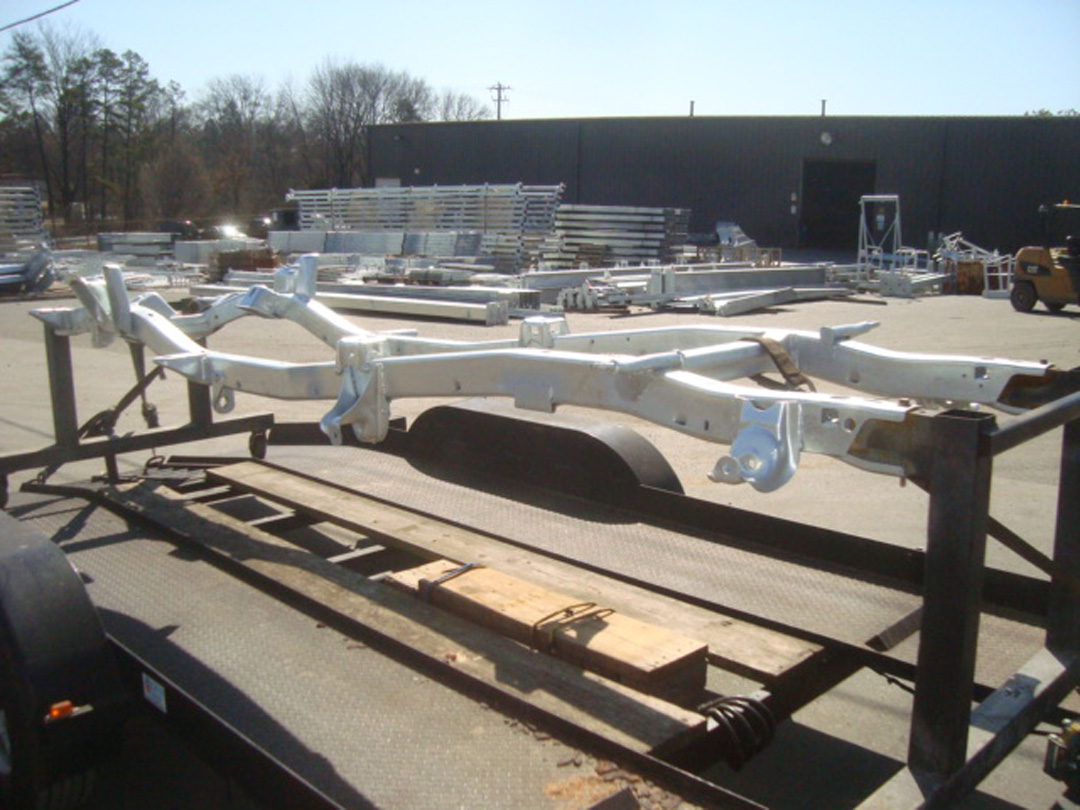

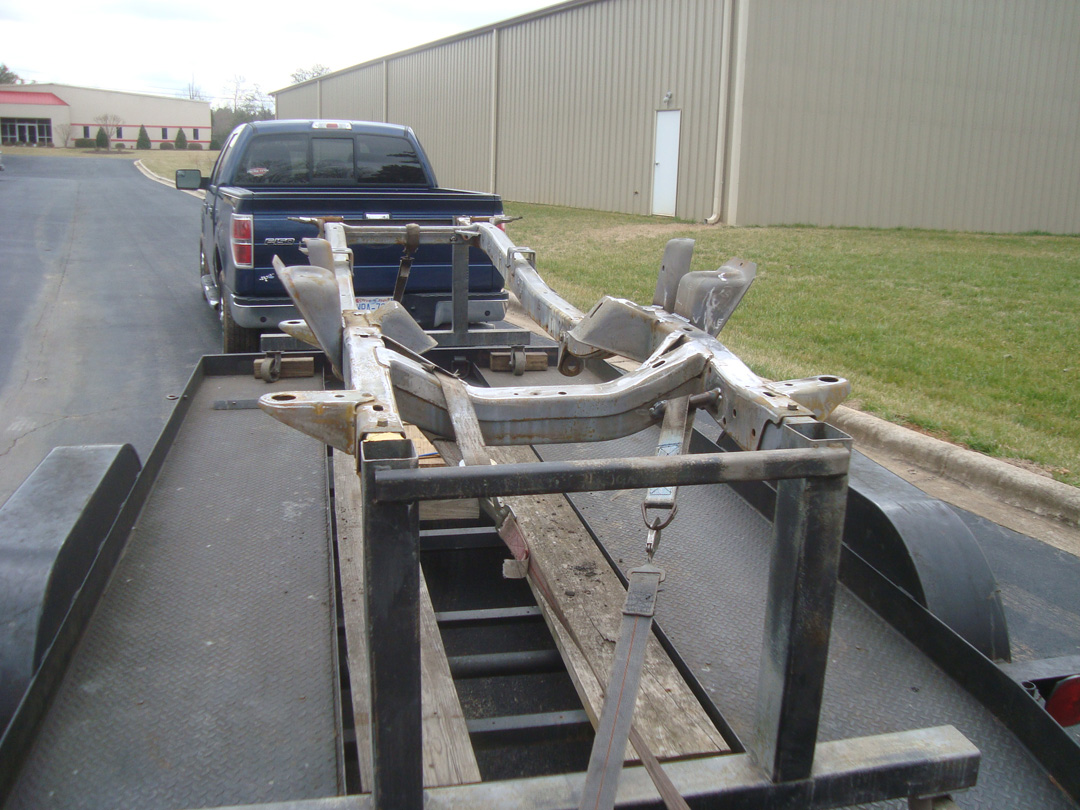

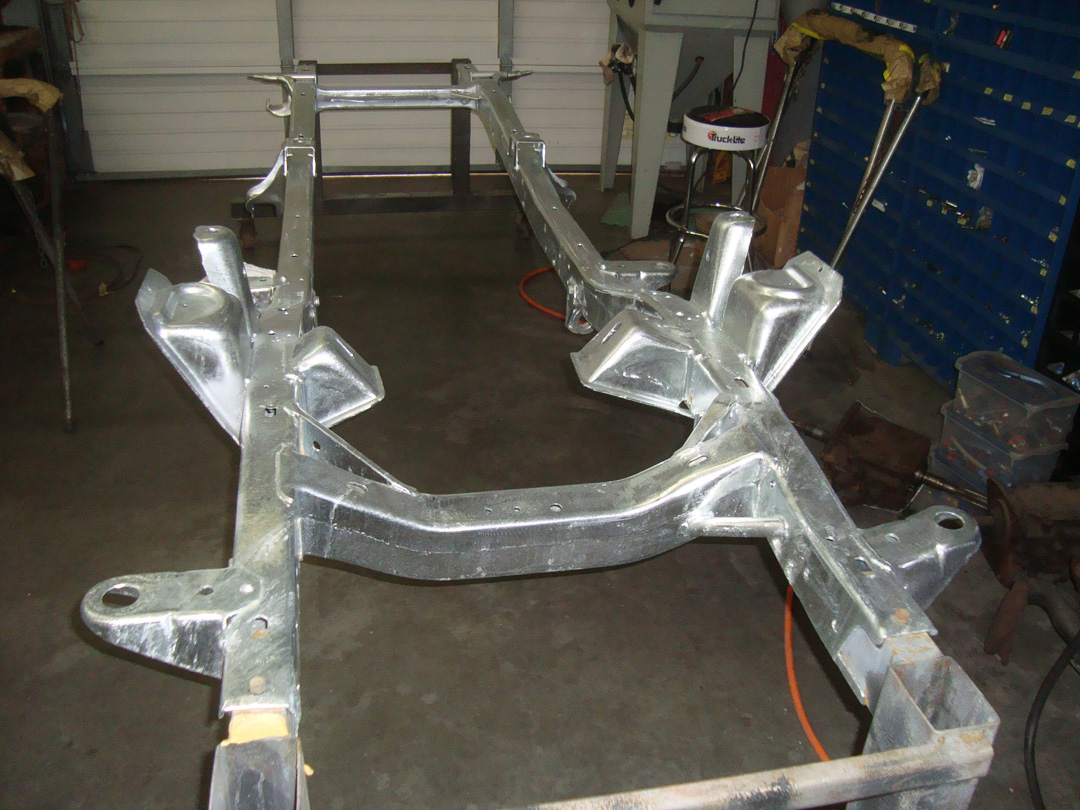

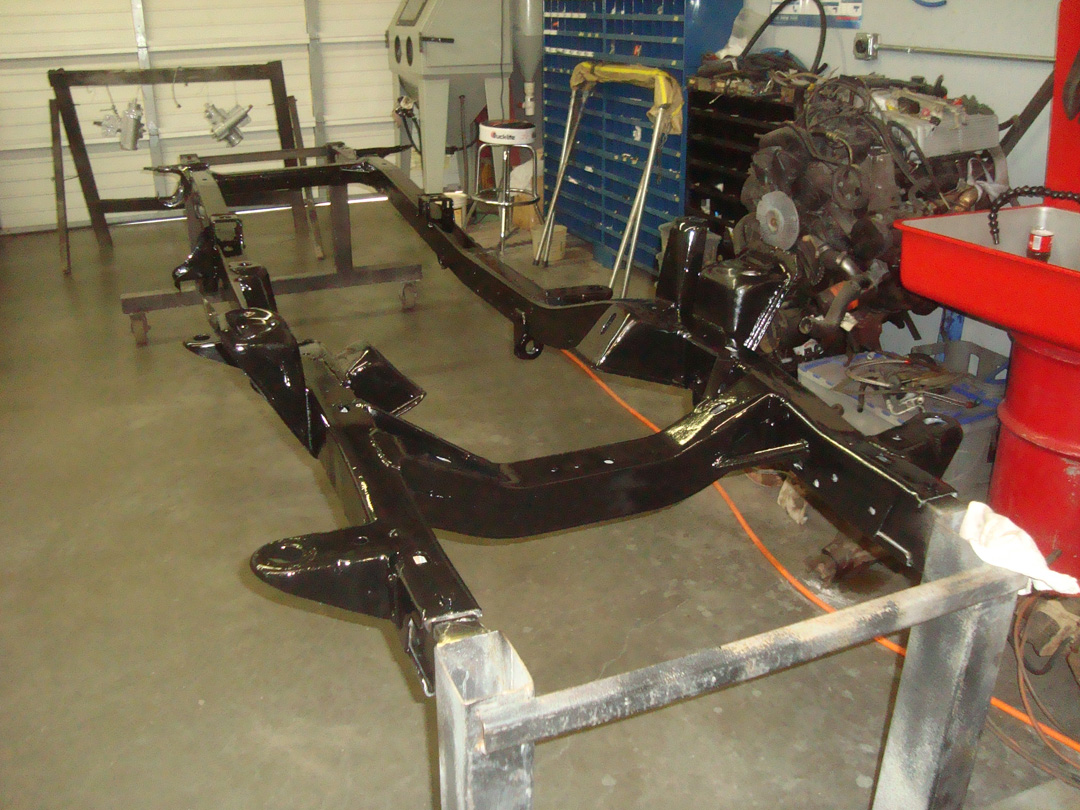

  • Frame galvanized & top coated in KBS paint

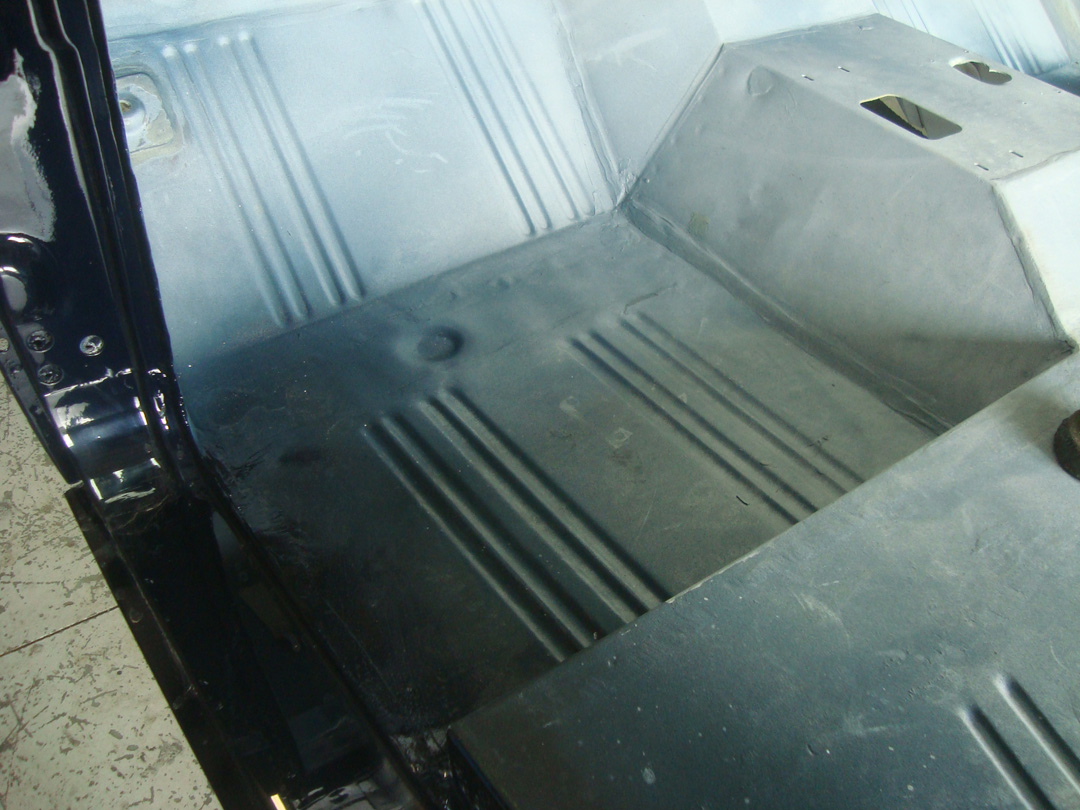

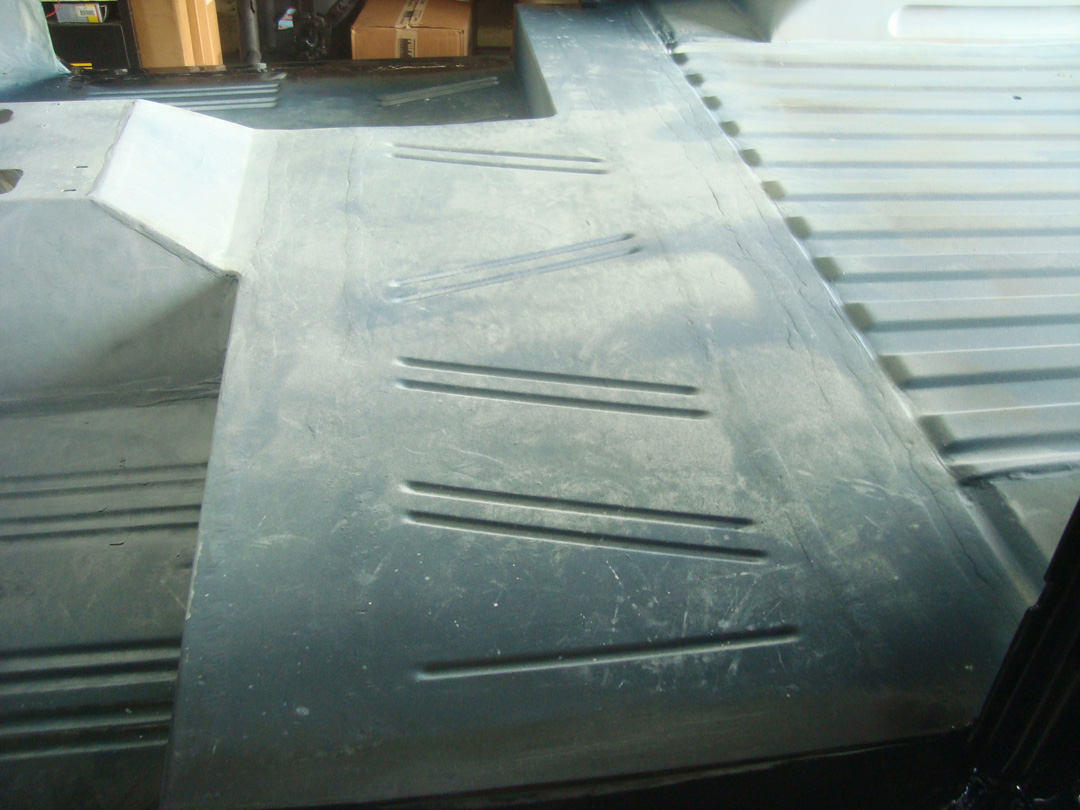

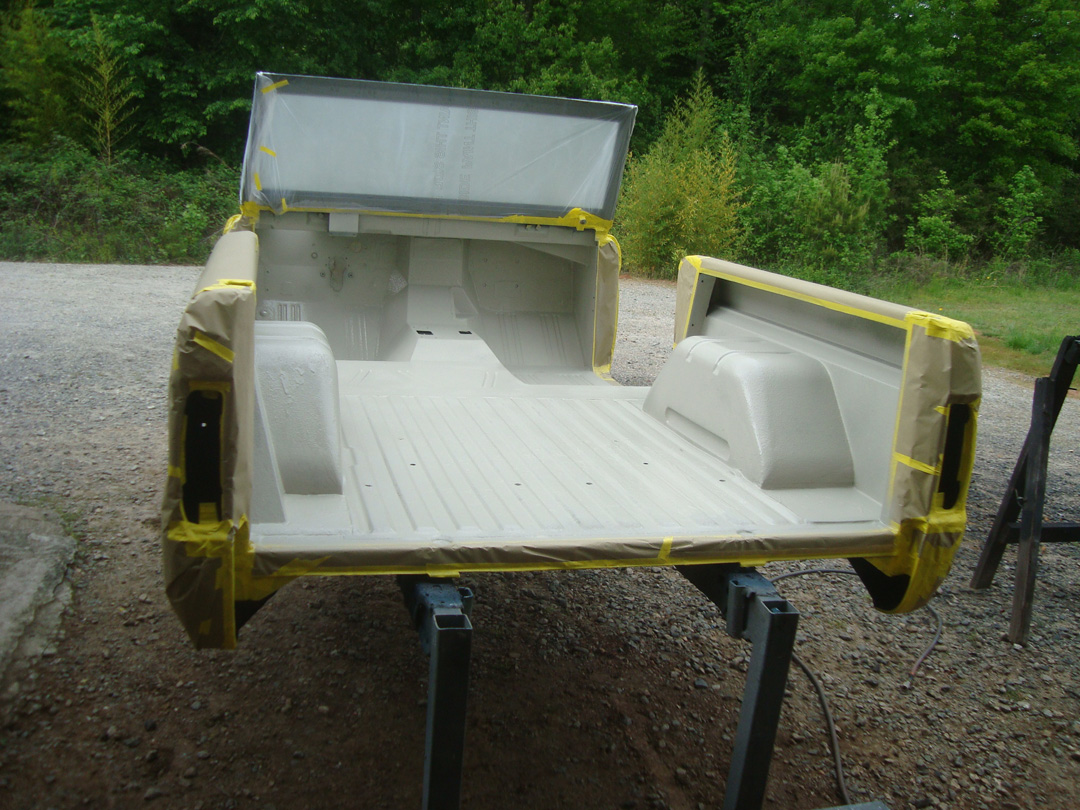

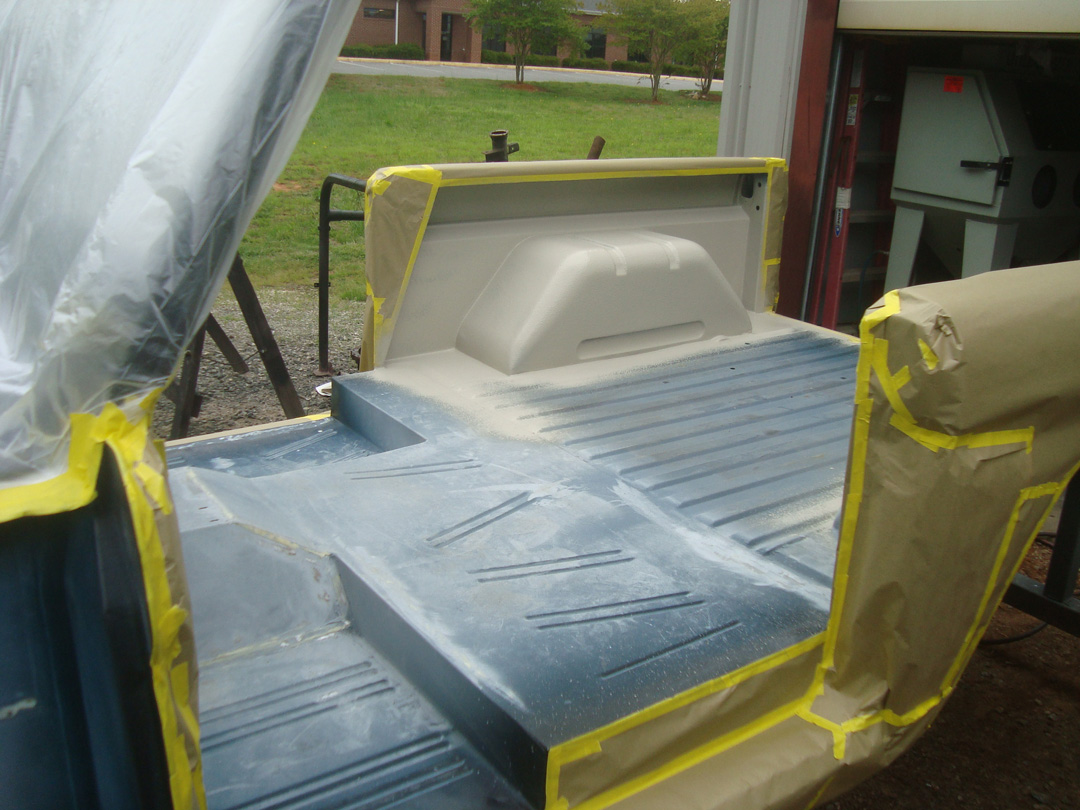

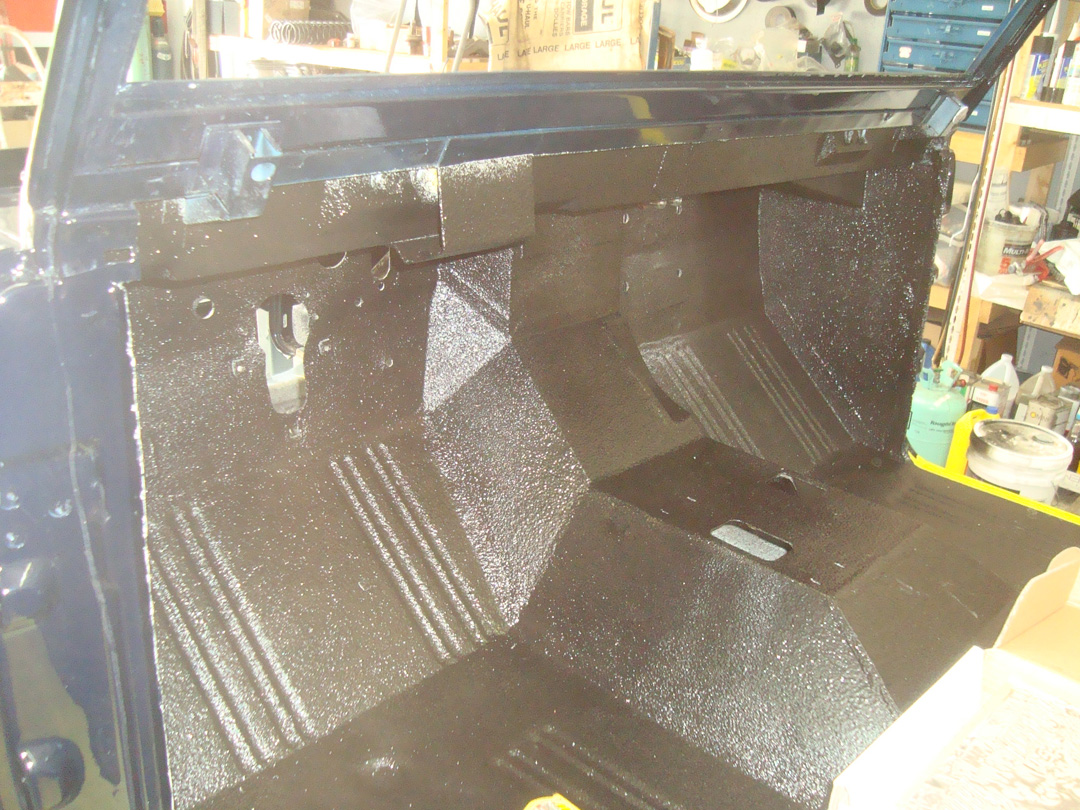

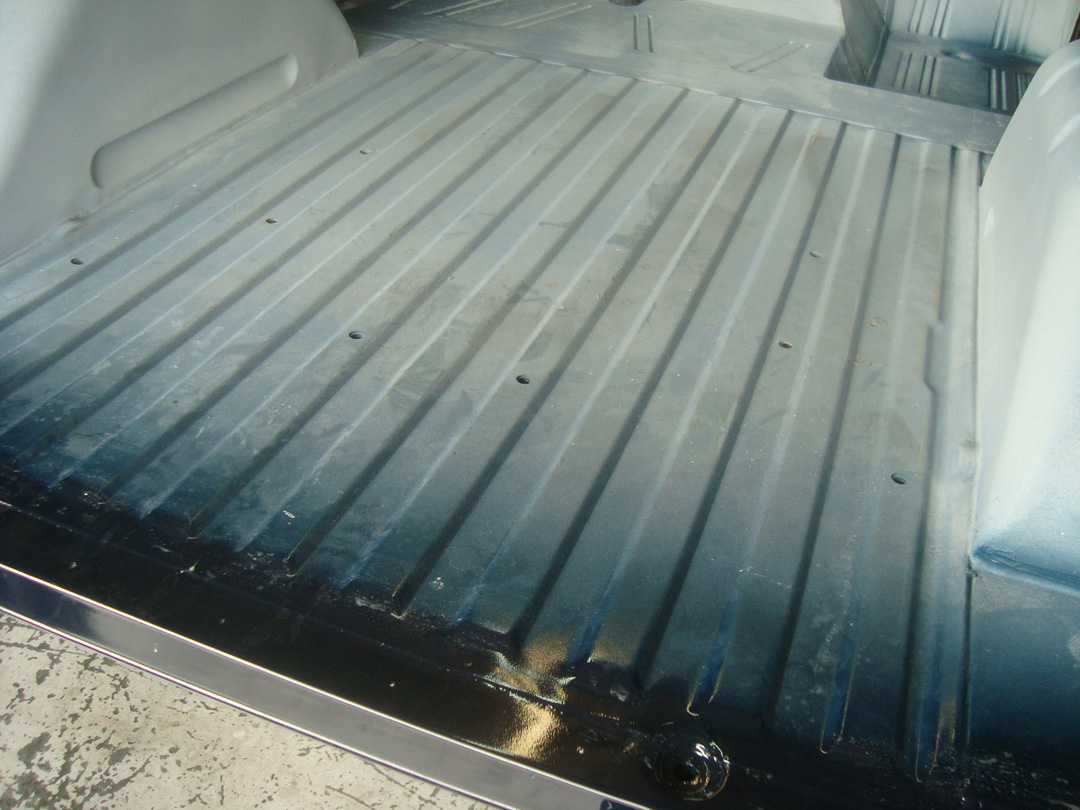

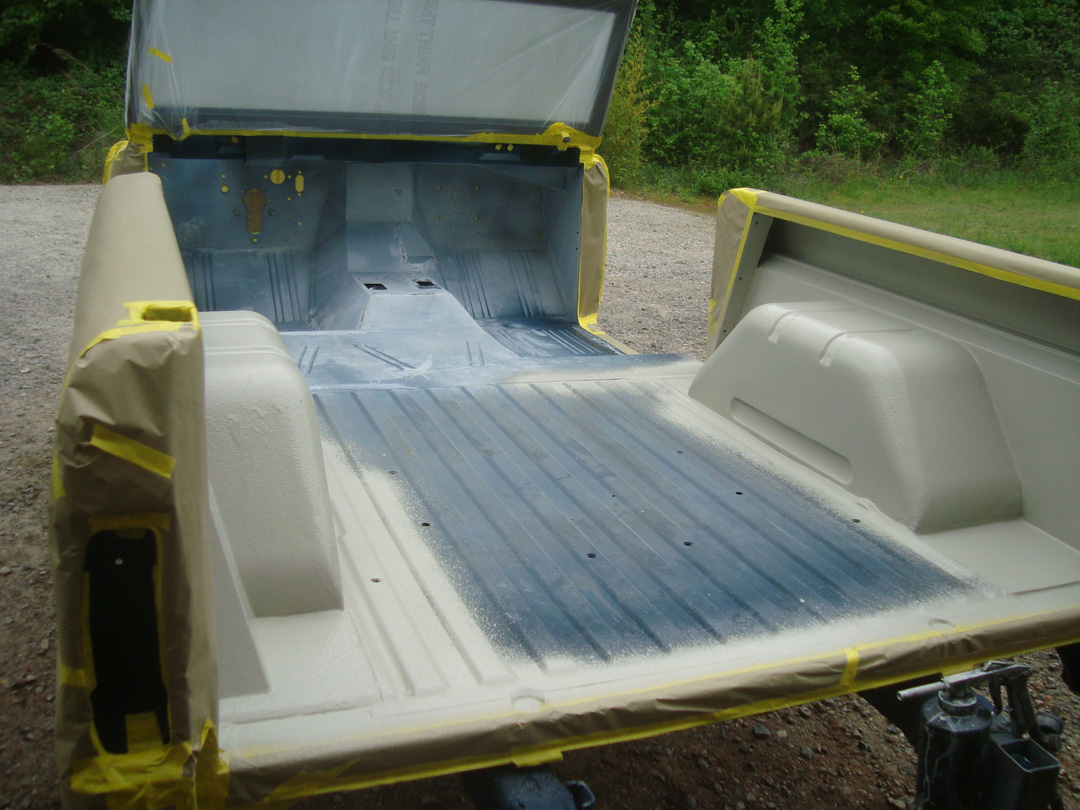

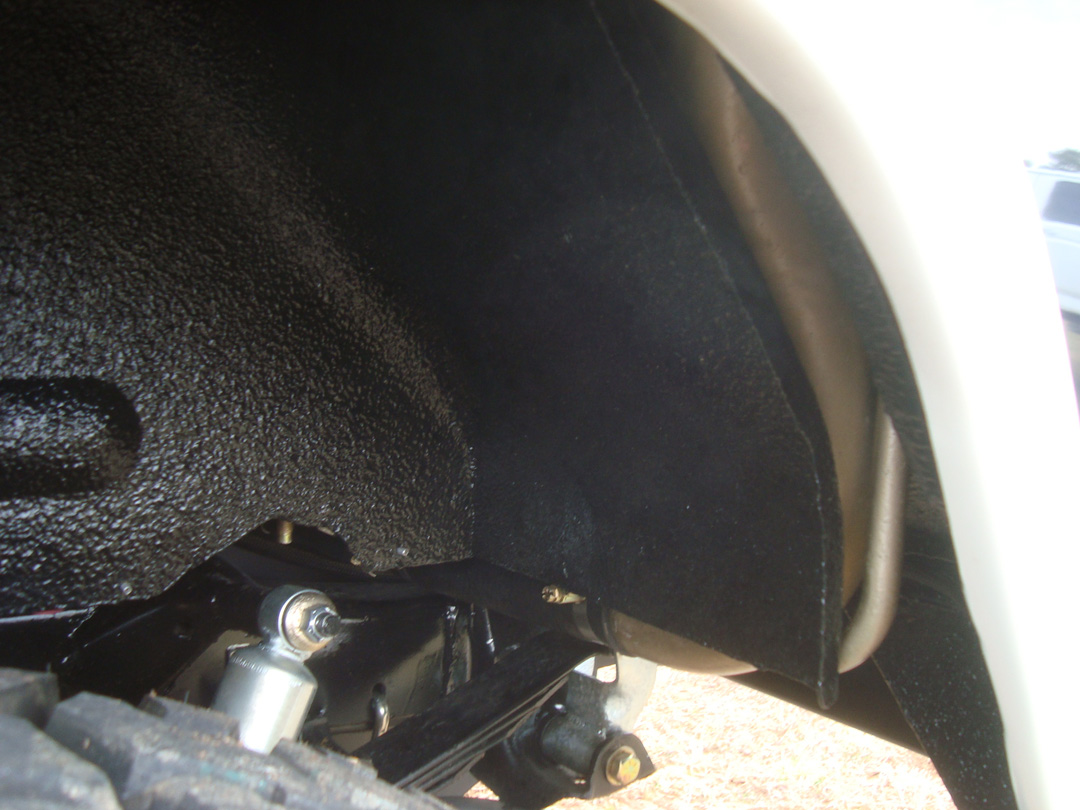

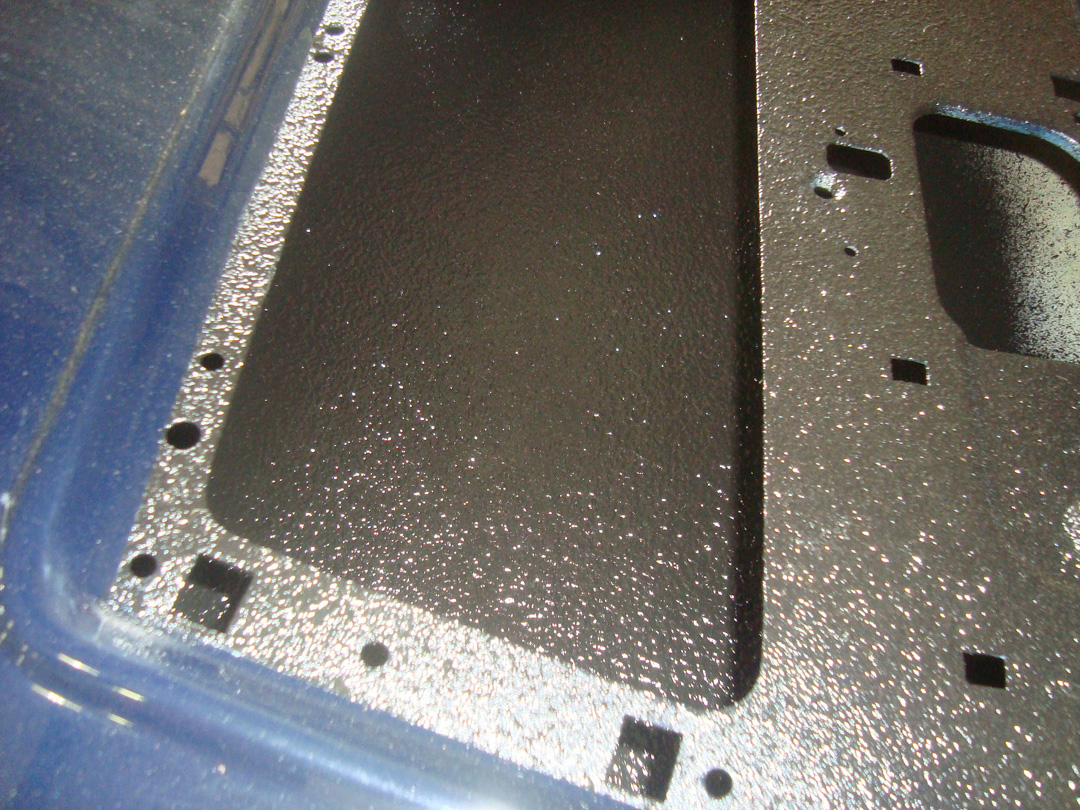

  • Scorpion bedliner used inside & under
  • Scorpion ceramic heat & noise reducer used inside under

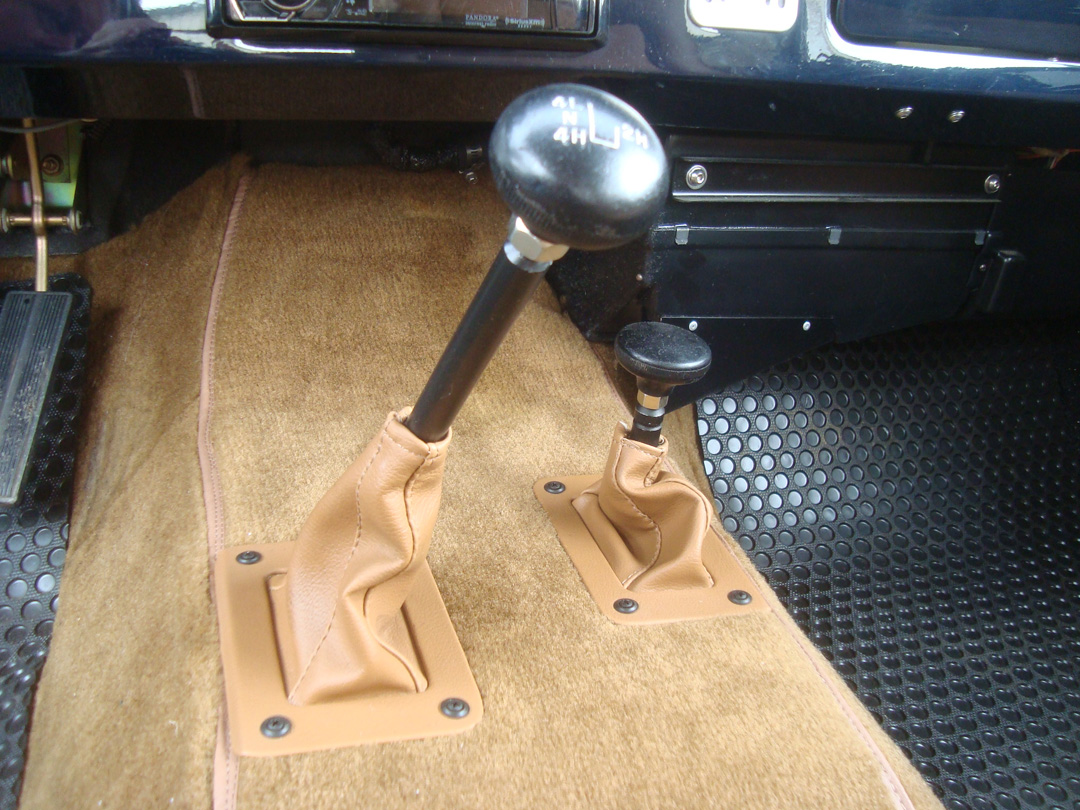

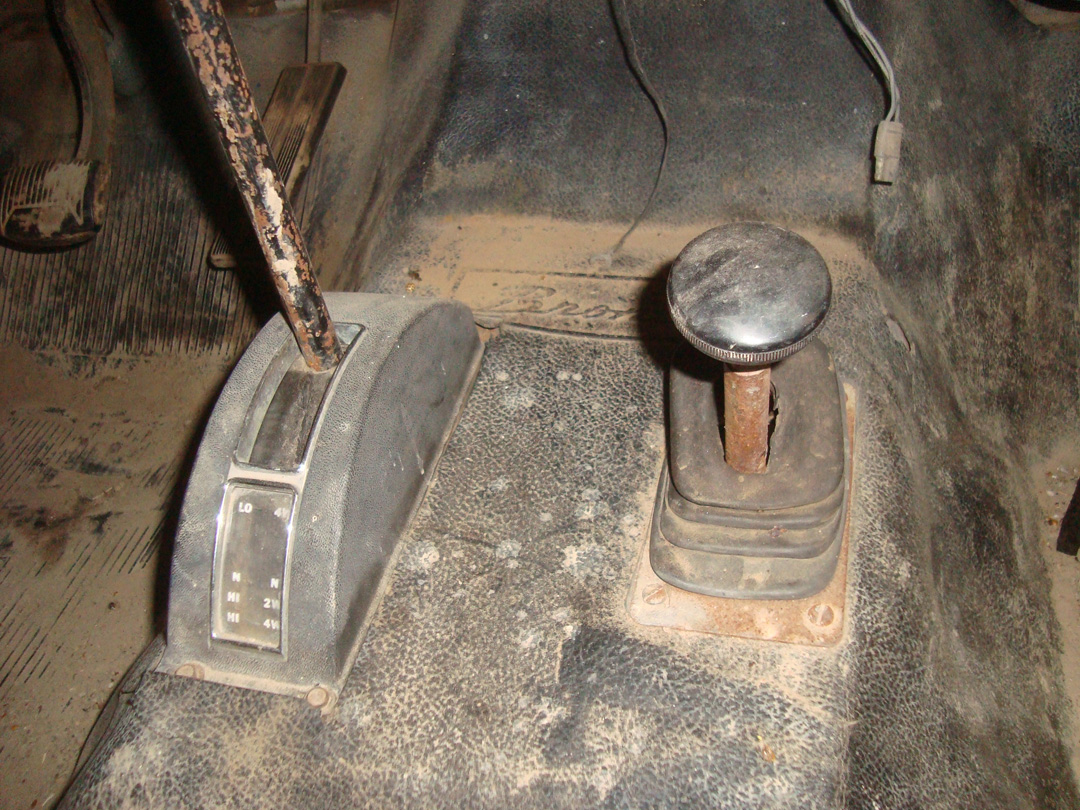

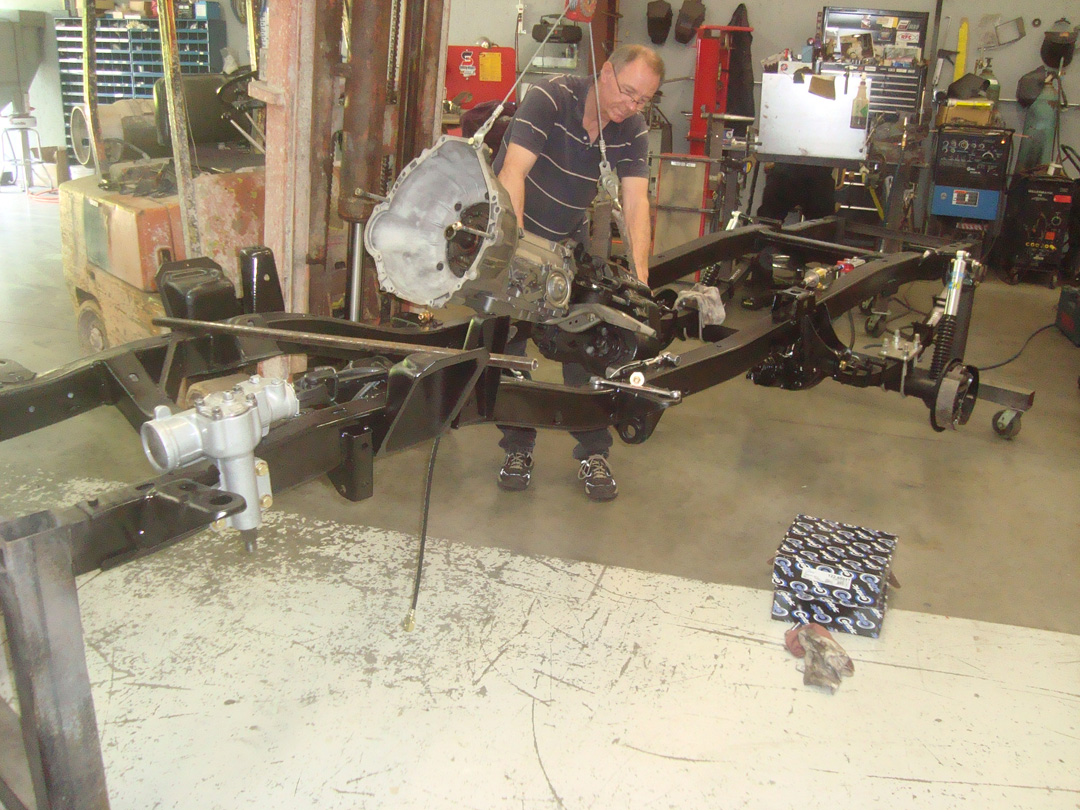

  • C4 Automatic Trans & differentials by Corey Transmission
  • 4:30 gears with trac loc differentials

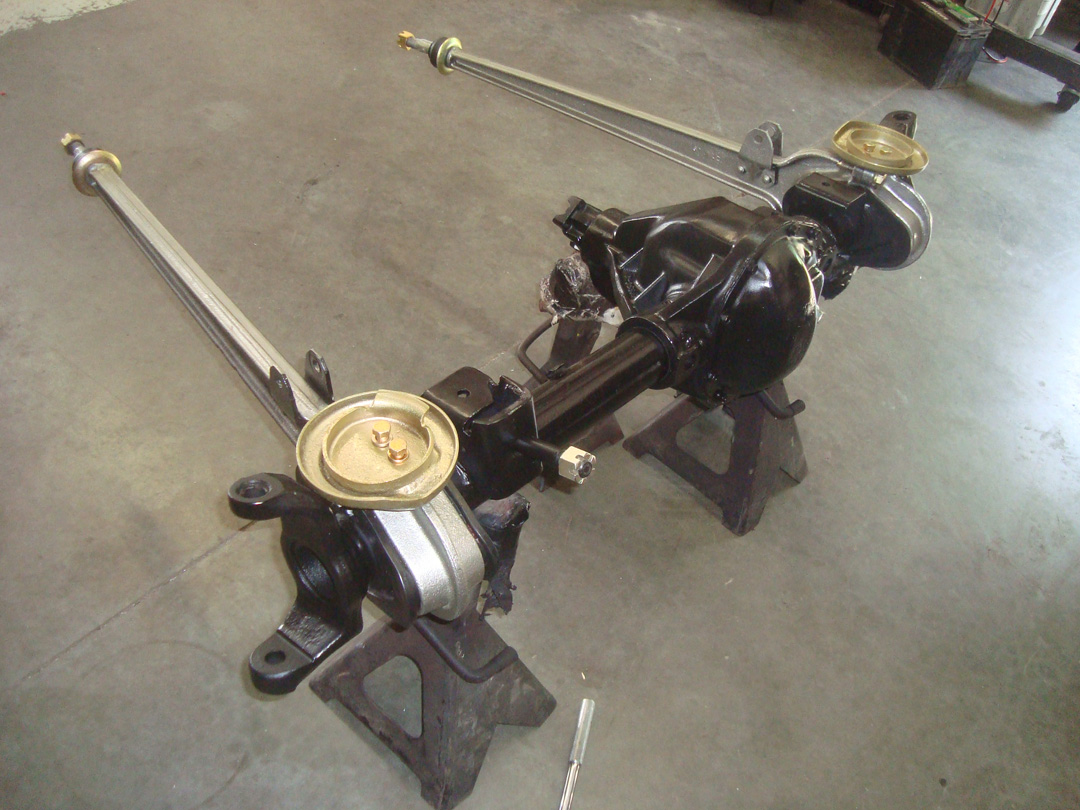

  • Dana 44 front, 4130 axles, truck discs
  • Custom driveshafts by Carolina Powertrain

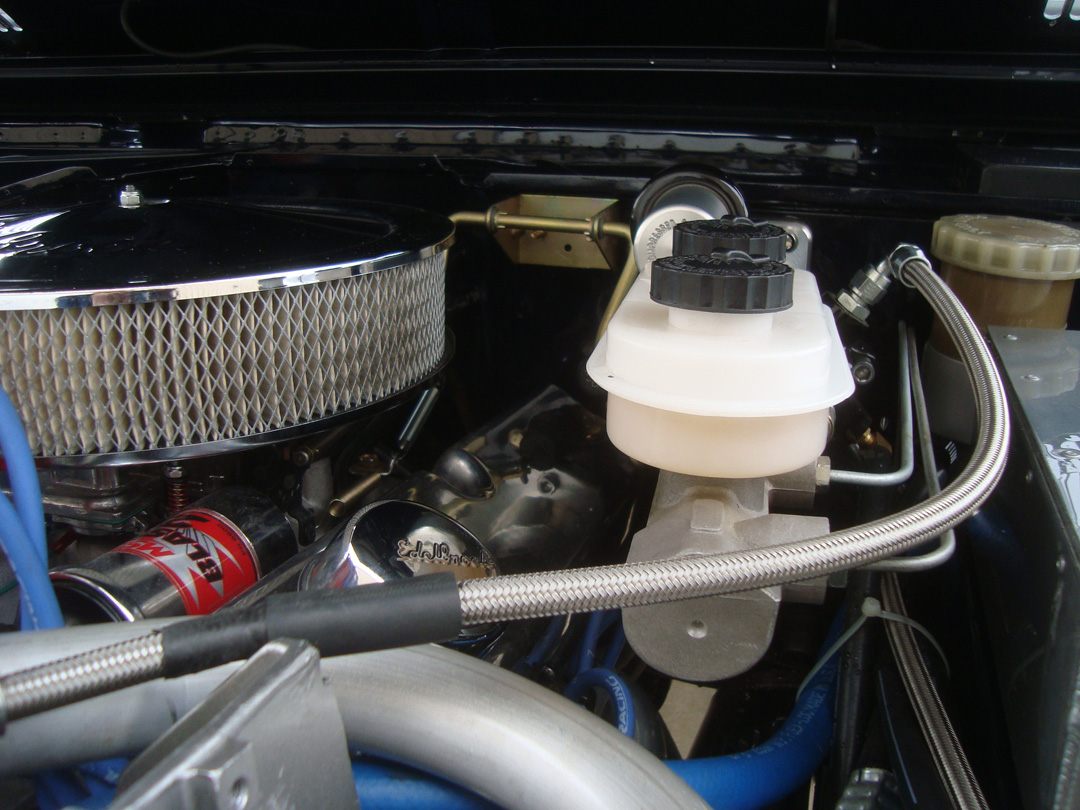

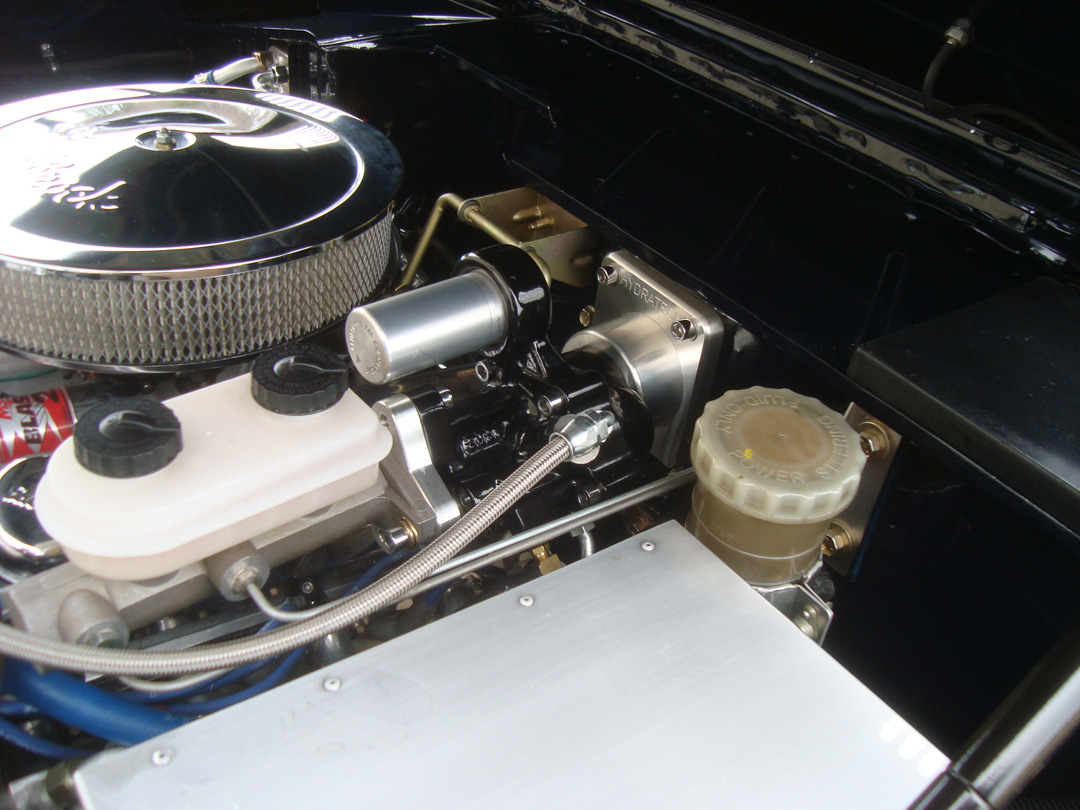

  • Hydroboost brake system
  • Plumbing with Goodridge lines & fittings

susp

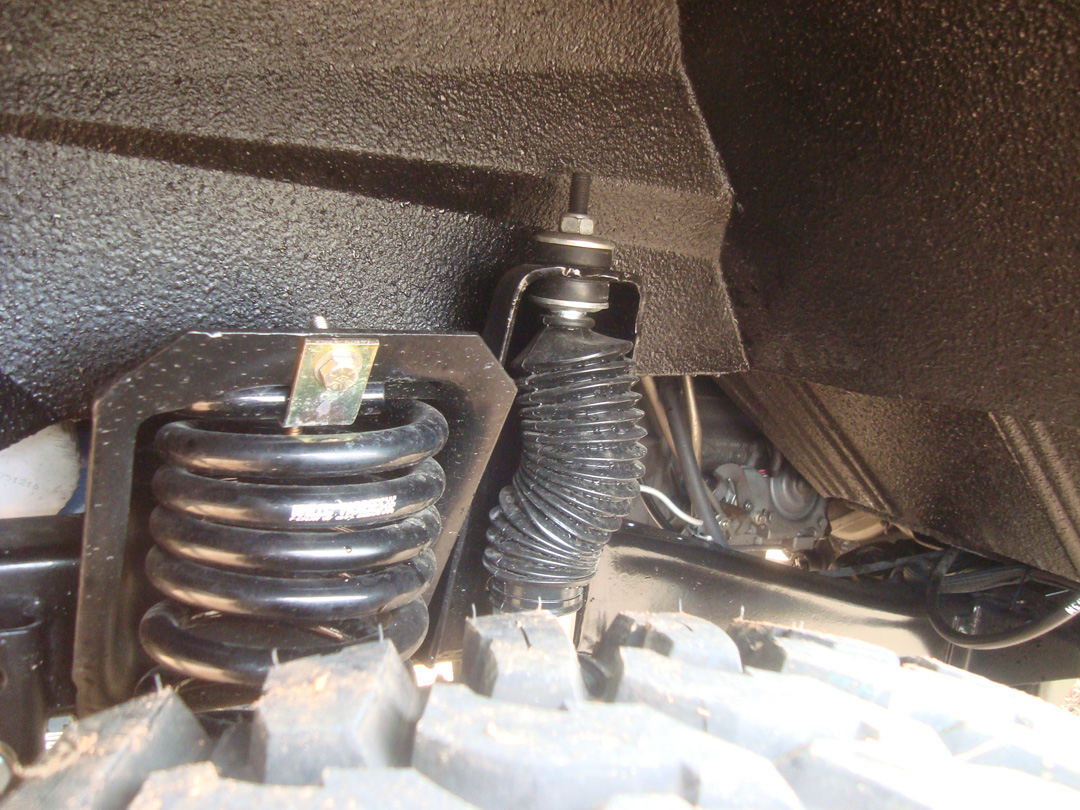

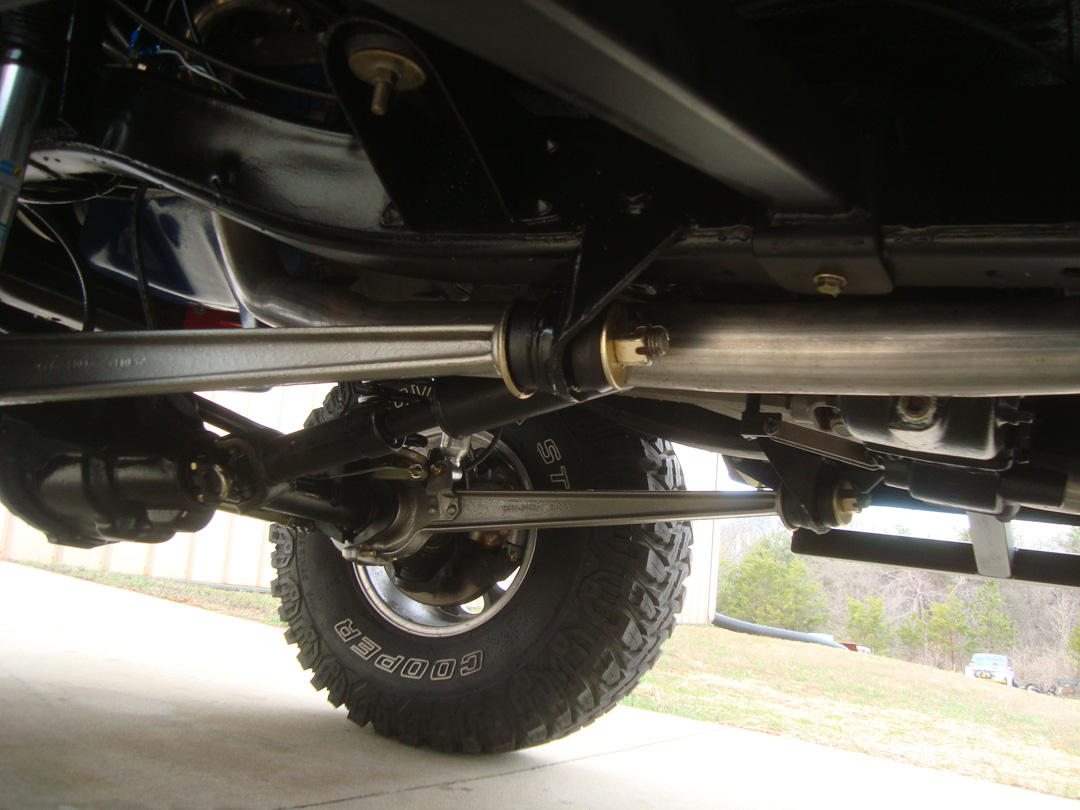

  • Wild Horses 2.5 lift
  • Bilstein shocks
  • NT 1” bodylift
  • Urethane bushings throughout

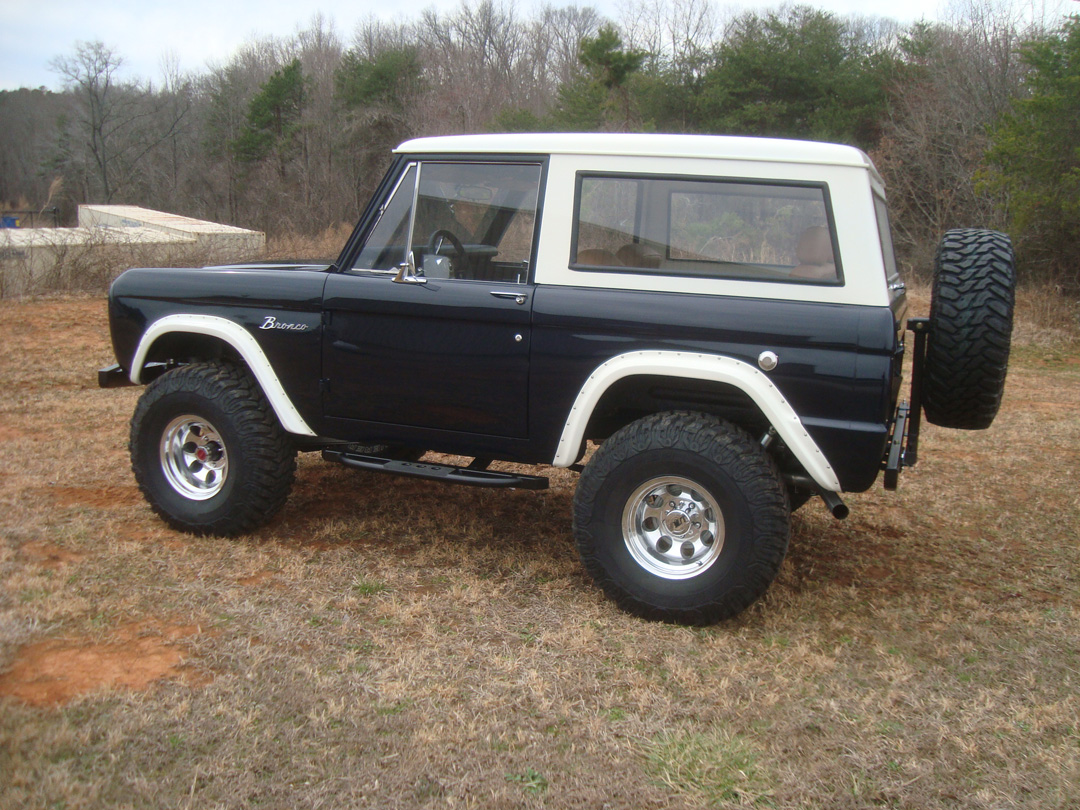

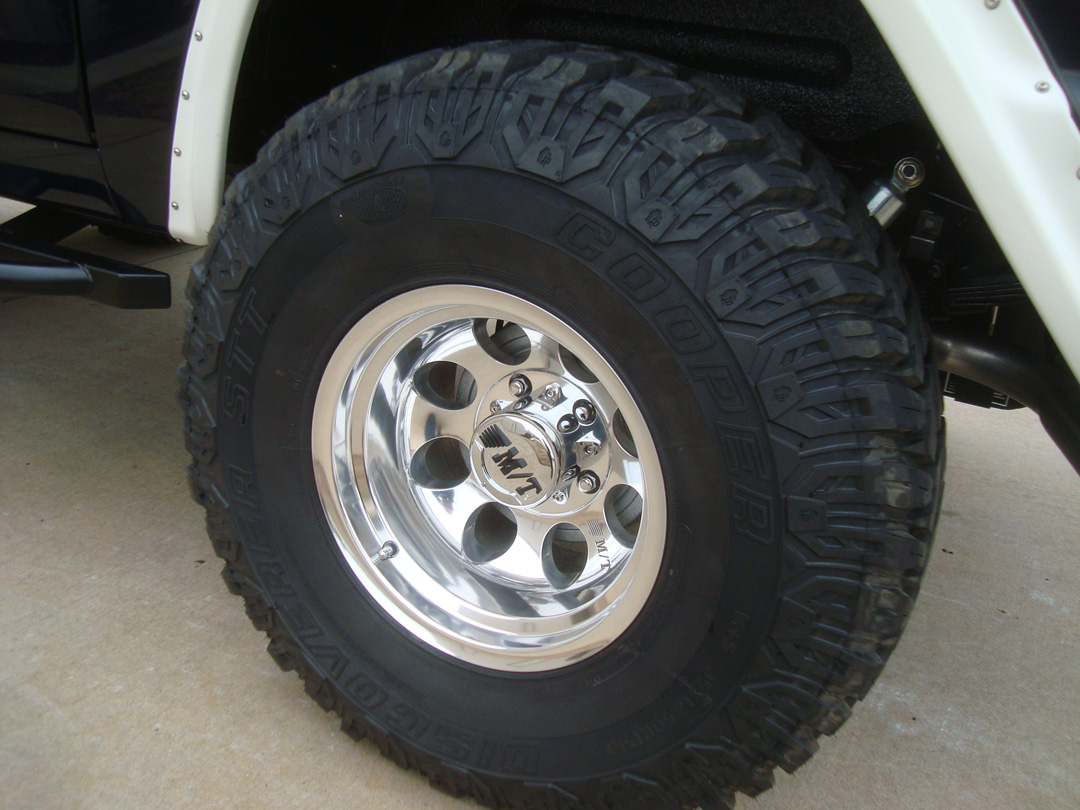

  • MT alum wheels with 35” Cooper tires

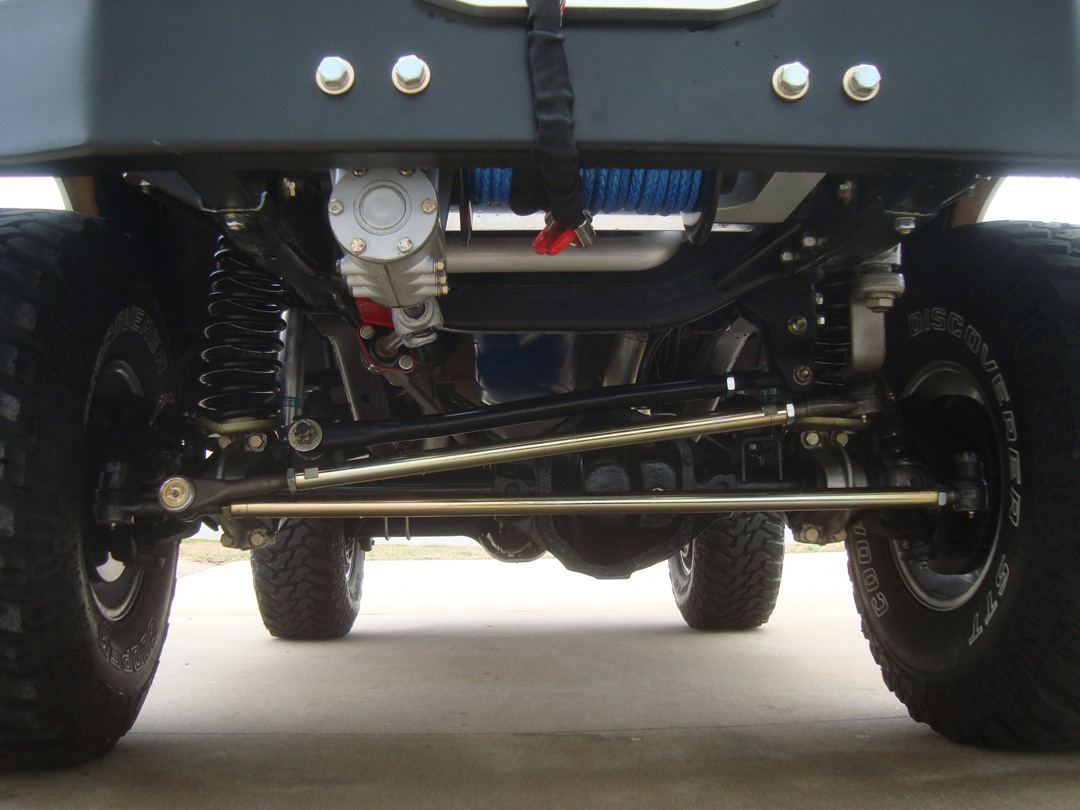

  • NT tie rod package

  • Custom by James Pharr

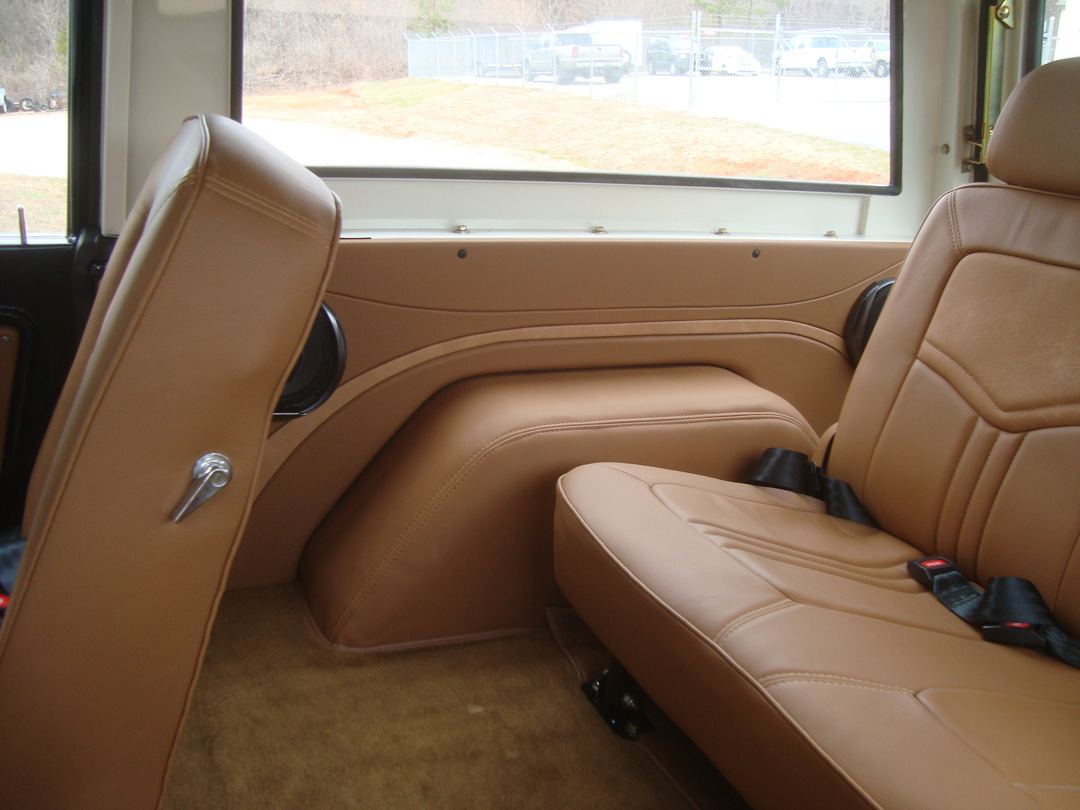

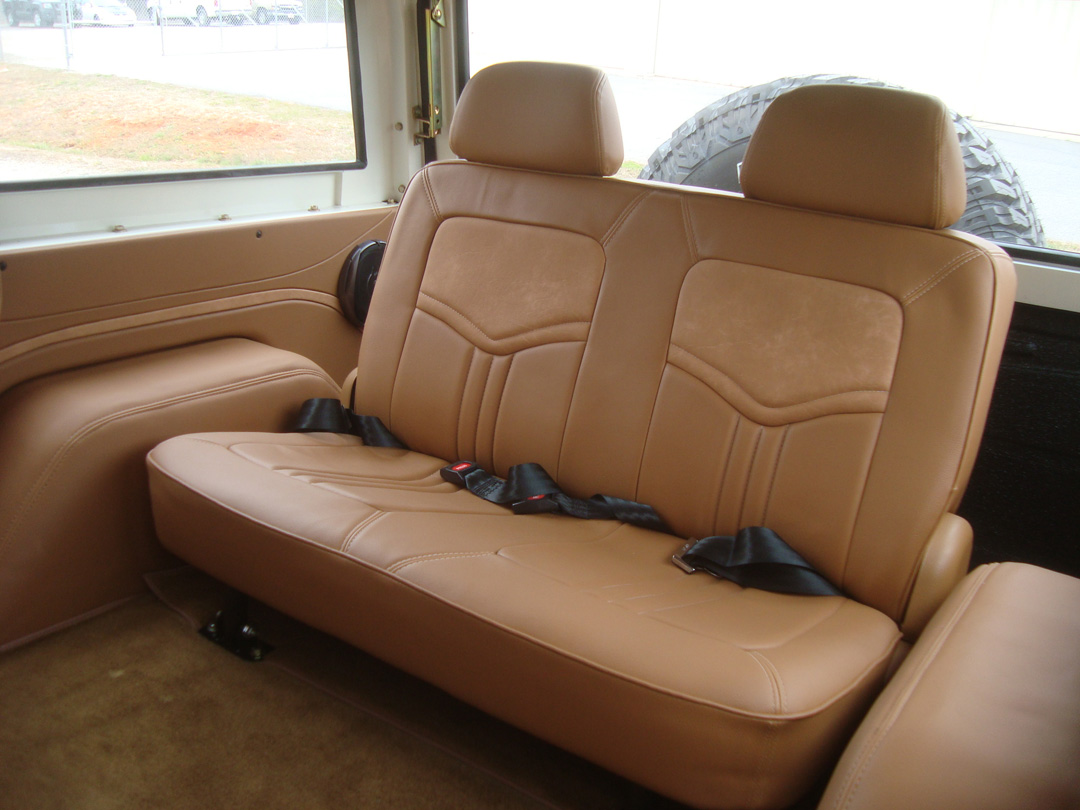

  • NT custom back seat

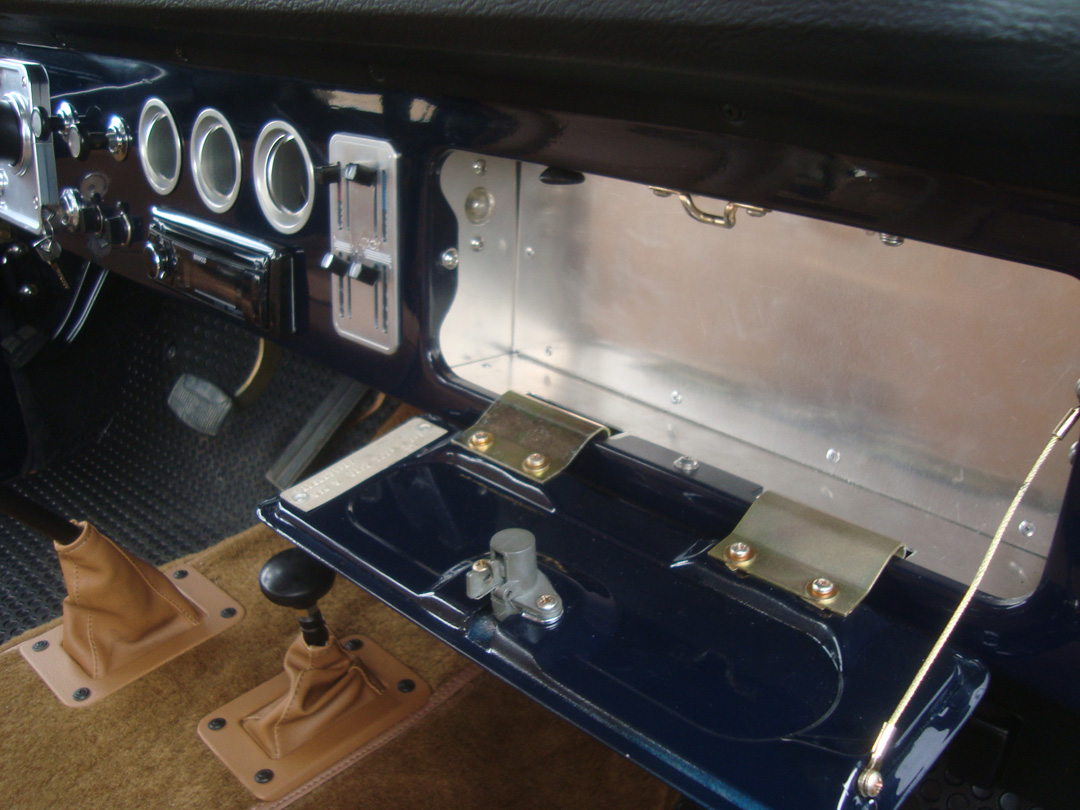

  • NT billet accessories
  • Kenwood sound system

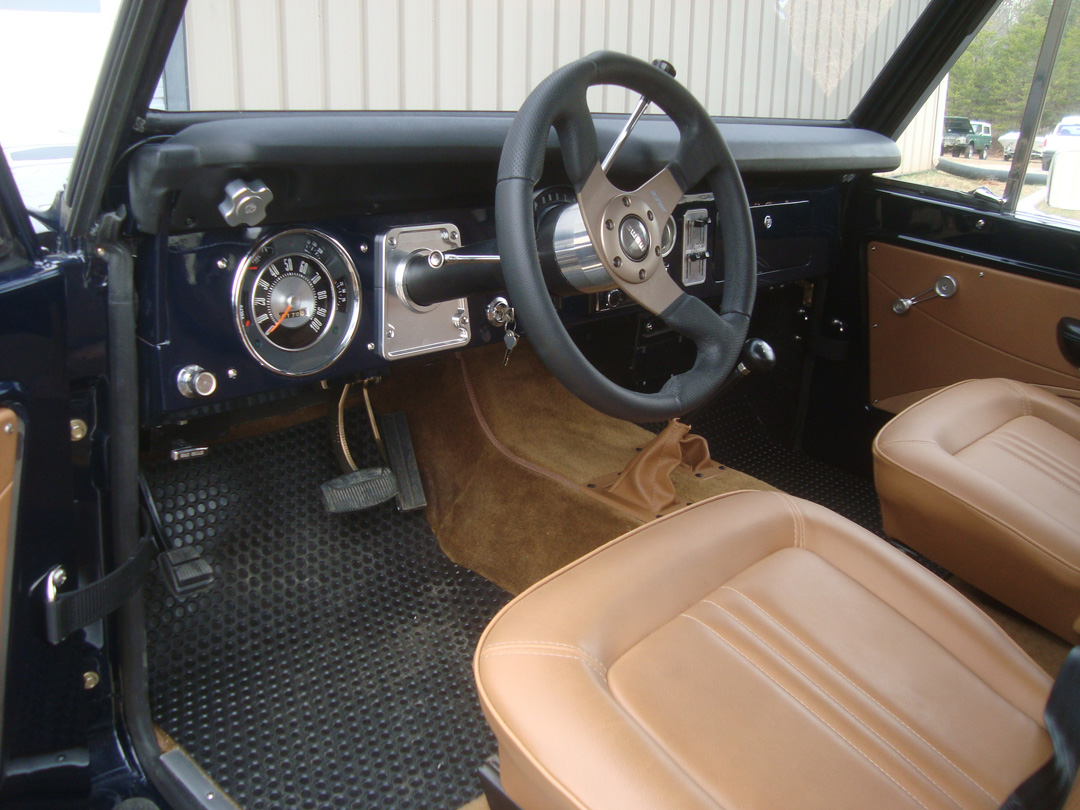

  • Autometer gauges & cluster rebuilt by Classy Chassis Restoration
  • Vintage Air air conditioning package by NT

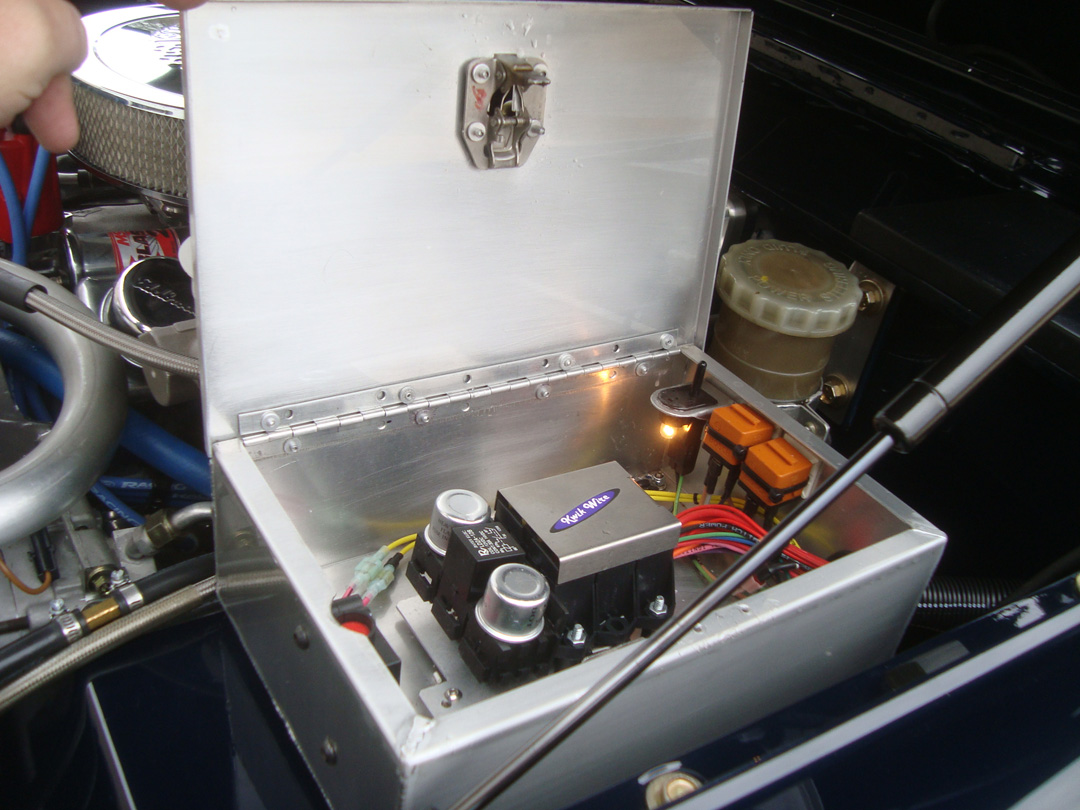

  • Custom wiring harness by NT

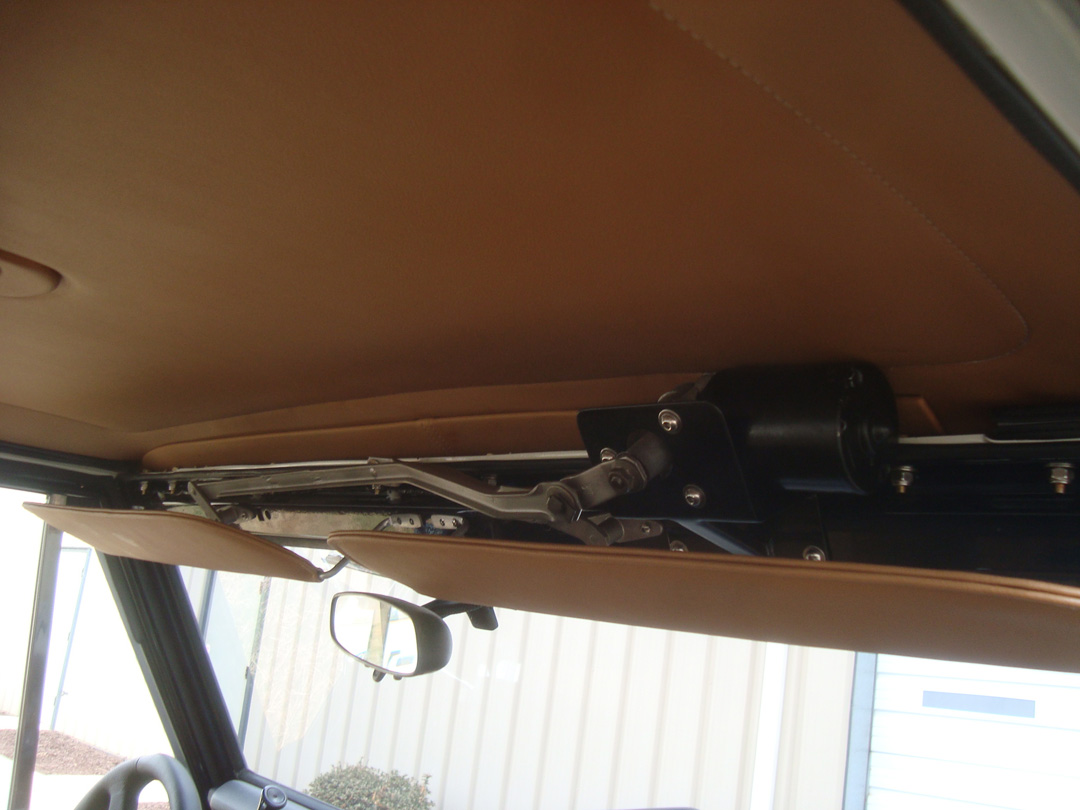

  • Electric wiper package

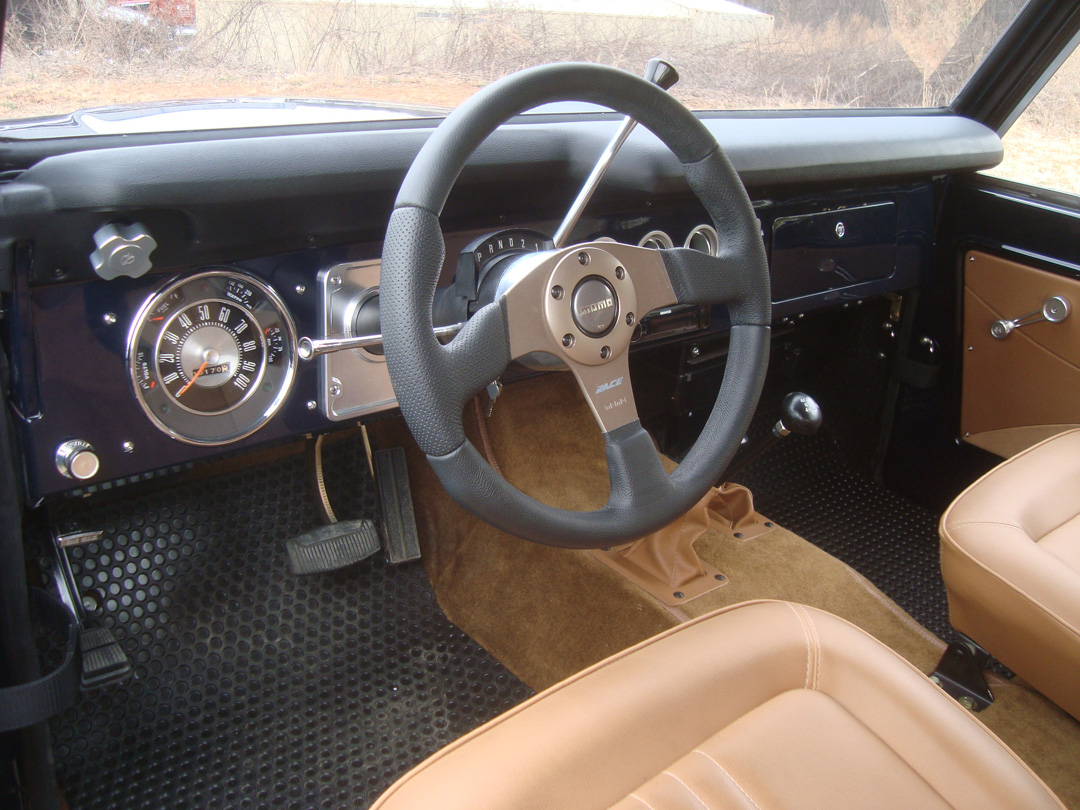

  • Momo Steering wheel

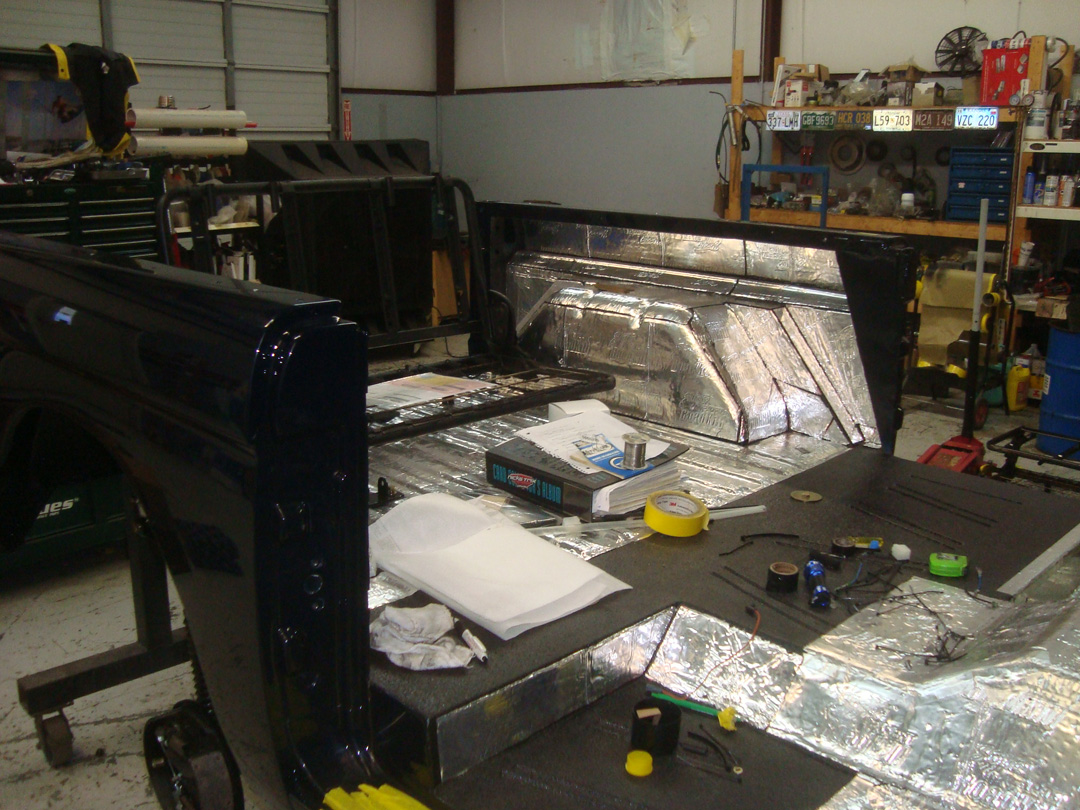

  • Fully lined with Roadkill sound/thermal insulation

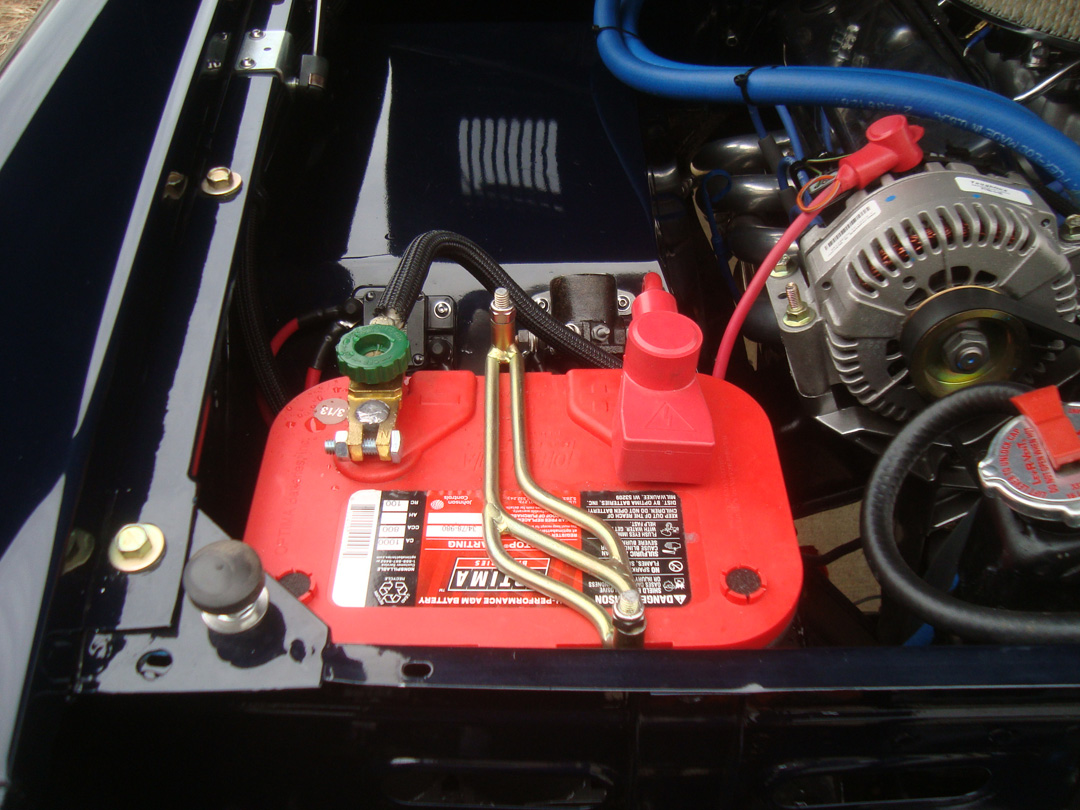

  • Optima battery

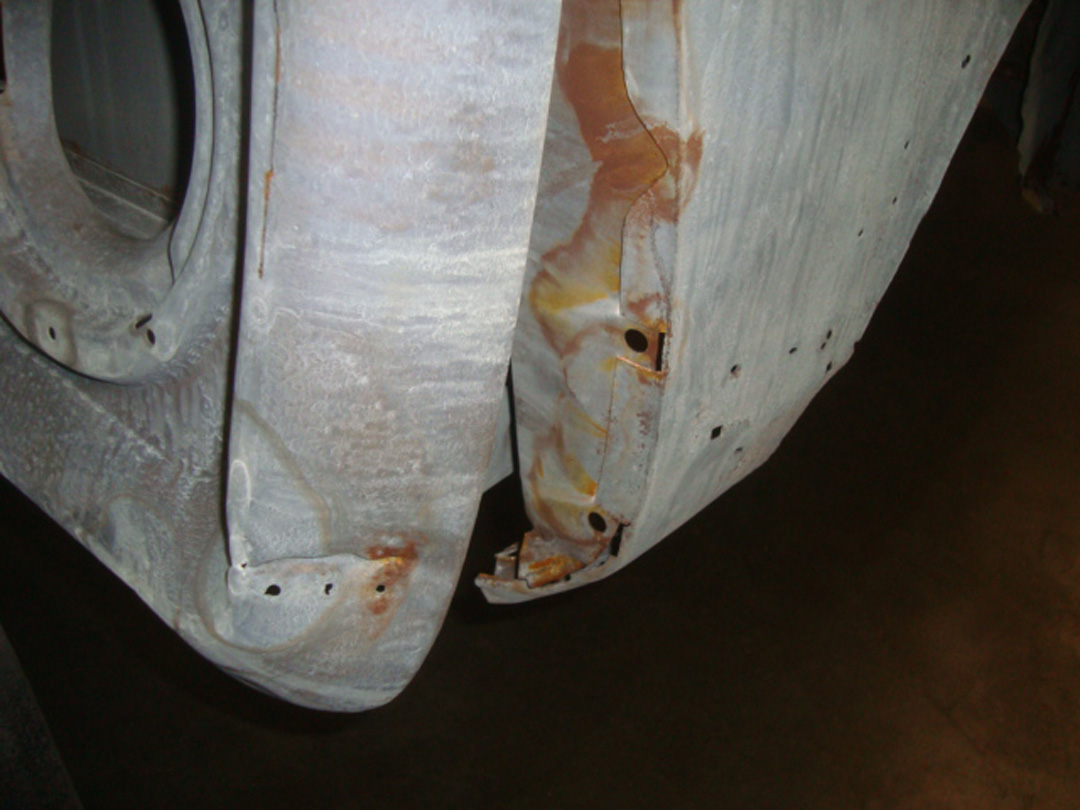

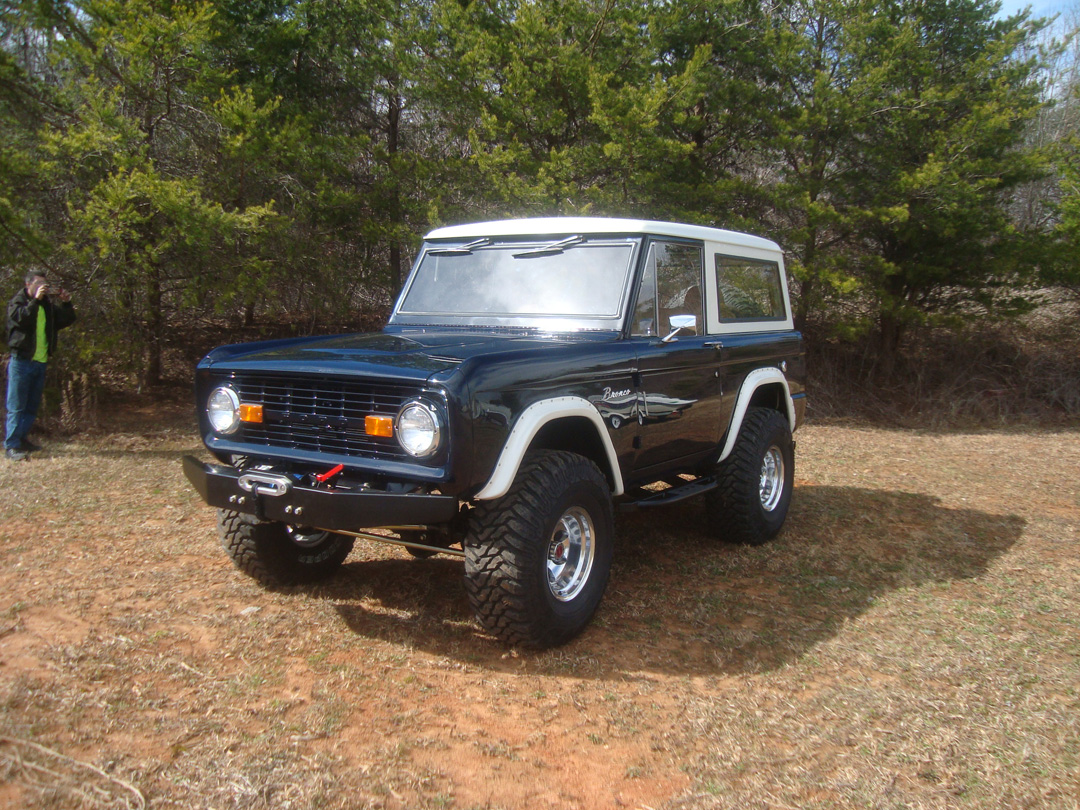

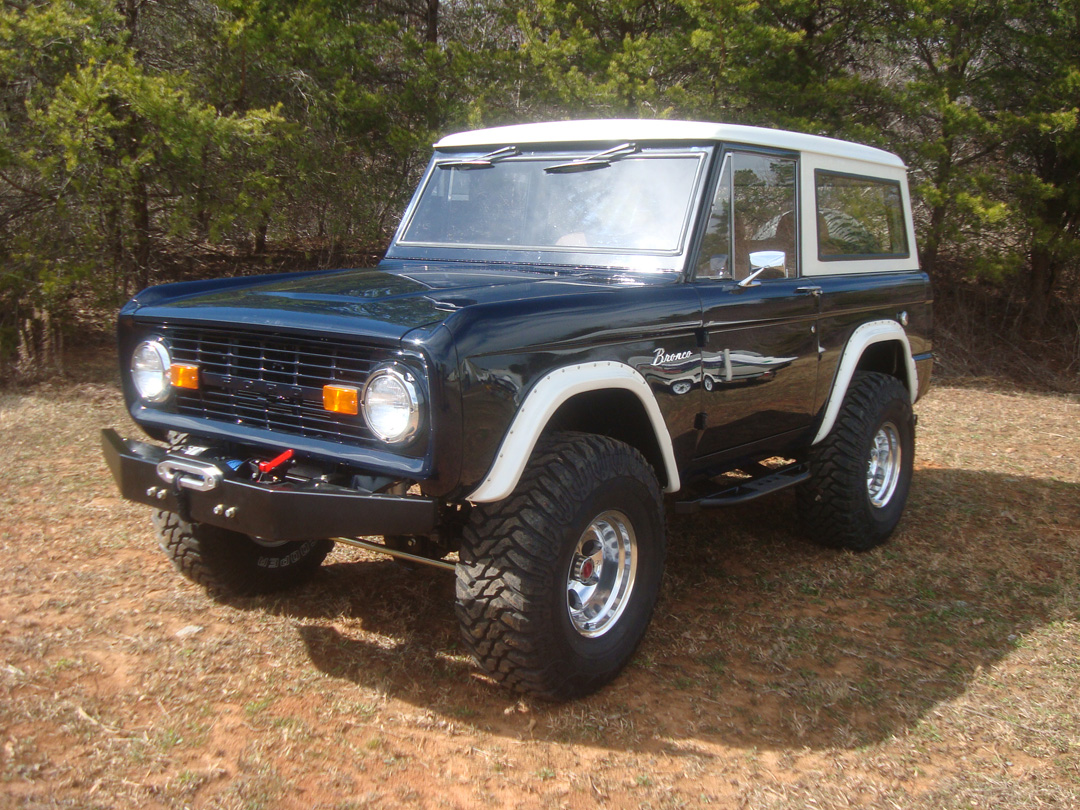

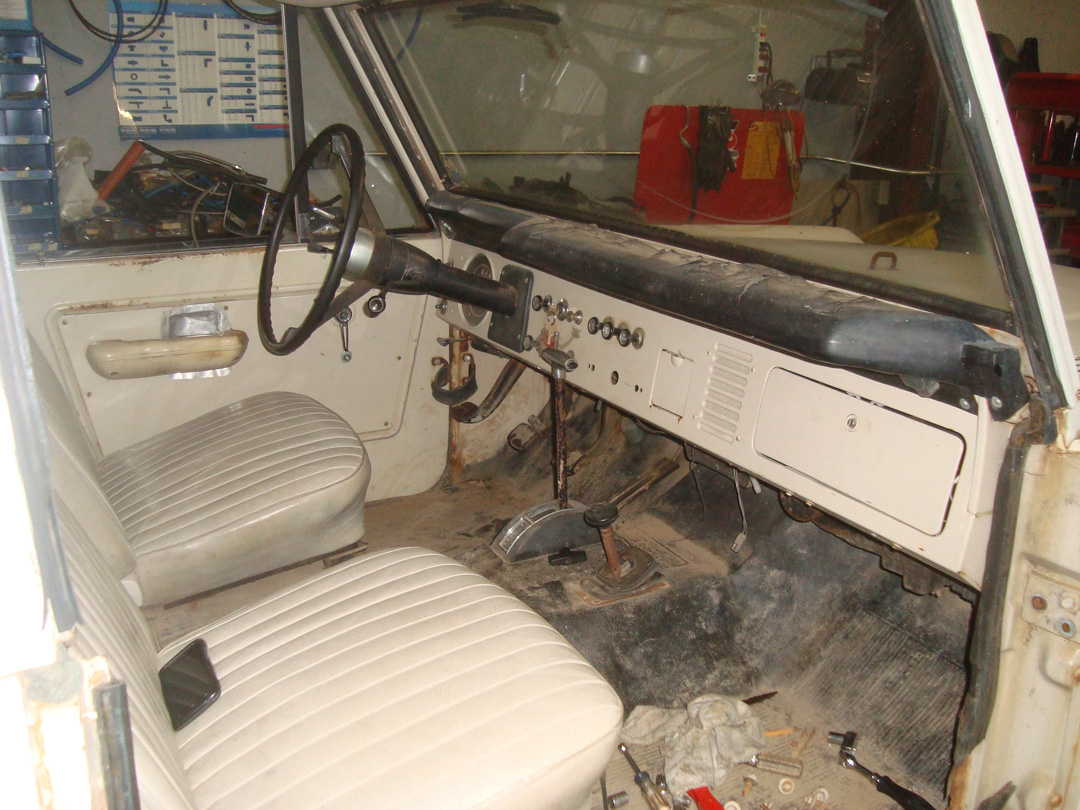

Bronco Build Photo Gallery
