3rd Generation Build by Nick's TrixBronco Build Specifications
Services performed by Nick’s Trix Custom Fabrication:

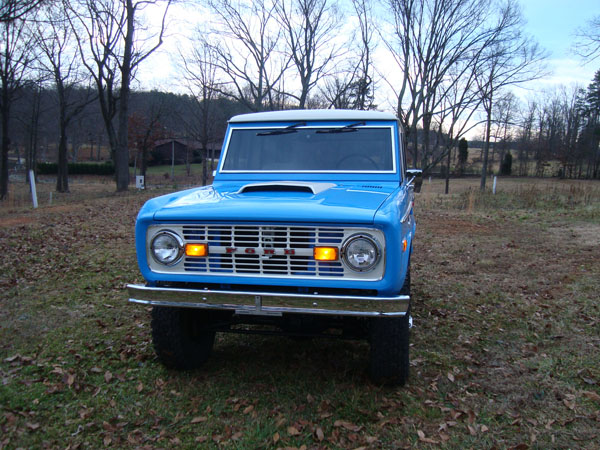

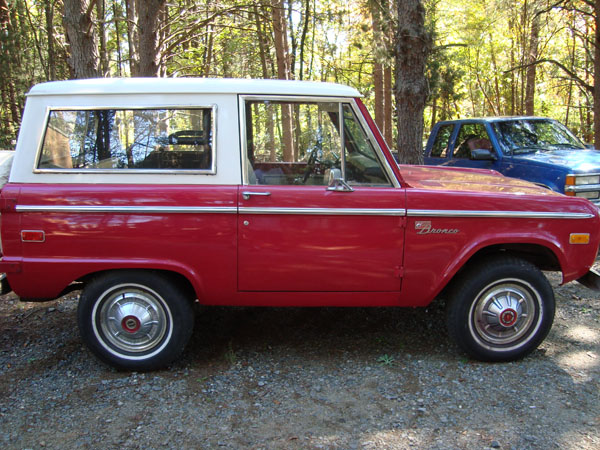

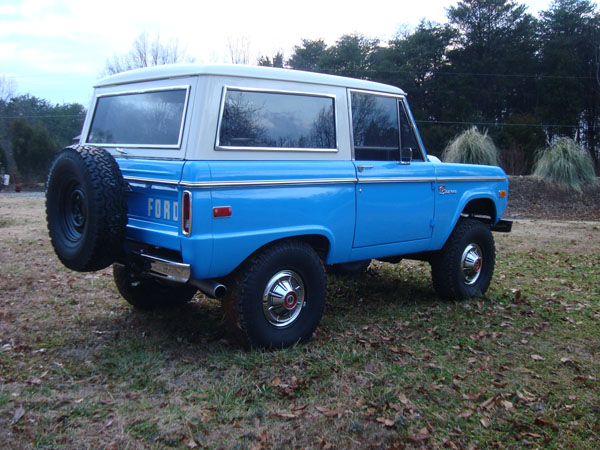

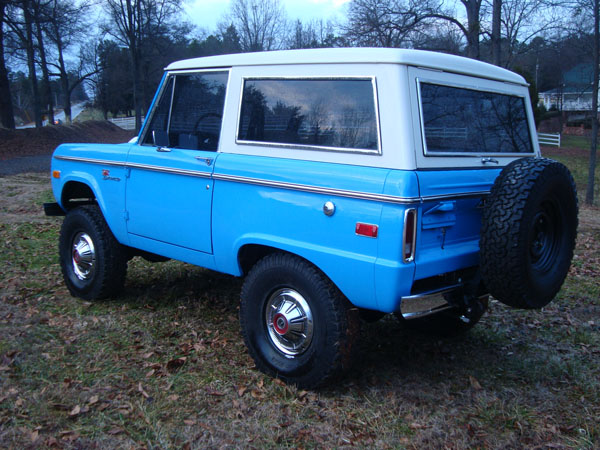

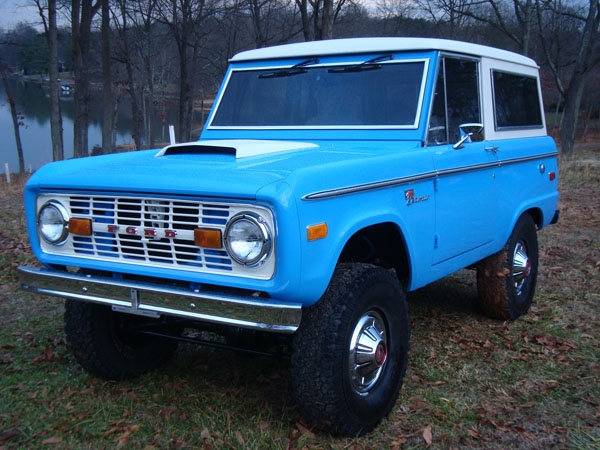

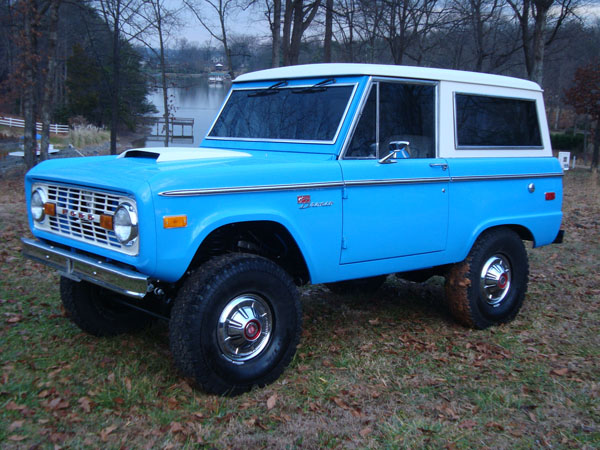

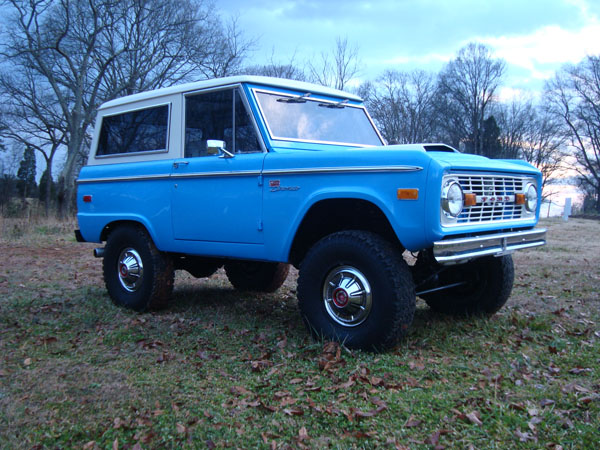

Mountain High 1974 sport

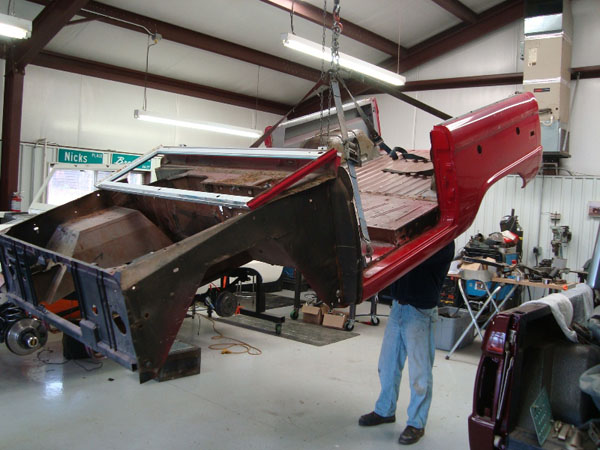

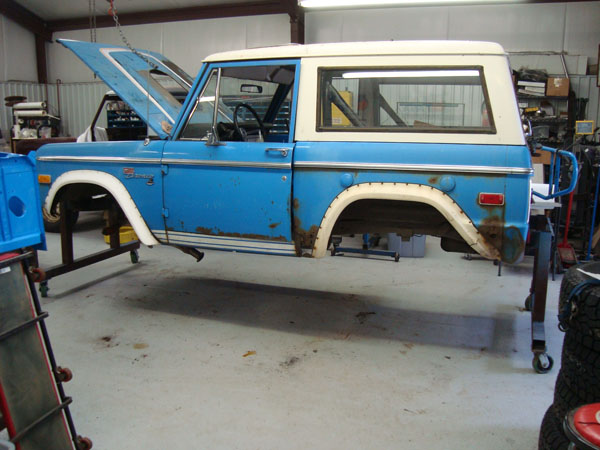

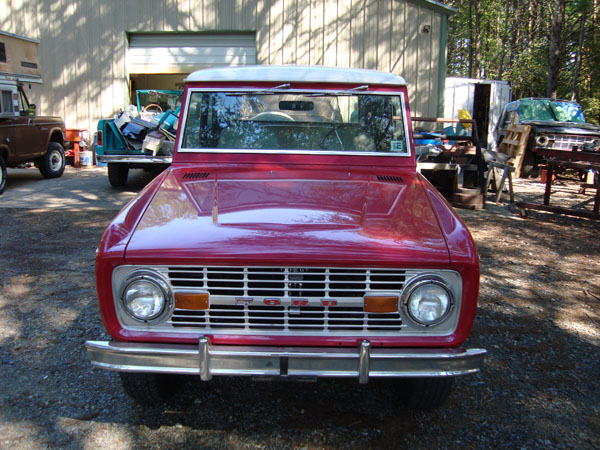

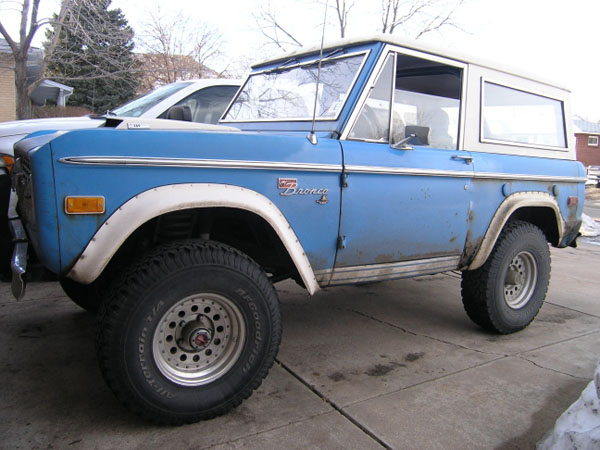

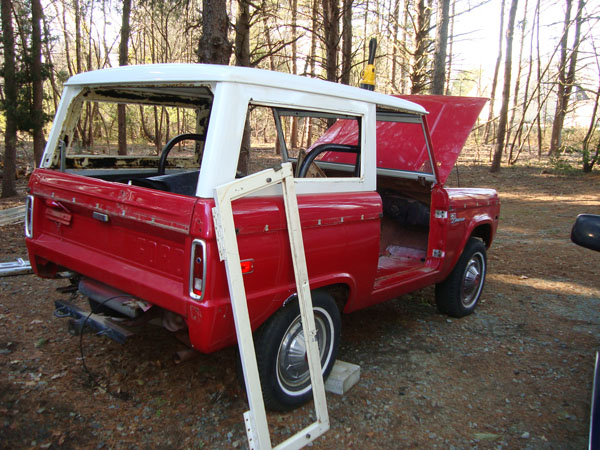

The original owners realized it was time to freshen up their steed. They had purchased another 74 sport to utilize its better conditioned body. The game plan was to mix the best of bodies and utilize the upgraded running gear. This would ensure another 35+ years of pleasure driving in their high country of Colorado home area.

 Bronco Build Photo Gallery
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1

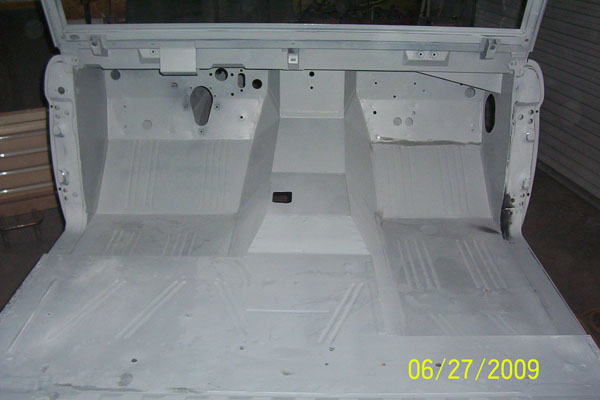

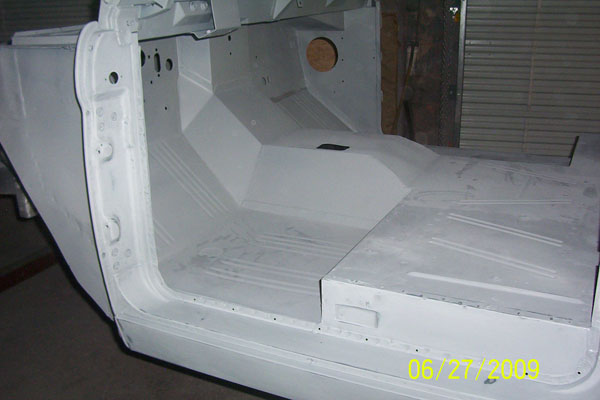

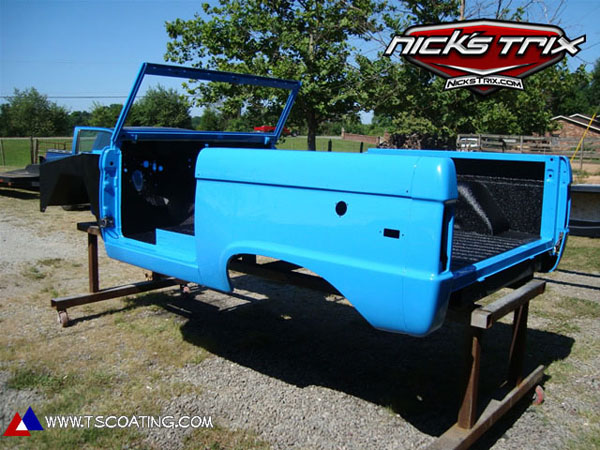

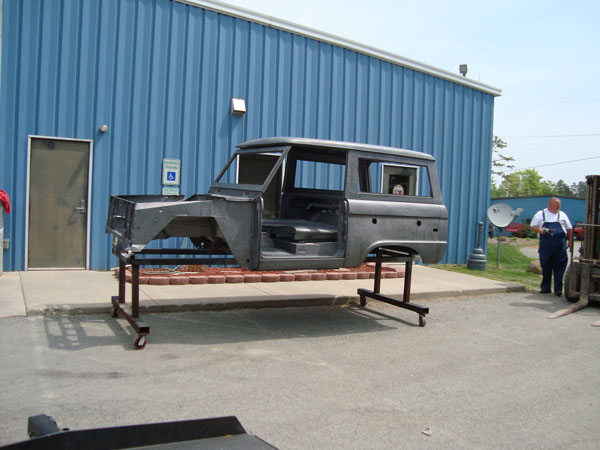

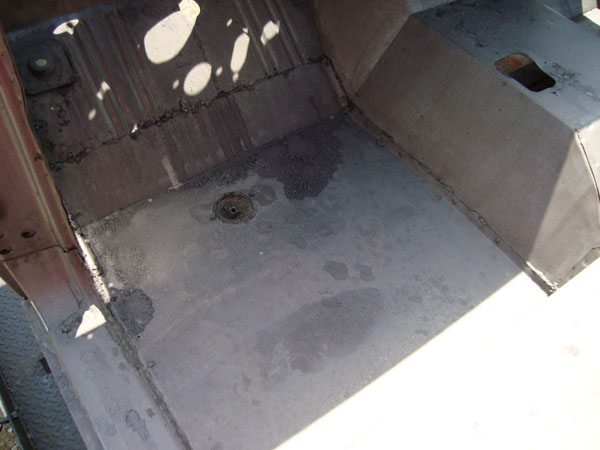

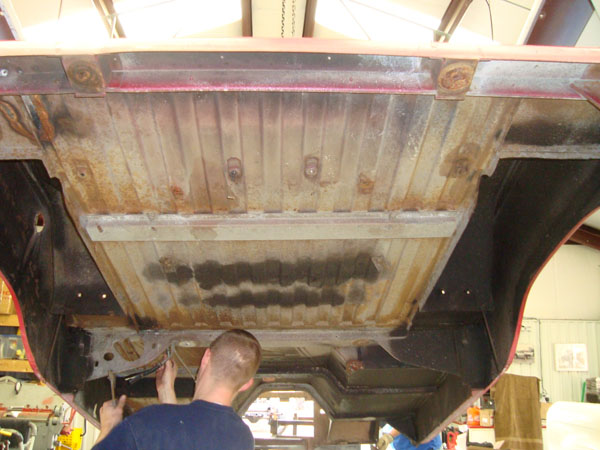

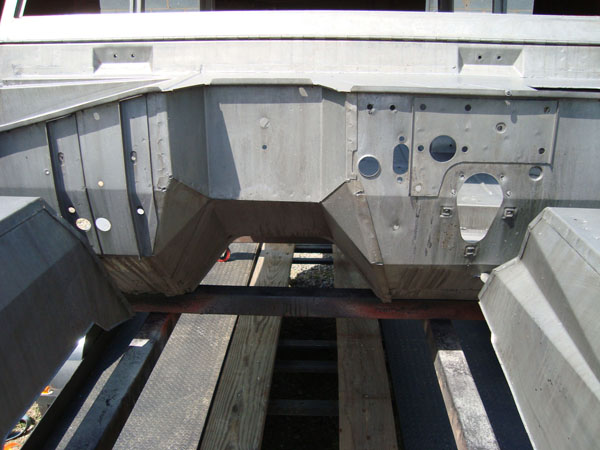

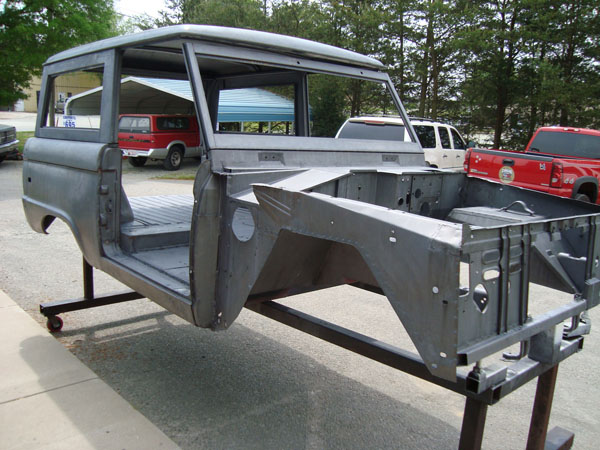

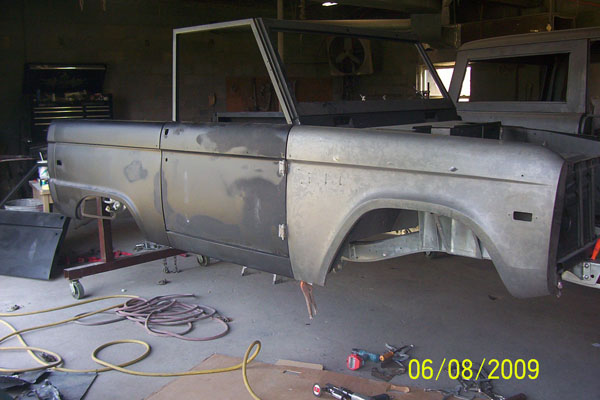

  • Complete Chem strip by Carolina Chem strip

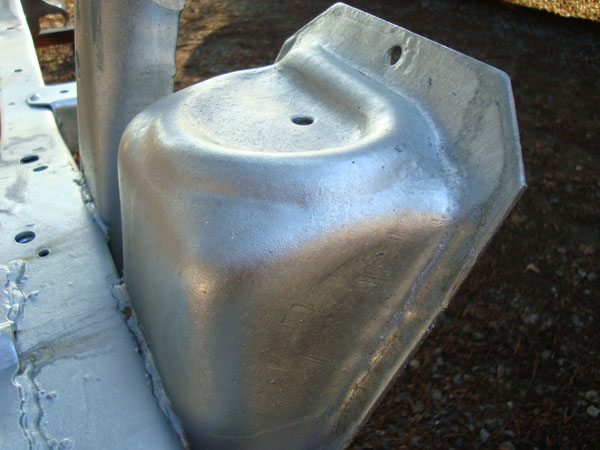

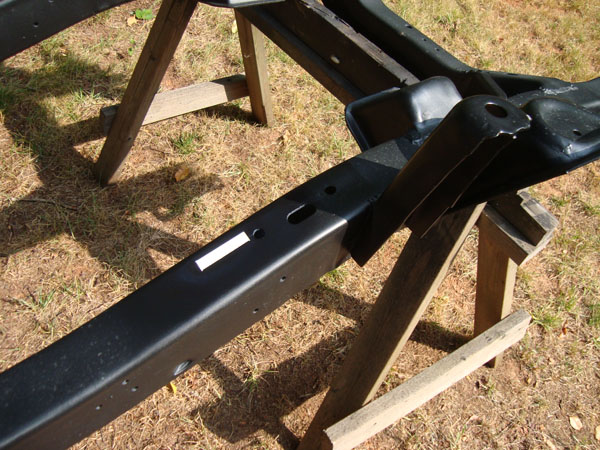

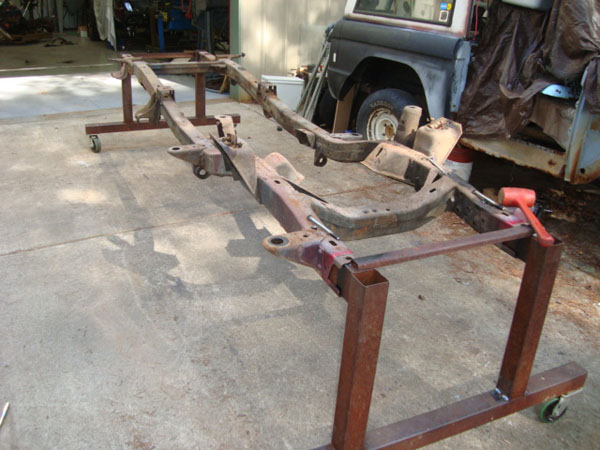

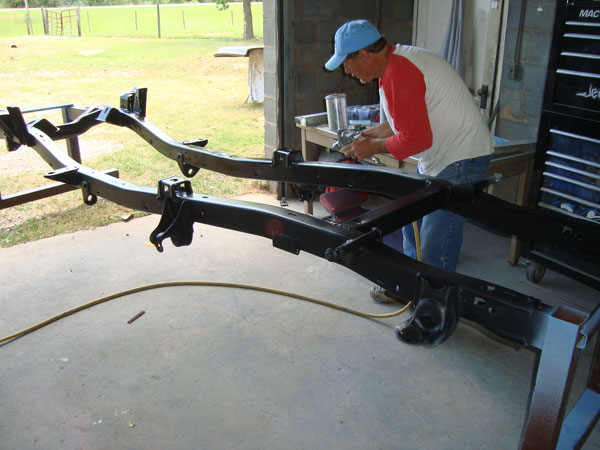

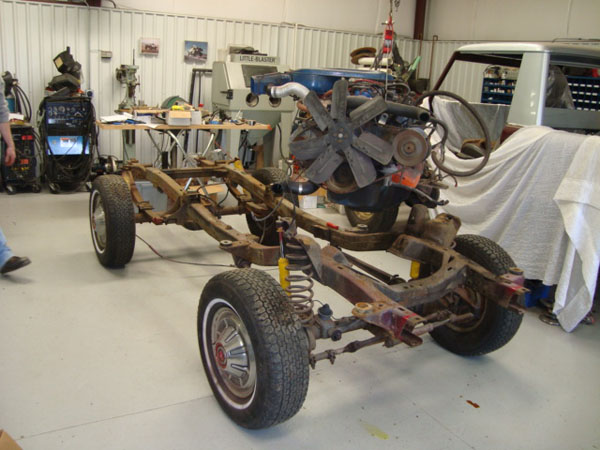

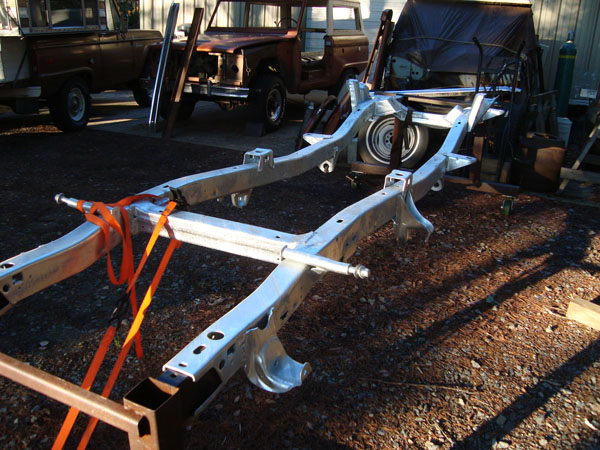

    - Frame stripped and galvanized

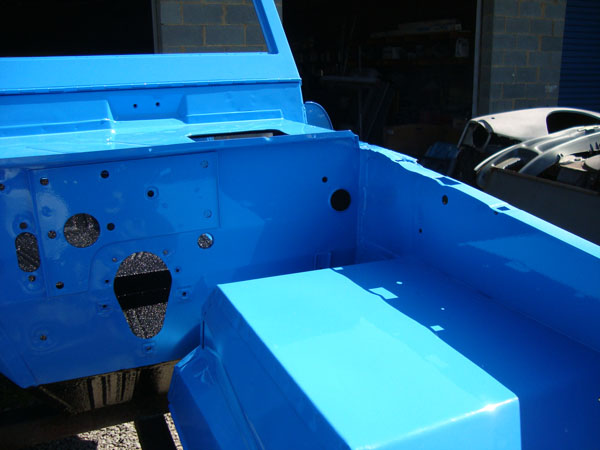

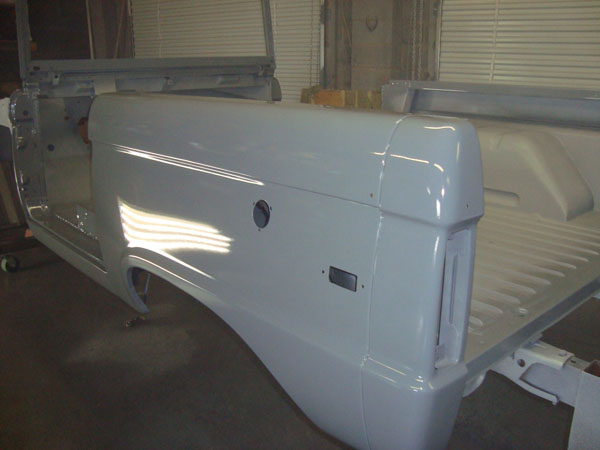

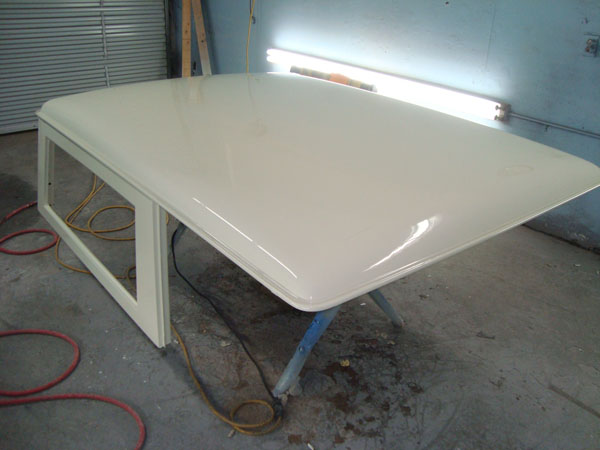

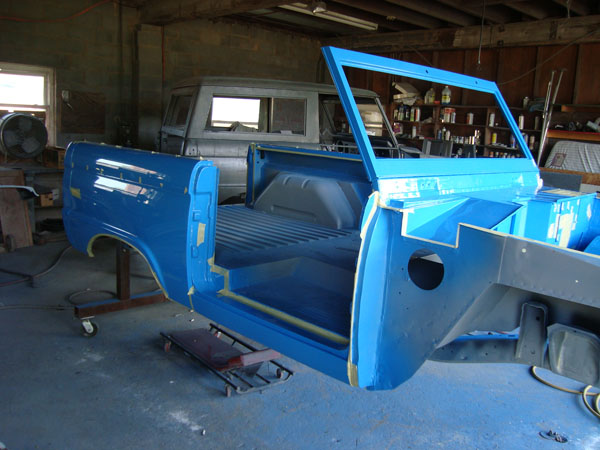

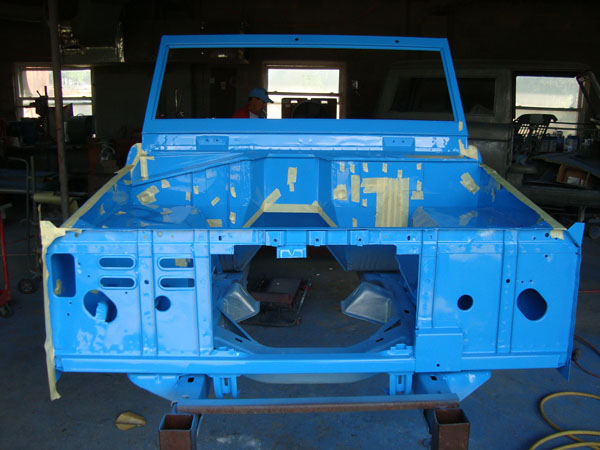

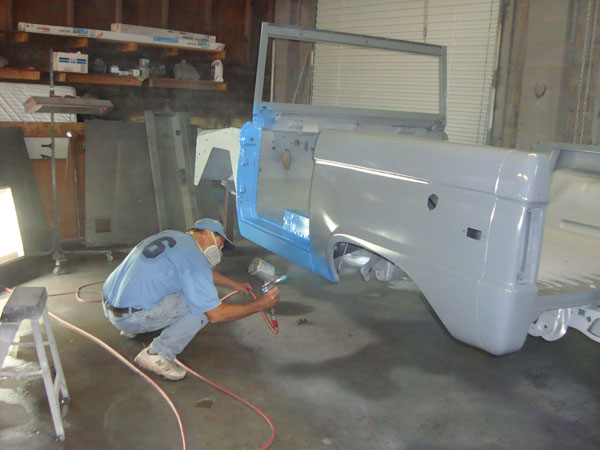

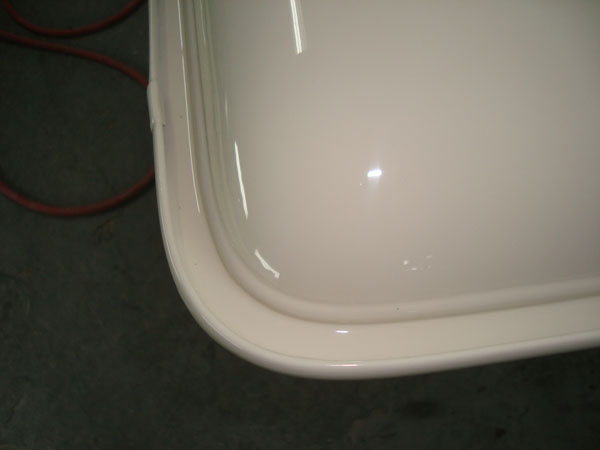

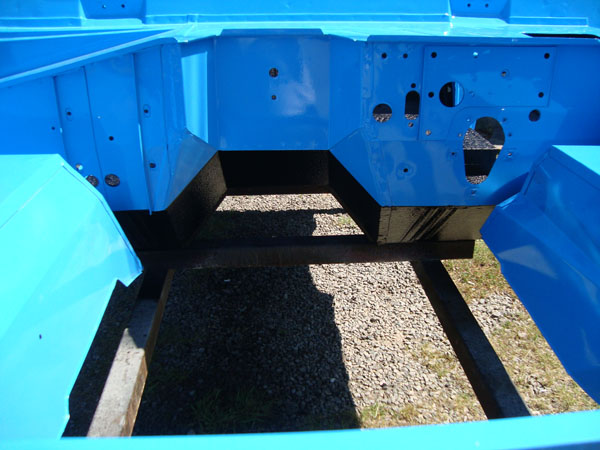

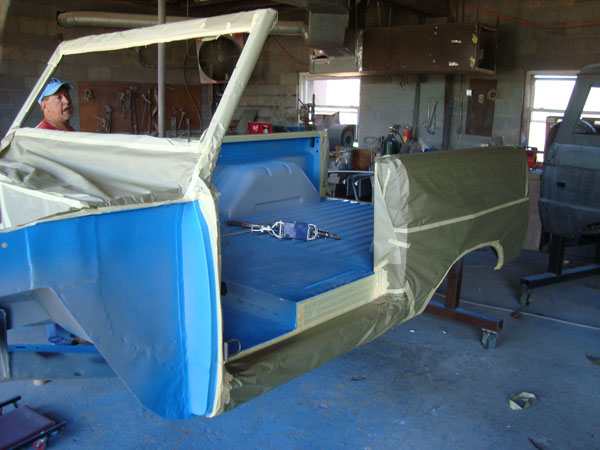

  • Body work & paint by Chuck Schenck Auto Body

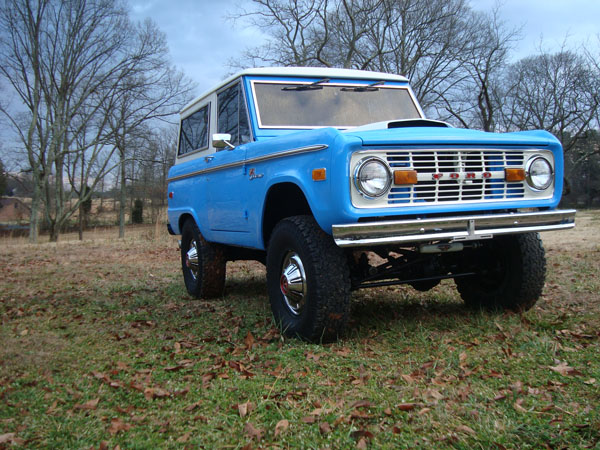

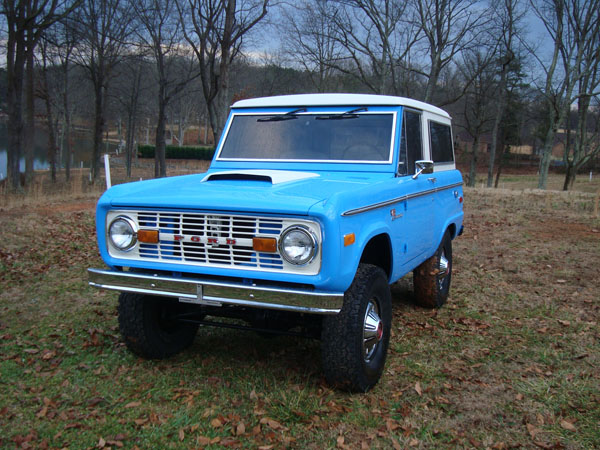

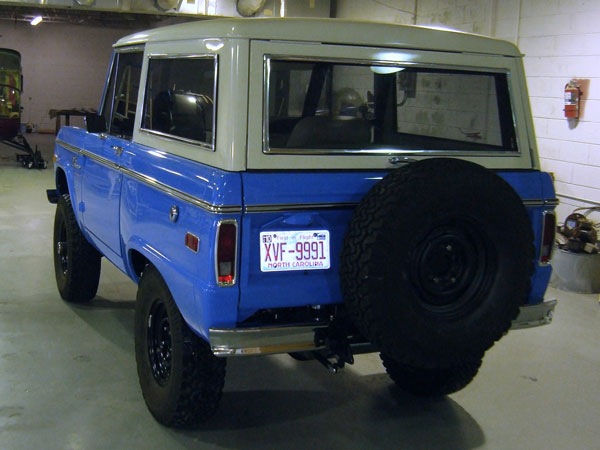

    - Colors are Grabber Blue & Colonial White
  • PPG 2 stage paint products are used
  • SEM seam sealers used

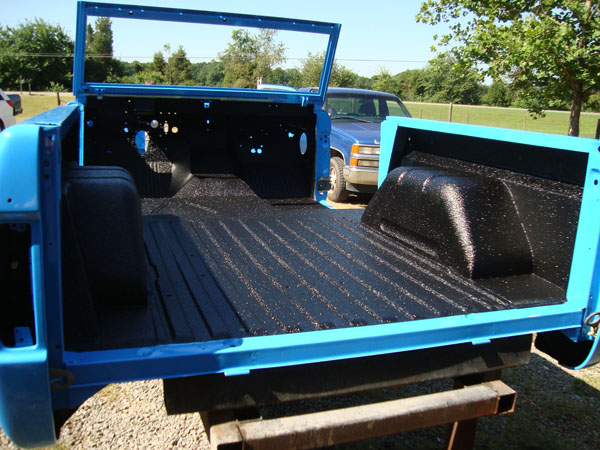

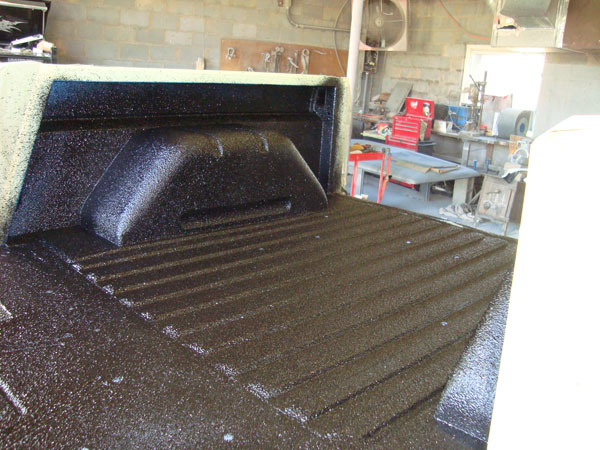

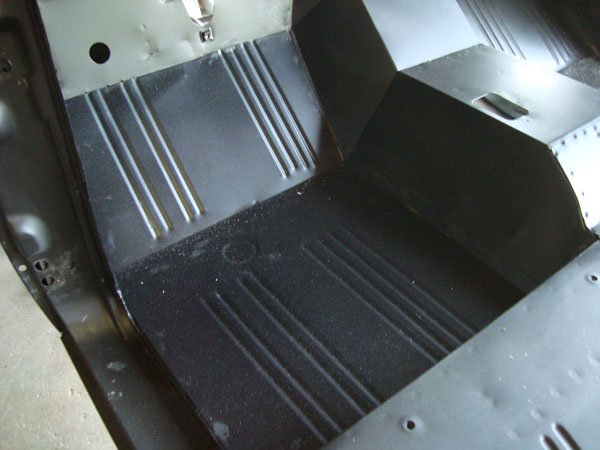

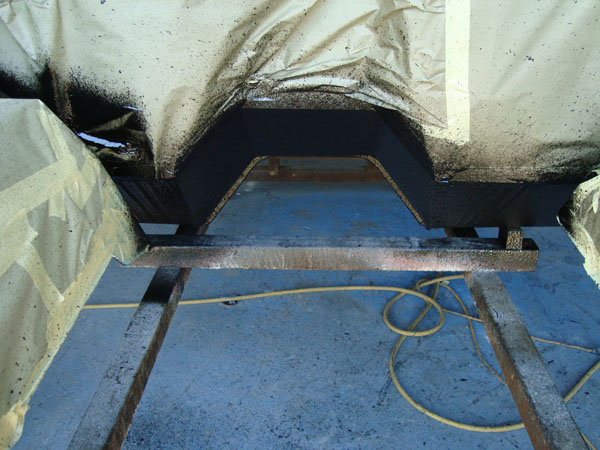

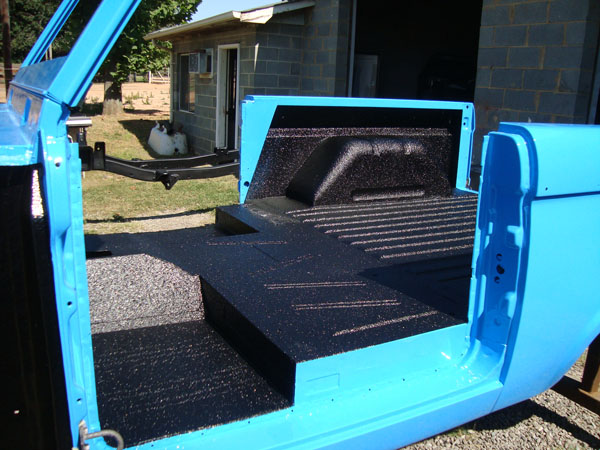

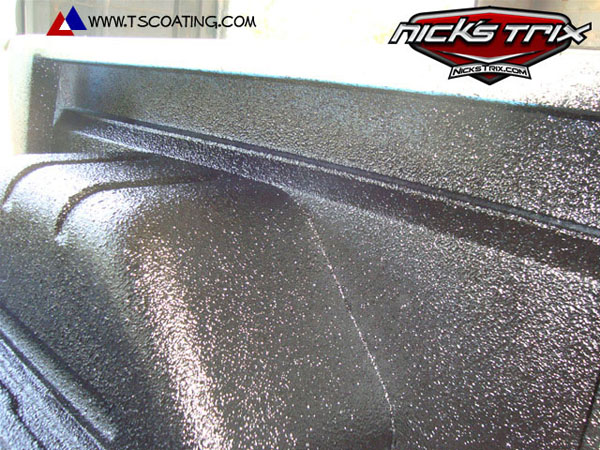

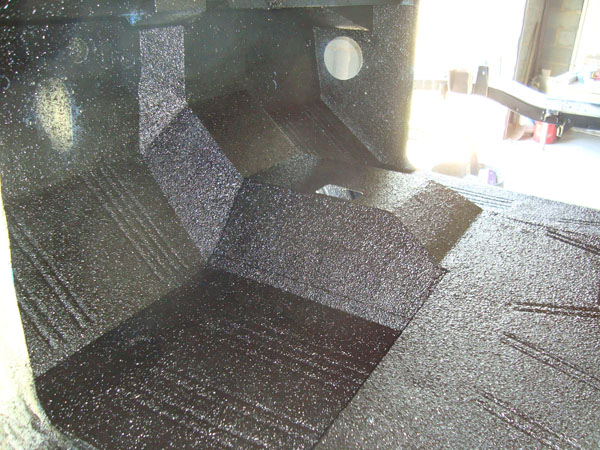

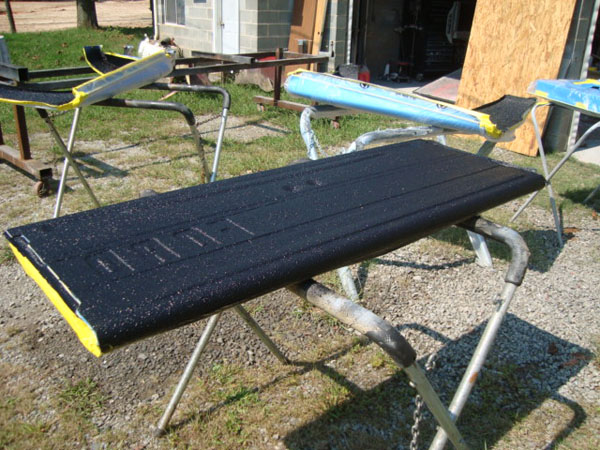

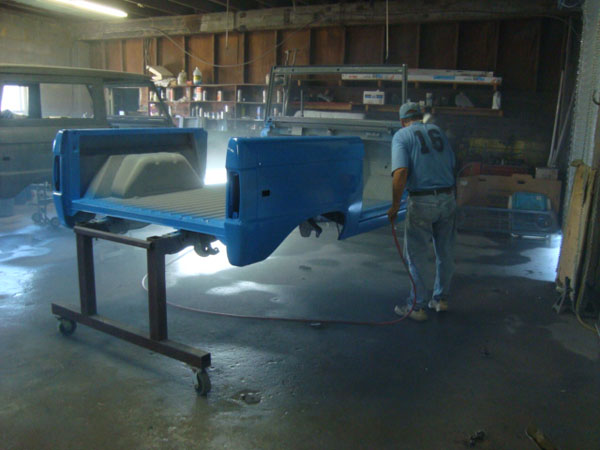

  • Complete bed liner sprayed inside & under using Al’s Liner

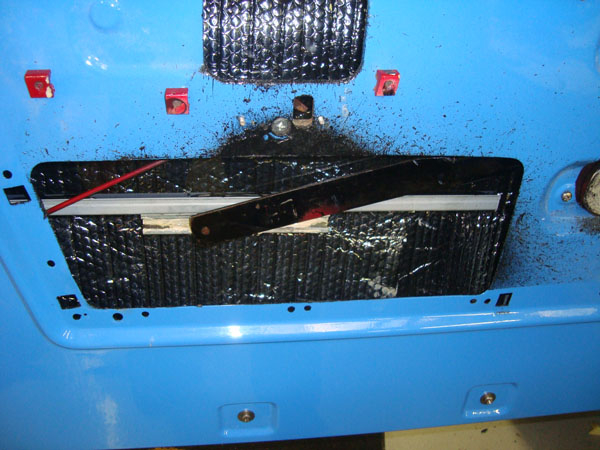

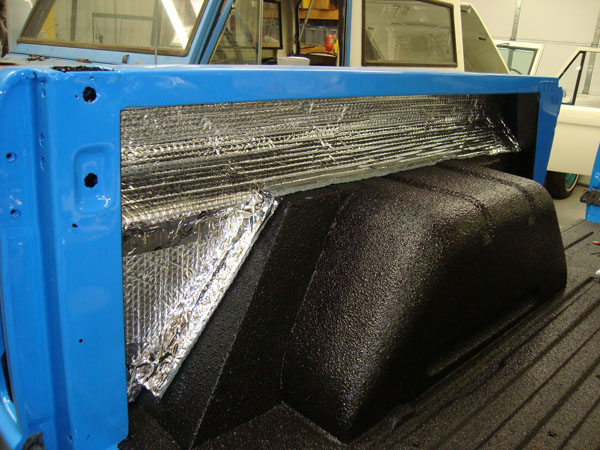

  • Sounds deadener & insulation used extensively

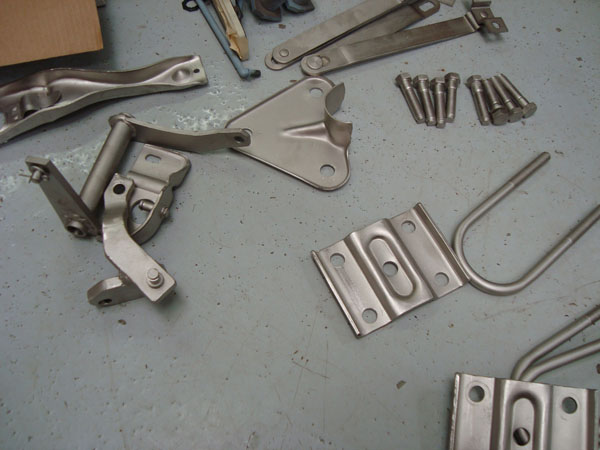

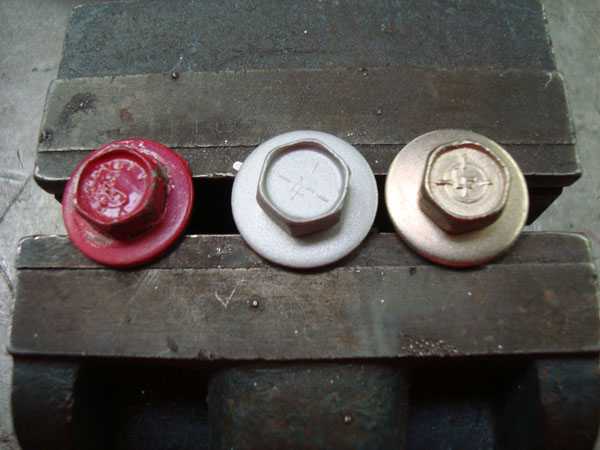

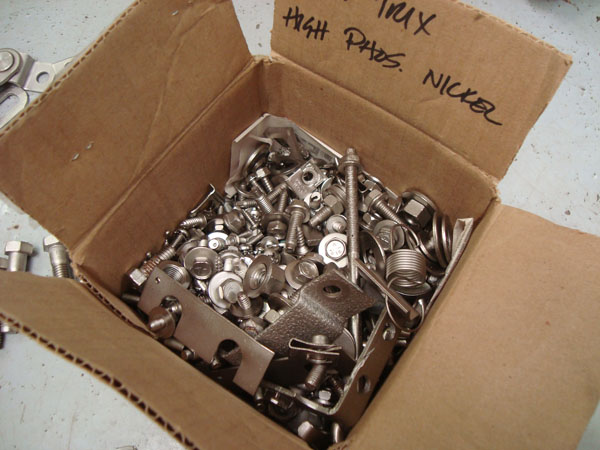

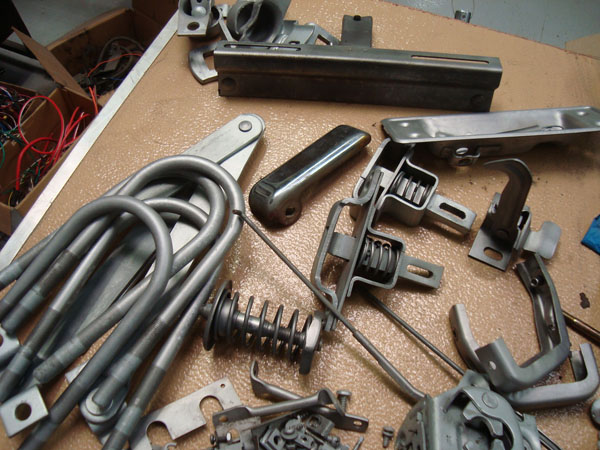

  • All hardware and misc parts replated in Electroless Nickel
Engine upgrade

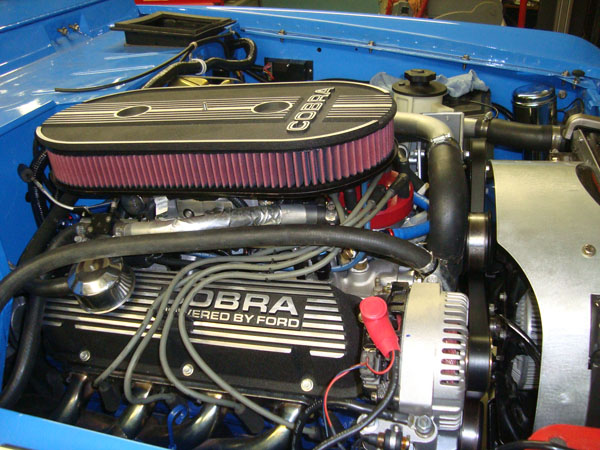

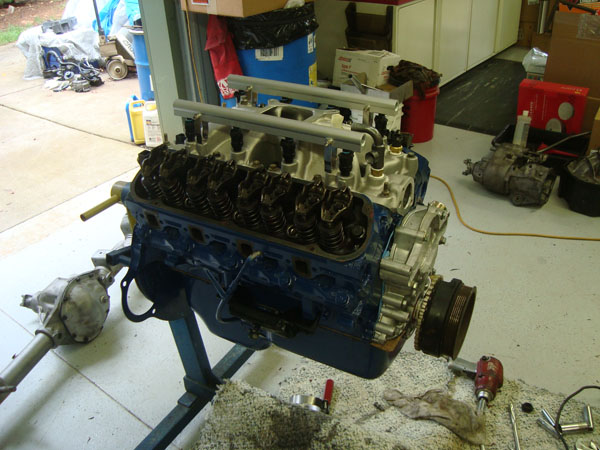

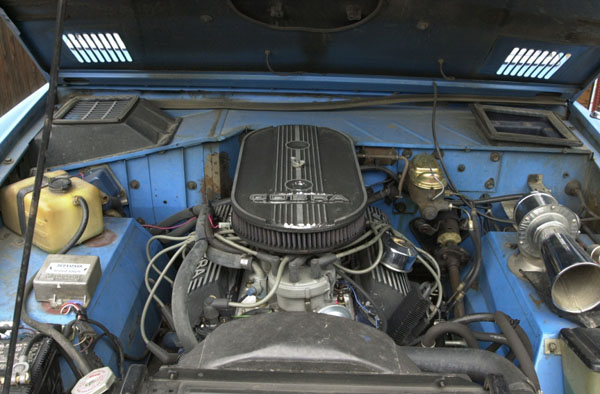

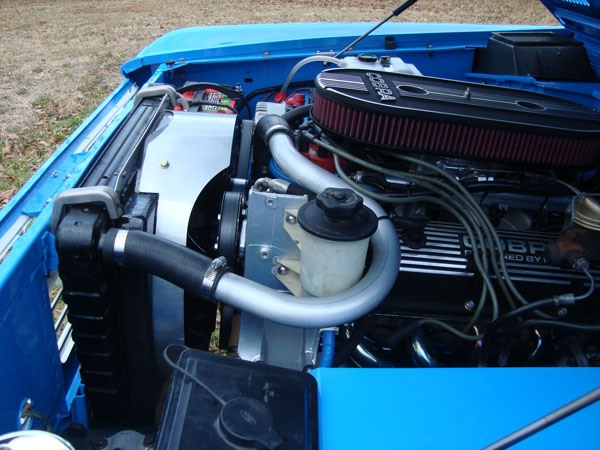

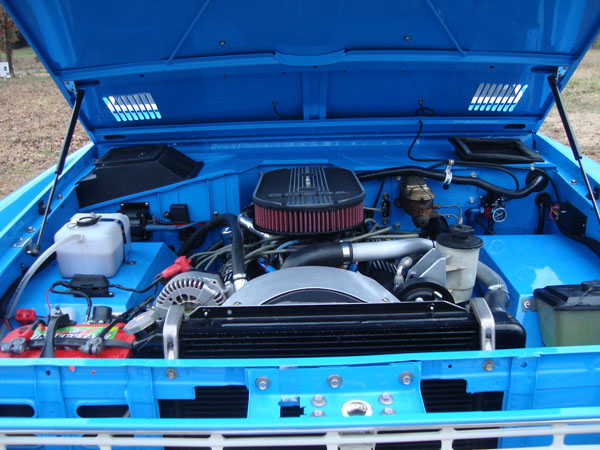

  • Ford SVO crate 302
    - Updated induction with mass Flo EFI package
    - Updated with Ford Explorer serpentine package

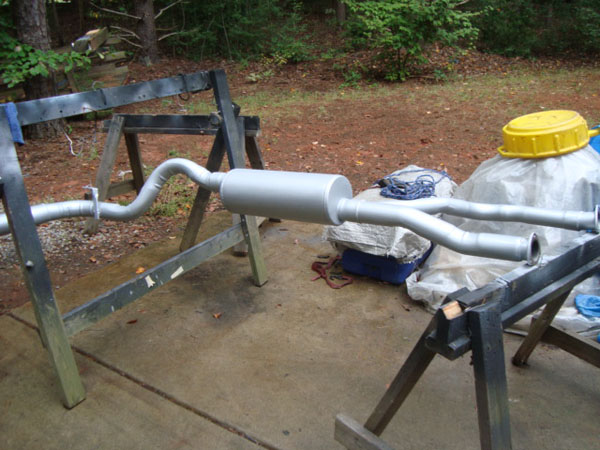

  • Thorley headers with 2:1 performance exhaust package

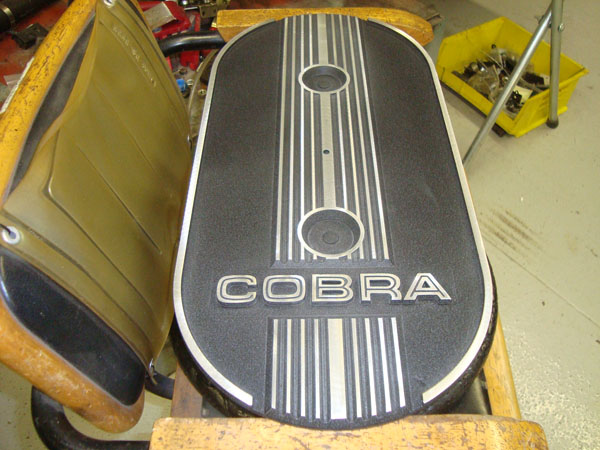

  • Ford Cobra valve covers and air cleaner

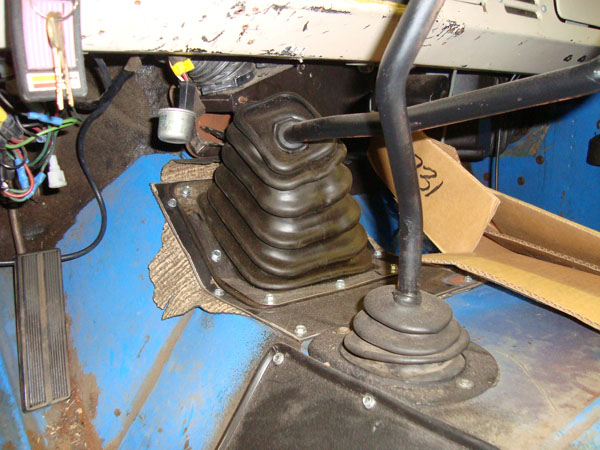

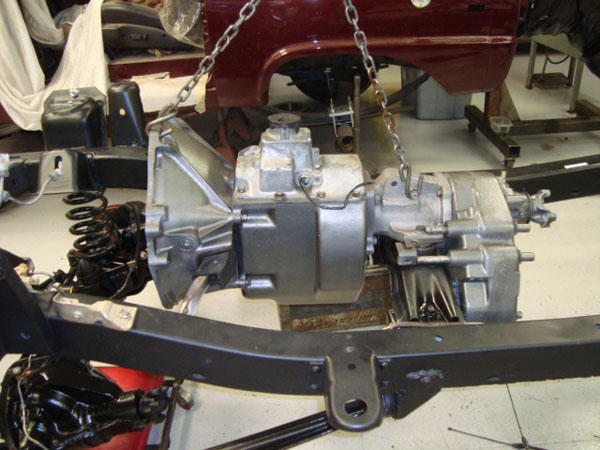

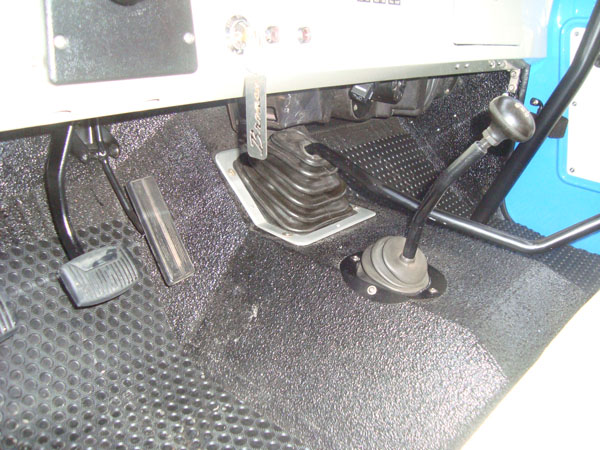

  • NP 435 trans. with Centerforce clutch
  • Dana 20
  • Extended drive lines
  • 4:10 gear ratios

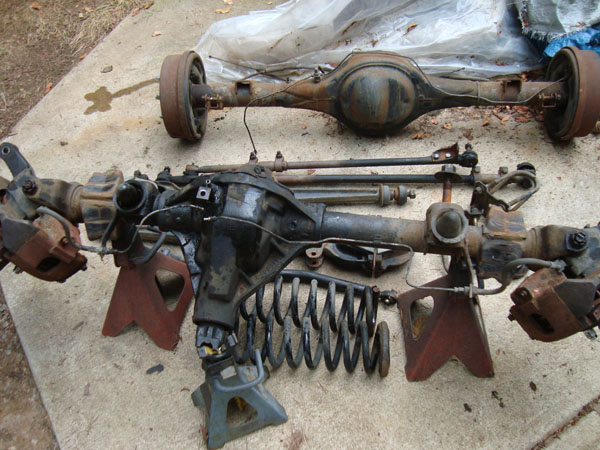

  • Currie HD rear housing w/ taper bearing axles
    - with Detroit Locker
  • Ford truck front disc brakes
  • Power steering with updated Explorer pump

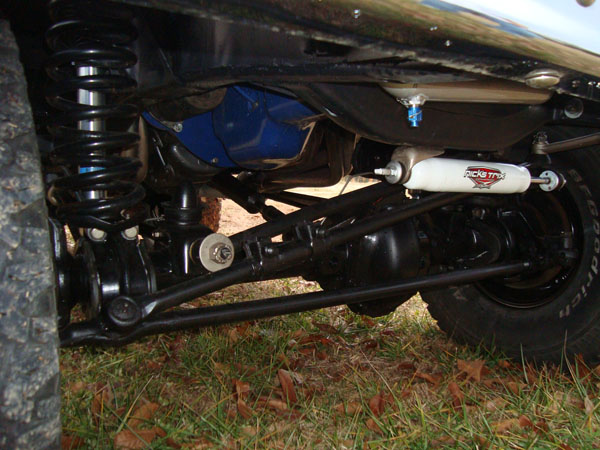

  • 1 ton steering package
  • Trans., t/c and gears serviced by Corey Trans

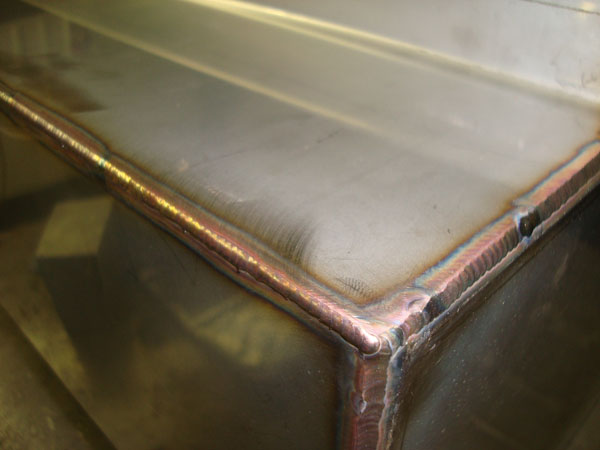

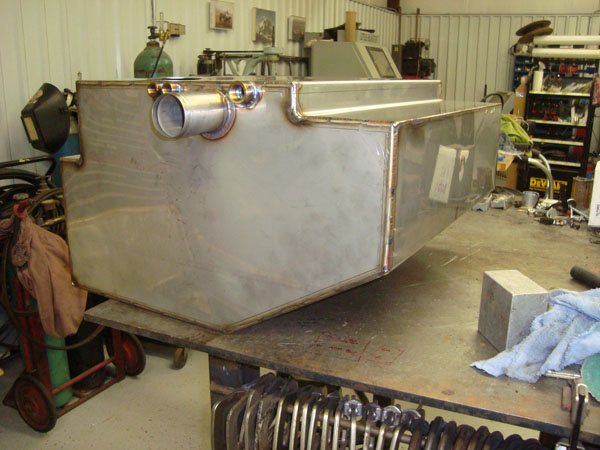

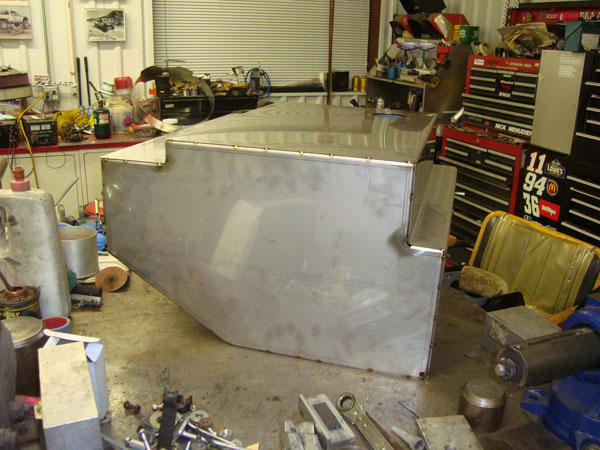

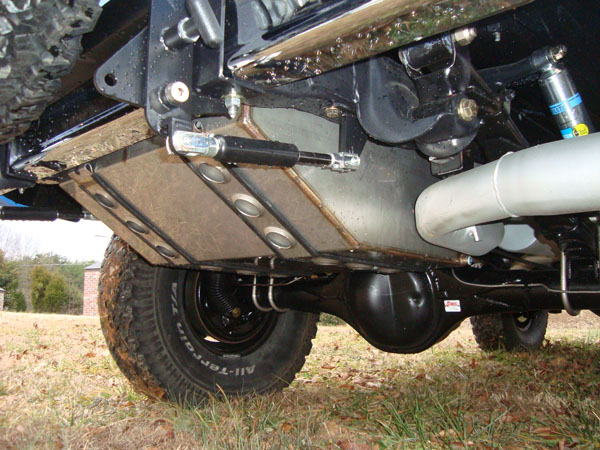

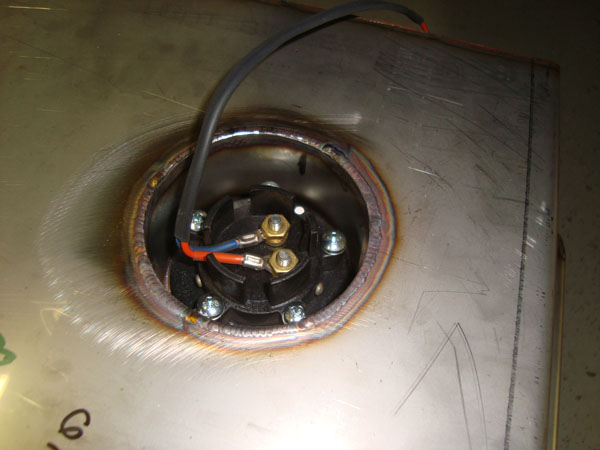

  • Stainless steel fuel tank package
  • Fluid transfer uses Goodridge line & AN fittings
  • BFG 33X9.50x15 tires on powder coated factory wheels
  • National 3.5” lift springs

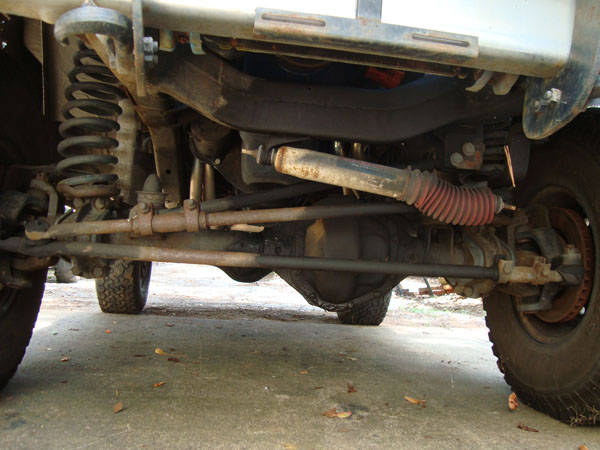

  • 3.5” lift coil springs
  • Urethane bushings through out

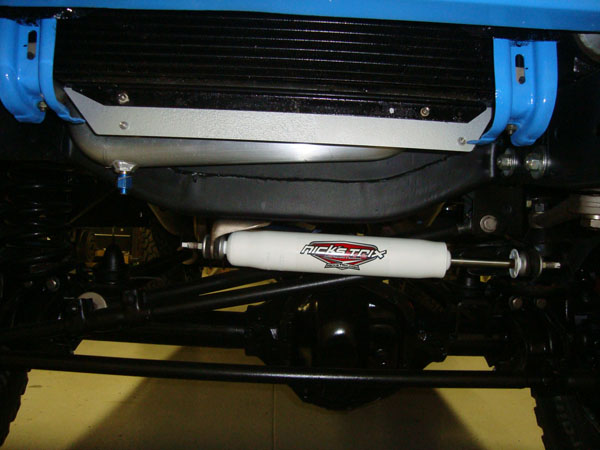

  • Bilstein shocks

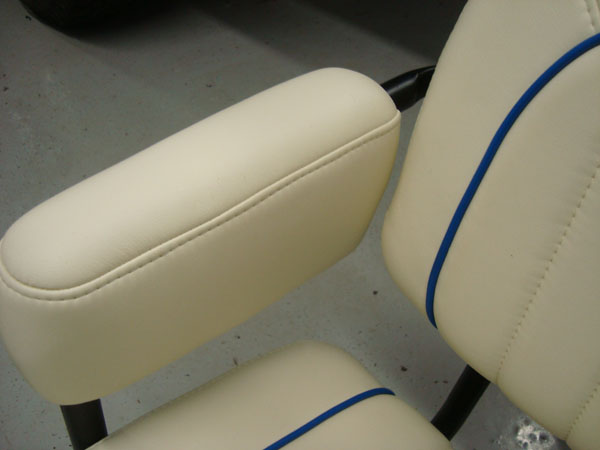

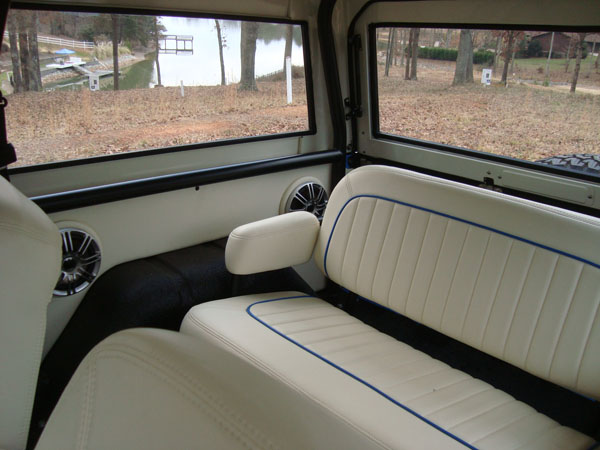

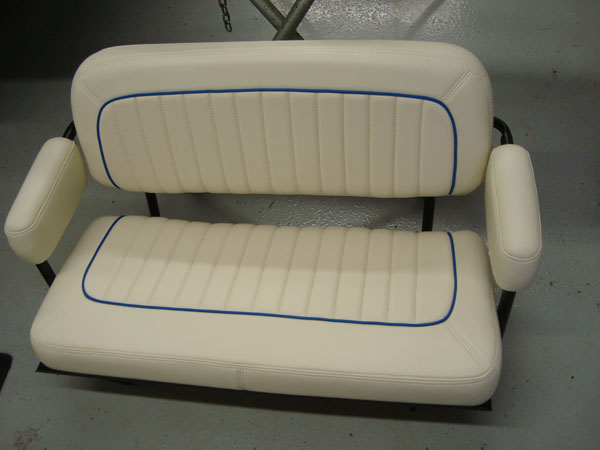

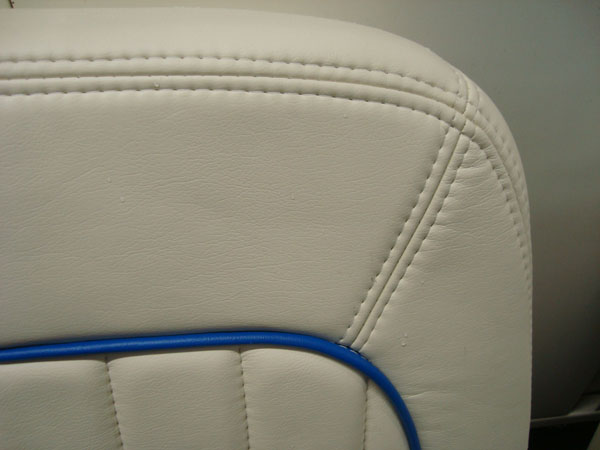

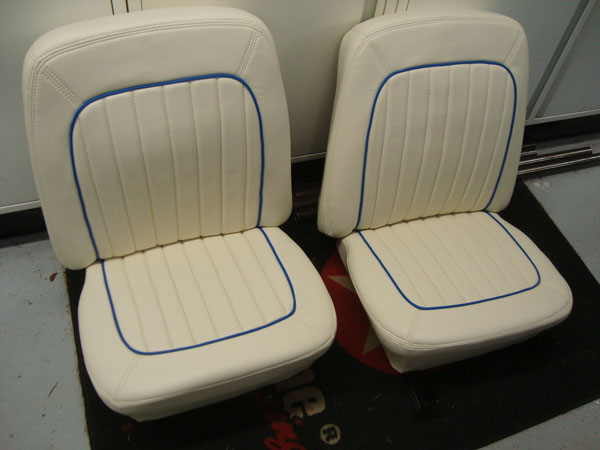

  • Seats redone in Ultra Leather with blue piping

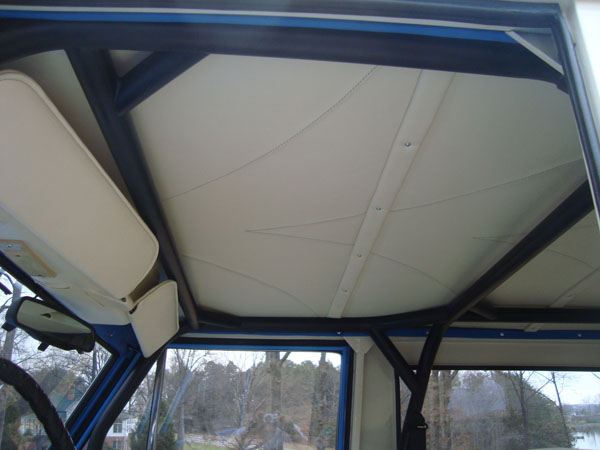

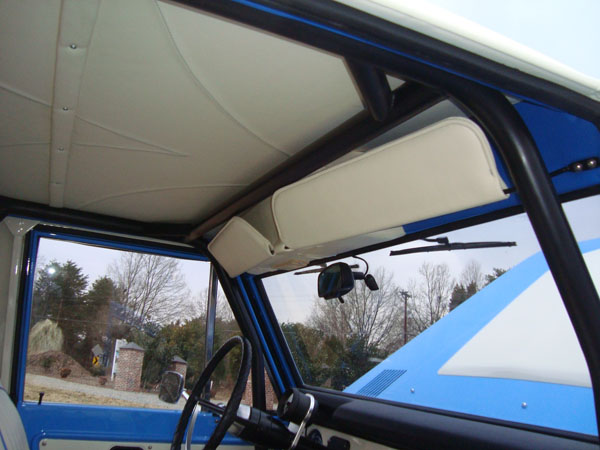

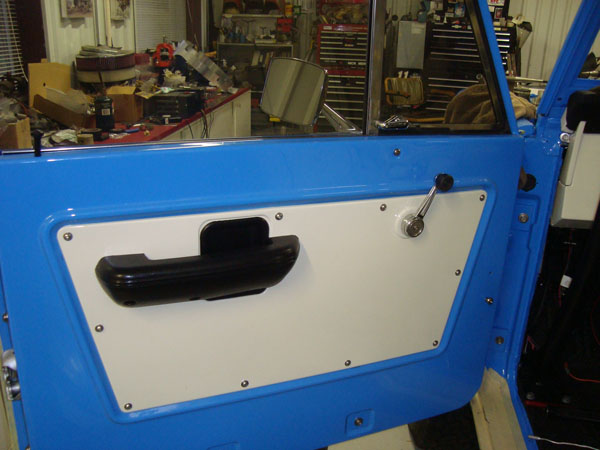

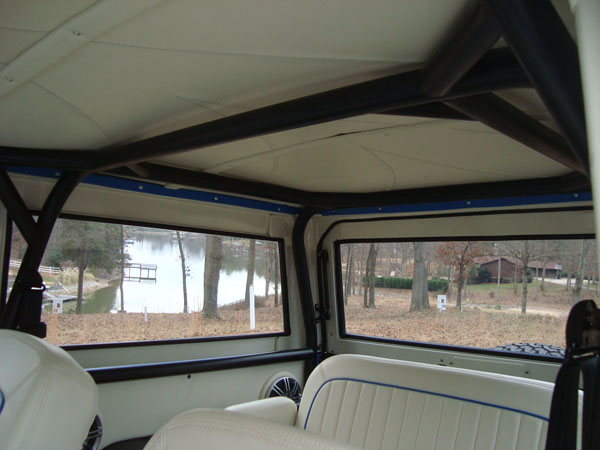

  • Custom headliner, side panels and visor package
    - Interior work by Finish Line Tops & Interior

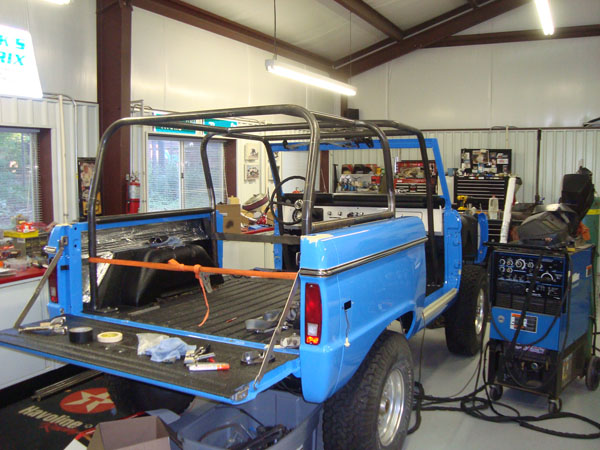

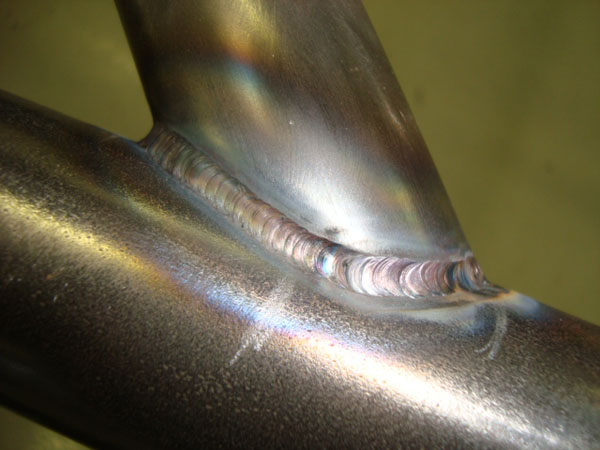

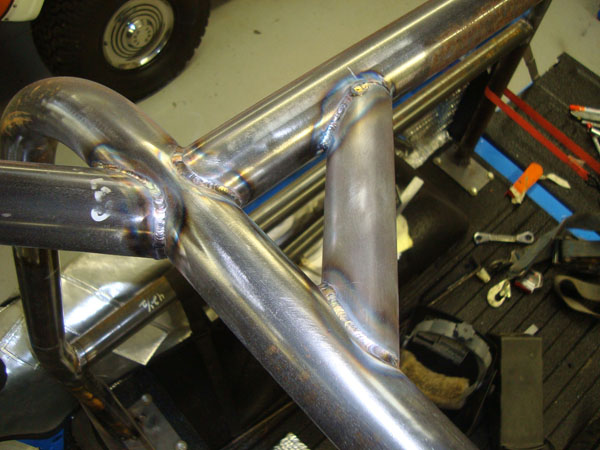

  • Custom family cage with 3 pt seat belts
  • Clarion sound system in Tuffy console
    - Polk Audio speakers

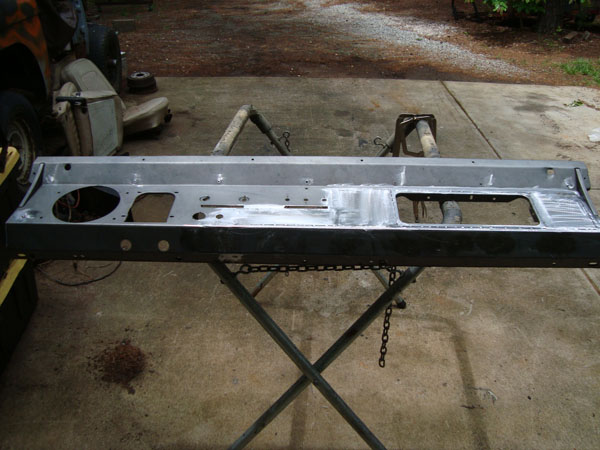

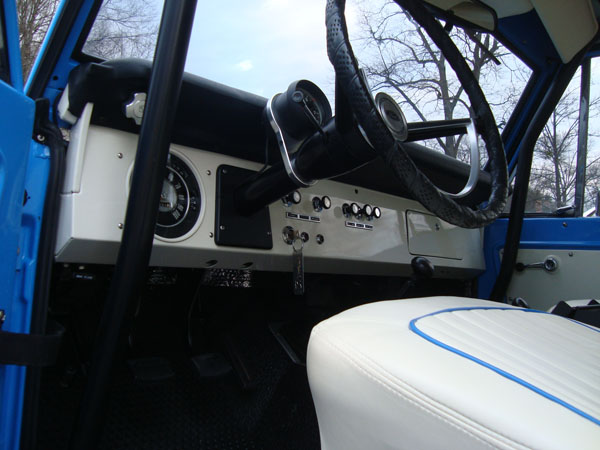

  • Reworked factory dash

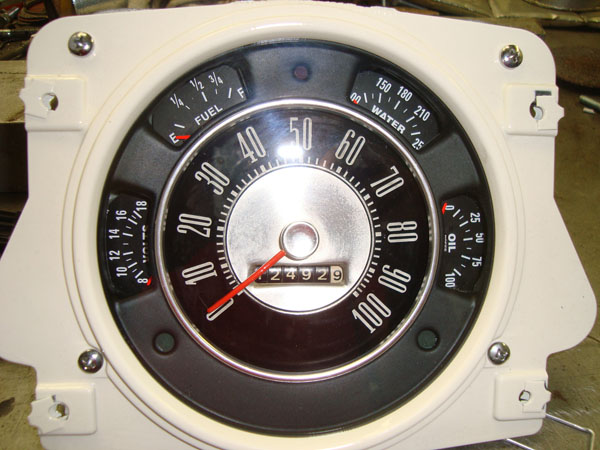

  • Speedo cluster updated
    - Autometer Instrumentation
Extras

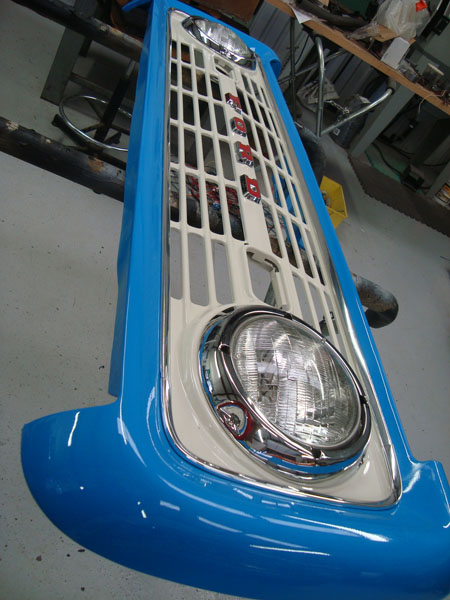

  • All new trim, bright work & badging
  • New hub caps
  • Window trim was stripped, polished and reanodized
  • Custom Gas Assist tire carrier
  • Tinted glass package

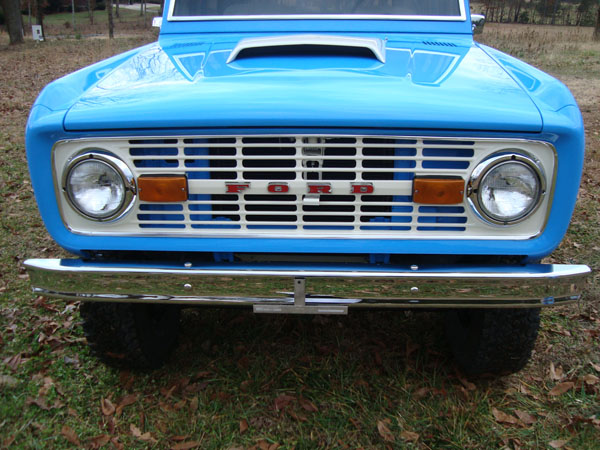

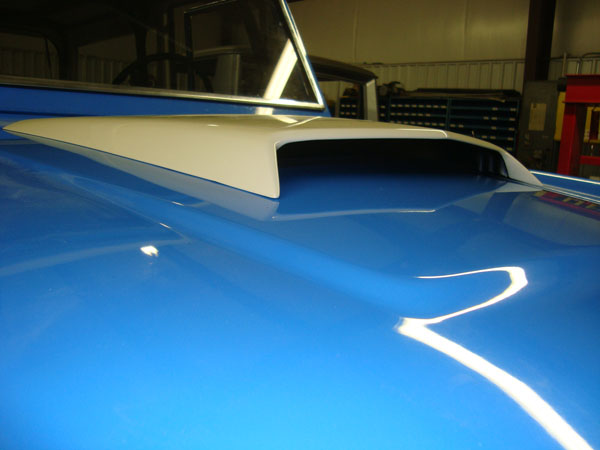

  • Ford hood scoop
