Atlanta Build by Nick's TrixBronco Build Specifications
Services performed by Nick’s Trix Custom Fabrication:

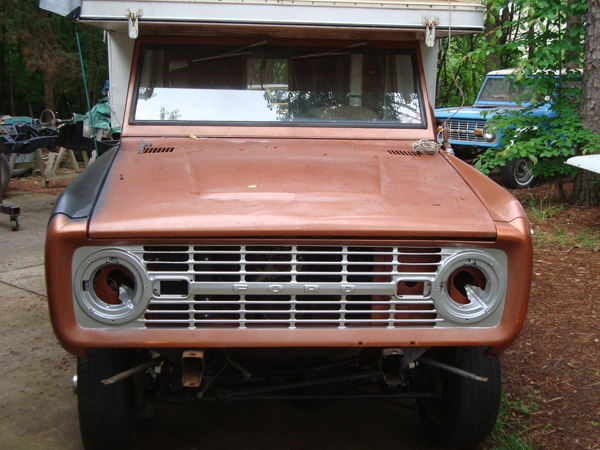

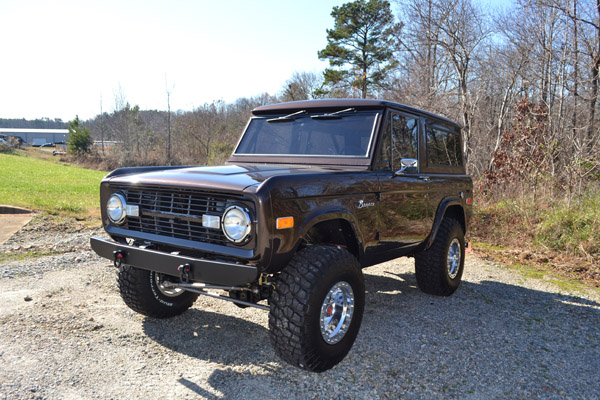

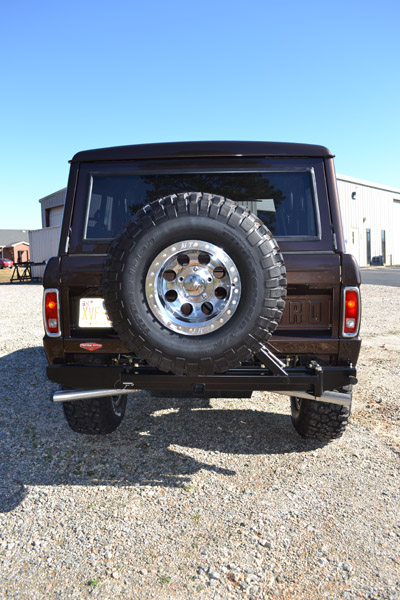

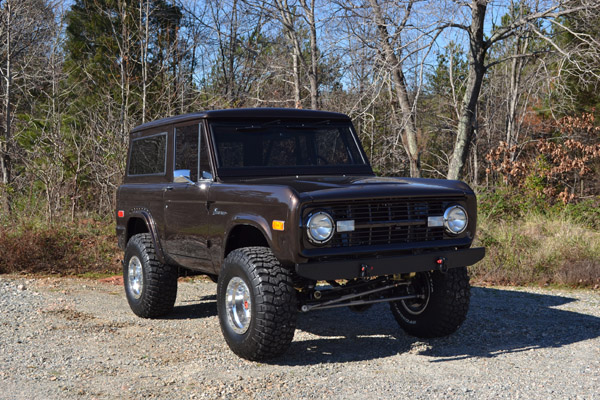

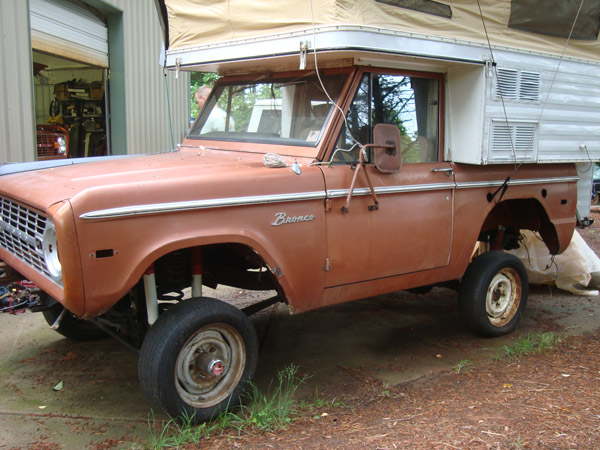

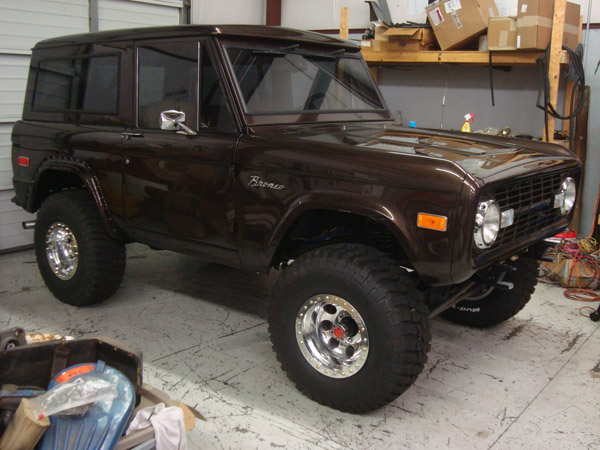

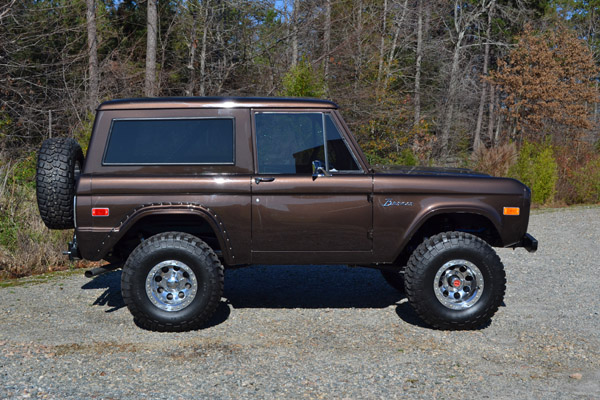

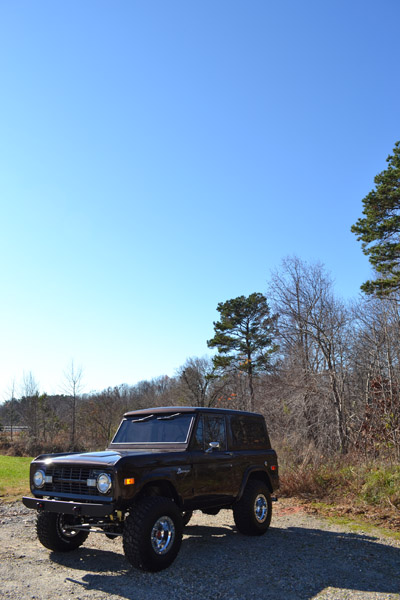

This 1974 Ford Bronco
“The Boss” aka “El Jeffe” is an original Texas truck

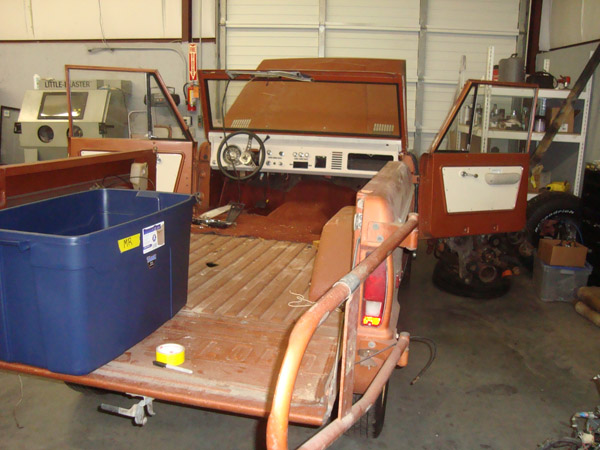

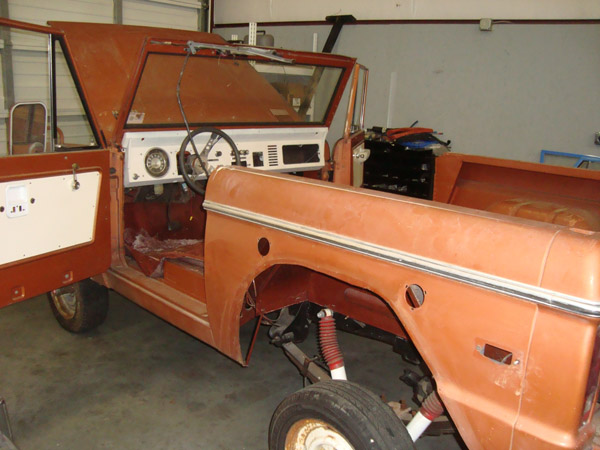

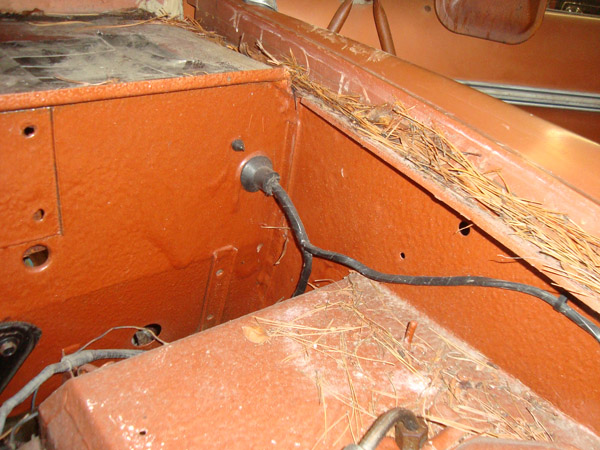

Complete frame off custom build for a "one-of-a-kind" “Corporate Cruiser Edition”



Bronco Build Photo Gallery
01 02 03
04 05 06
07 08 09
10 11 12
31 14 15
16 17 18
19 21 22
23 24 25
26 27 28
29 30 31
32 33 34
35 36 37
38 39 40
41 42 43
44 45 46
47 48 49
50 51 52
53 54 55
59 56 57
58 60 61
63 62 64
63 62 64
63 62 64
63 62 64
  62

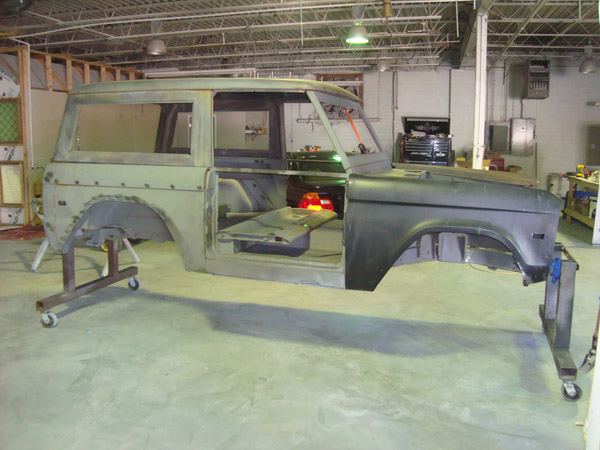

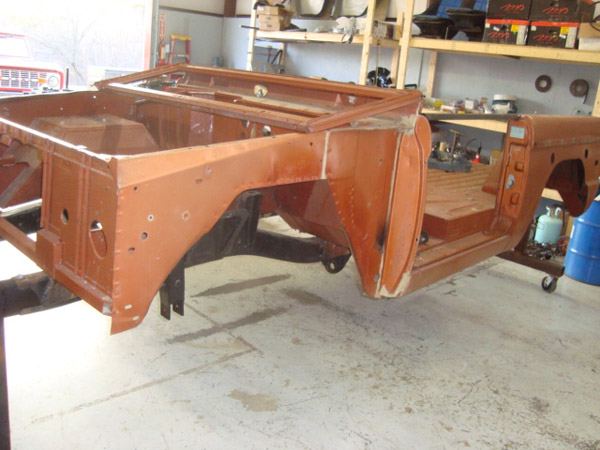

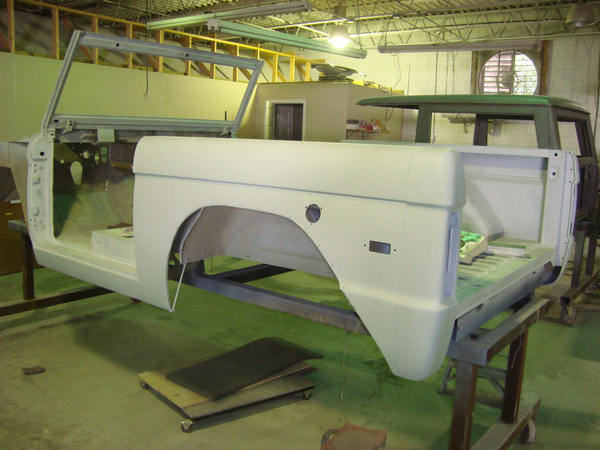

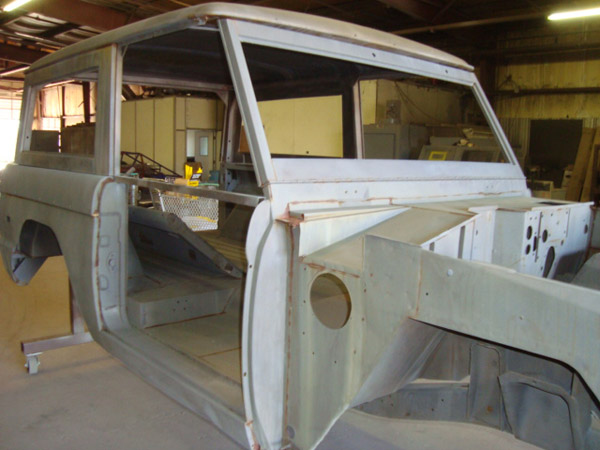

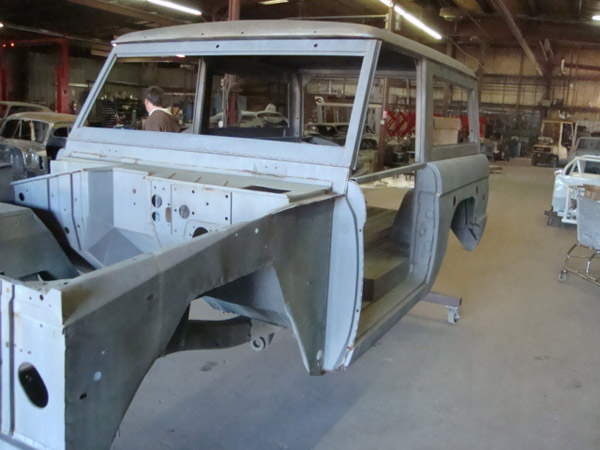

  • Stripped & media blasted by Diversified Finishers

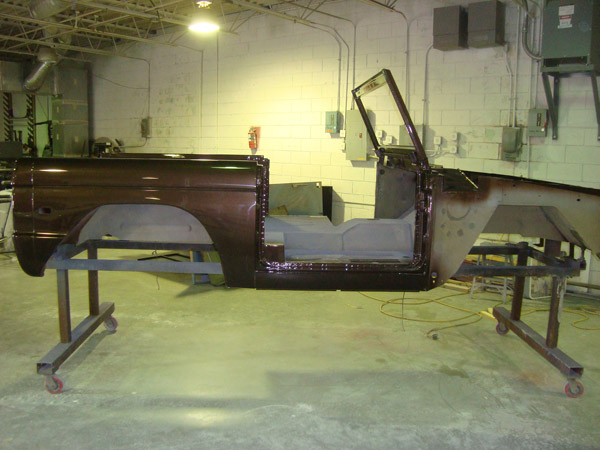

  • Bodywork & paint by Chuck Schenck Autobody
  • Paint is PPG DBC basecoat /clear
  • Color: Porsche Macadamia brown metallic

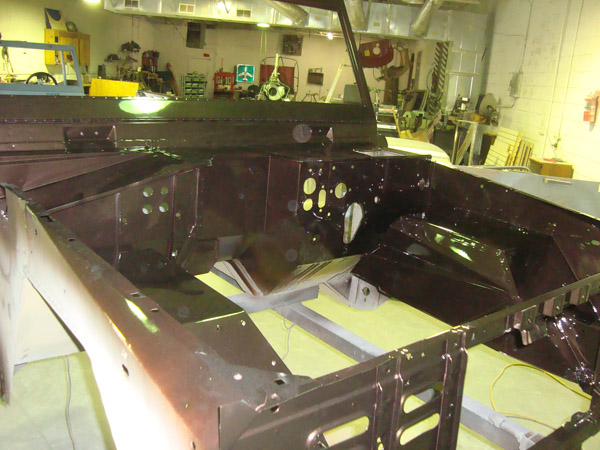

  • SEM seam sealers

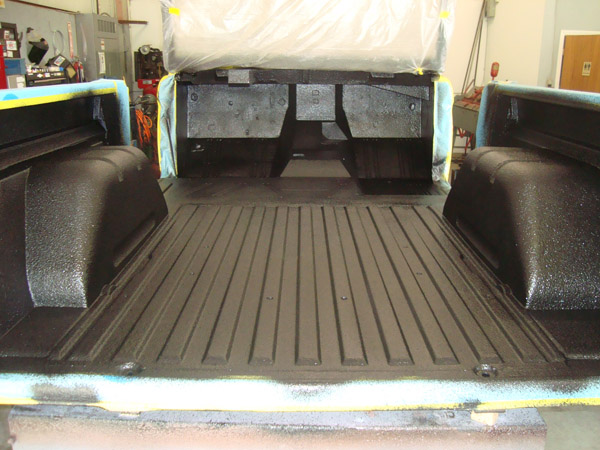

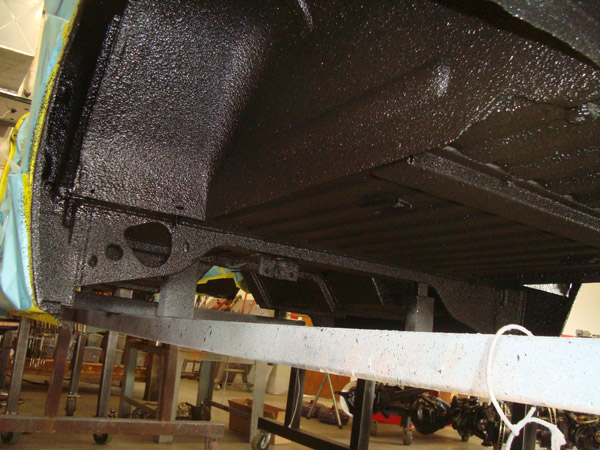

  • Scorpion Bed liner used inside and under
  • Hush Mat lined for sound deadening
  • Insulated
  • Duff urethane flares with stainless hardware

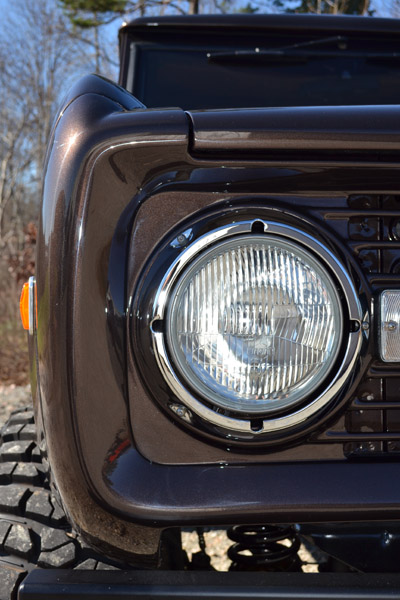

  • H4 headlights
  • Fresh bright work

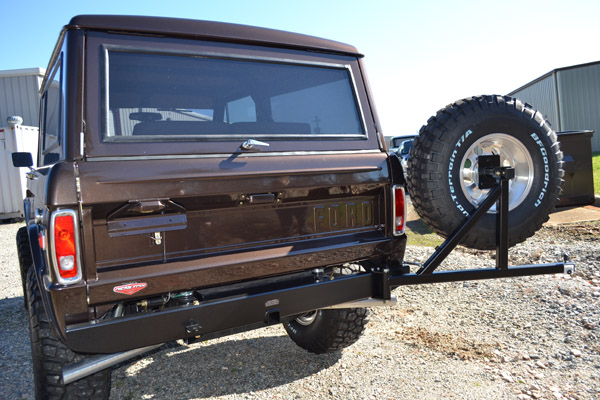

  • Bumpers by Cross Enterprises

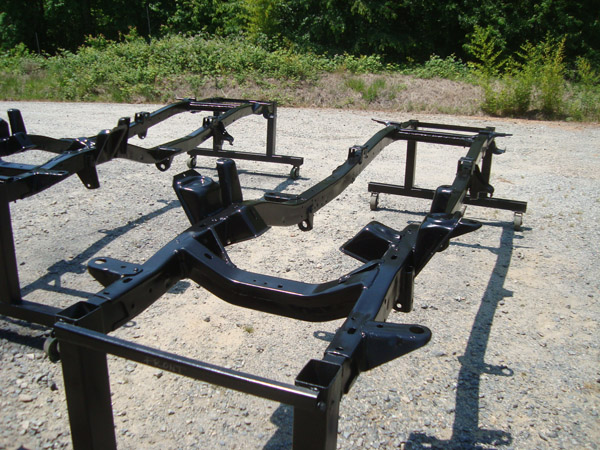

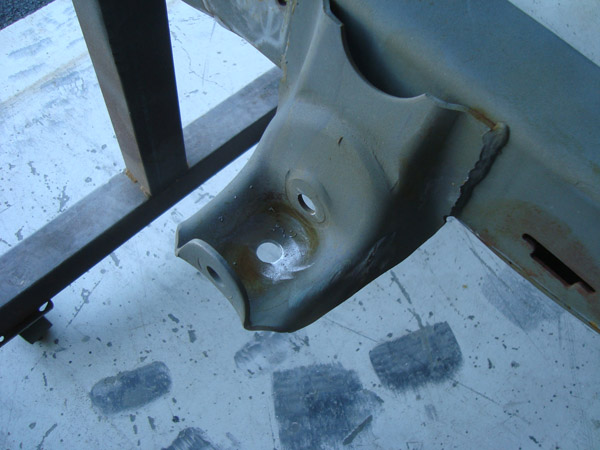

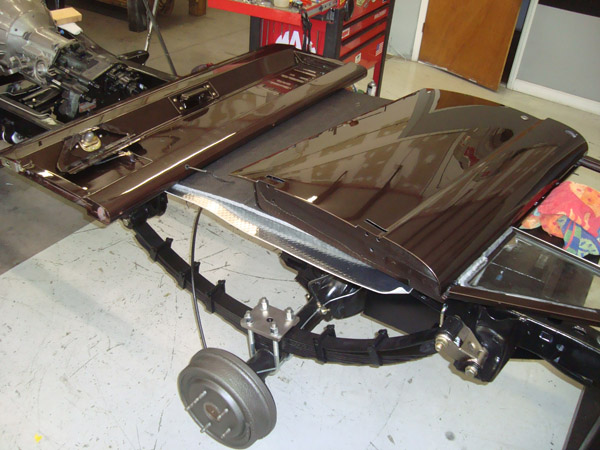

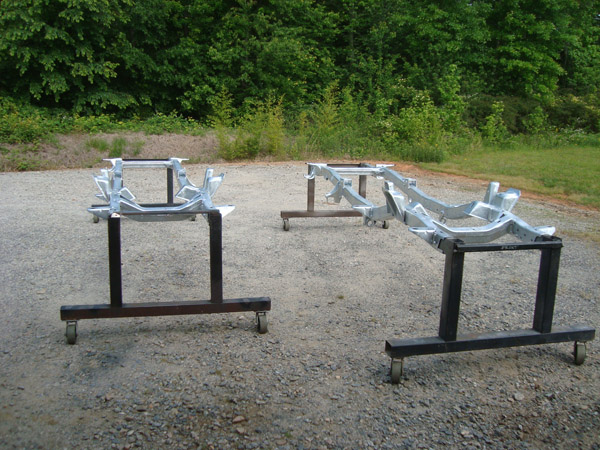

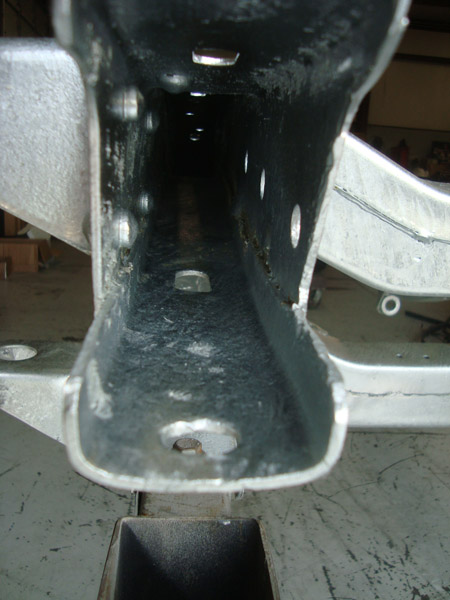

  • Chassis is hot dip galvanized, top coated in satin black
  • All hardware and misc. pieces replated in Yellow Zinc
  • NT 1 inch billet body lift
Drivetrain

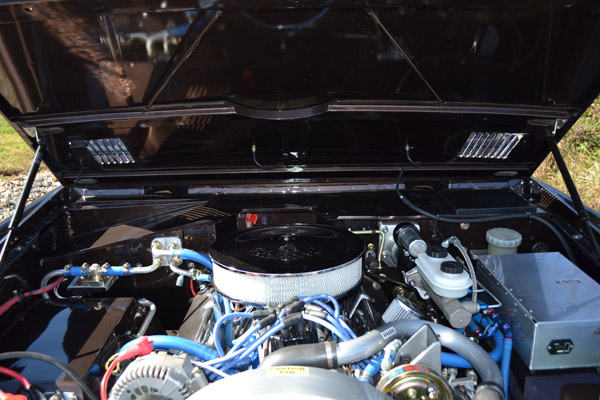

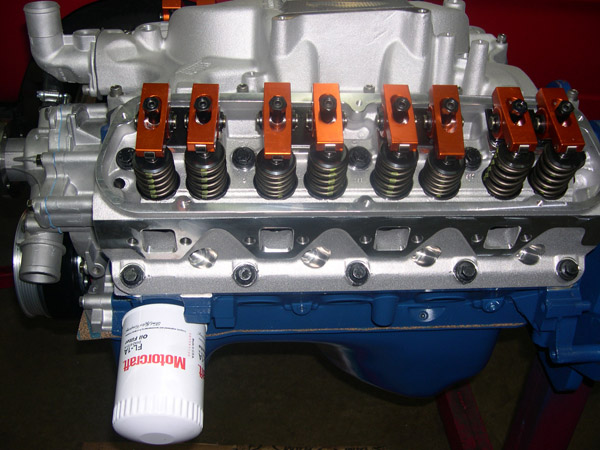

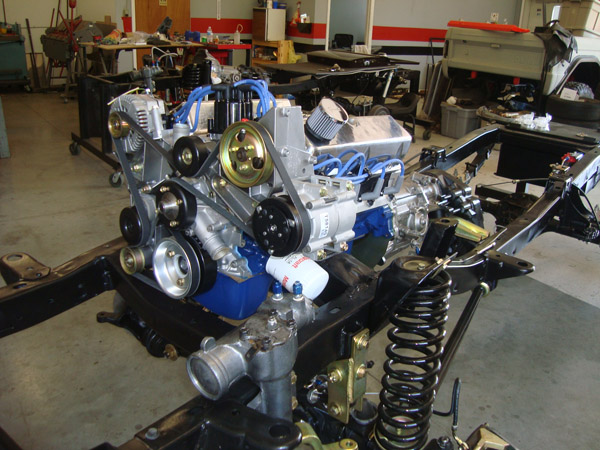

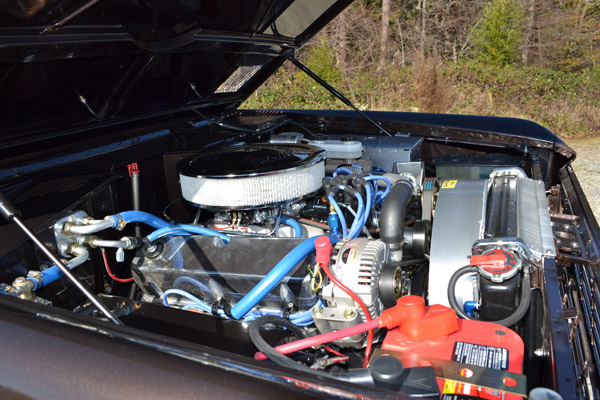

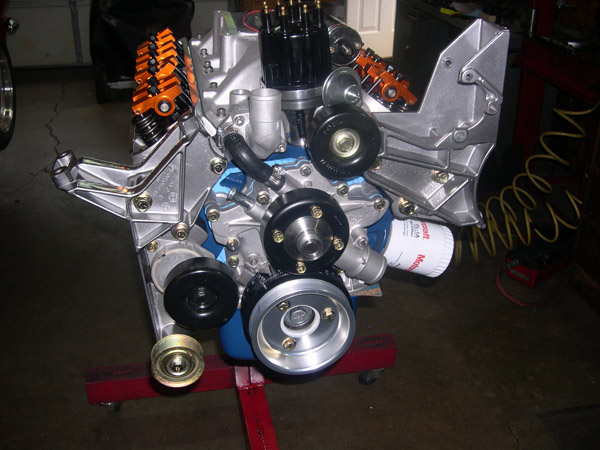

  • 347 stroker “Bravado” package by Campbell Gear Tech
  • Roller block and valve train
  • Aluminum heads and intake
  • Forged pistons
  • Scat crank and rods
  • Stainless valves
  • Summit carburetor
  • Serpentine belt package
  • Ceramic coated long tube headers

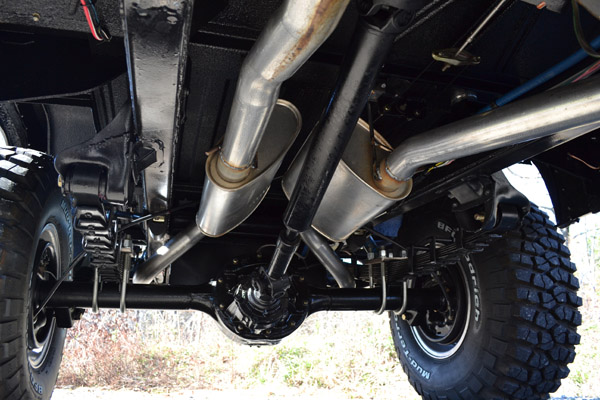

  • Magnaflow mufflers installed by Majestic Muffler
  • Optima battery
  • C4 trans & custom stall converter
  • Rebuilt Dana 20 transfer case

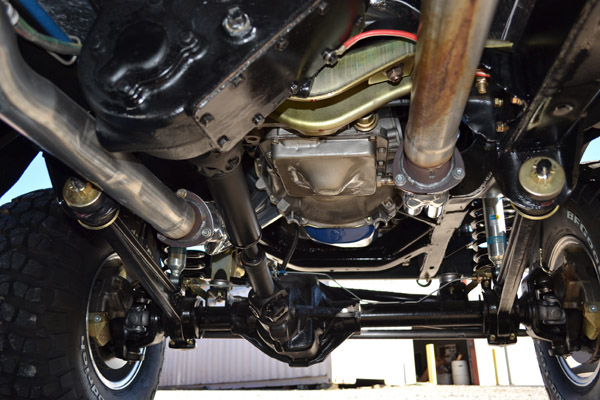

  • lockers front & rear with 4:10 gear ratio
  • gear work by Corey transmission
  • Drive shafts by Carolina Power train

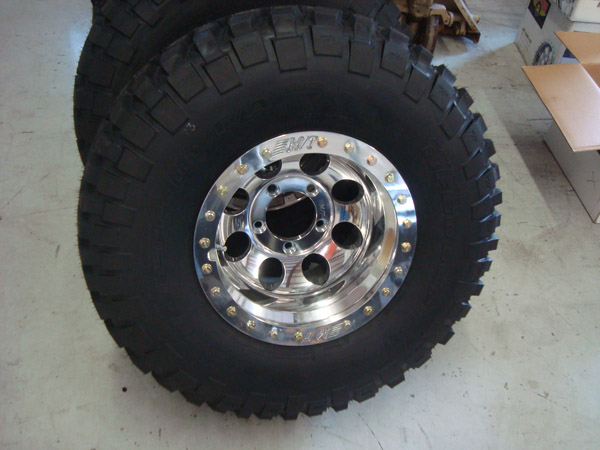

  • tires: BFGoodrich KM2 M/T 33x12-15

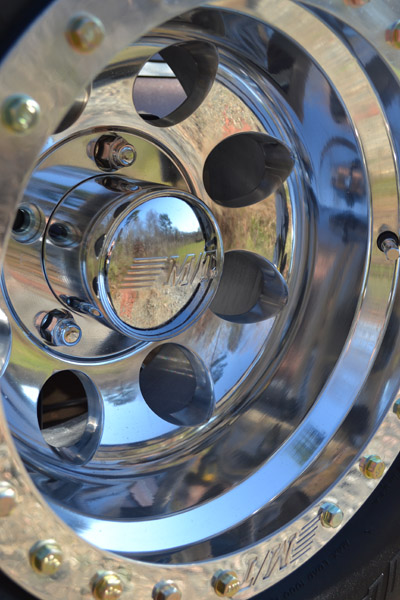

  • wheels: Mickey Thompson classic locks 15x10

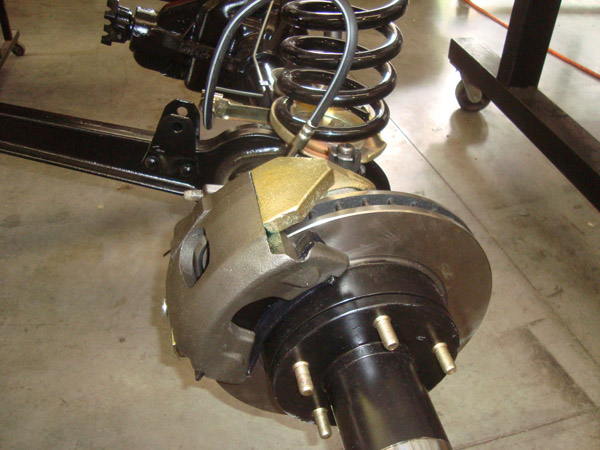

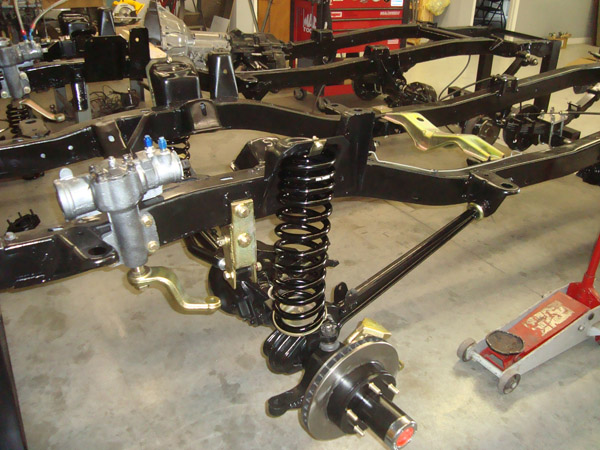

  • Disc brakes with Hydroboost

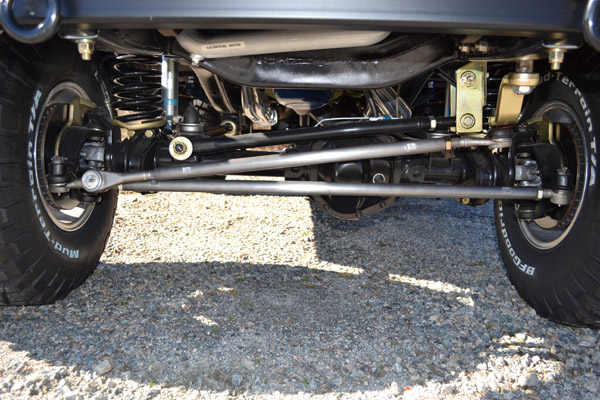

  • NT HD tie rod package

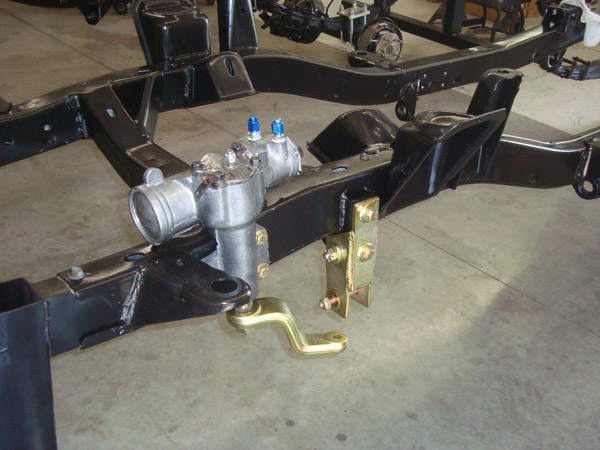

  • quick ratio steering box
  • Moog ball joints & 1 ton tie rod ends

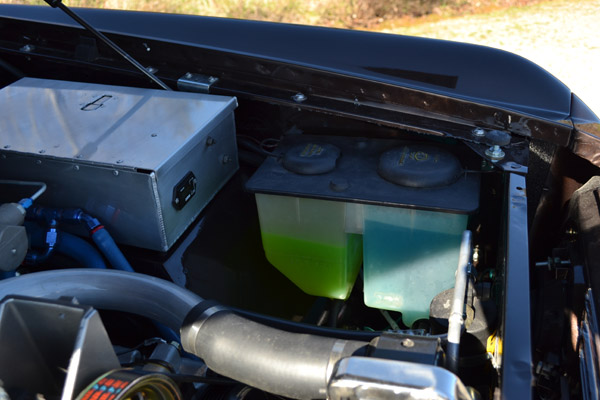

  • HD radiator by McKinney

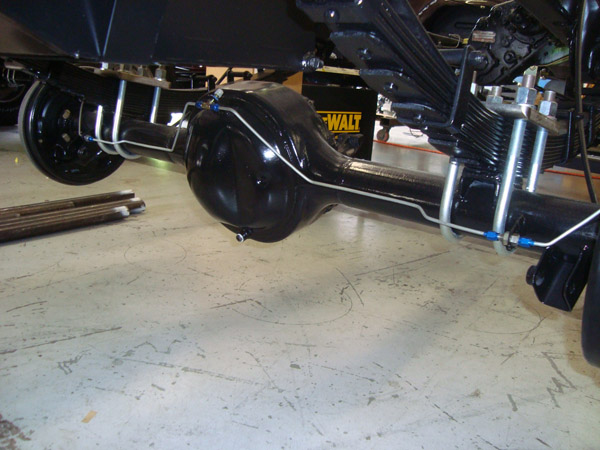

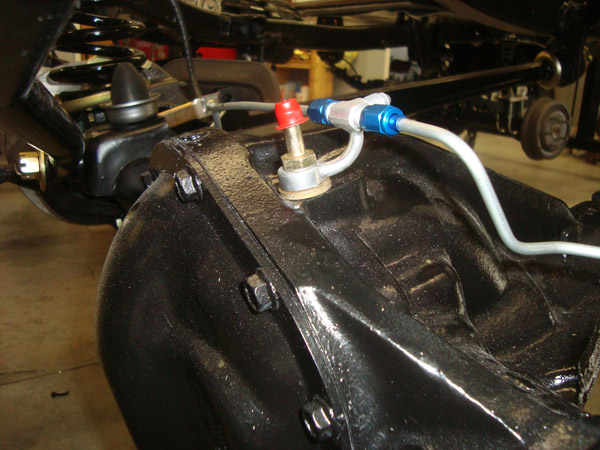

  • Fluid transfer by Goodrige lines, hoses & fittings
  • 23 Gallon fuel tank

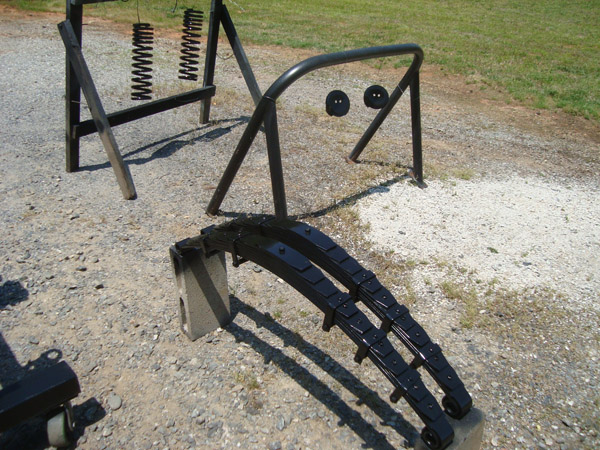

  • Wild Horses 2.5 in lift springs
  • Bilstein shocks
  • Urethane bushings
  • Wild Horses extended trac bar

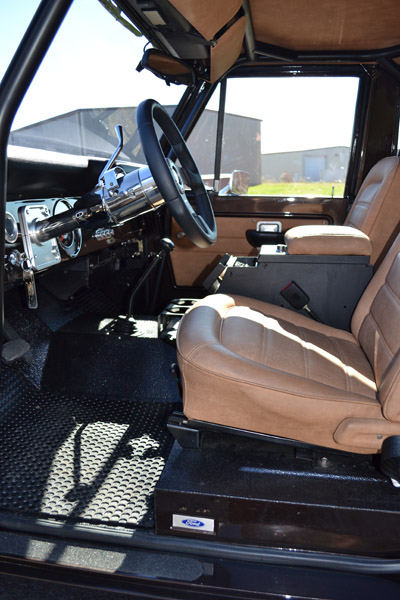

Interior

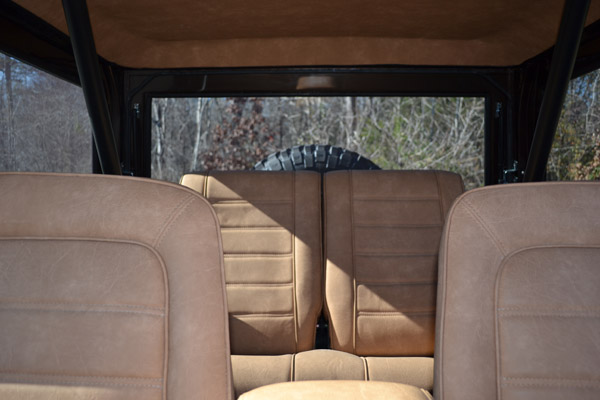

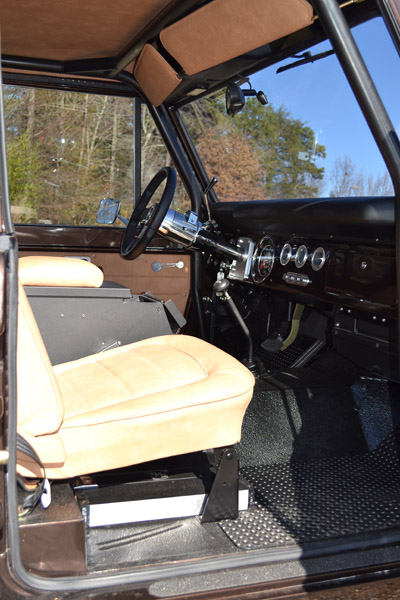

  • Seats, panel work and headliner by Pharr’s Trim Shop

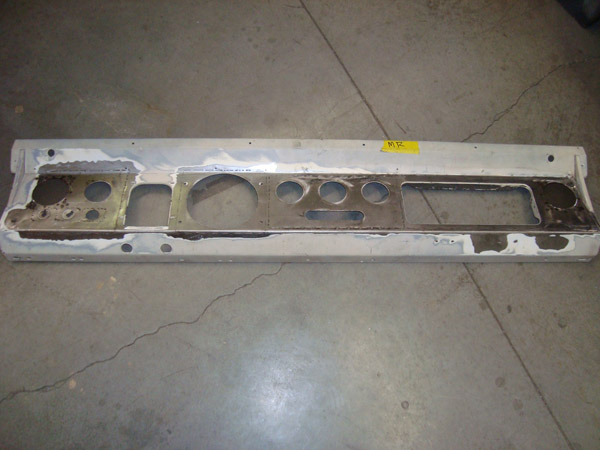

  • NT custom dash
  • Autometer instrumentation
  • Vintage Air a/c package

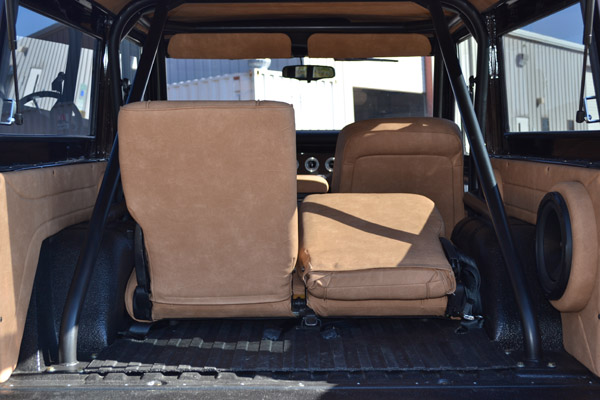

  • Custom rear fold and tumble seat
  • Tuffy consol

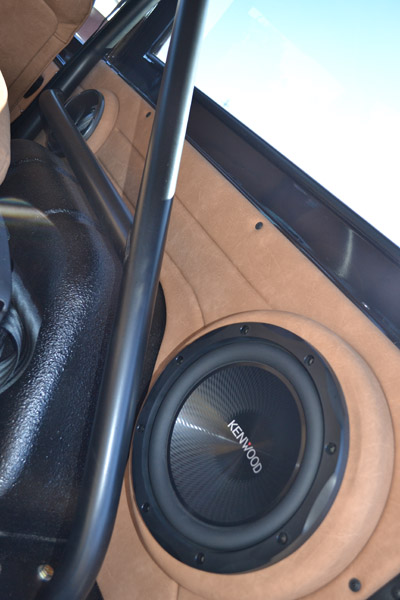

  • Kenwood stereo package with GPS, Sirius & Ipod
  • Sound Ordinance amplifier
  • NT hidden antenna
  • Custom wiring harness
  • Hour meter.
  • Momo steering wheel

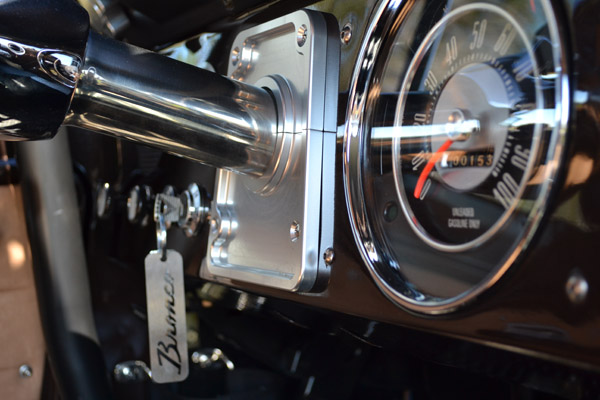

  • Flaming River polished tilt column

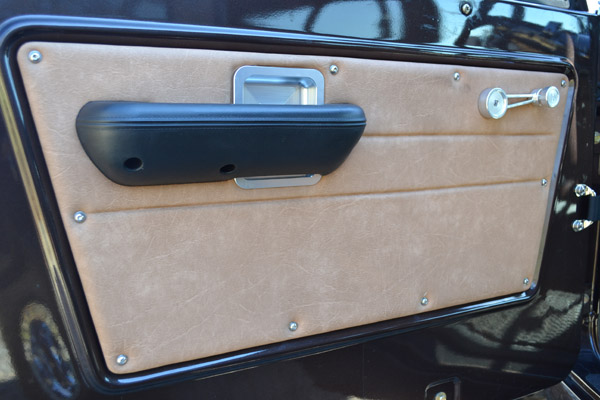

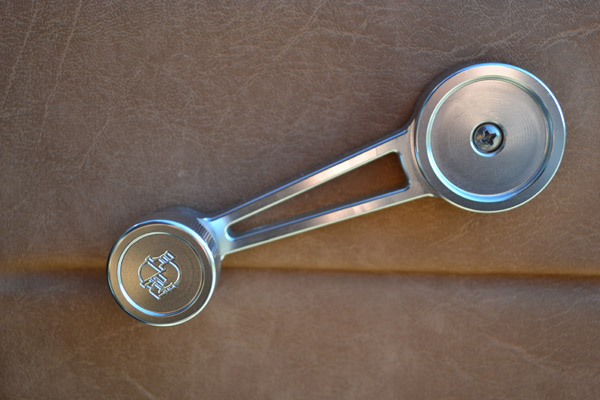

  • NT billet knobs, door cups and cranks

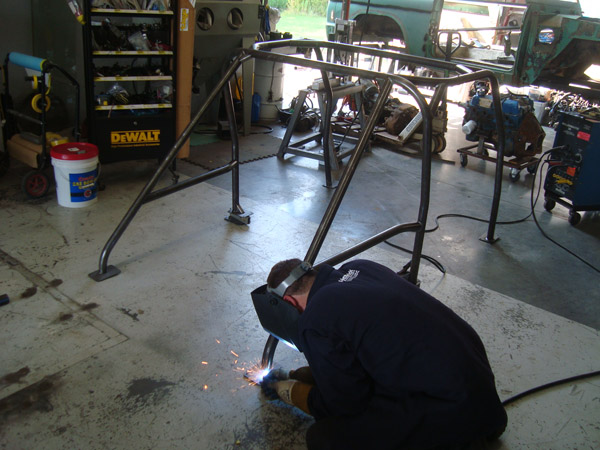

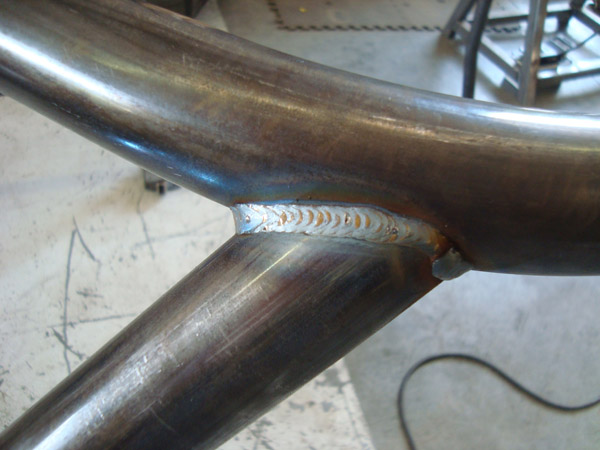

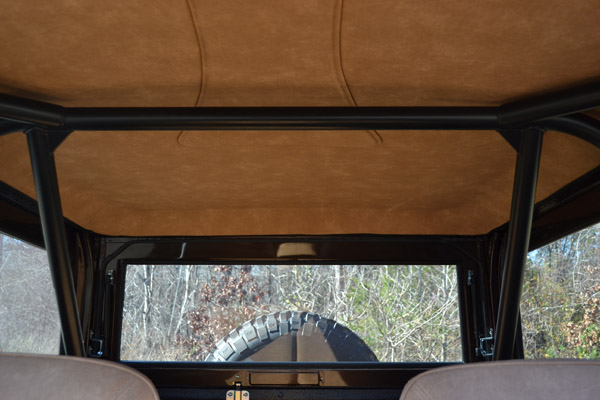

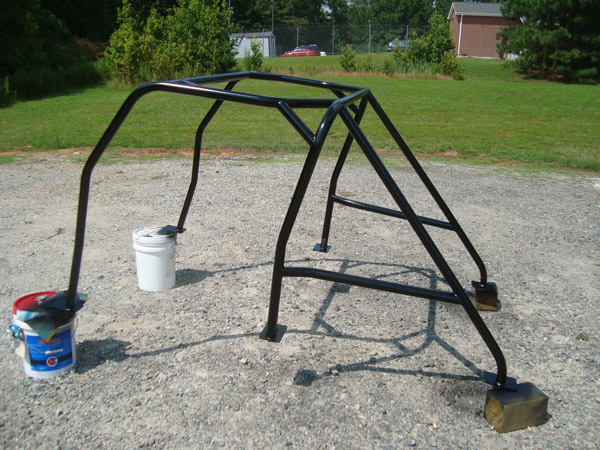

  • NT Sport cage package in DOM tube
  • Tinted glass by “the tint master” Bob Russo @ Russo’s
