Atlanta Build by Nick's TrixBronco Build Specifications
Services performed by Nick’s Trix Custom Fabrication:

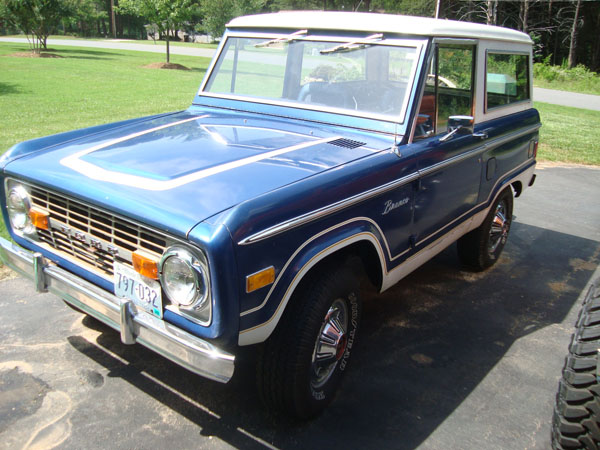

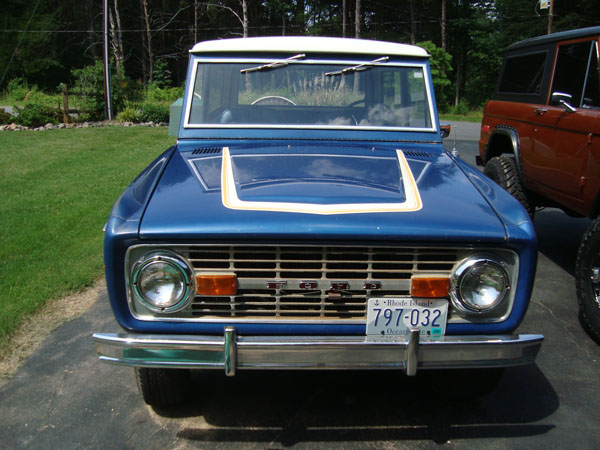

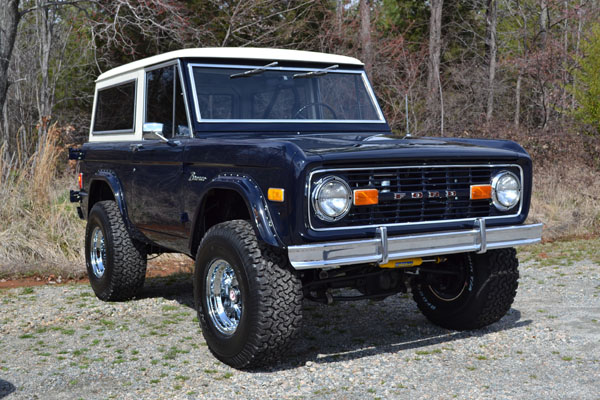

This 1977 Bronco build came in for body make over and drive train update to owners request.

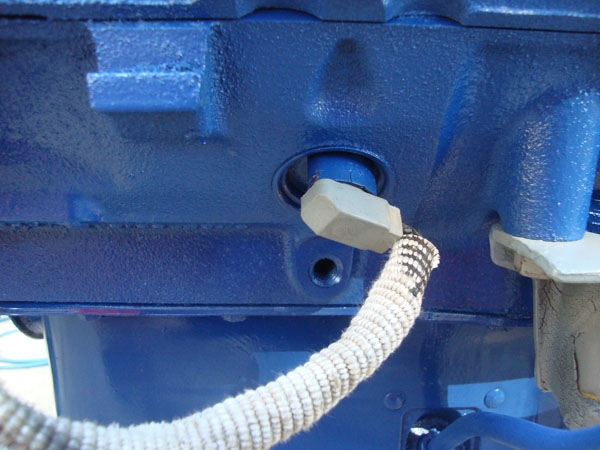

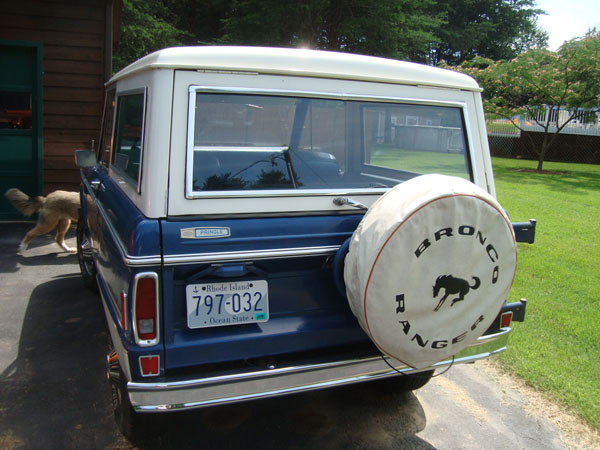

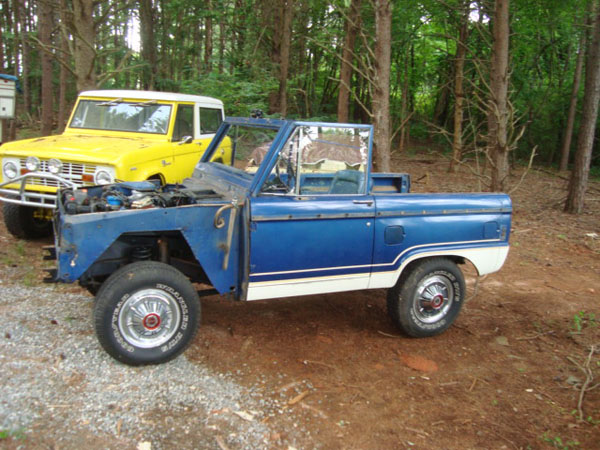

This is a true survivor. A beautiful loaded truck with some interesting things such as factory block heater. This Bronco is a 38,000 original mile truck in fabulous shape.



Bronco Build Photo Gallery
01 02 03
04 05 06
07 08 09
10 11 12
31 14 15
16 17 18
19 21 22
23 24 25
26 27 28
29 30 31
32 33 34
35 36 37
38 39 40
41 42 43
44 45 46
47 48 49
50 51 52
53 54 55
59 56 57
58 60 61
63 62 64
65

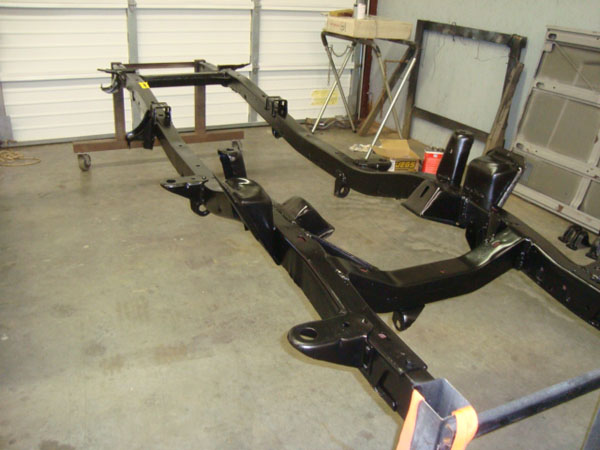

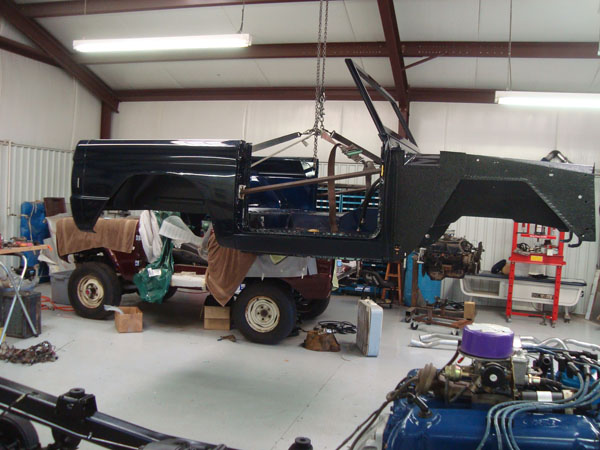

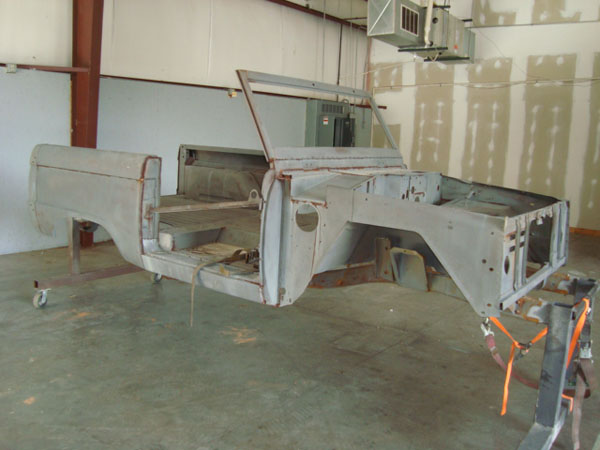

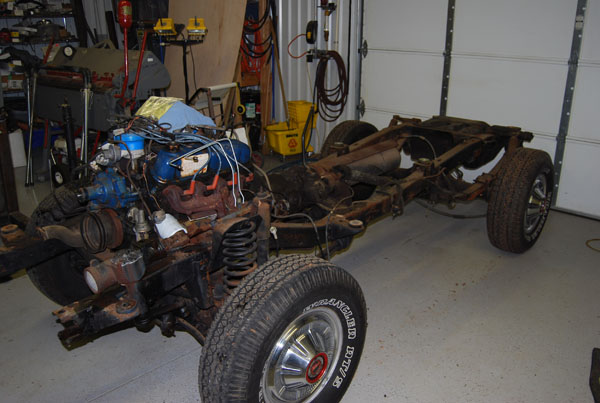

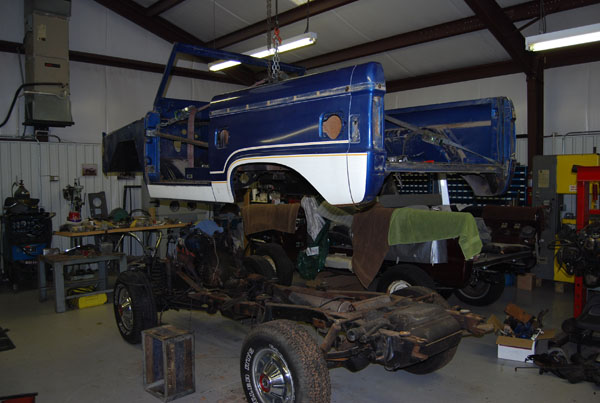

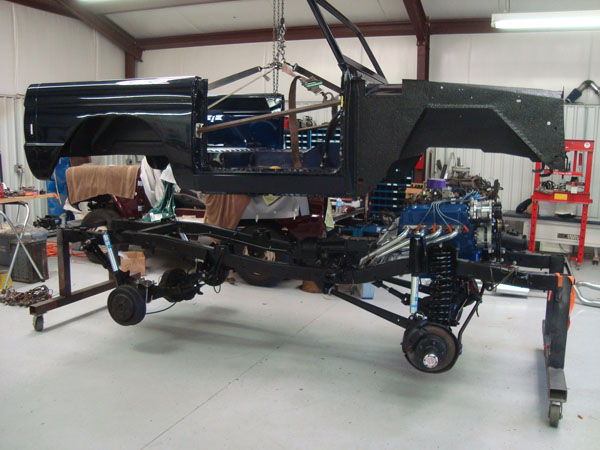

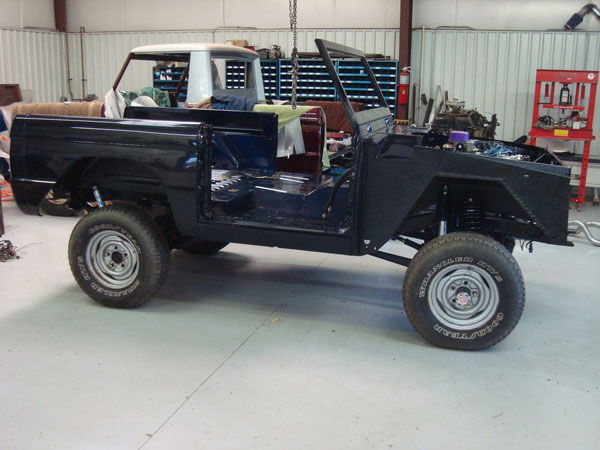

  • Complete tear down.

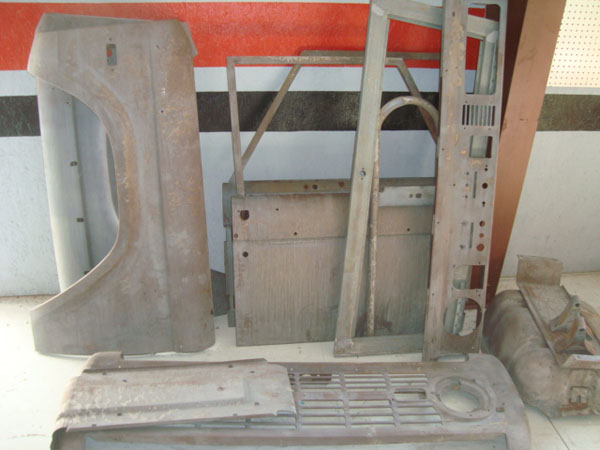

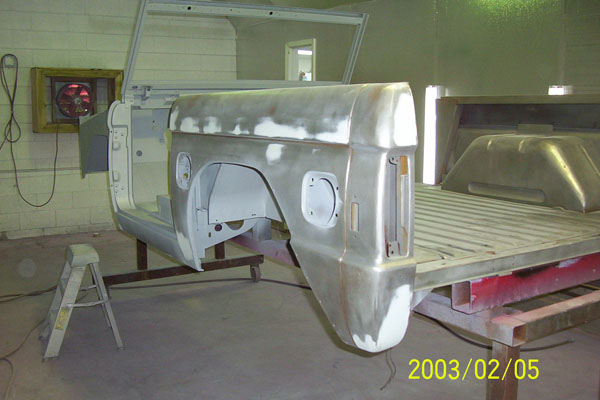

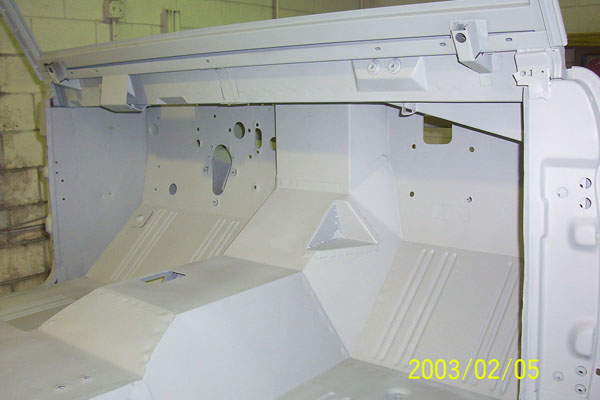

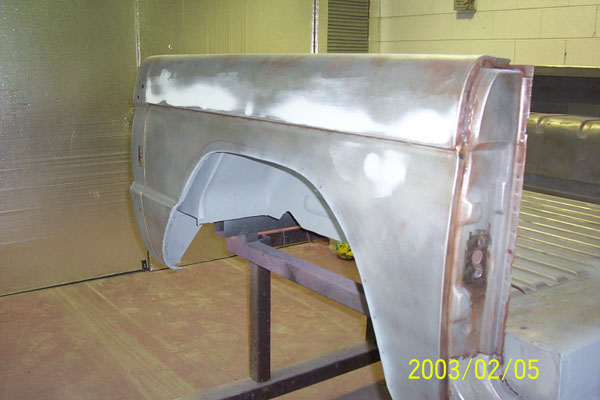

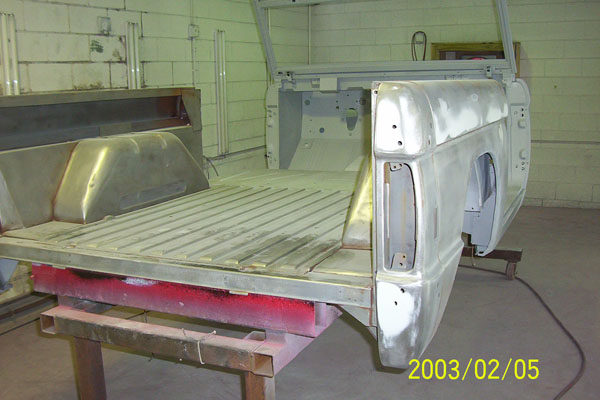

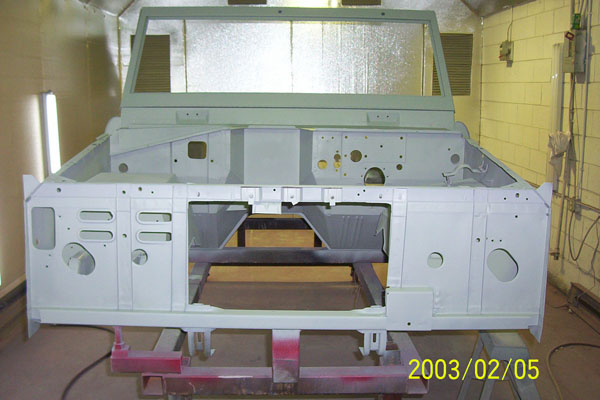

  • Body stripped by Diversified Finishers
  • Fenders cut to clear tire new package

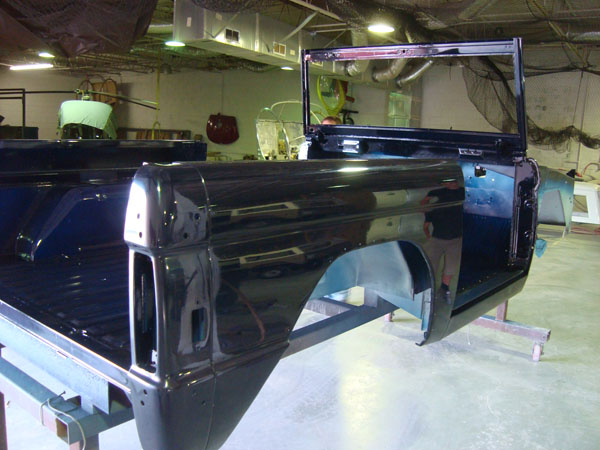

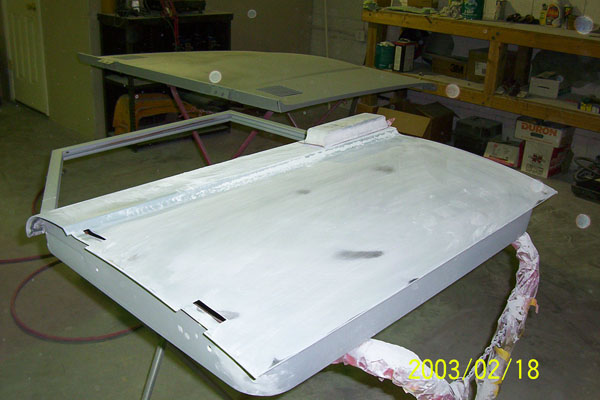

  • Body and paint by Chuck Schenck Autobody
  • PPG paint products used exclusively
  • DBC base/clear

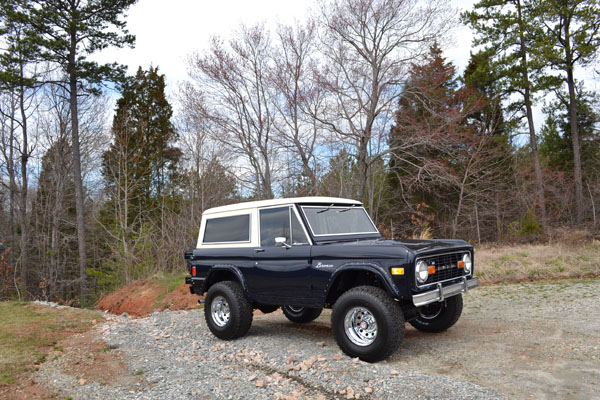

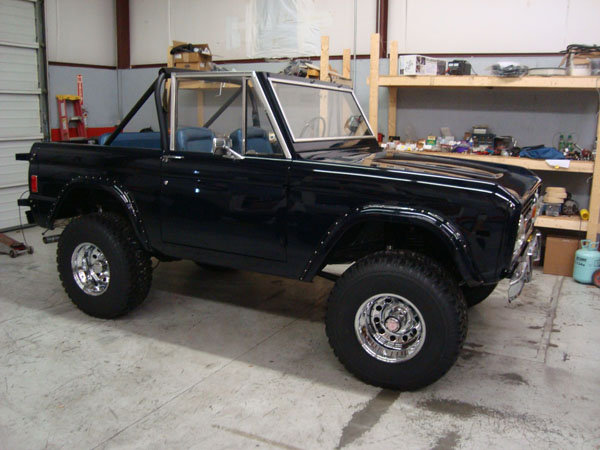

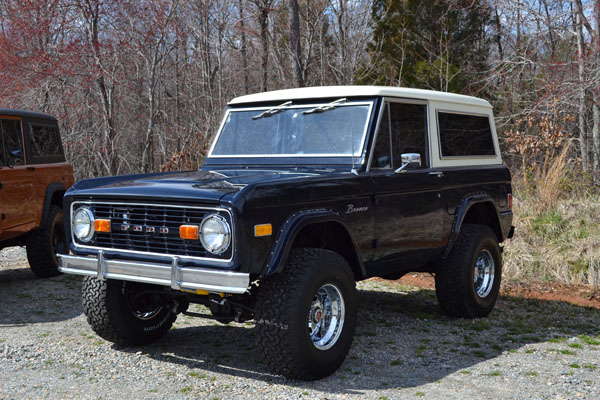

  • Custom midnight blue on body
  • Ford cream white on hard top
  • SEM seam sealers used exclusively

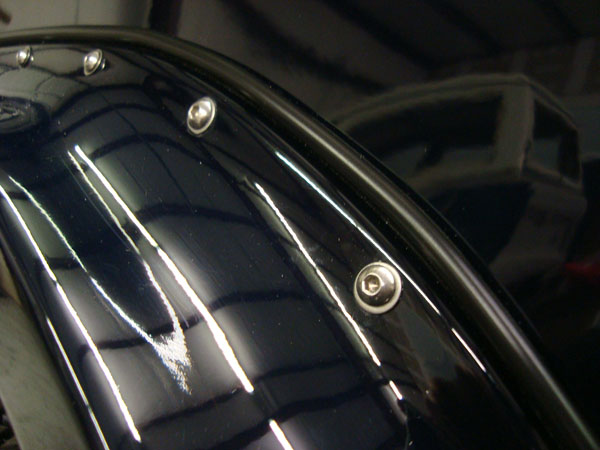

  • Bronco Design fiberglass flares with stainless fasteners
  • Bright work polished
  • Beltline trim deleted for a smoother appearance

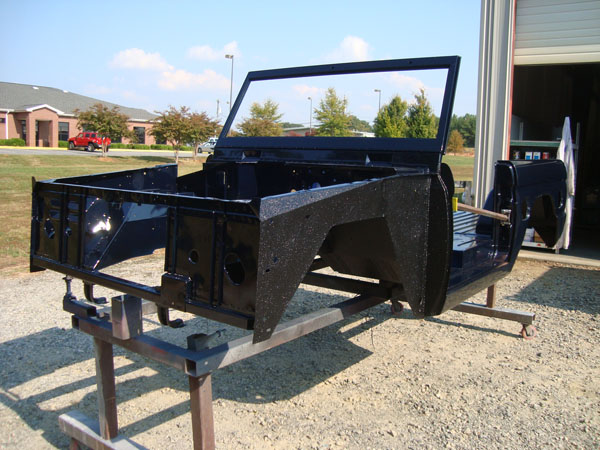

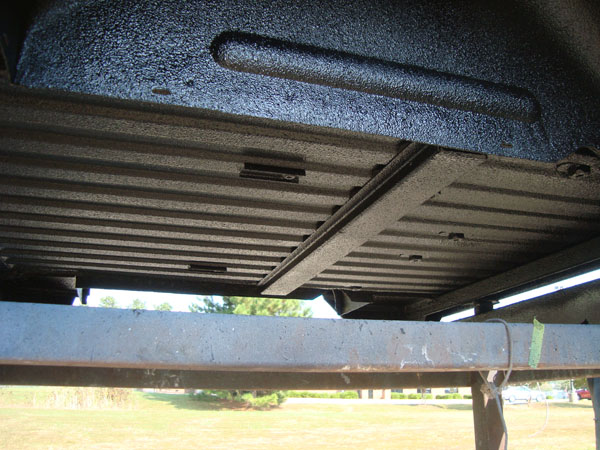

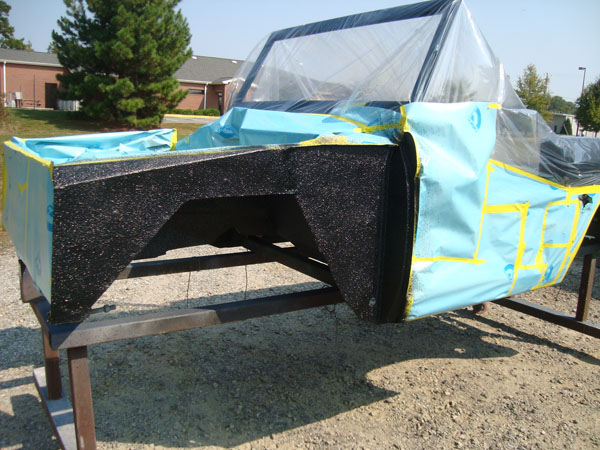

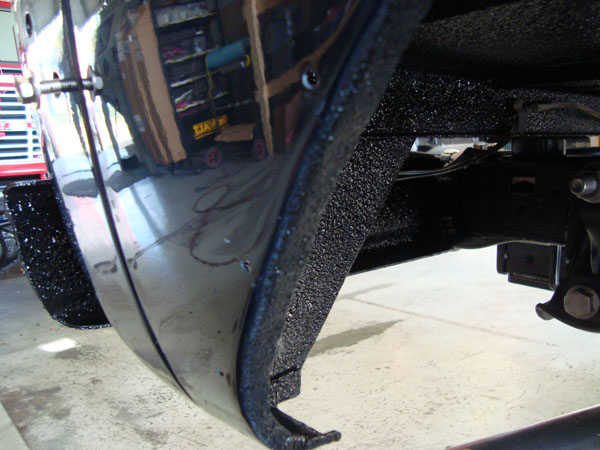

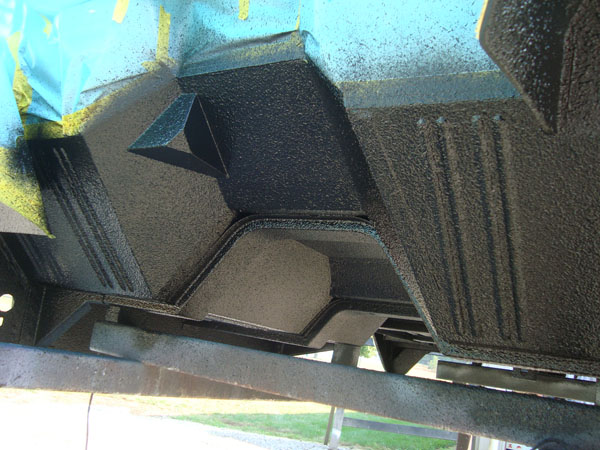

  • Scorpion Bed liner shot underneath & inside

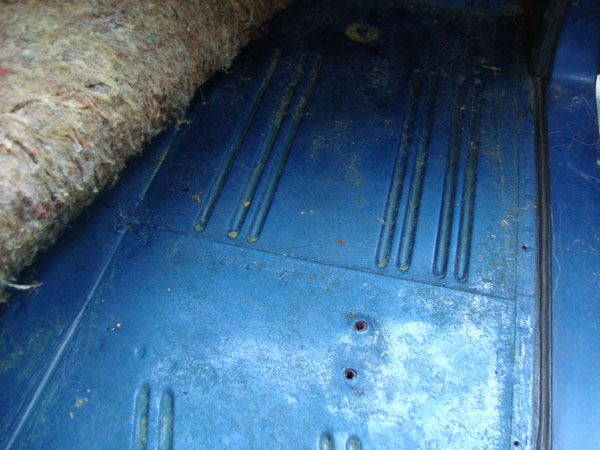

  • Sound deadener used throughout interior

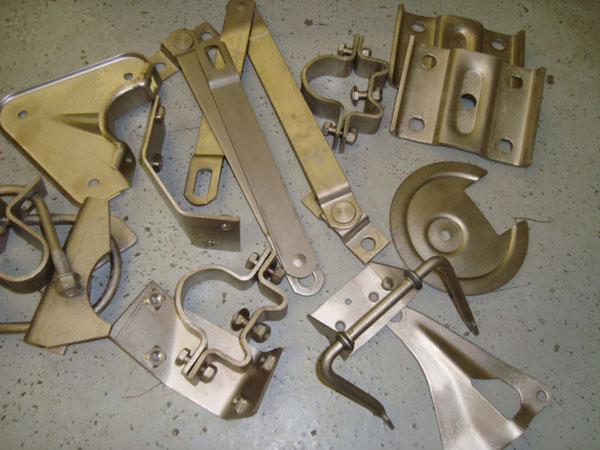

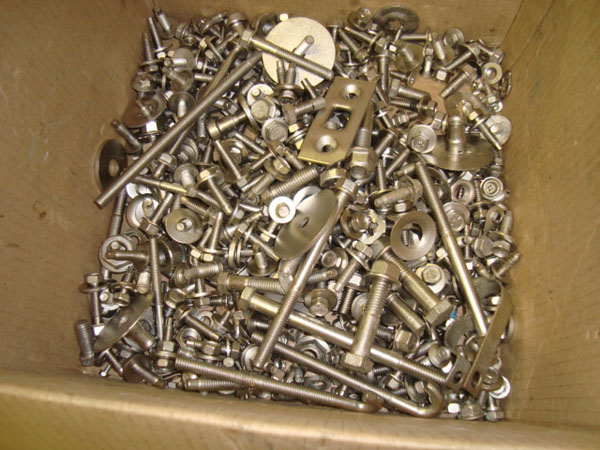

  • All fasteners and misc pats plated in electro-less nickel
  • Receiver hitch installed manufactured by Duff’s

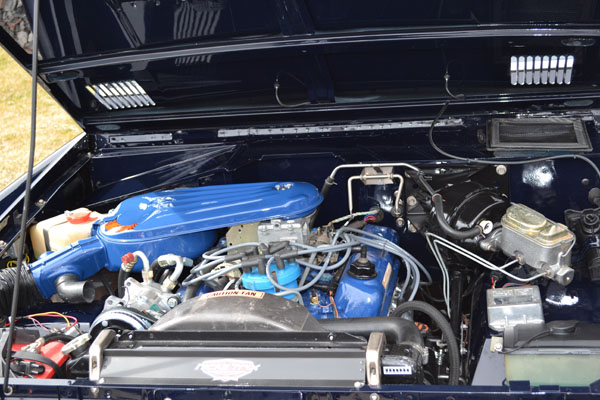

Drivetrain

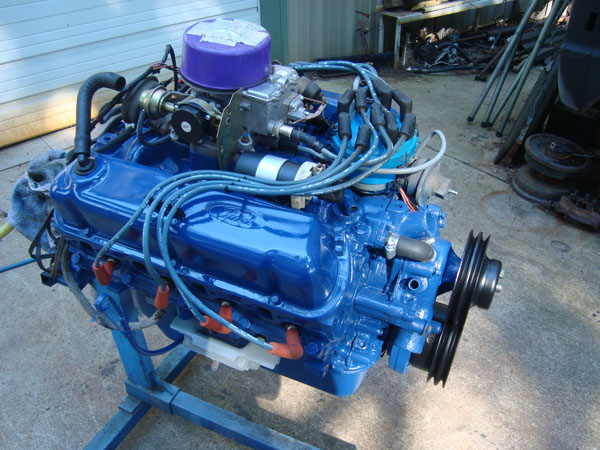

  • Cleaned & refinished. still looks like new inside!
  • New harmonic balancer
  • Tune up

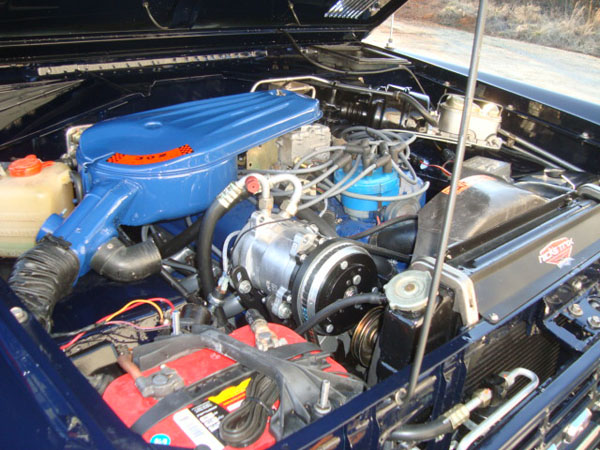

  • NT pulley package used for AC compressor mounting

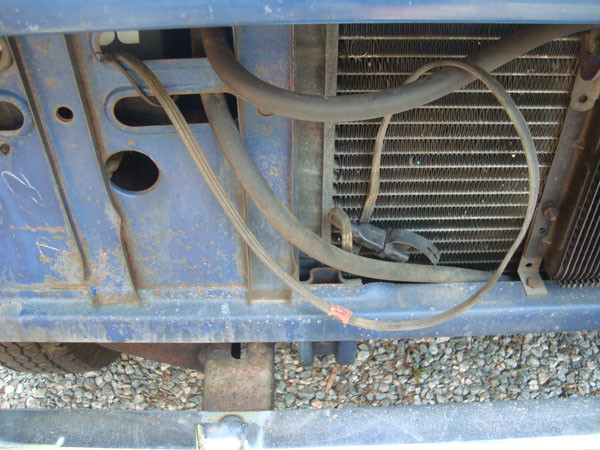

  • Radiator serviced by McKinney Radiator
  • High output alternator installed to handle the AC

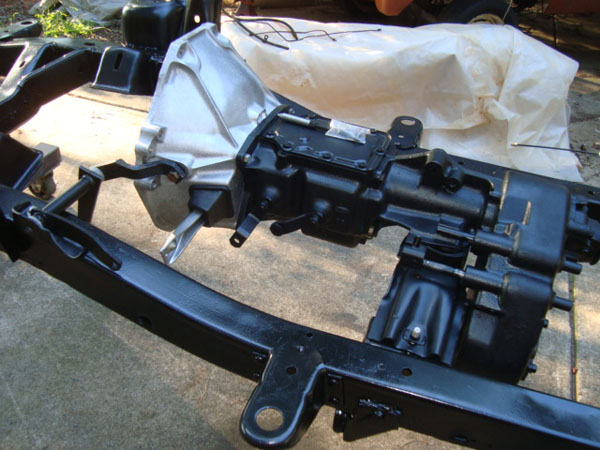

  • Automatic swapped over to 3 speed.
  • Trans and transfer case rebuilt by Corey Transmission
  • Driveshaft lengthened and serviced by Carolina Powertrain

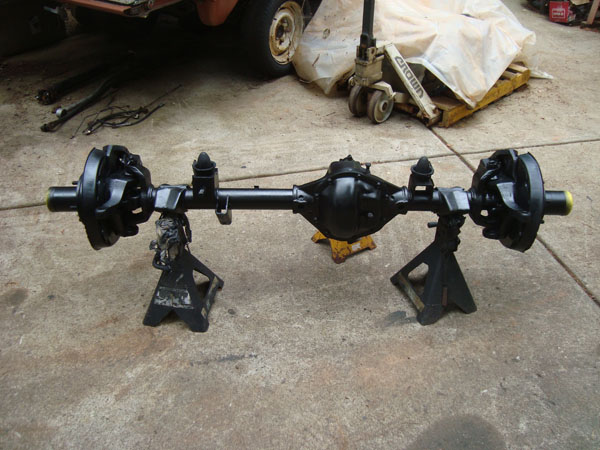

  • Gears inspected and resealed as needed
  • Duff’s floor shifter package used
  • Extended brake lines & ebrake

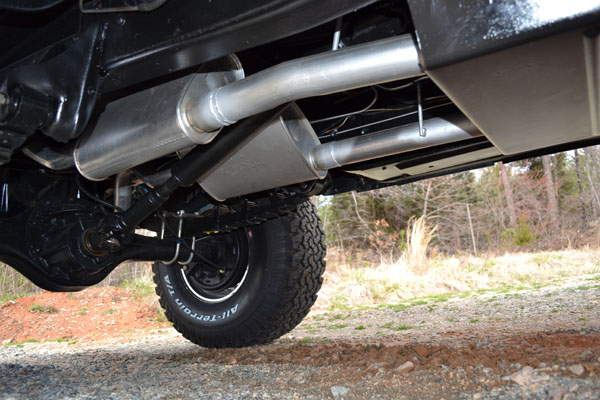

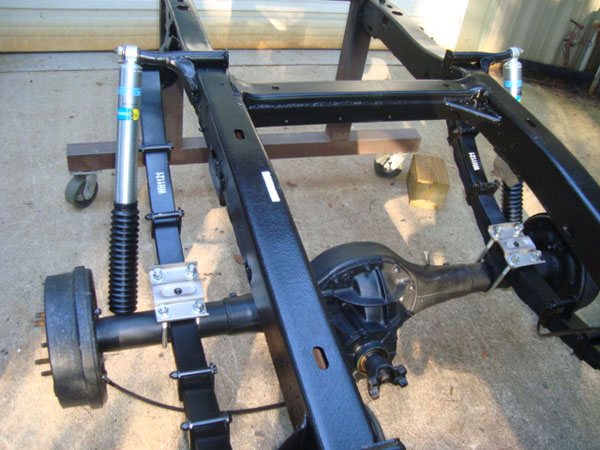

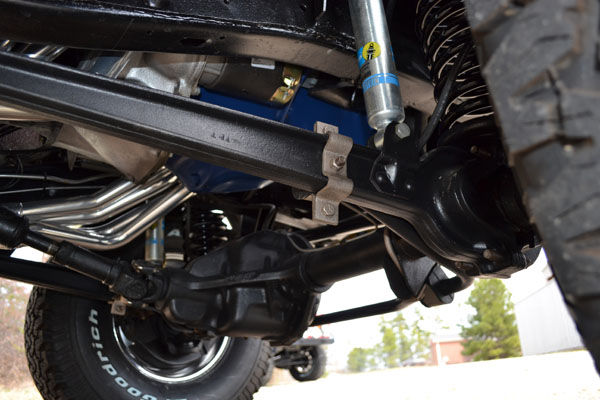

  • Wild Horses 2.5" coils and springs
  • Urethane bushings throughout
  • Extended trac bar
  • Bilstein 5100 shocks from RaceShock
  • BF Goodrich 33x12.50x15 All Terrain tires
  • Pro Comp 10x15 classic chrome wheels

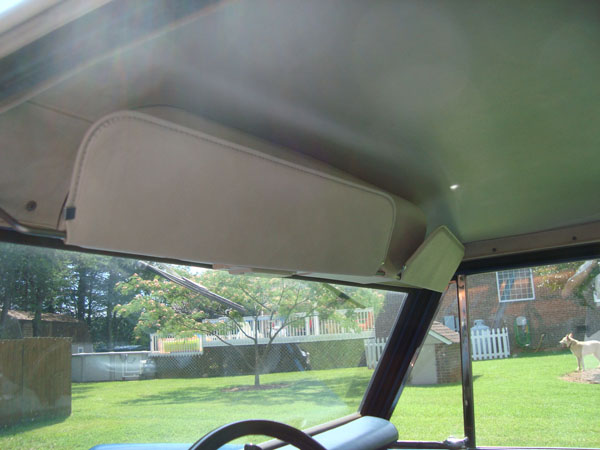

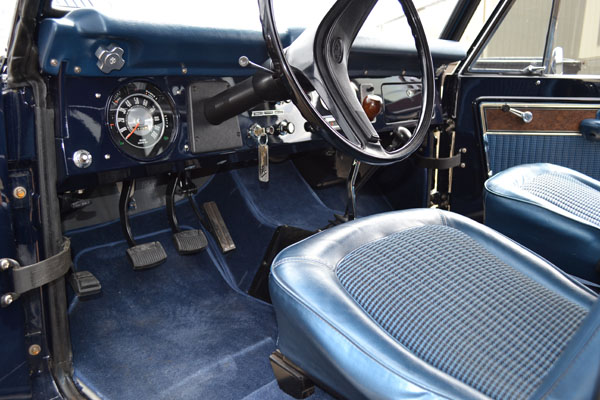

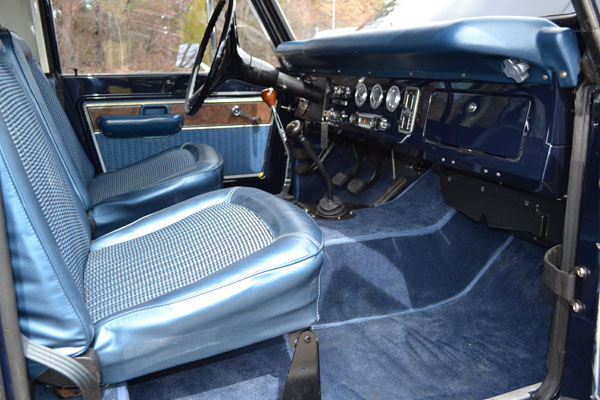

Interior

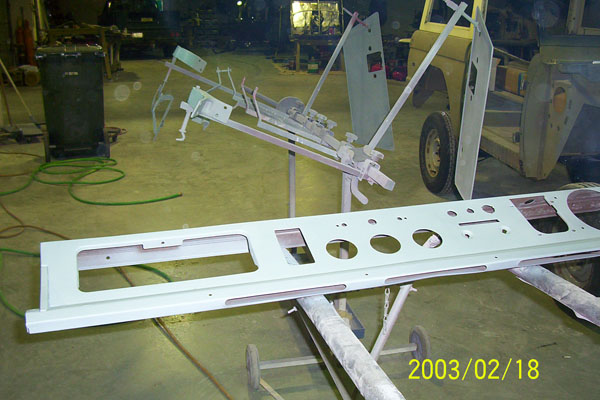

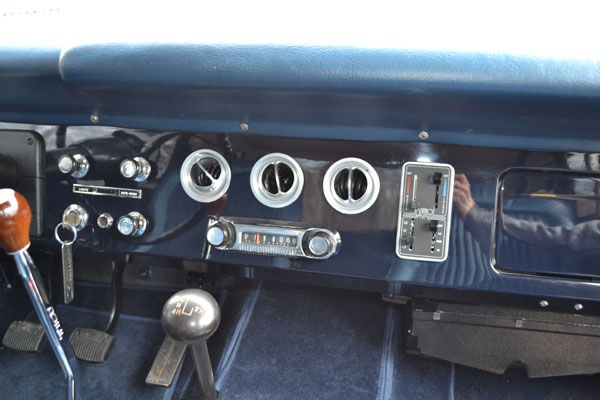

  • Dash reworked for NT air conditioning package
  • Vintage Air components

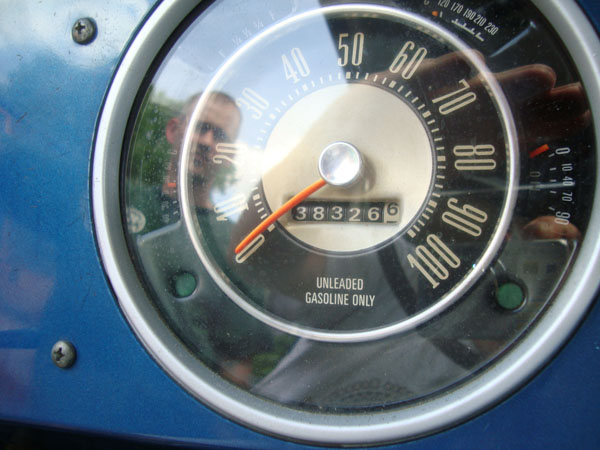

  • Speedo head serviced by Classy Chassis Restorations

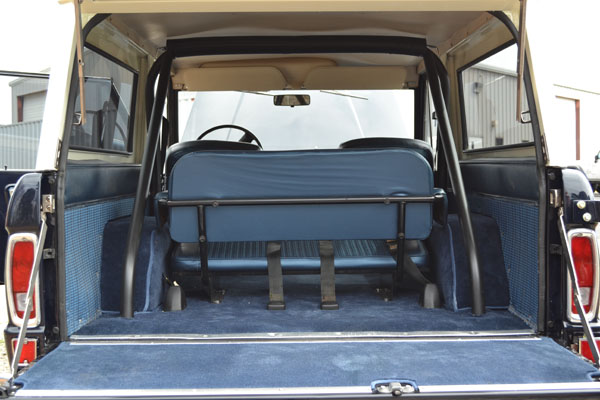

  • Custom NT roll bar installed
  • New aircraft grade carpet hand fit by Cars Interiors
  • Windows tinted by master tinter Bob Russo of Russo’s Tinting

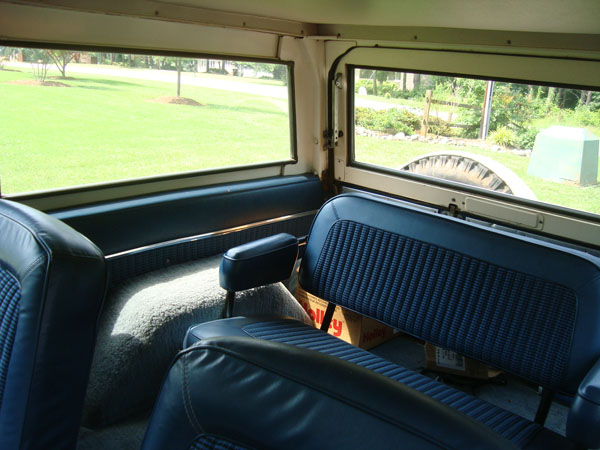

  • All panels and seats cleaned and reinstalled
  • 3 point seat belts used for front seats
