Atlanta Build by Nick's TrixBronco Build Specifications
Services performed by Nick’s Trix Custom Fabrication:

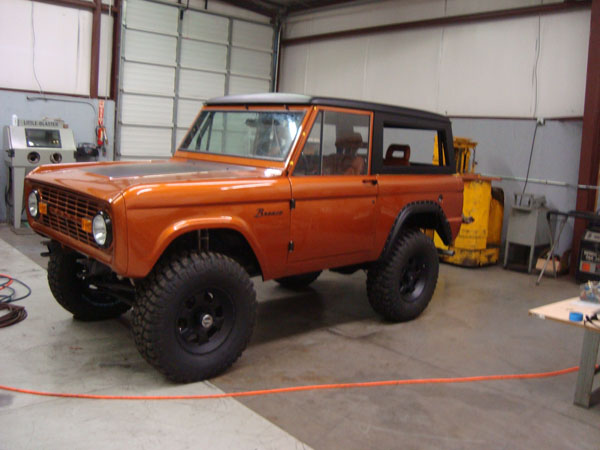

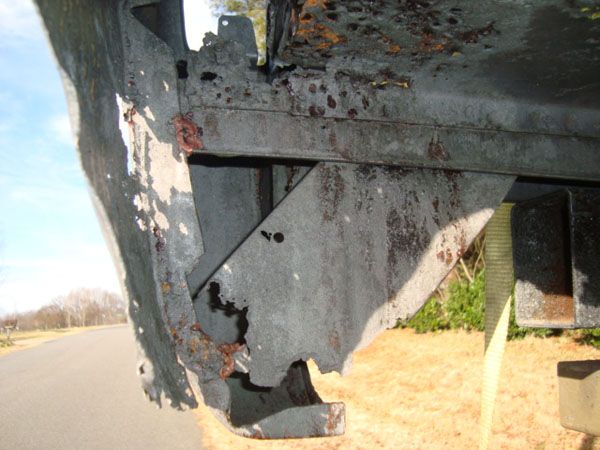

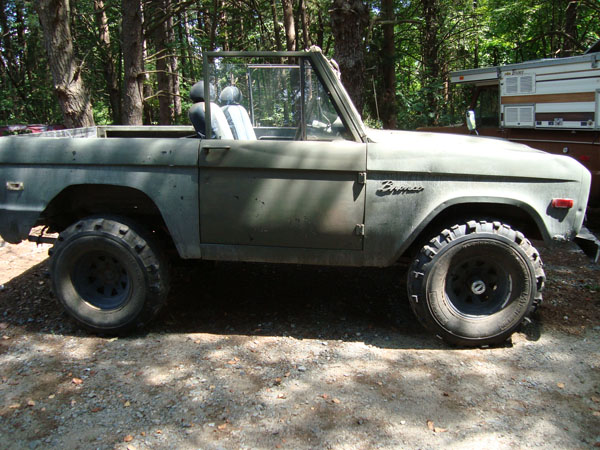

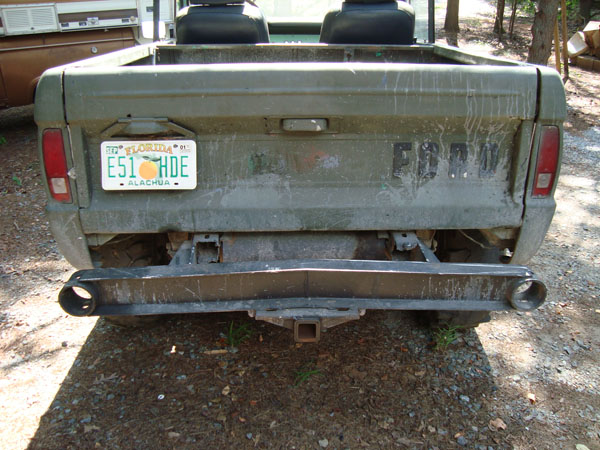

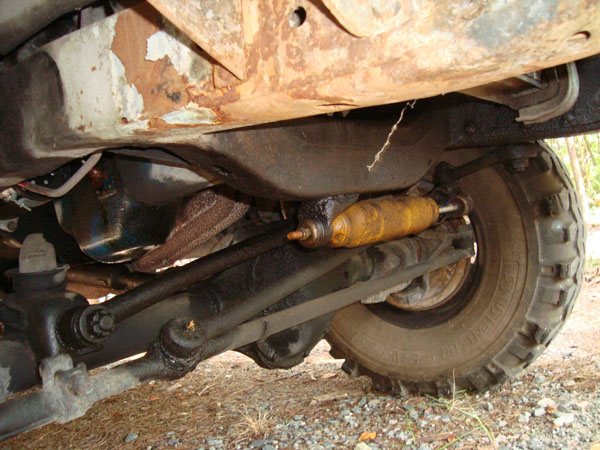

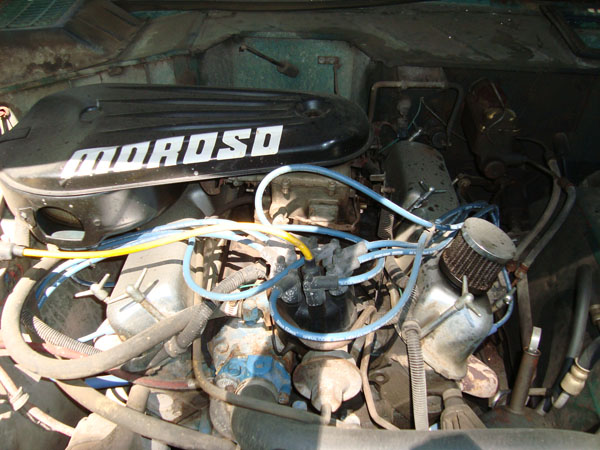

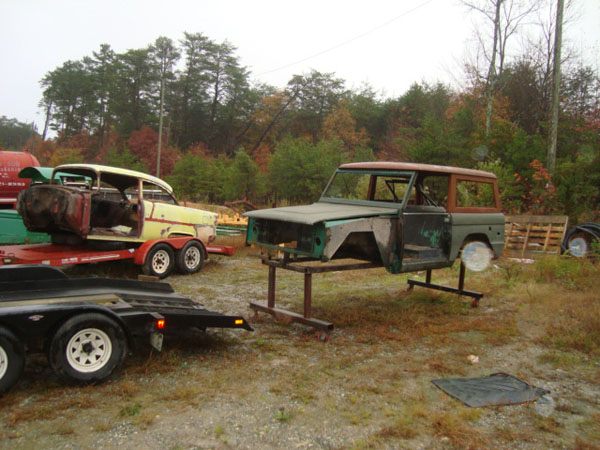

This is another long time family truck that had been sitting for 10 years, worn out and tired. The son wanted to bring it back to life instead of buying a off the shelf new truck.

W hile being deployed in Afghanistan it was the perfect time to have the truck redone. This truck was built via email correspondence and gave him a great sense of excitment.

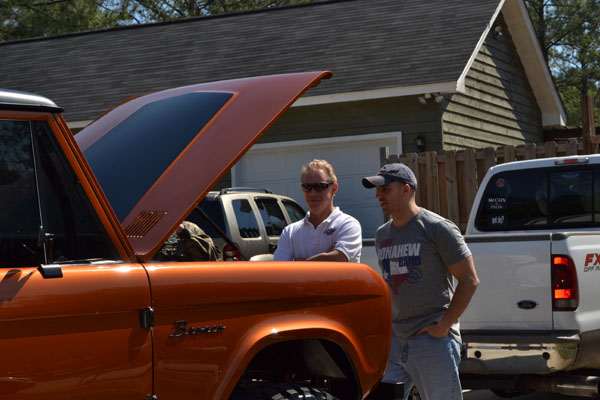

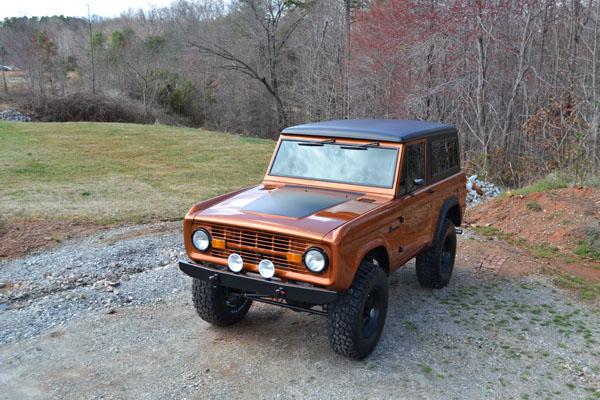

Tthe family was thrilled with the reincarnation that took place. Now back stateside, more soldiers at his base are getting "Bronco Fever" as they check out this "special ops" build up....


US Army Helicopter

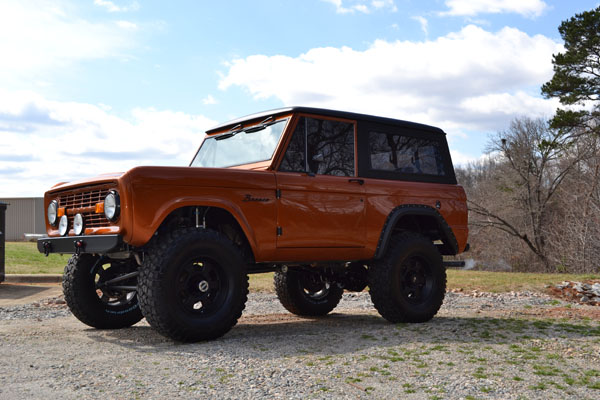

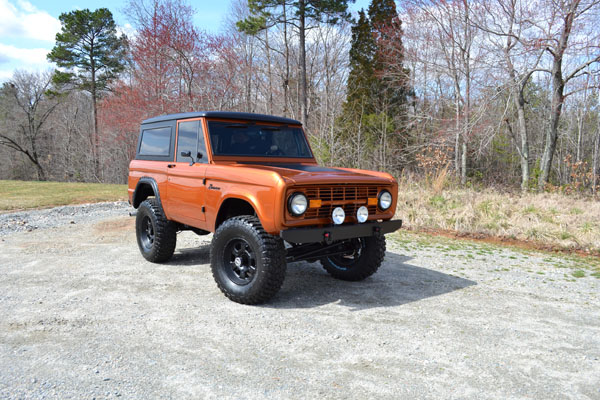

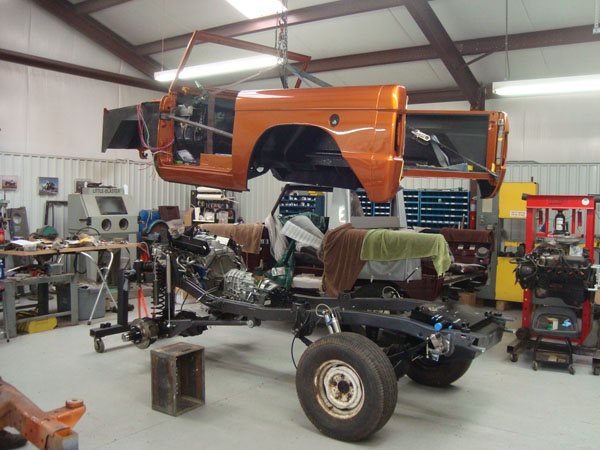

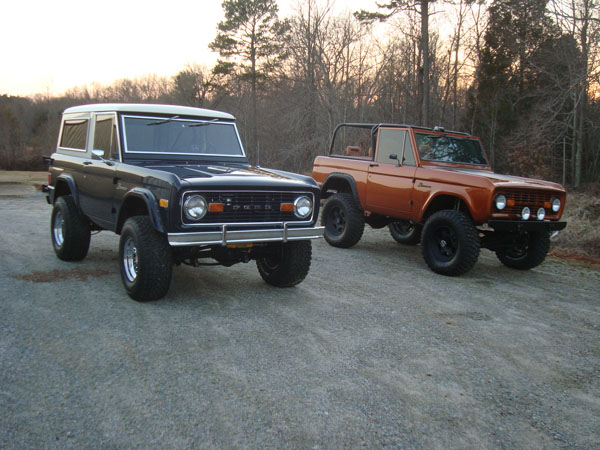

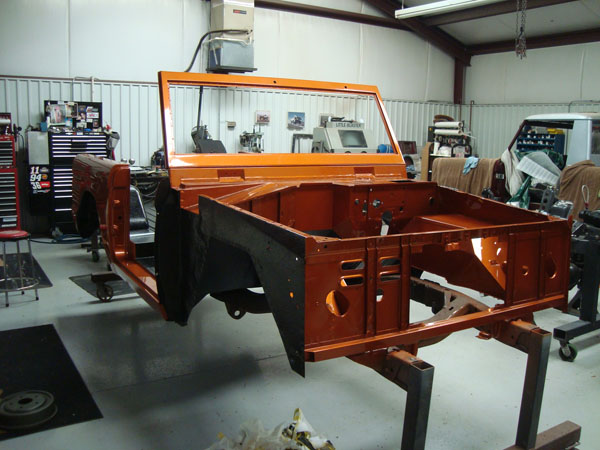

Bronco Build Photo Gallery
01 02 03
04 05 06
07 08 09
10 11 12
31 14 15
16 17 18
19 21 22
23 24 25
26 27 28
29 30 31
32 33 34
35 35a 36
37 38 39
40 41 42
43 44 45
46 47 48
49 50 51
52 53 54
55 56 57
58 59 60
61 62 63
64 65 66
67 68 69
70 71 72
73 74 75
76 77

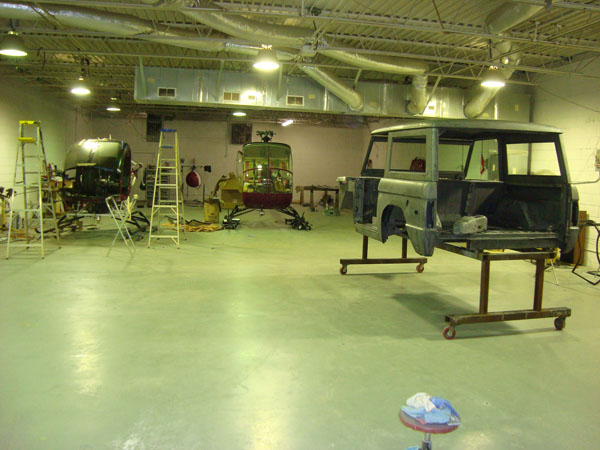

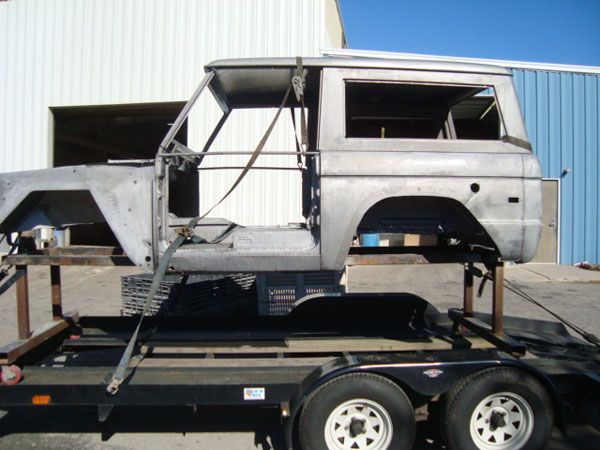

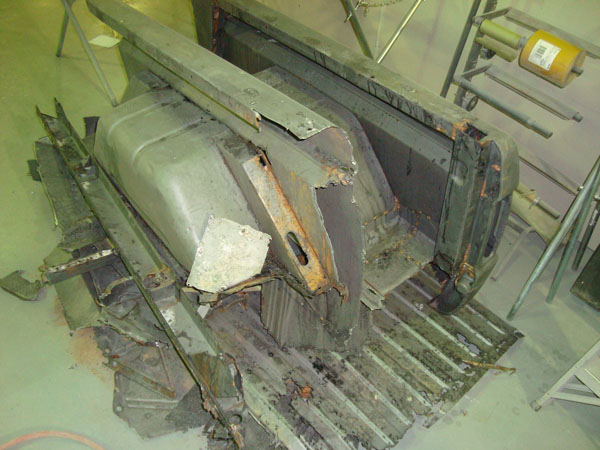

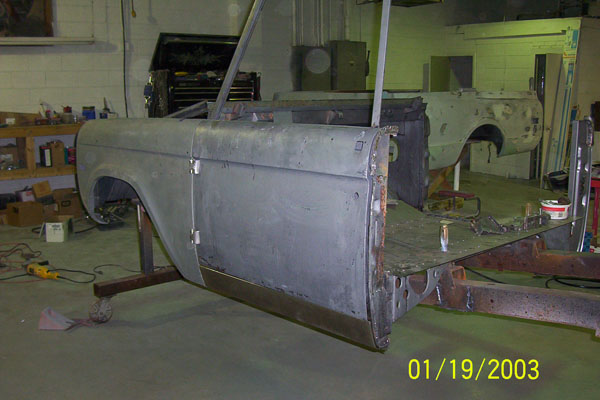

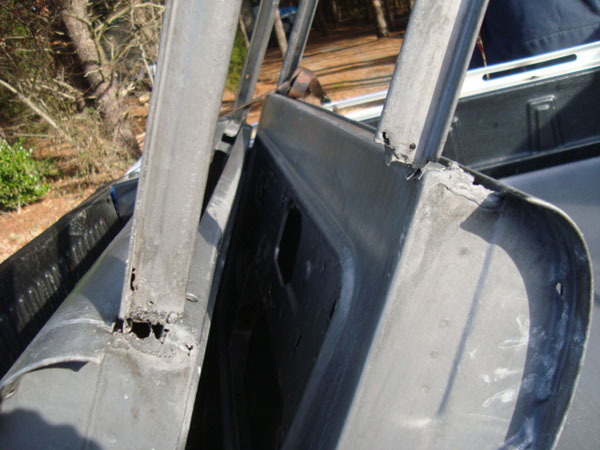

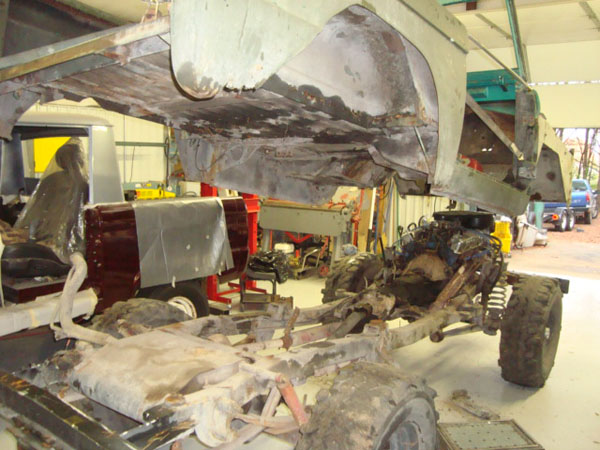

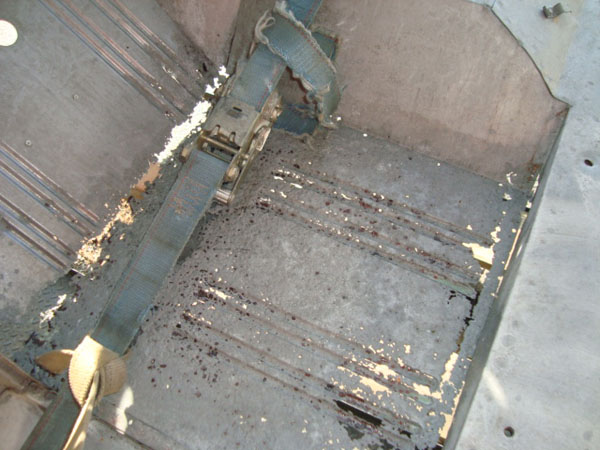

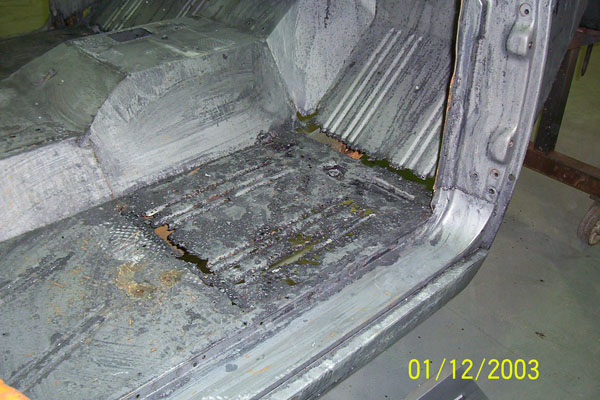

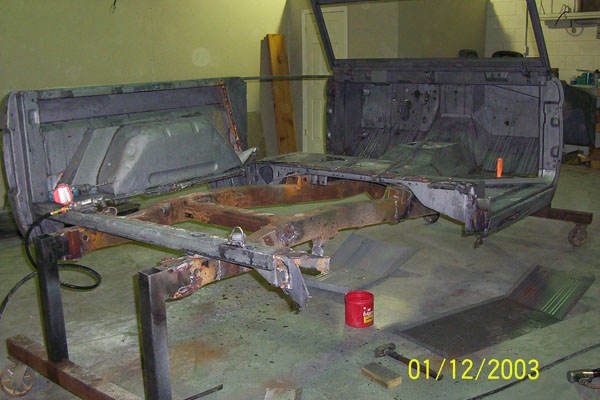

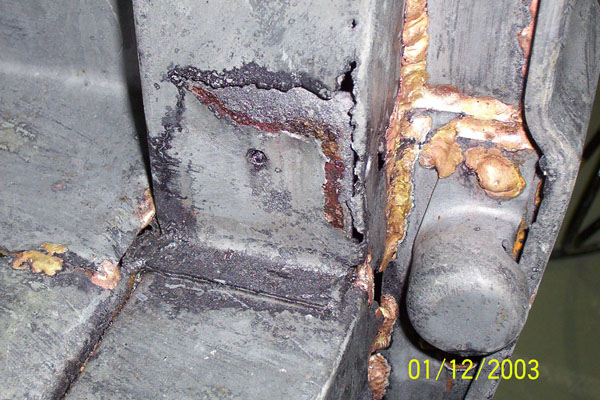

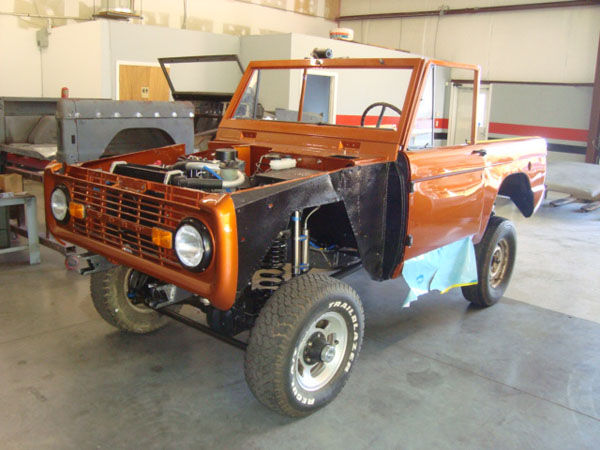

  • Body was Chemical stripped to kill the rust cell structure
       by Carolina Chem Strip

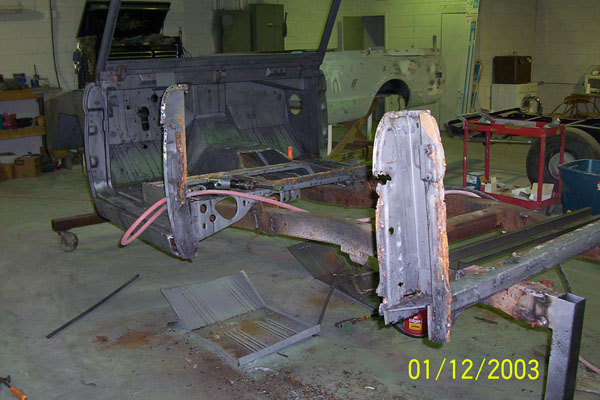

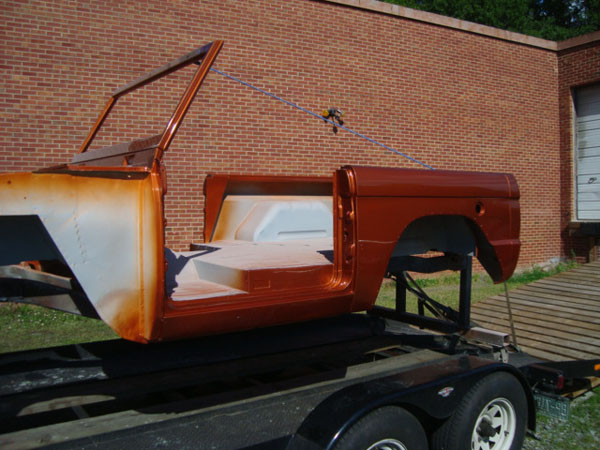

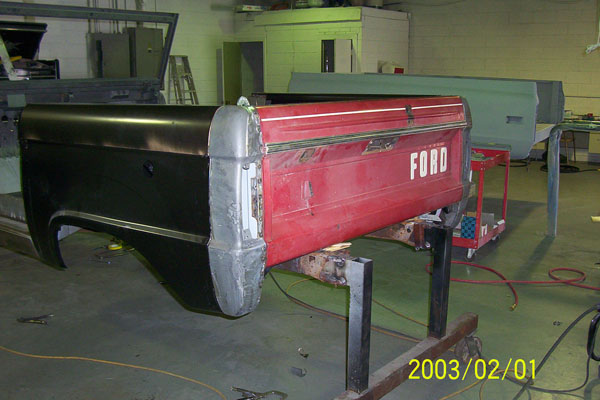

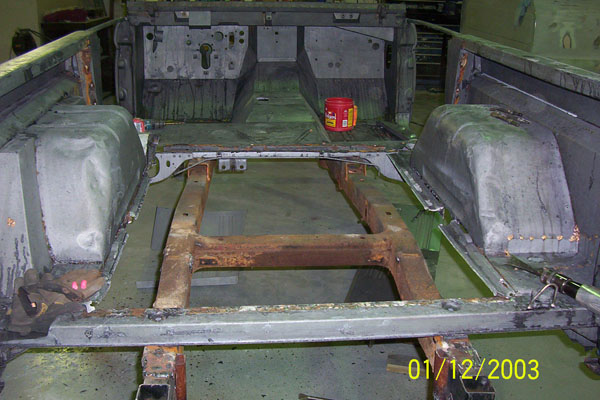

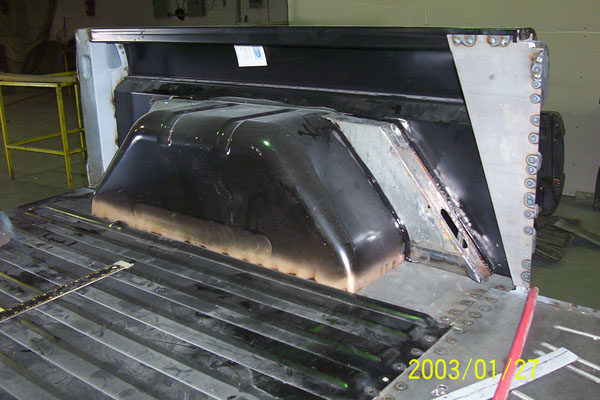

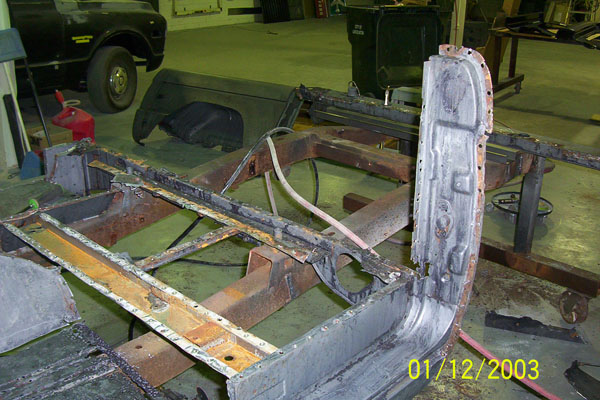

  • 70 % of sheet metal replaced with new or factory
    body work & paint by Chuck Schenck Autobody

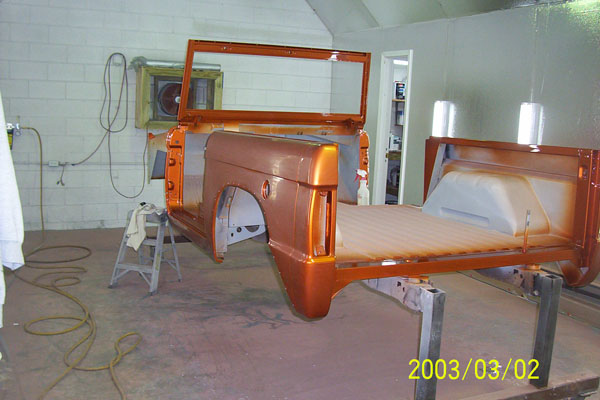

  • Paint PPG DBC base coat
  • Black is SEM Hot Rod satin black

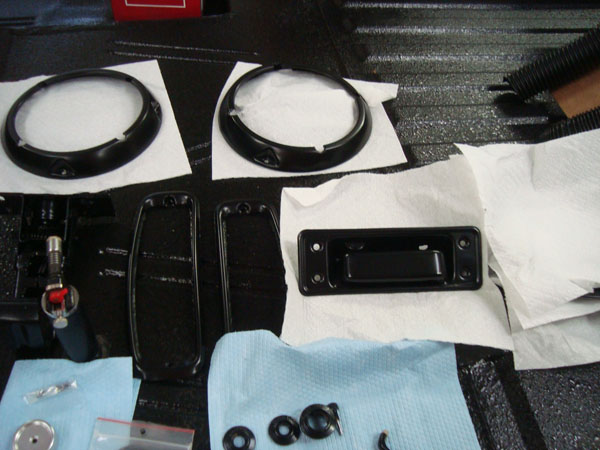

  • Powder coated trim pieces

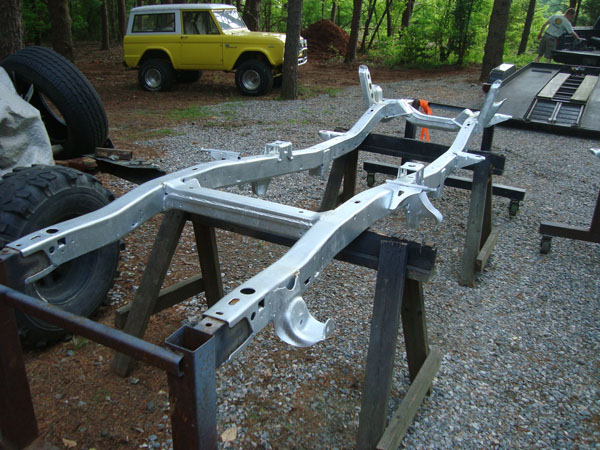

  • Chassis is hot dip galvanized and painted metallic grey
  • Running gear painted in PPG DP90 epoxy

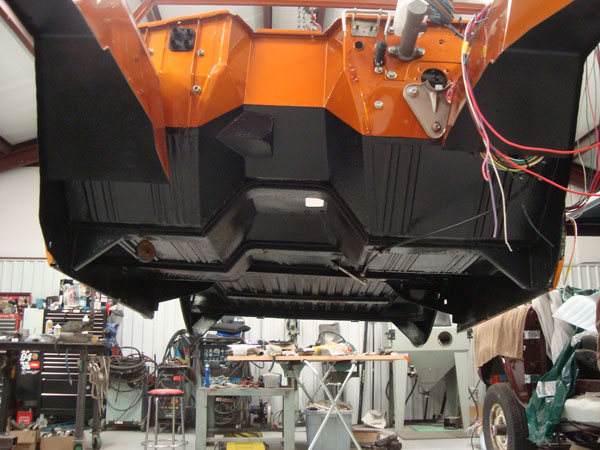

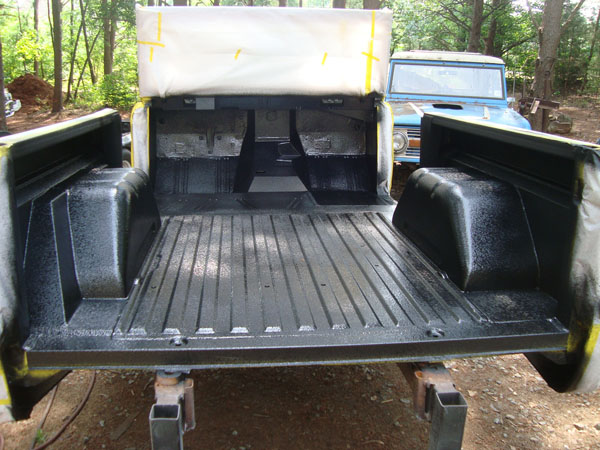

  • Bed liner inside & under
  • SEM seam sealers used exclusively
  • Sound deadener mat used throughout

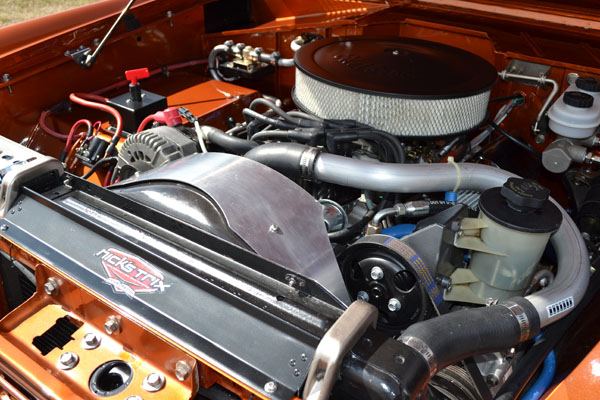

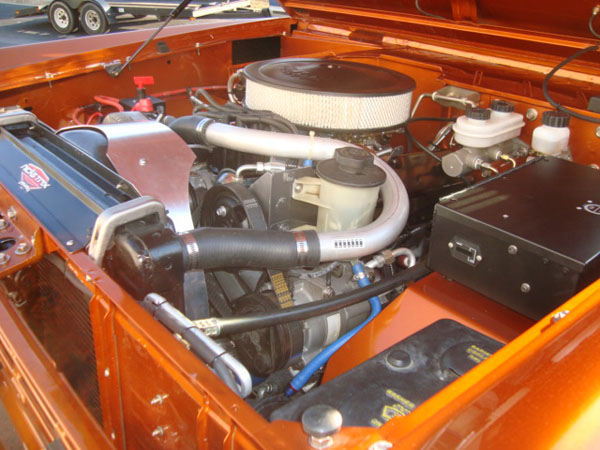

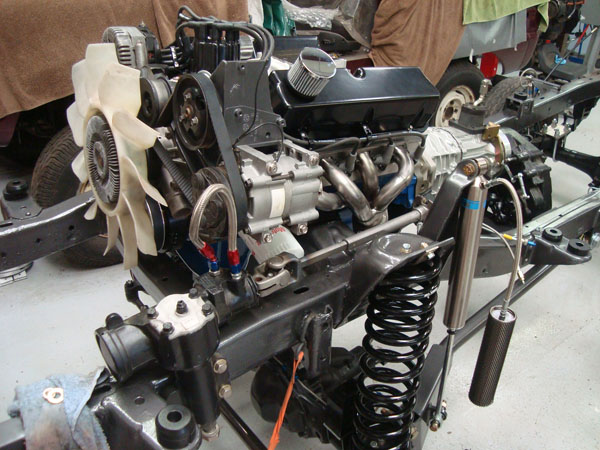

Drivetrain

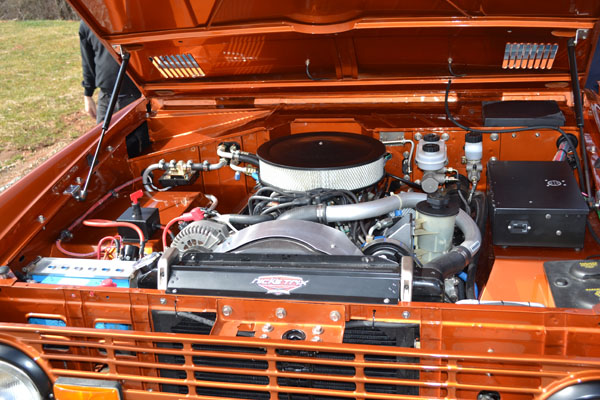

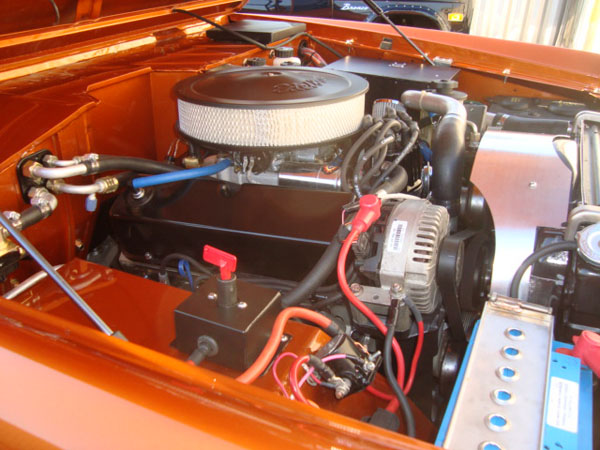

  • “The Bravado” package

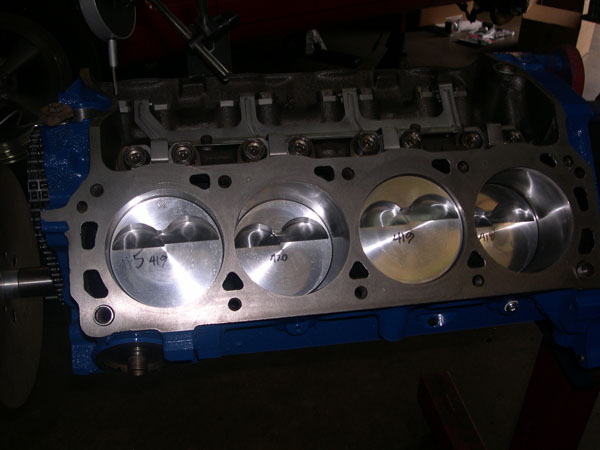

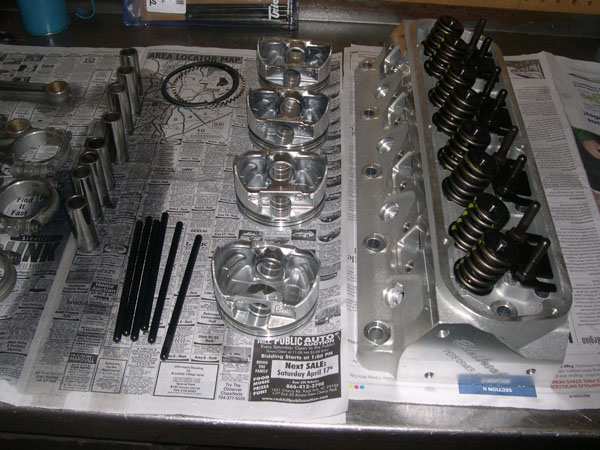

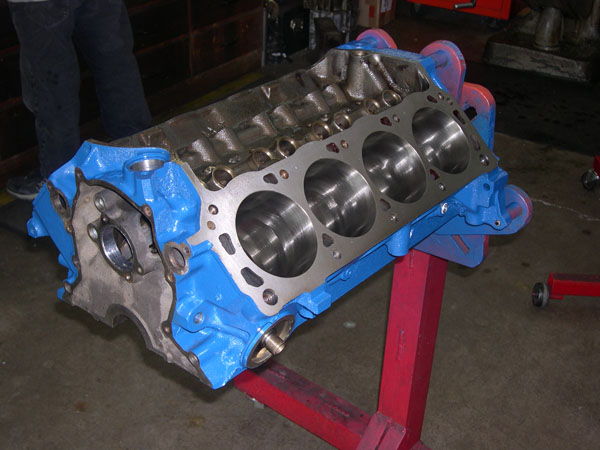

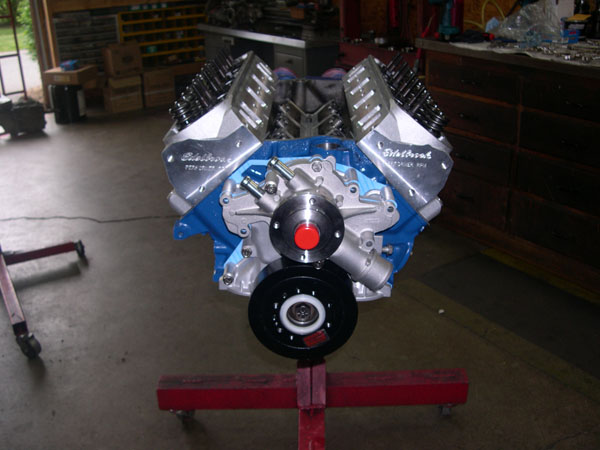

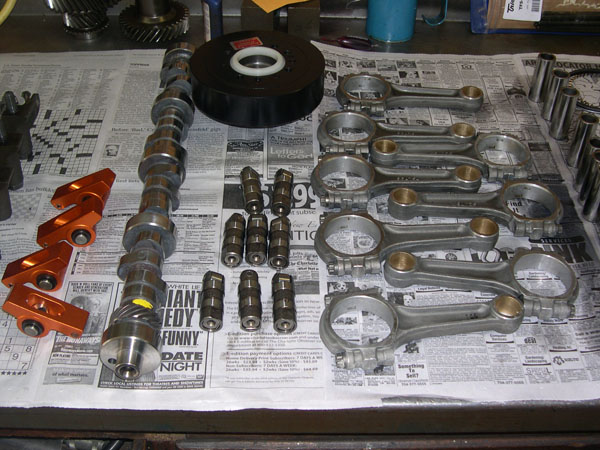

  • 347 stroker by Campbell Gear Tech
  • Roller block & valve train
  • Alum heads and intake
  • Forged pistons
  • I beam rods
  • Stainless valves
  • Explorer serpentine front dress
  • Holley carb
  • Headers with Flowmaster 40 series mufflers
  • Rock Racing battery in custom stainless mount
  • NV 3550 5 speed transmission
  • B&M modified short throw shifter
  • Hydraulic clutch package with Tilton parts
  • JB Fab twin stick transfer case shifters
  • Dana 20 transfer case/ completely rebuilt
  • 4:56 gear ratio with Trac Loc differentials

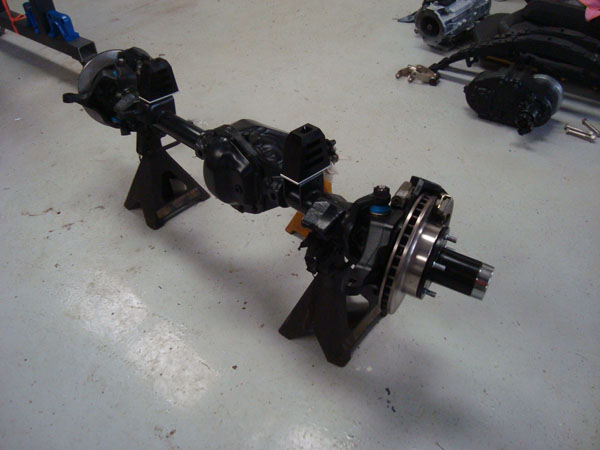

  • 4340 front axles

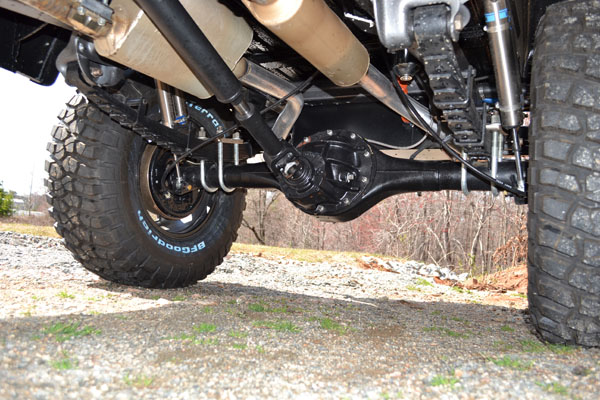

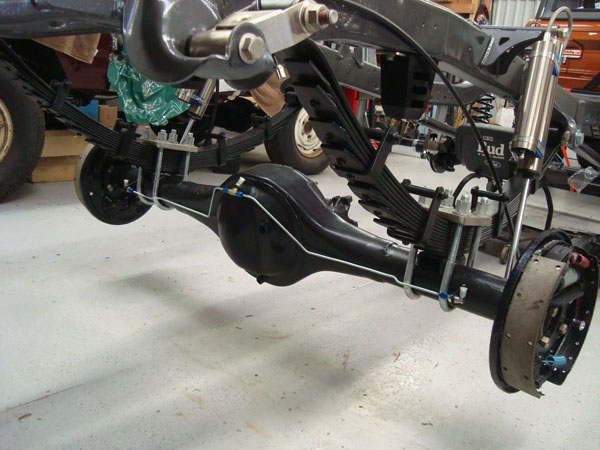

  • New HD rear axles in HD banjo style housing
  • Disc brake package
  • HD extended driveshafts
  • HD 1 ton steering linkage
  • Quick ratio steering box
  • Moog ball joints & tie rod ends
  • Fluid transfer with Goodridge hose & fittings
  • 23 gallon fuel tank
  • HD radiator by Mckinney Radiator
  • Gear work by Corey Transmission
  • Driveshafts by Carolina Powertrain

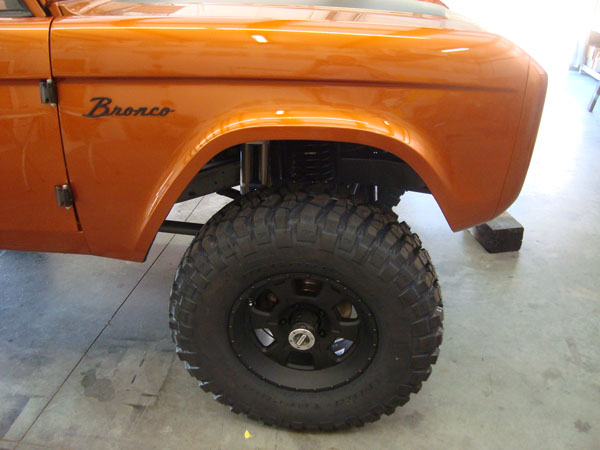

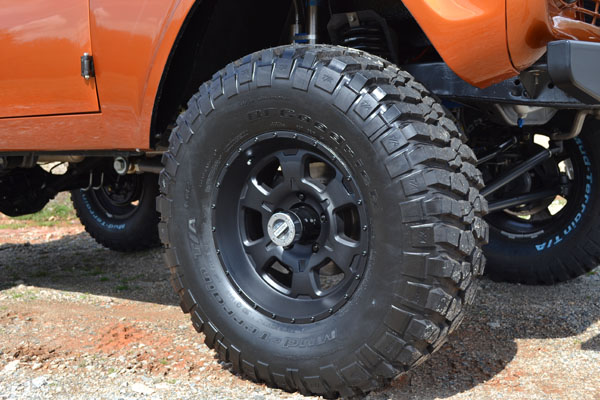

  • 35x17 inch BFG KM2 tires
  • 17x9 ProComp alloy wheels in black
  • 3.5 inch lift using Wild Horses springs
  • Bilstein 7100 series shocks in custom mounts
  • NT super shackles
  • Urethane bushings throughout
  • NT 1inch billet body lift

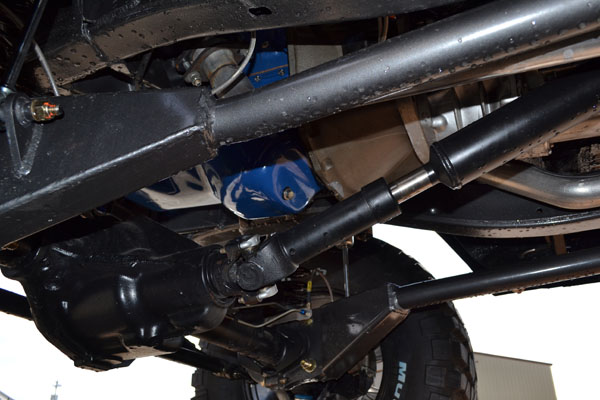

  • Duff Long arm radius arms

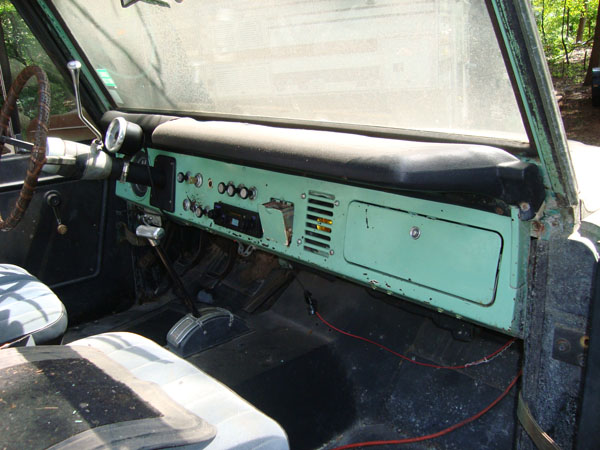

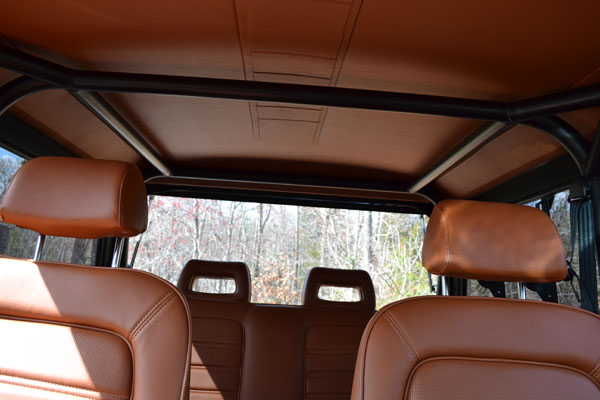

Interior

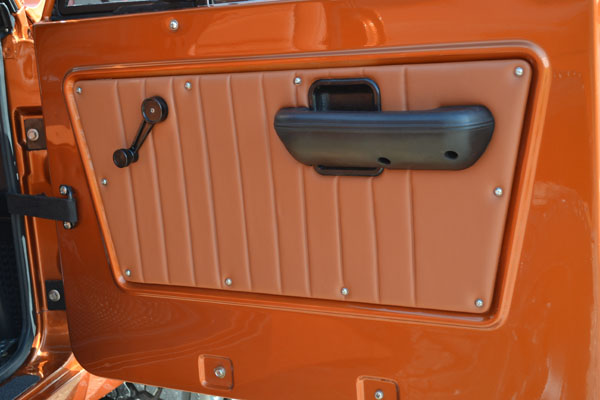

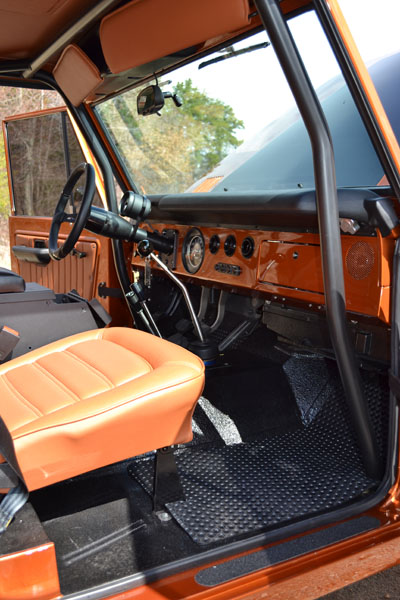

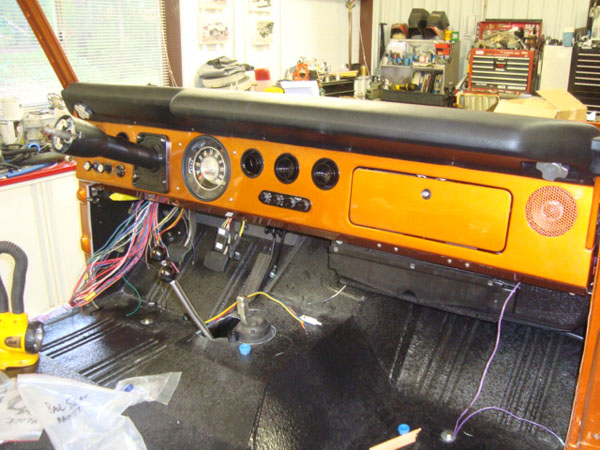

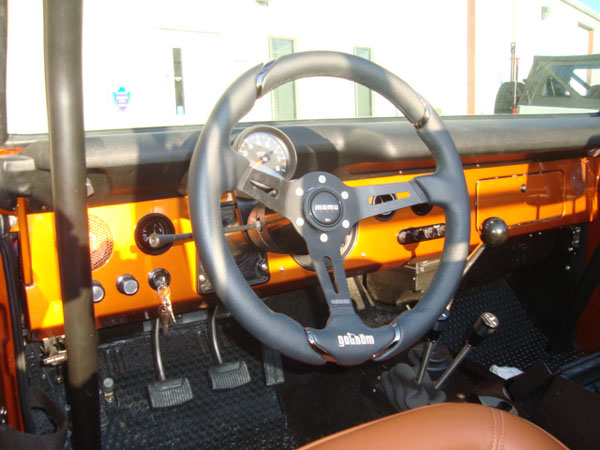

  • Custom dash with black anodized & powder coated parts
  • Vintage Air Super Cooler II a/c package

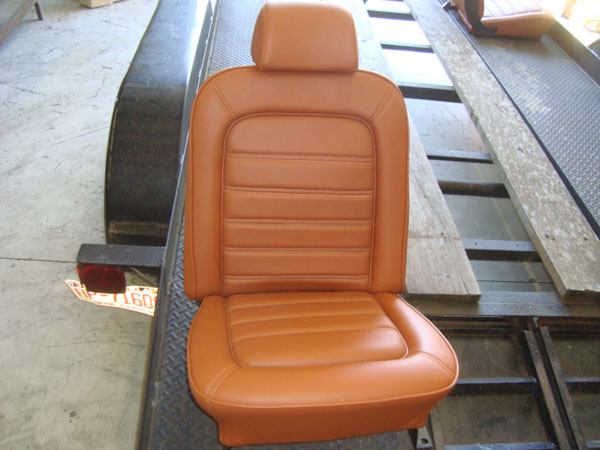

  • Seats & interior covered in Allante material by Miami Corp.
  • Custom head liner
  • Front seats have head rests installed

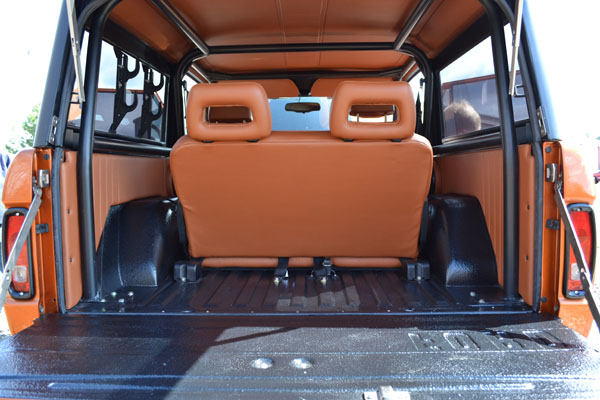

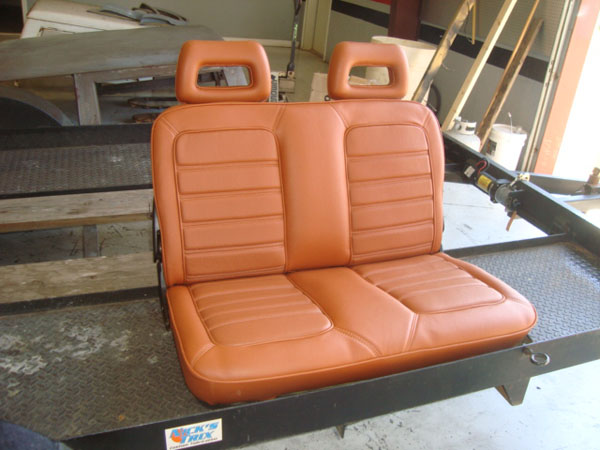

  • Rear seat is fold and tumble designed
  • Custom rear side panels & headliner
  • Interior work by James Pharr Interiors & Trim
  • Custom wiring harness with weather-pac connectors
  • Hour meter
  • Classic “easy rider” riffle racks
  • Momo steering wheel
  • NT family cage package
  • CD player with Ipod

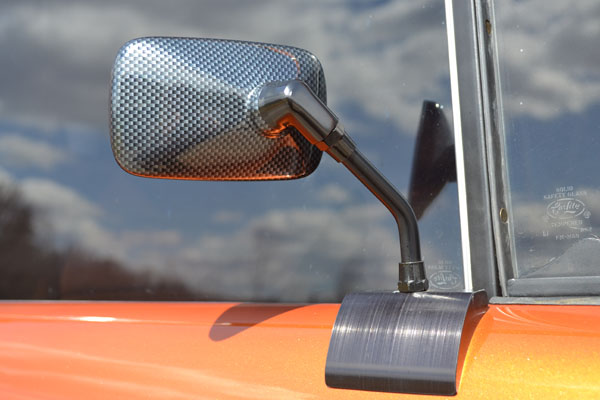

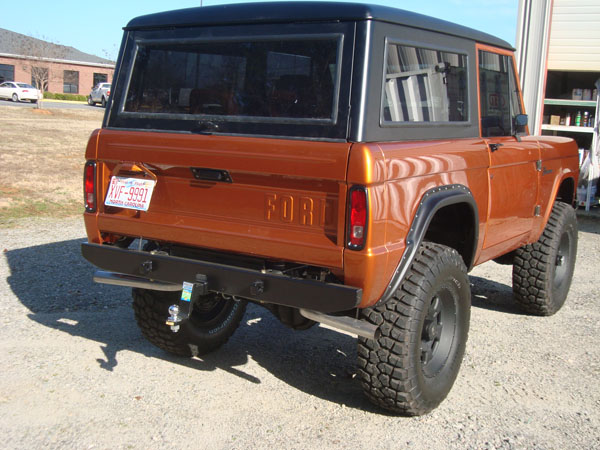

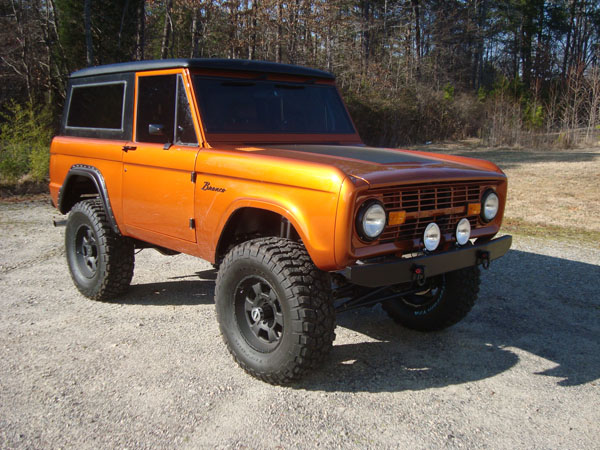

Body

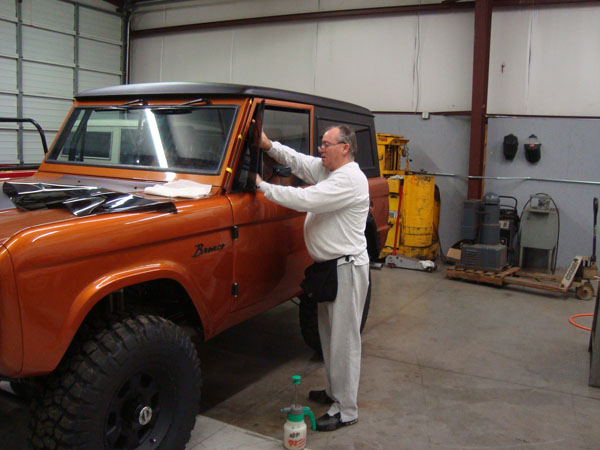

  • Tinted glass by Russo’s
  • Bumpers by Cross Enterprises

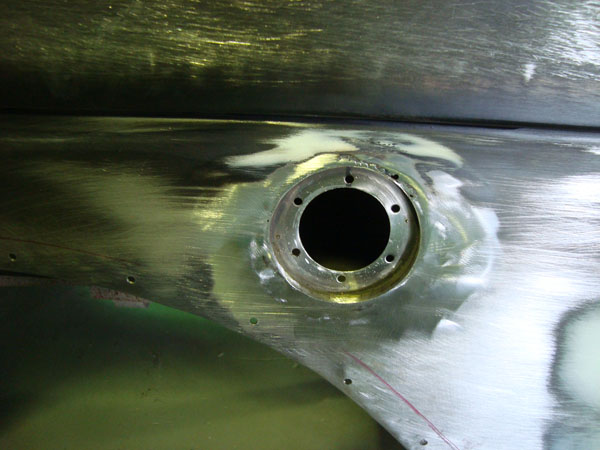

  • Aircraft fuel filler cap
  • Duff urethane flares with stainless hardware
  • Nickel plated components and hardware used throughout
