Nicks Trix - Big Easy BuildBronco Build Specifications
Services performed by Nick’s Trix Custom Fabrication:

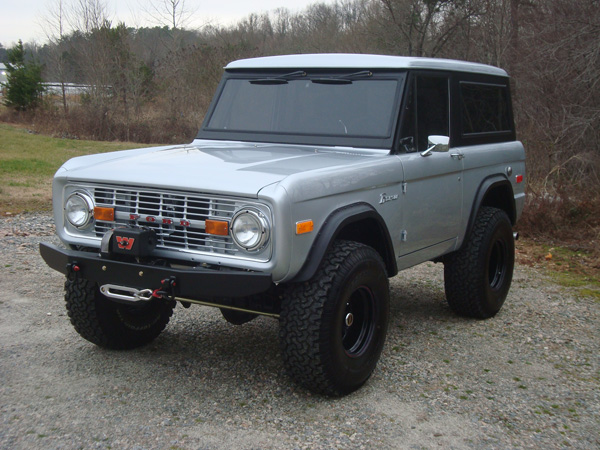

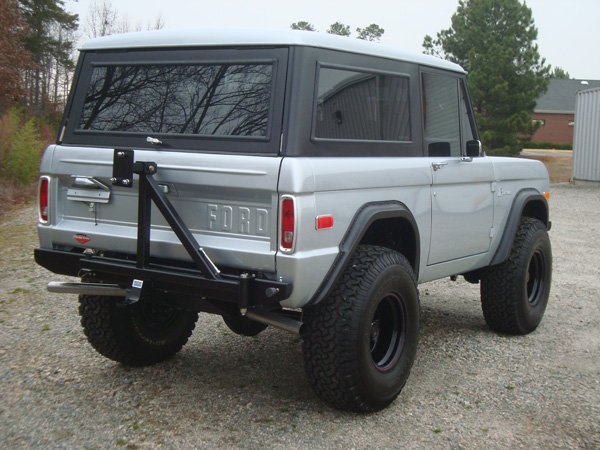

1976 Bronco

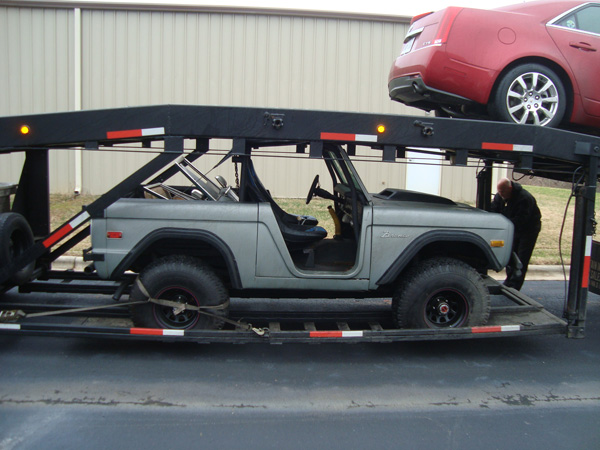

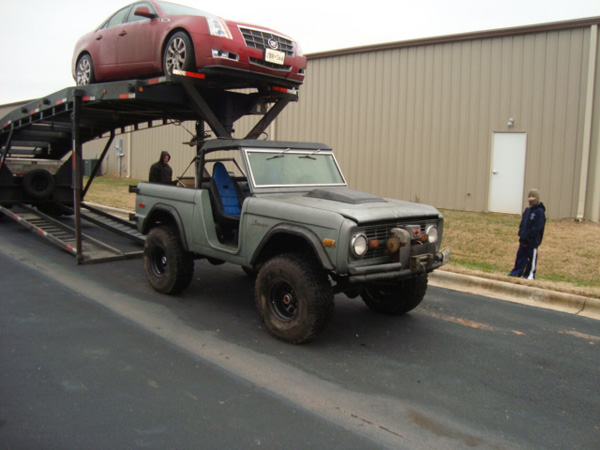

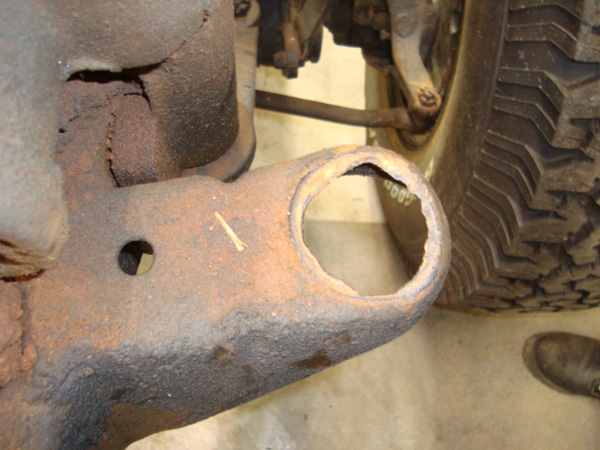

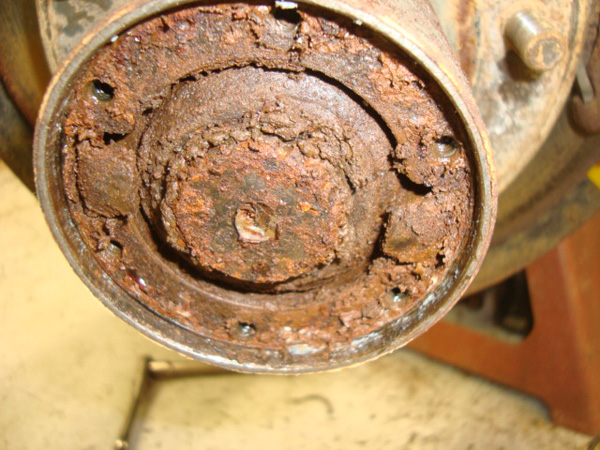

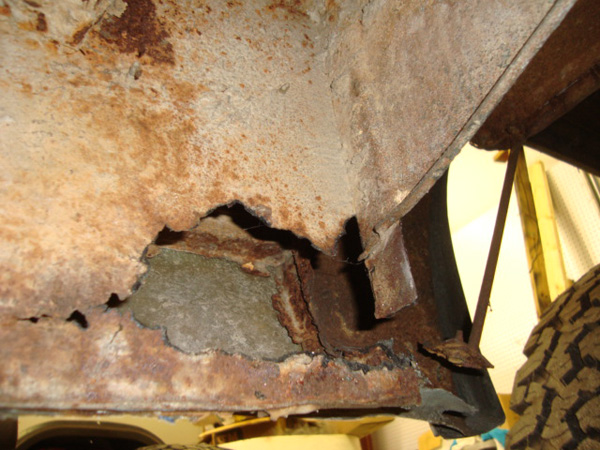

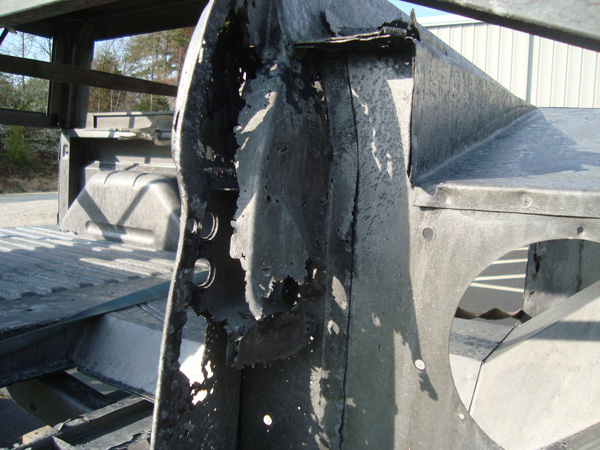

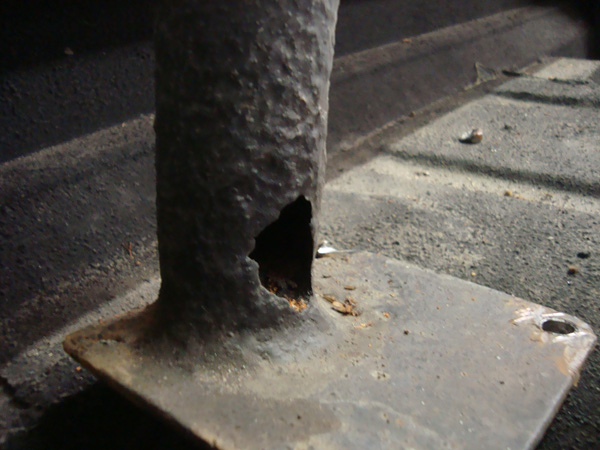

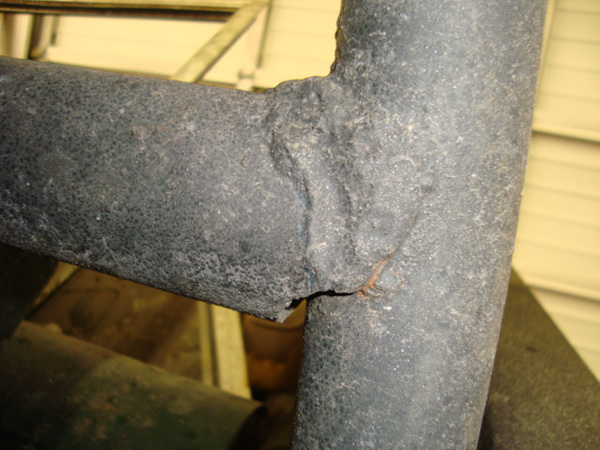

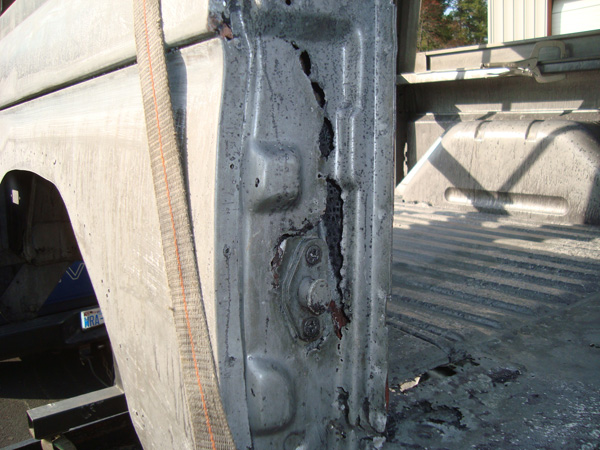

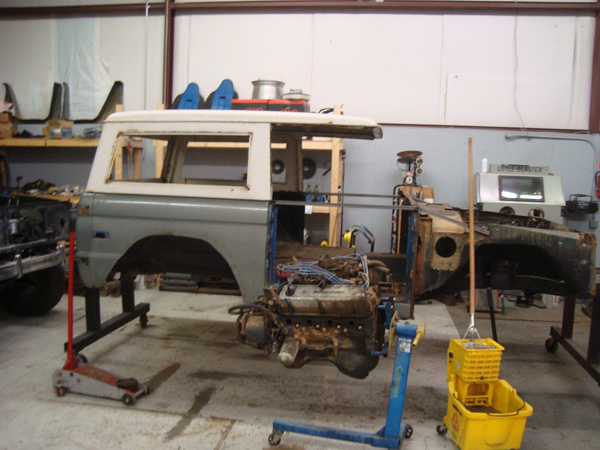

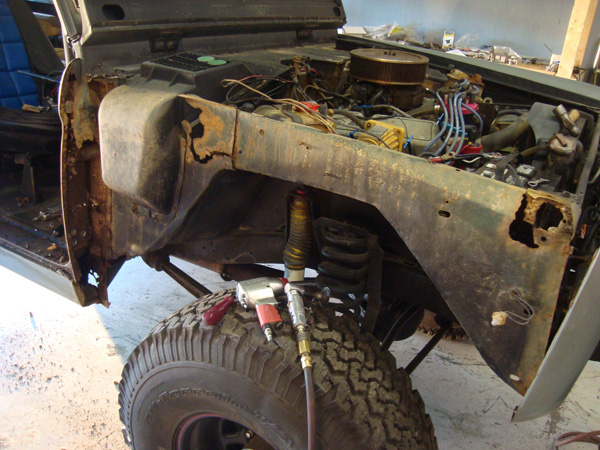

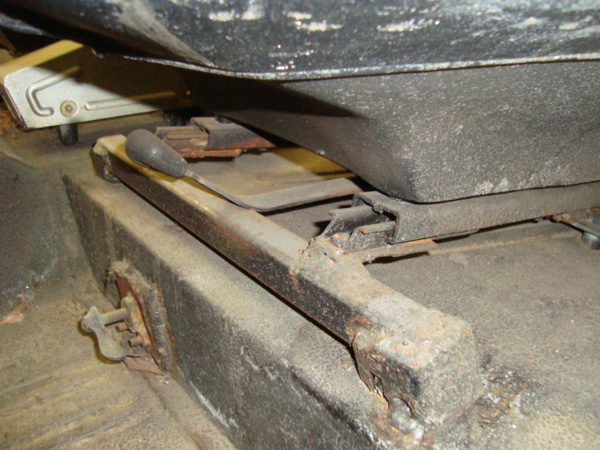

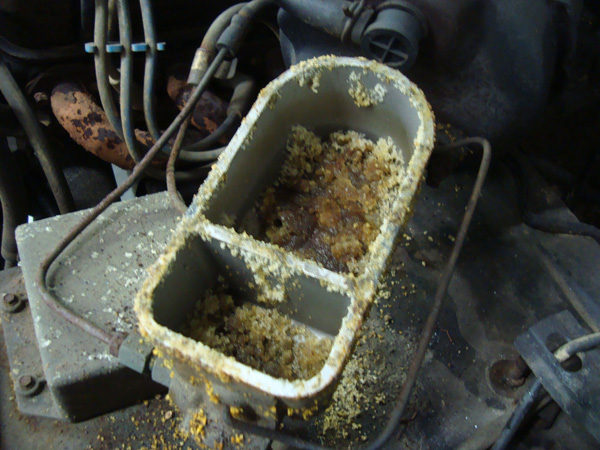

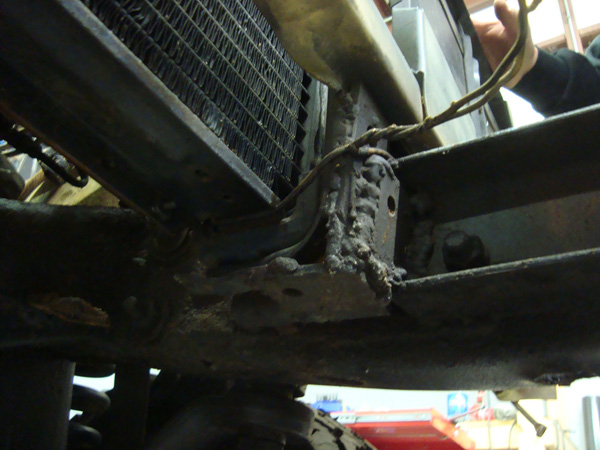

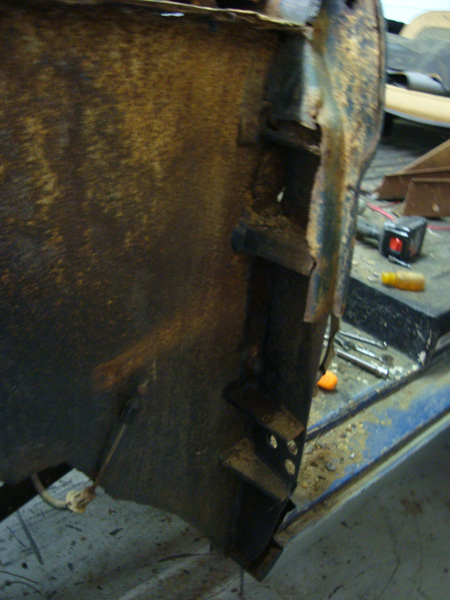

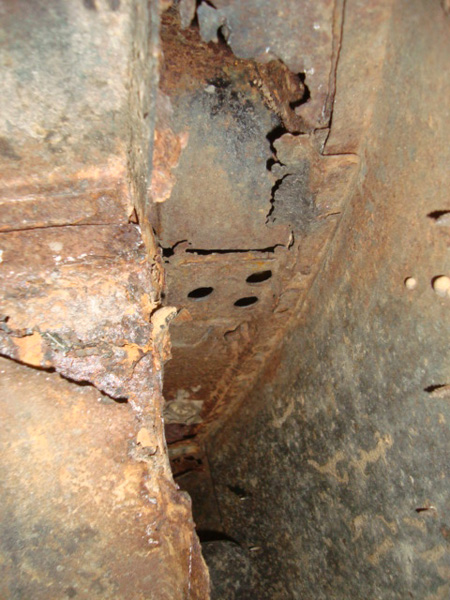

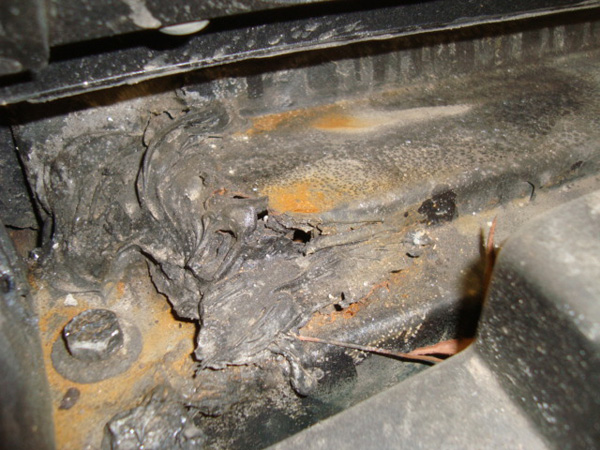

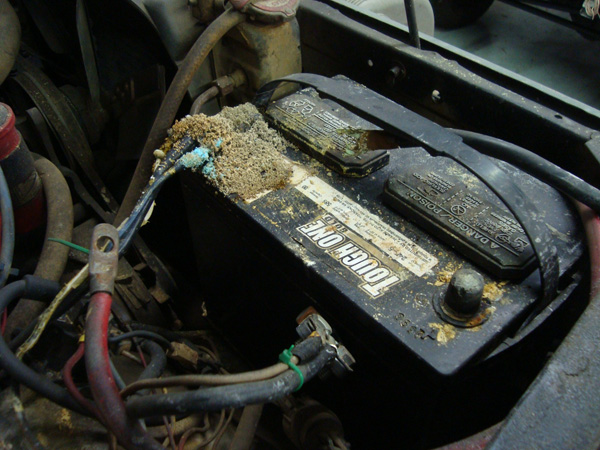

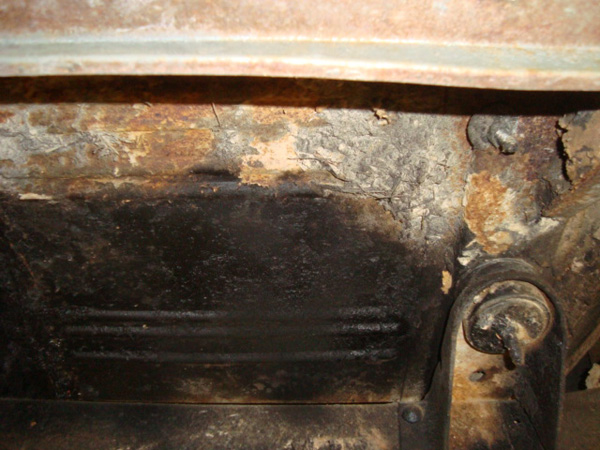

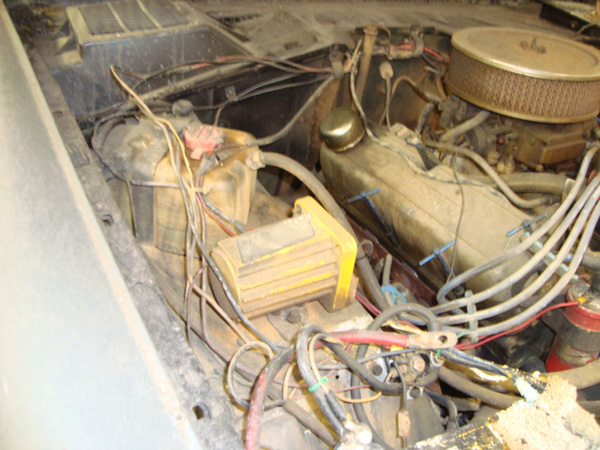

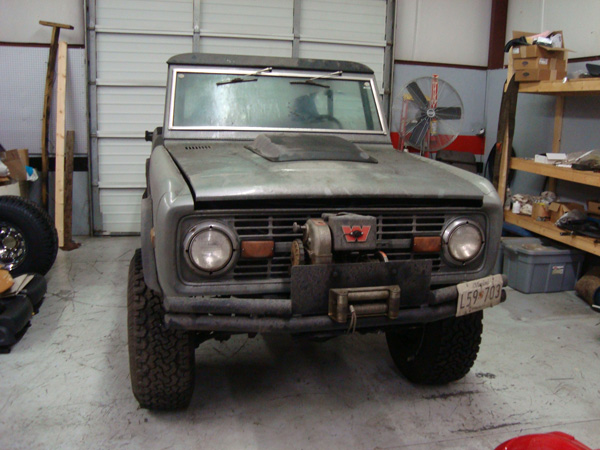

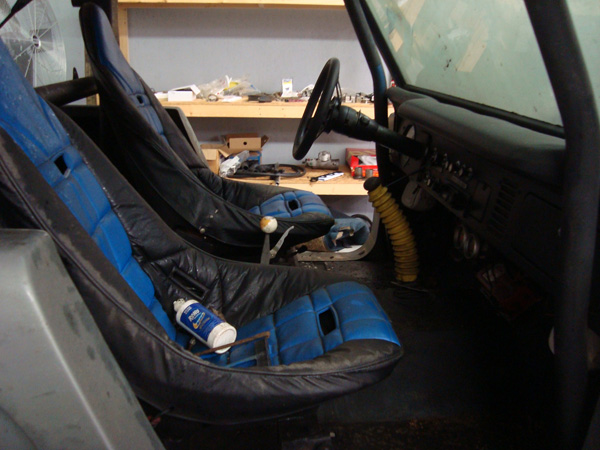

This truck has had a hard life and had spent some time as a mud bogger.The owner had long wanted a bronco, purchased this one and drove it for a short while. It was unreliable and ill handling. It went into storage until he was ready to have it redone. Upon it's arrival our initial inspection revealed it was riddled with rust and after a chem strip a good percentage of it would need to be replaced.

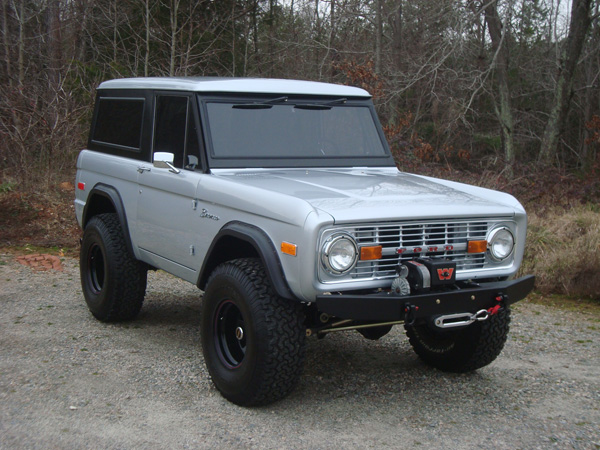

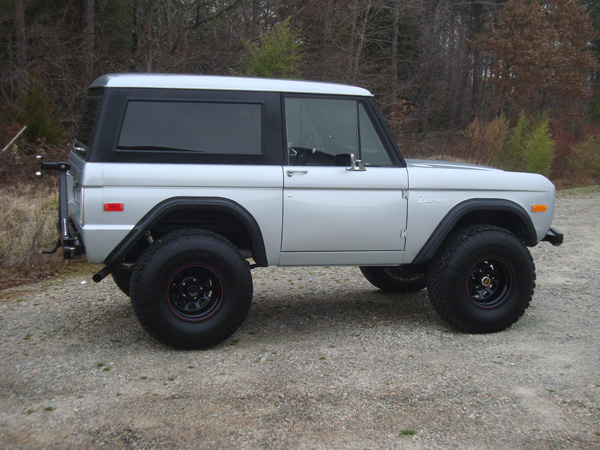

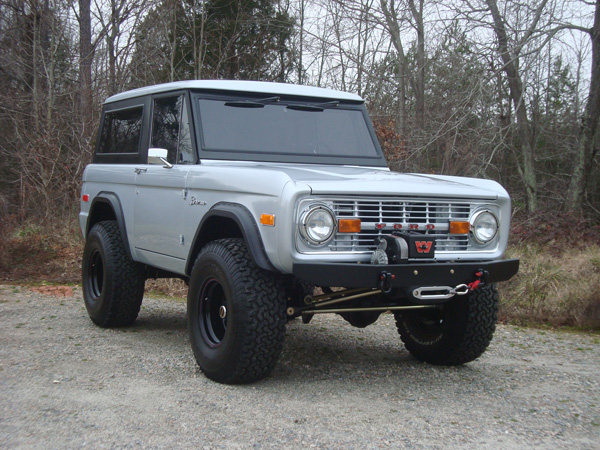

All in all, "The Big Easy" is a perfect example of saving a classic Bronco from the scrapyard and turning it into a beautiful ride! It will enjoy it's new home in Louisiana.

 Bronco Build Photo Gallery
01 02 03
04 05 06
07 08 09
10 11 12
13 14 15
16 17 18
19 20 21
22 23 24
25 26 27
28 29 30
31 32 33
34 35 36
37 38 39
40 41 42
43 44 45
46 47 48
49 50 51
52 53 54
55 56 57
58 59 60
61 62 63
64 65 66
67 68 69
70 71 72
73
Body

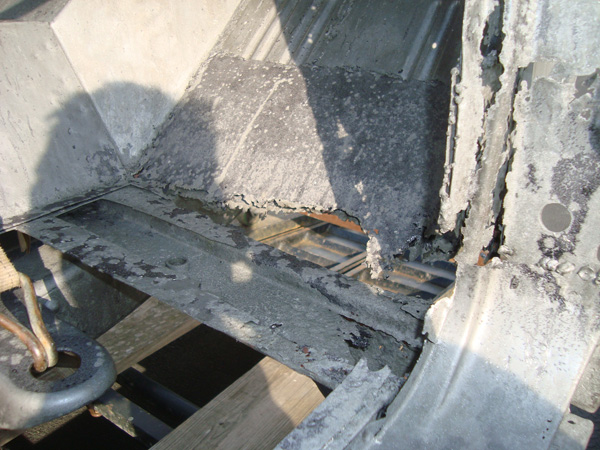

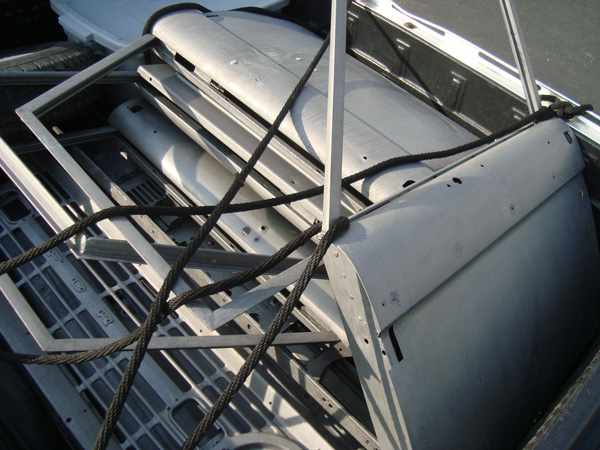

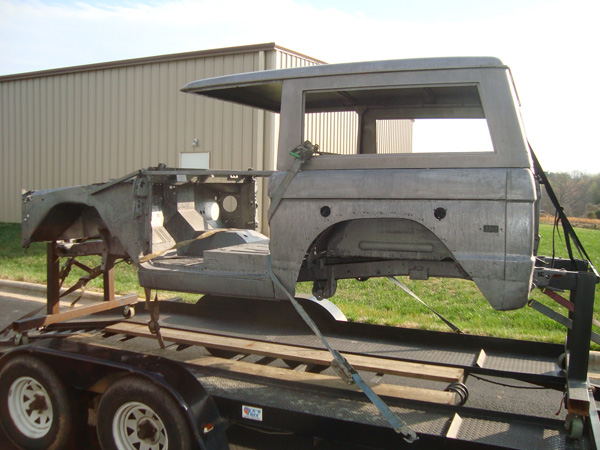

  • Body was Chemical stripped to kill the rust cell structure by Carolina Chem Strip

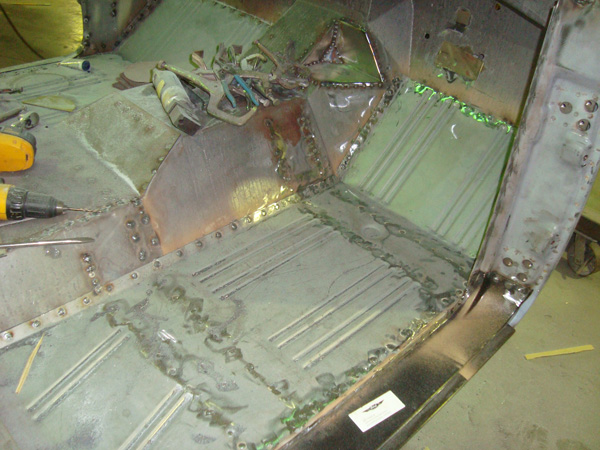

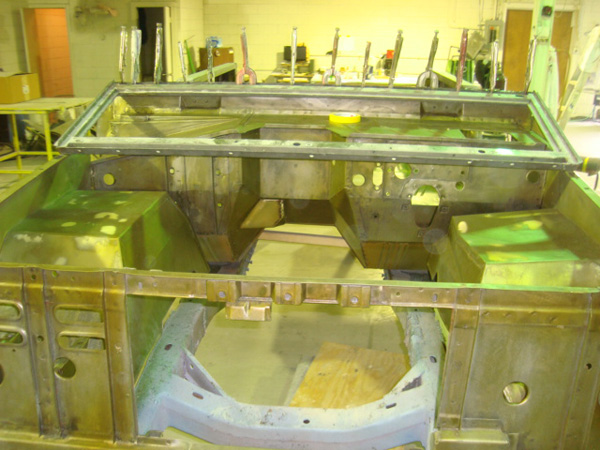

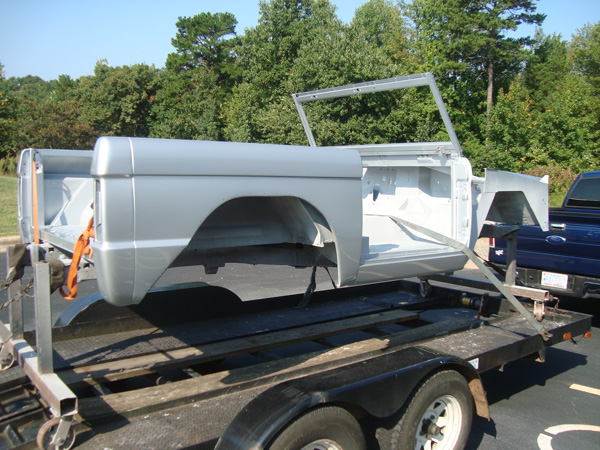

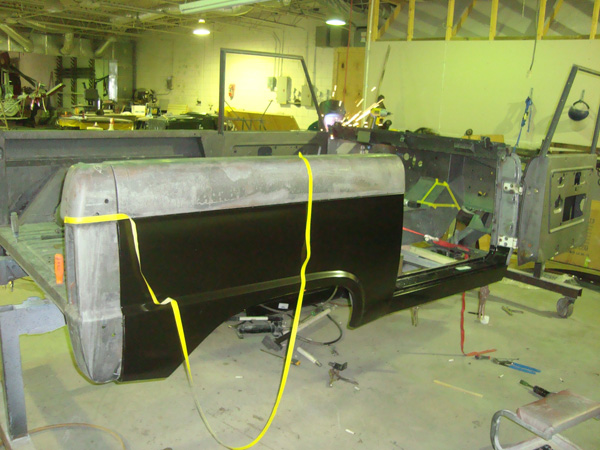

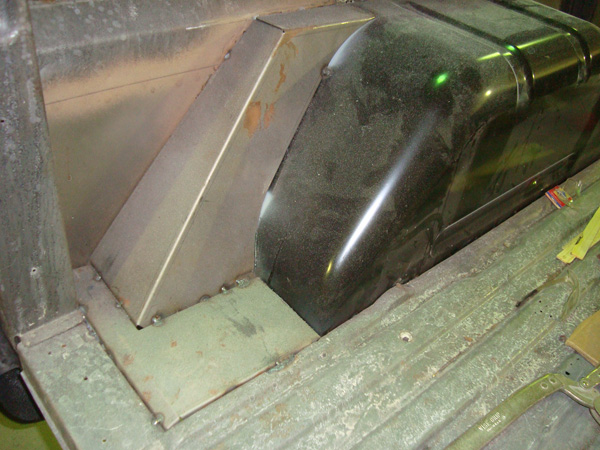

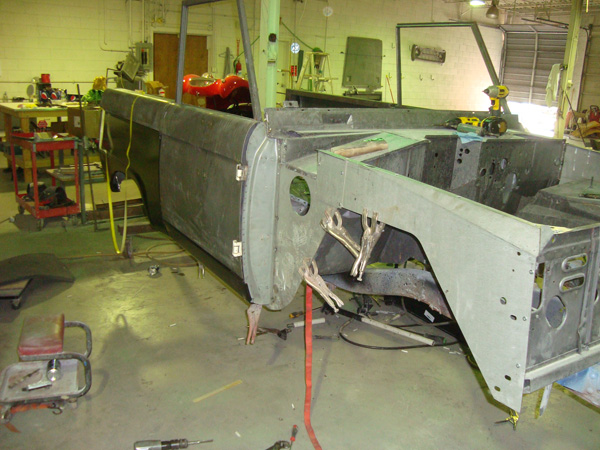

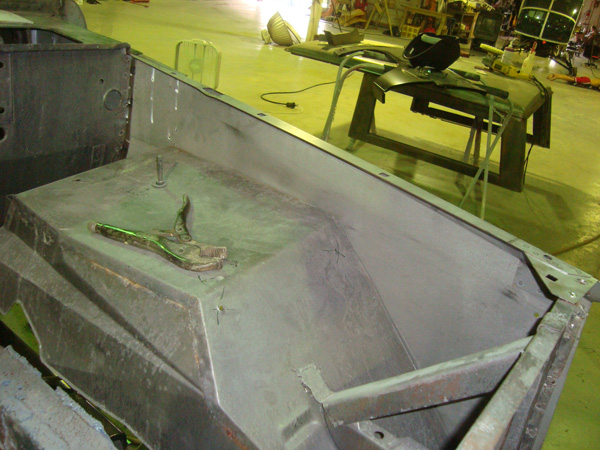

  • Majority of sheet metal replaced with new or factory
  • Body work & paint by Chuck Schenck Autobody
  • Paint PPG DBC base coat
  • Black is SEM Hot Rod satin black

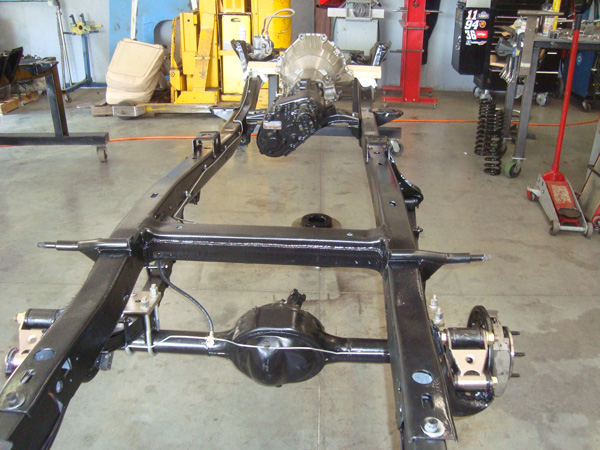

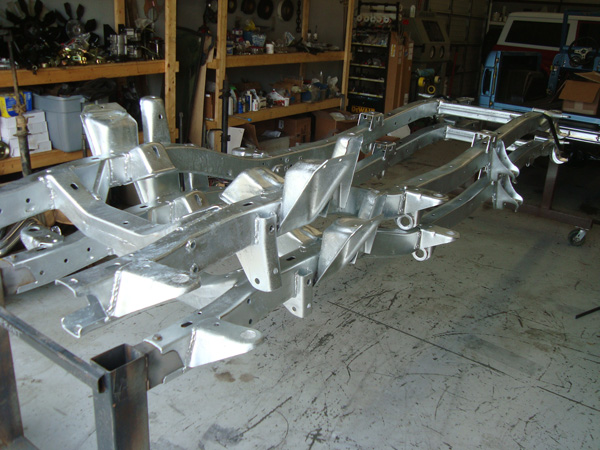

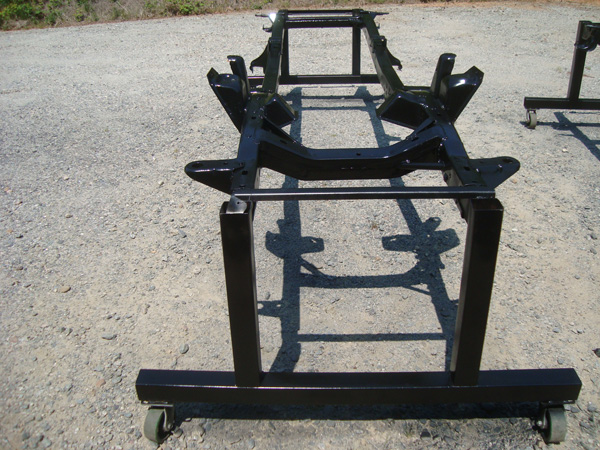

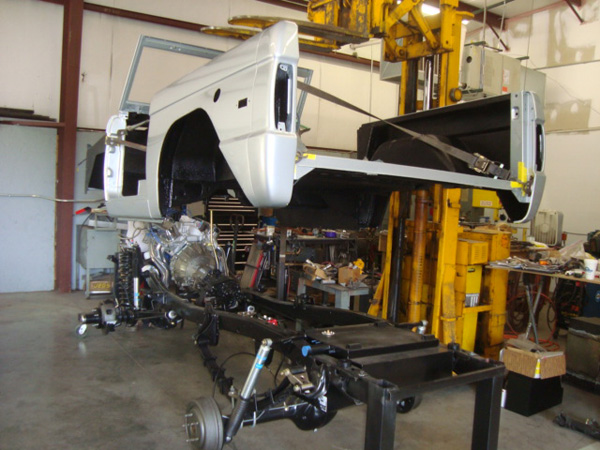

  • Chassis is hot dip galvanized and painted semi gloss black
  • Running gear painted in PPG semi gloss black

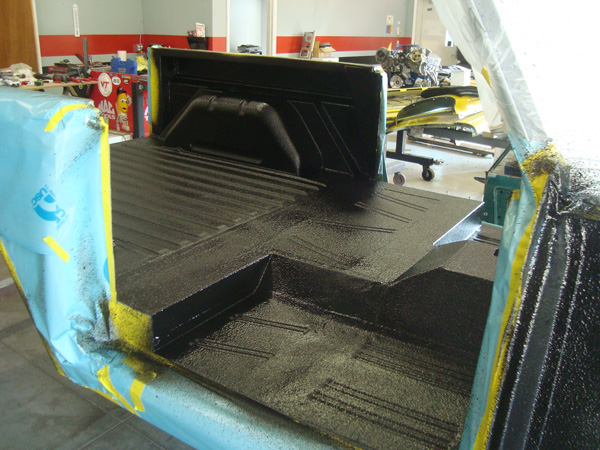

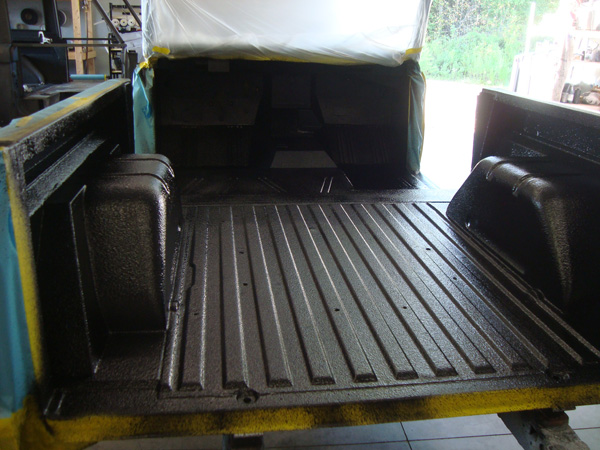

  • Bed liner inside & under using Scorpion Bed Liner
  • SEM seam sealers used exclusively
  • Hush Mat sound deadener mat used throughout
Drivetrain
  • “The Game Changer” package:

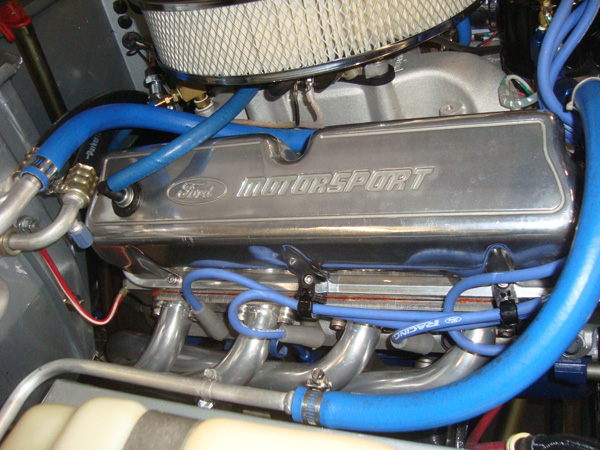

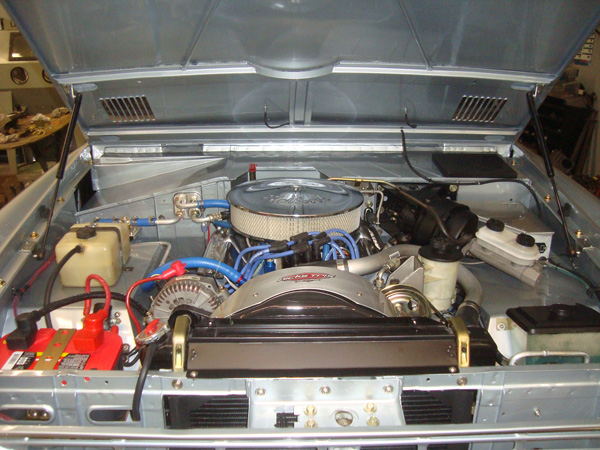

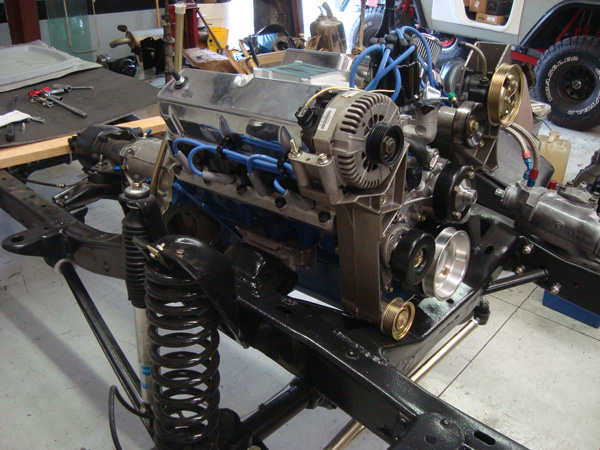

  • 347 stroker by Campbell Gear Tech, rated 400 hp
  • 5.0 roller block & valve train
  • Alum heads and intake
  • Forged pistons
  • Scat rotating assembly
  • Stainless valves
  • Explorer serpentine front dress
  • Holley carburetor

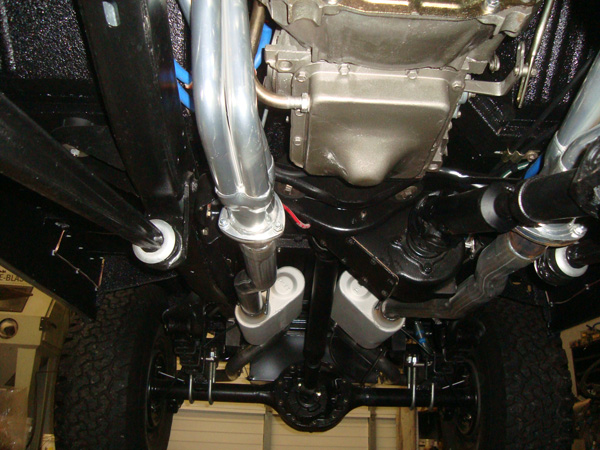

  • Long Tube ceramic coated Headers
  • Flowmaster 40 series mufflers
  • Optima battery in custom mount
Drivetrain
  • C-4 trans. & custom stall converter
  • Dana 20 transfer case/ completely rebuilt
  • 4:56 gear ratio with Trac Loc differentials
  • 4340 front axles
  • New HD rear axles

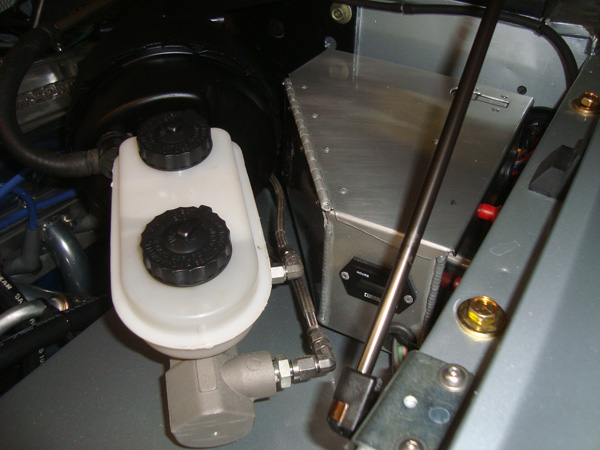

  • HD disc brake package
  • HD extended driveshafts

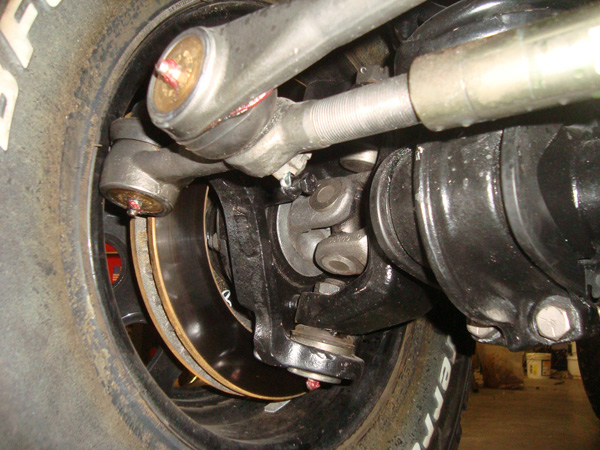

  • HD 1 ton NT steering linkage
  • Moog ball joints & tie rod ends
  • Fluid transfer with Goodridge hose & fittings
  • 23 gallon fuel tank
  • High Efficiency copper radiator by Mckinney Radiator
  • Gear work by Corey Transmission
  • Driveshaft’s by Carolina Powertrain
  • 35x15 inch BFG A/T tires
  • 15x10 wheels in black

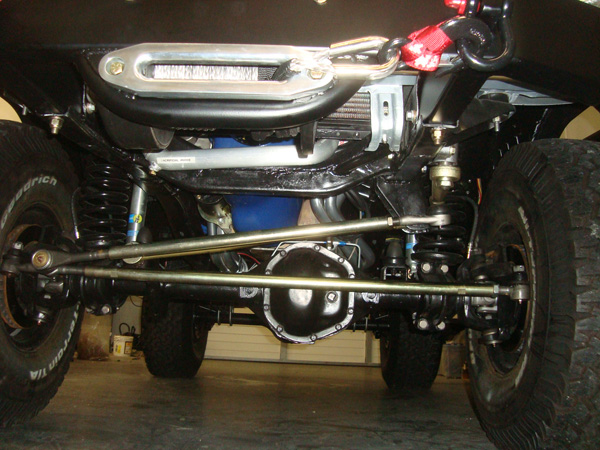

Suspension
  • 3.5inch lift using Wild Horses springs
  • Bilstein 5100 series shocks

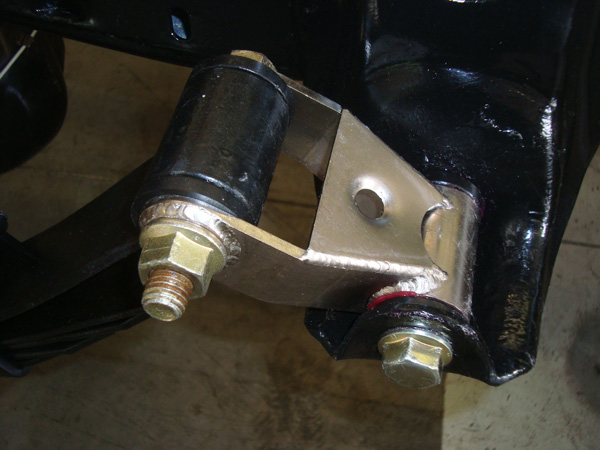

  • NT super shackles
  • Urethane bushings throughout
Interior

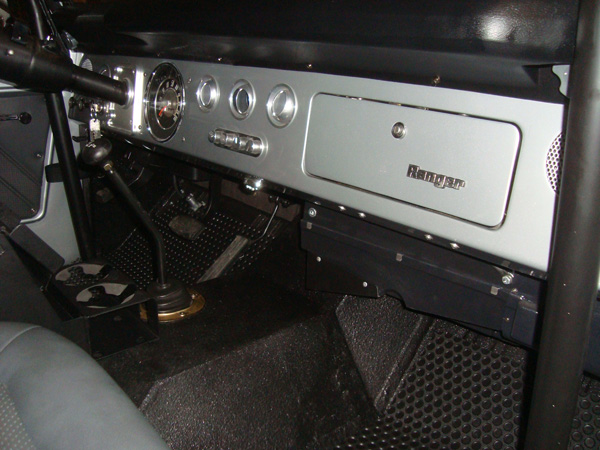

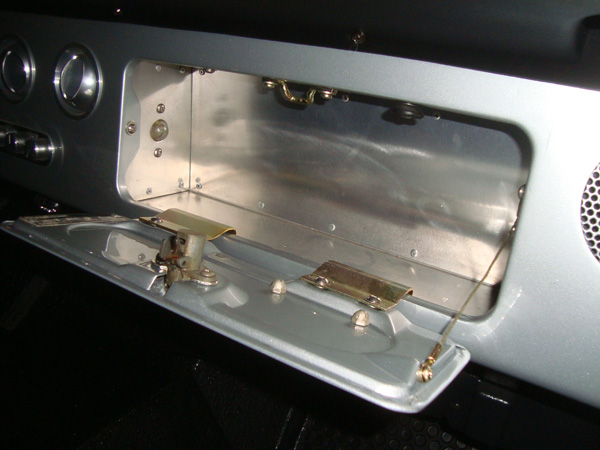

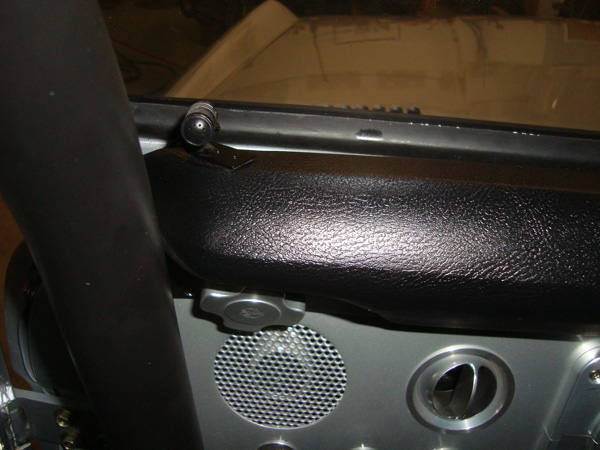

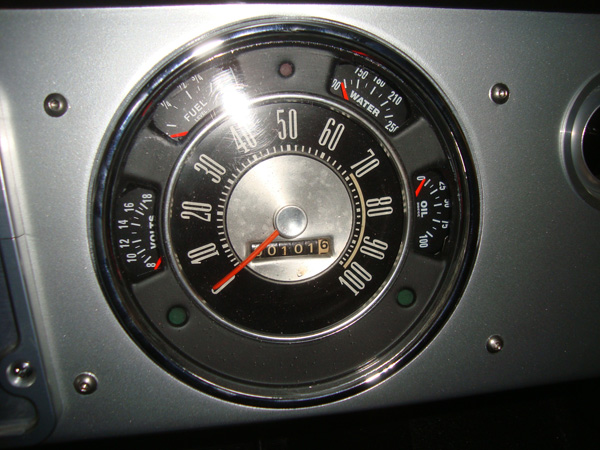

  • Custom NT dash
  • Vintage Air Super Cooler II a/c package
  • Seats & interior covered in material by Miami Corp.

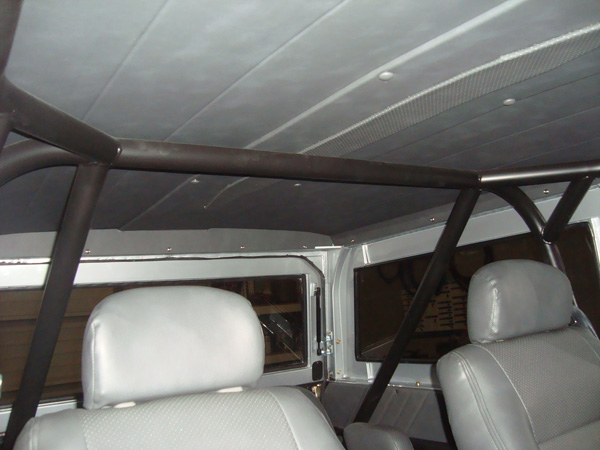

  • Custom head liner

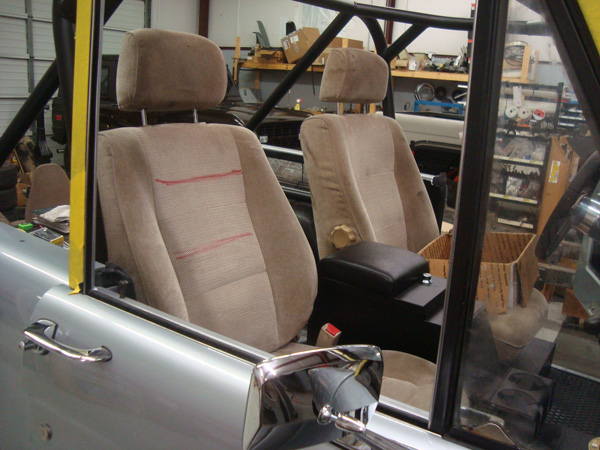

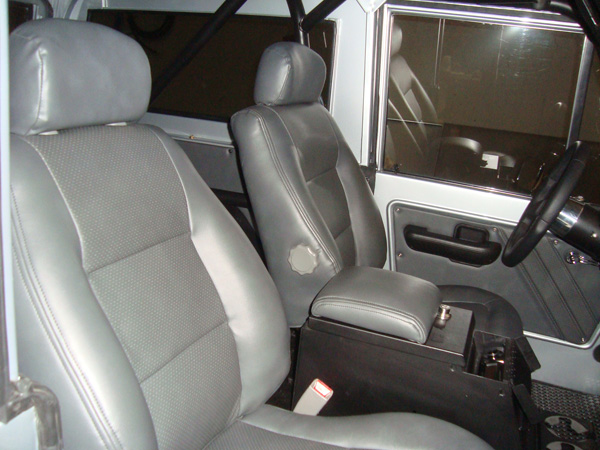

  • High back, adjustable front seats

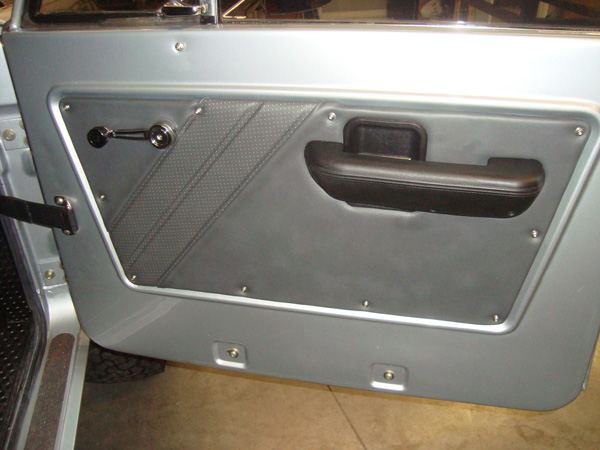

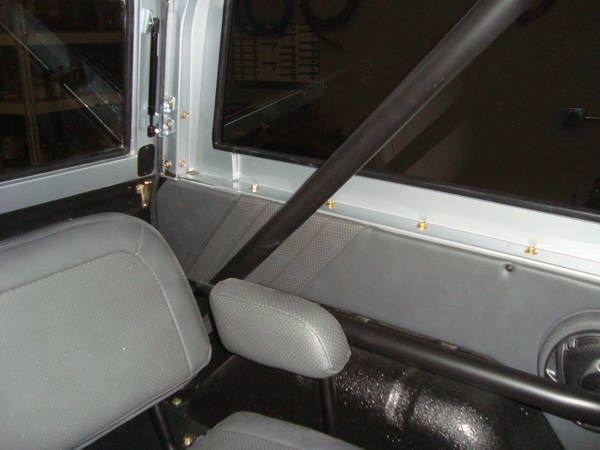

  • Custom rear side panels & headliner
  • Interior work by Lake Norman Hot Rods

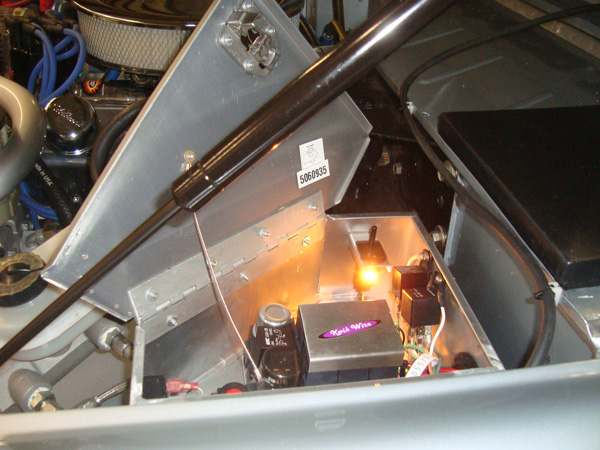

  • Custom wiring harness with weather-pac connectors
  • Hour meter
  • Momo steering wheel

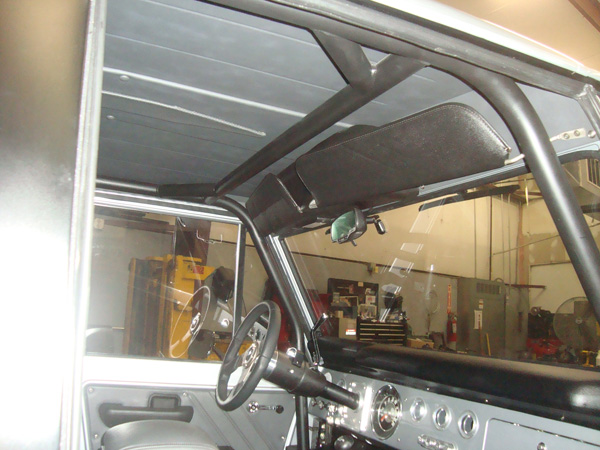

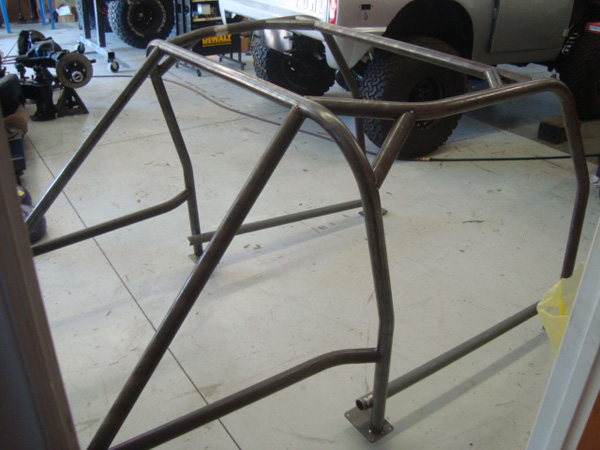

  • NT Sport cage package in DOM tubing
  • Kenwood CD player with Blue tooth in Tuffy consol
  • Kenwood Speakers
  • NT hidden antenna
  • NT billet accessories
Exterior
  • Tinted glass by Russo’s
  • Bumpers by Cross Enterprises

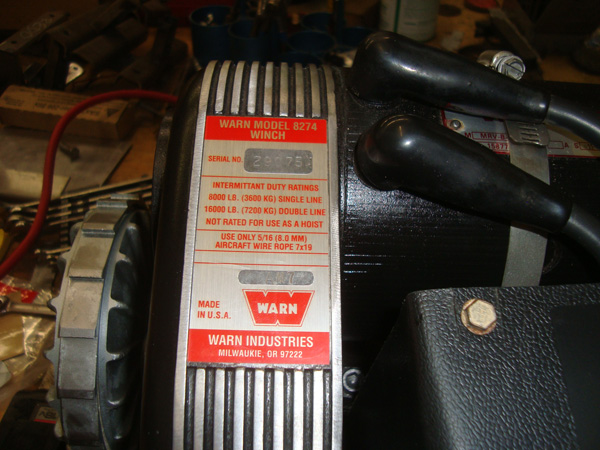

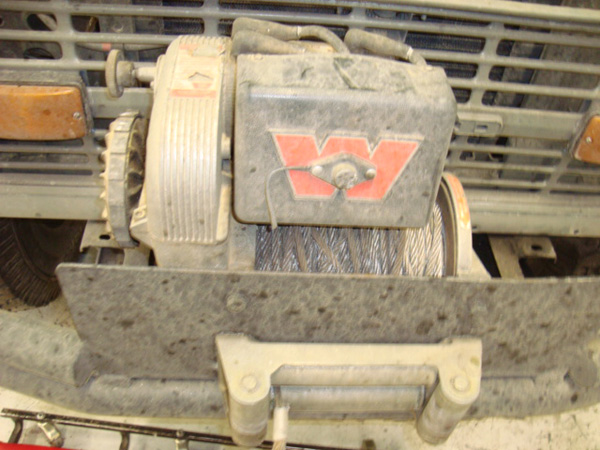

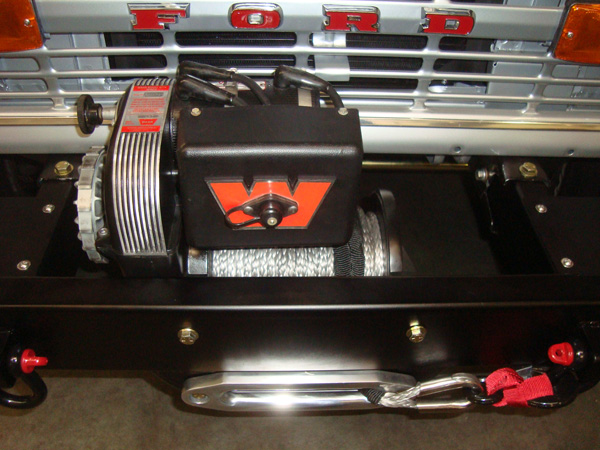

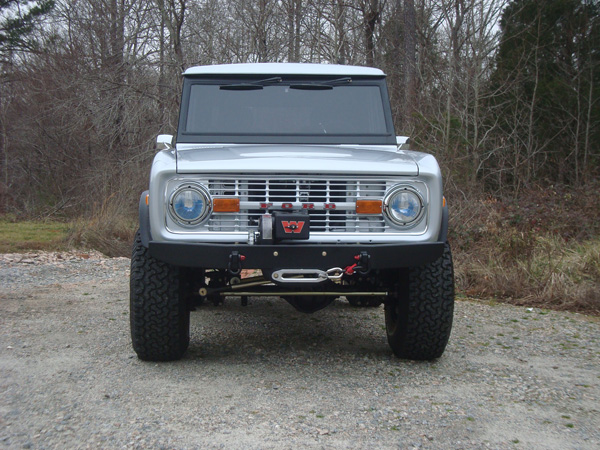

  • Warn 8274 8K pound winch in custom bumper package
  • Synthetic winch line
  • Flares with black zinc hardware
  • Zinc plated components and hardware used throughout

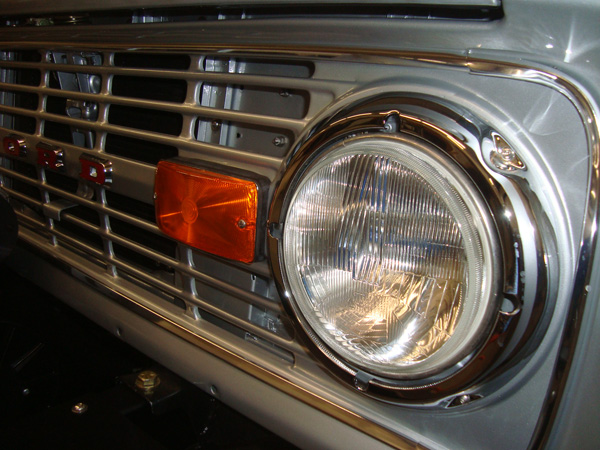

  • H4 European headlights
