3rd Generation Build by Nick's TrixBronco Build Specifications

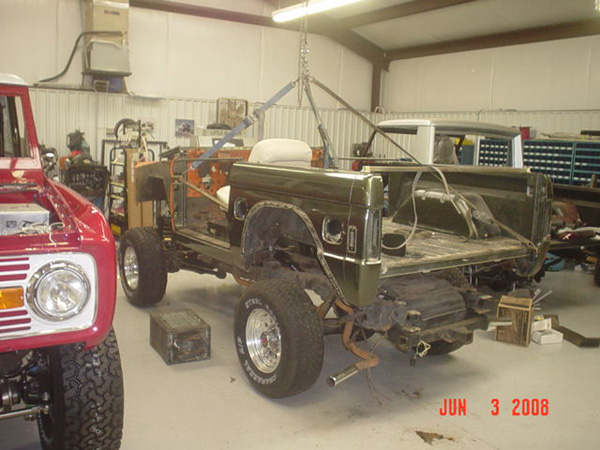

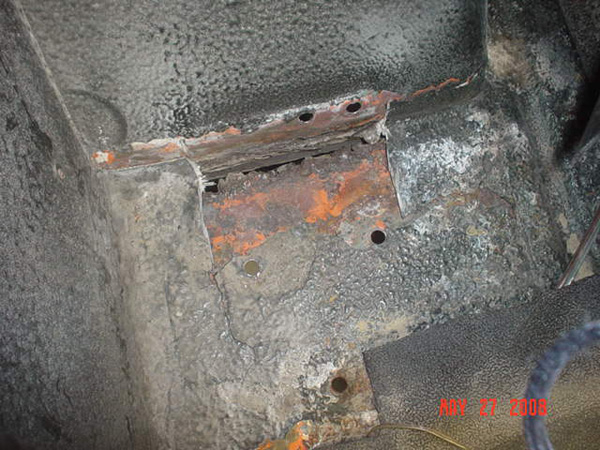

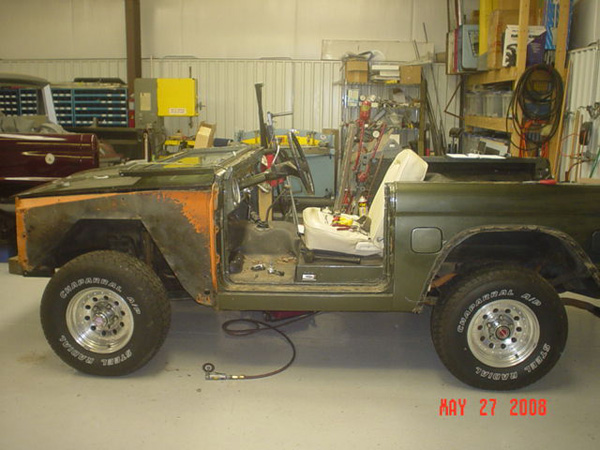

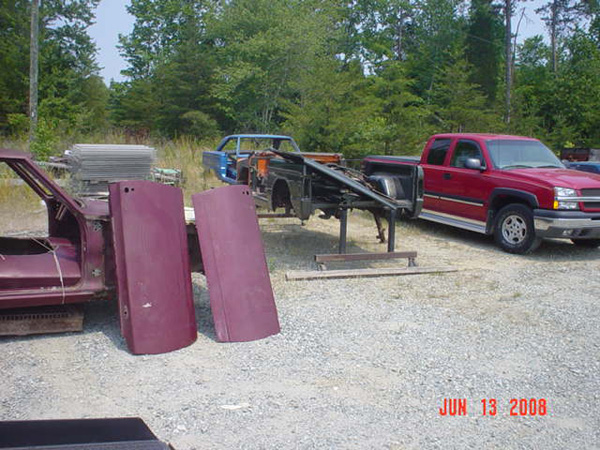

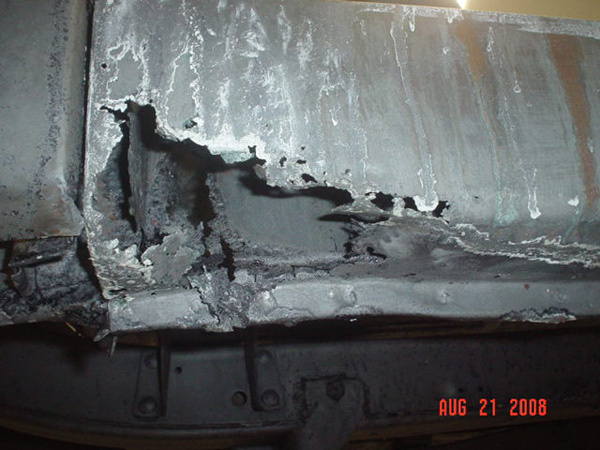

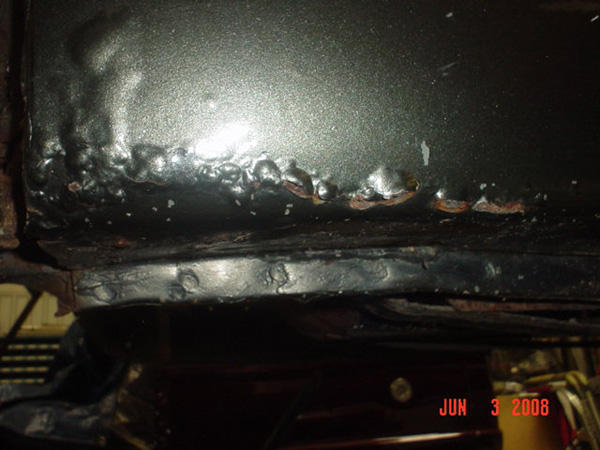

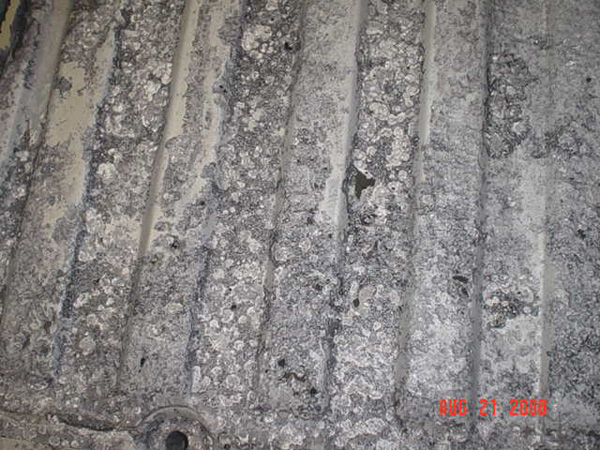

The owner purchased it on eBay, being unfamiliar with Broncos and somewhat non mechanical didn’t quite know what he was buying. It was advertized as being “restored”. The typical deal: shiny coat of slick covering up a disaster underneath, along with a few new parts attached on it.

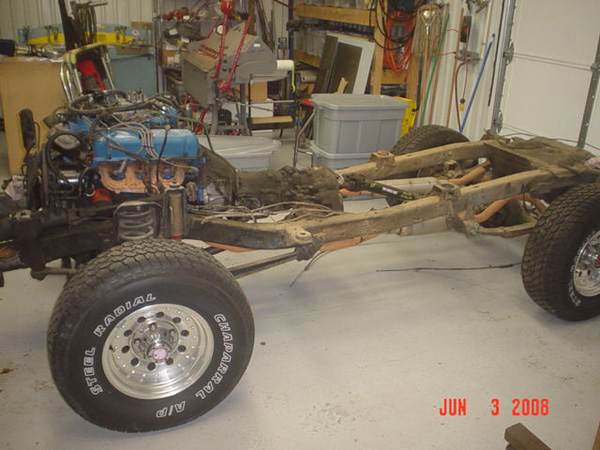

After driving the vehicle a few times he realized what he got himself into. The search then began for a source that specializes in broncos to have it gone over correctly. It was shipped to Nick’s Trix to undergo a complete & proper rebuild. The results are obvious.


 Bronco Build Photo Gallery

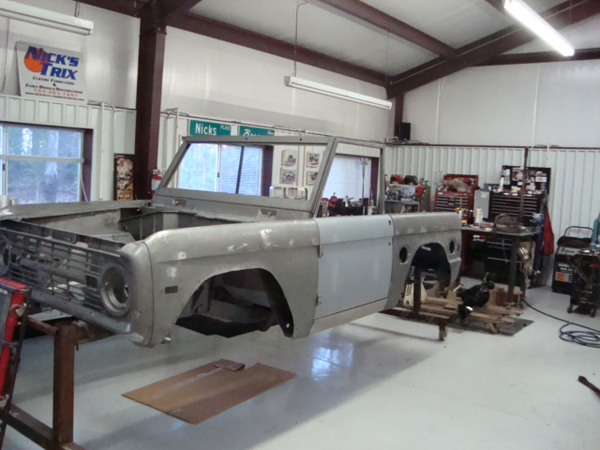

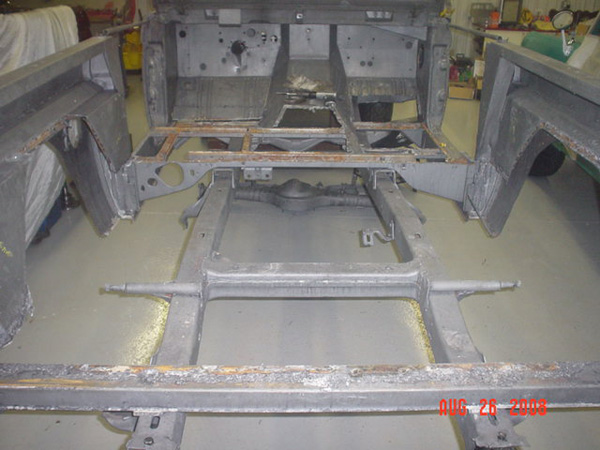

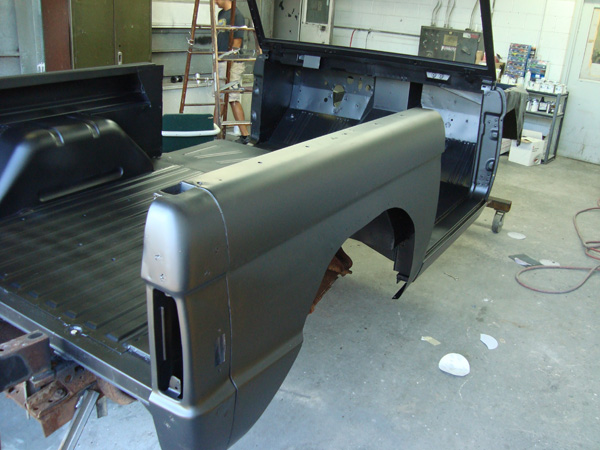

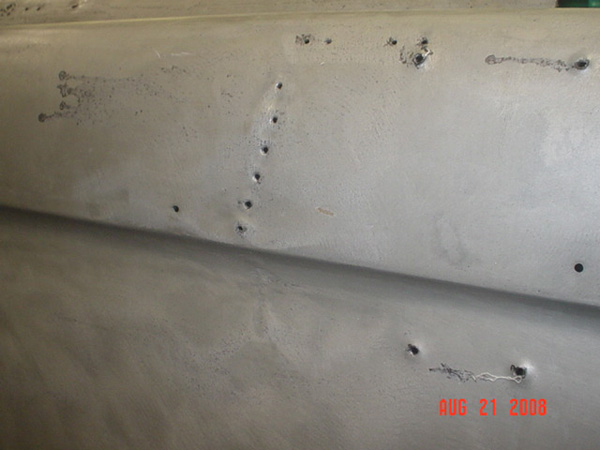

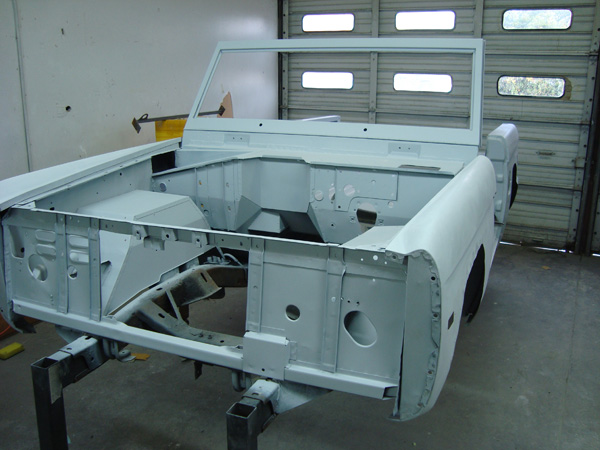

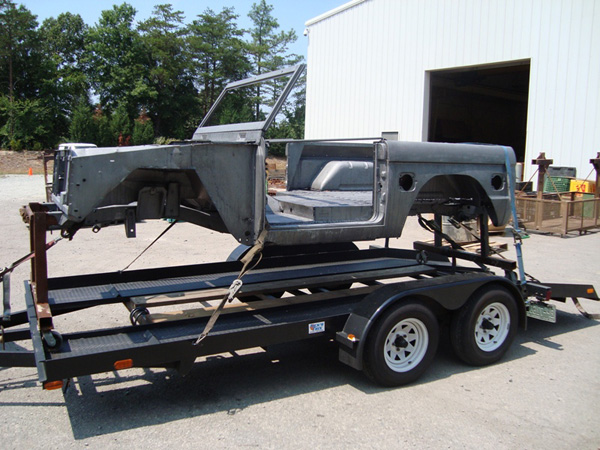

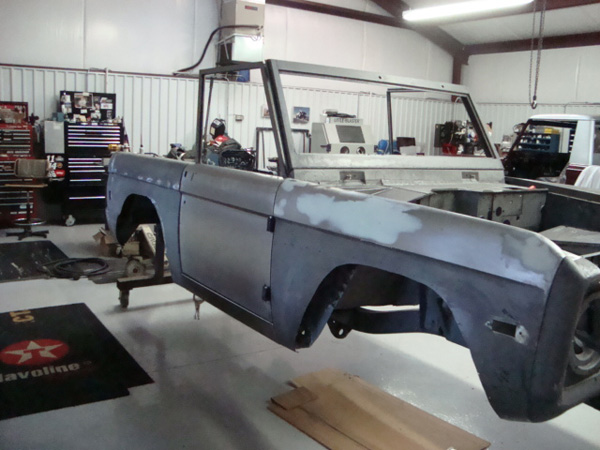

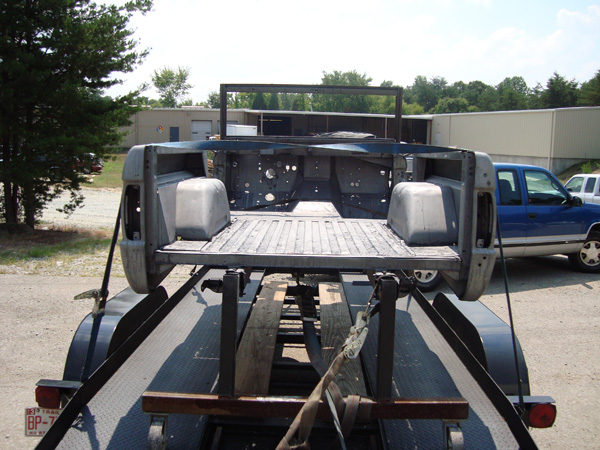

  • Complete Chem Strip by Carolina Chem Strip

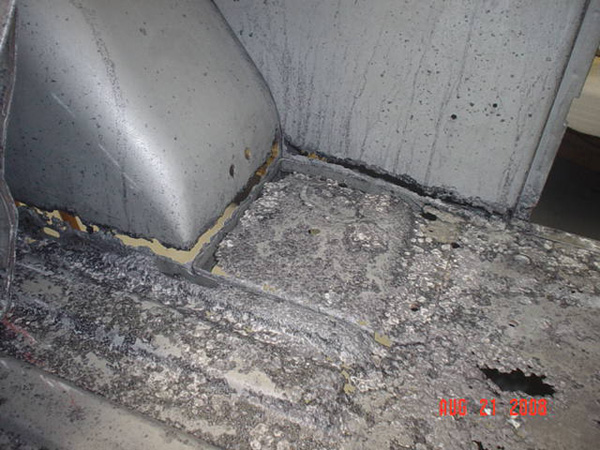

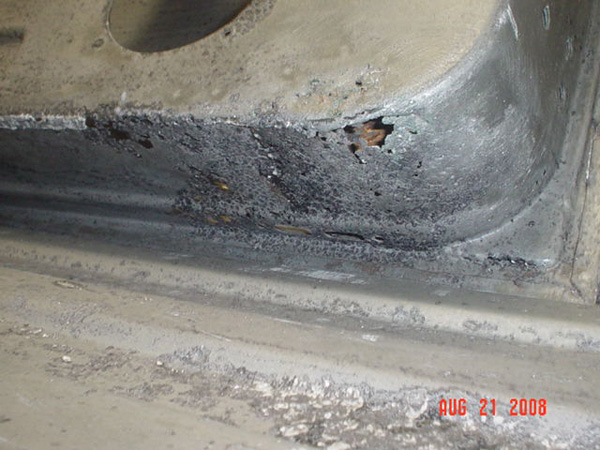

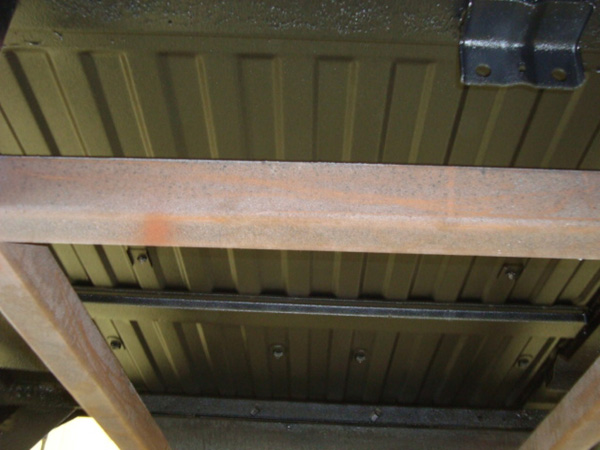

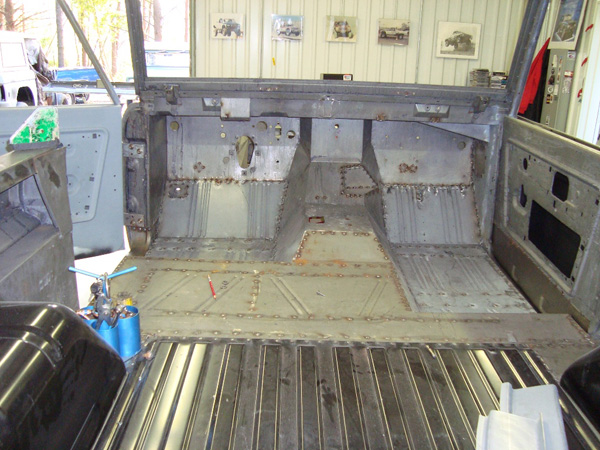

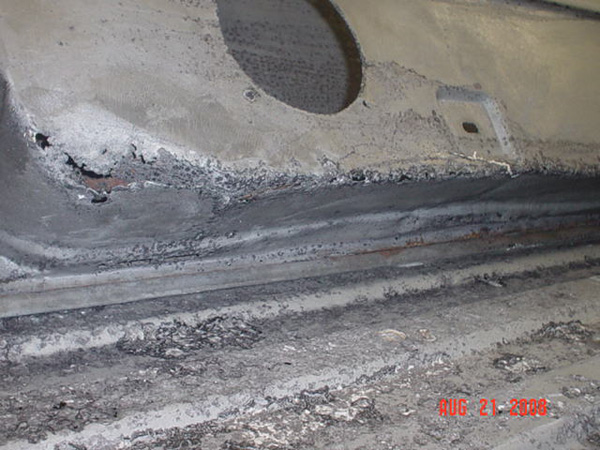

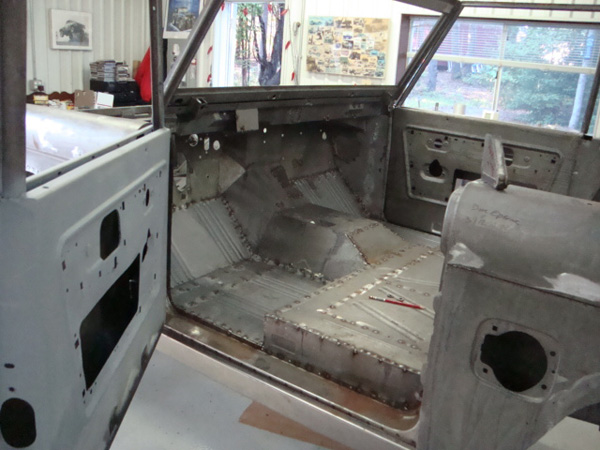

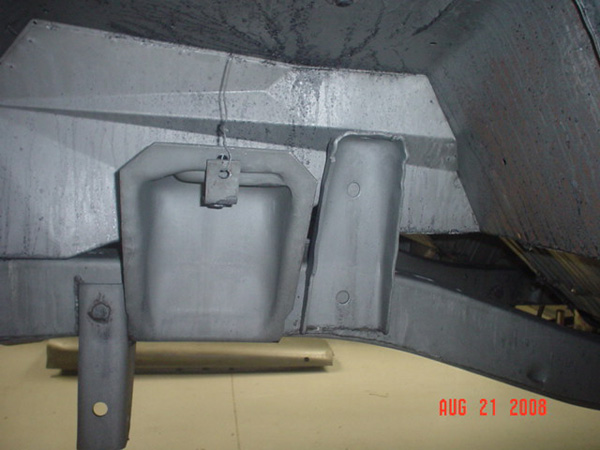

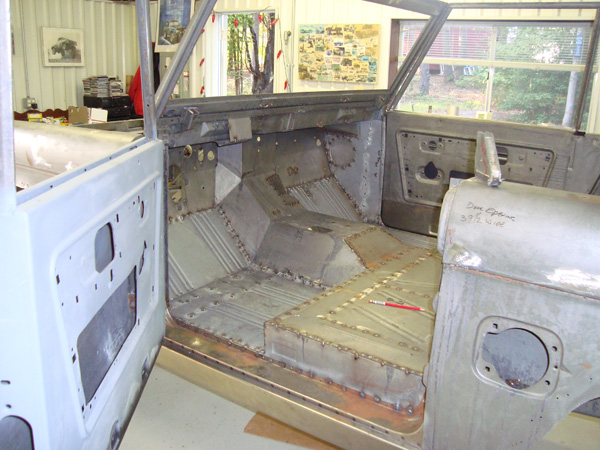

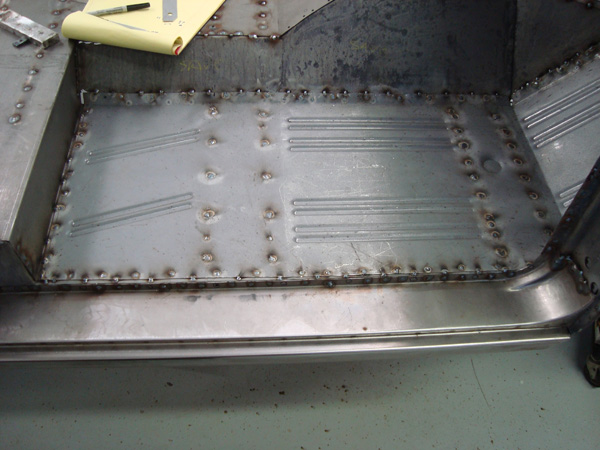

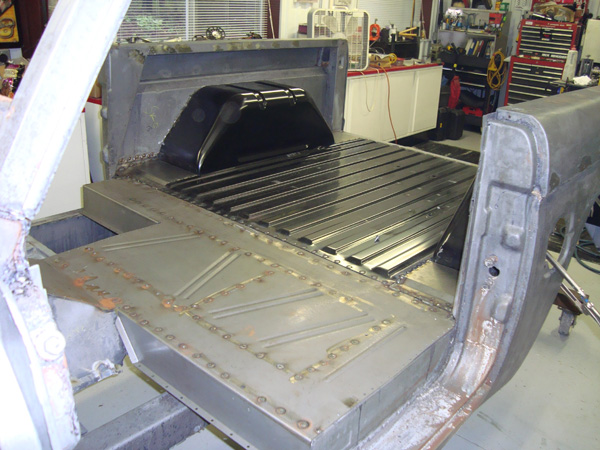

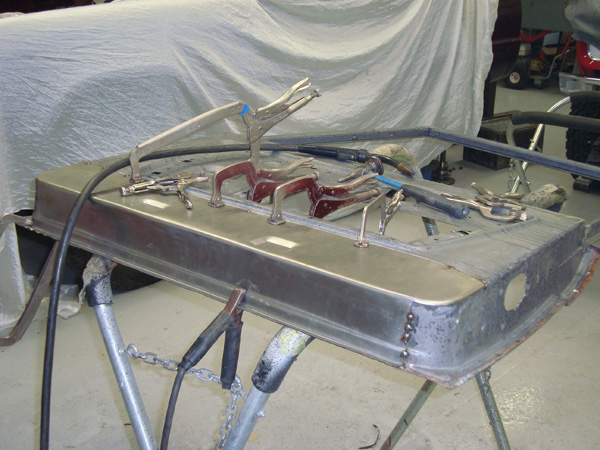

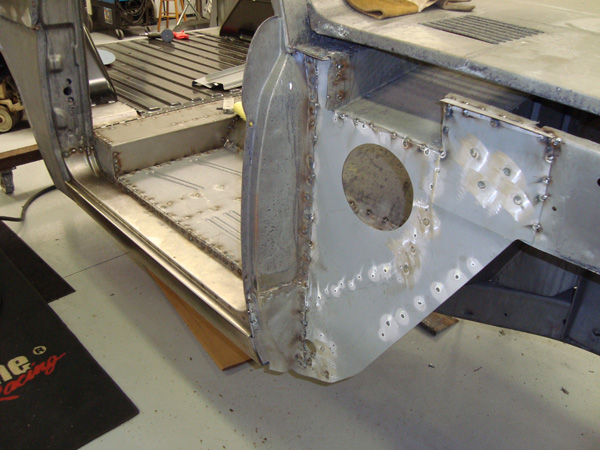

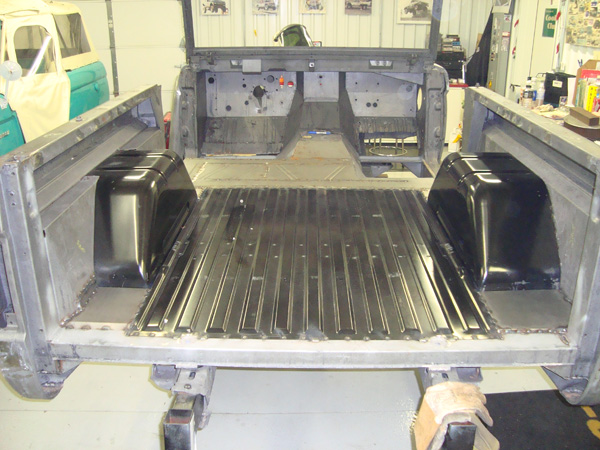

  • All new floors & rear wheel tubs

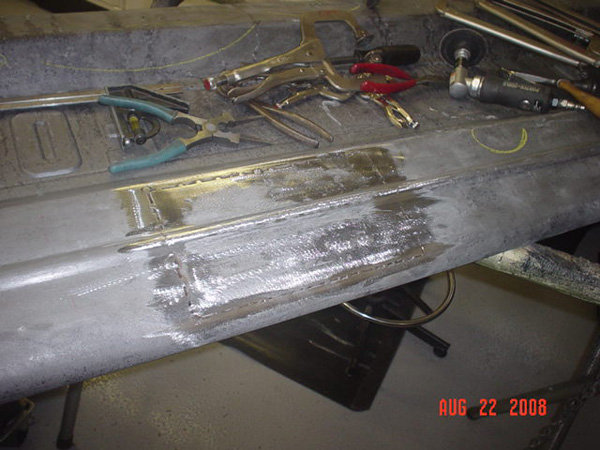

  • R/S door skin & rocker replaced

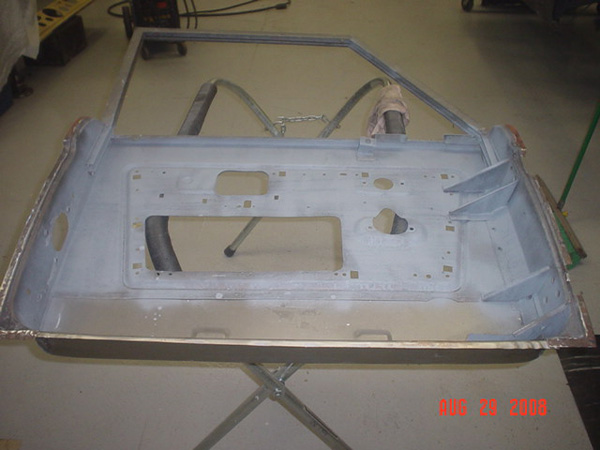

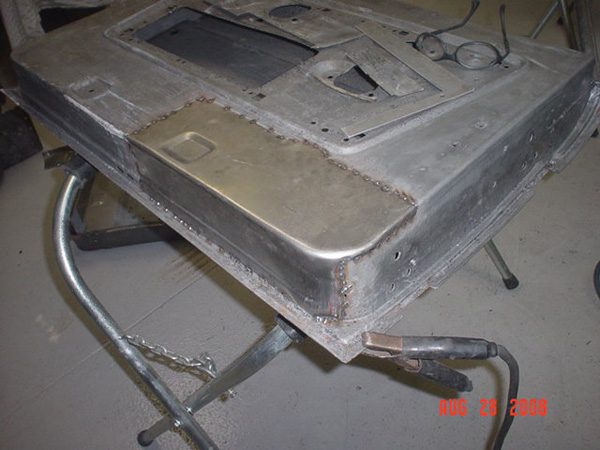

  • L/S lower door replaced

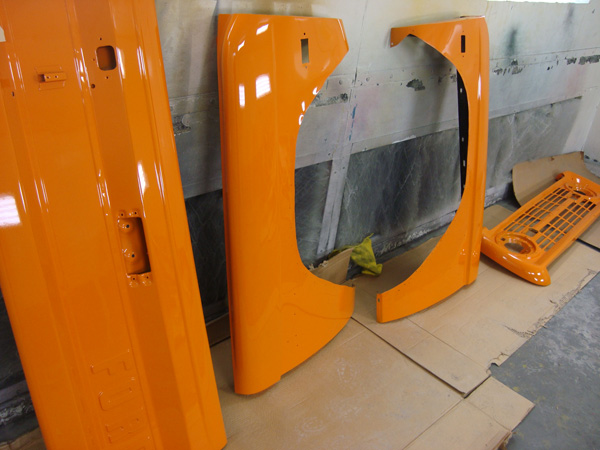

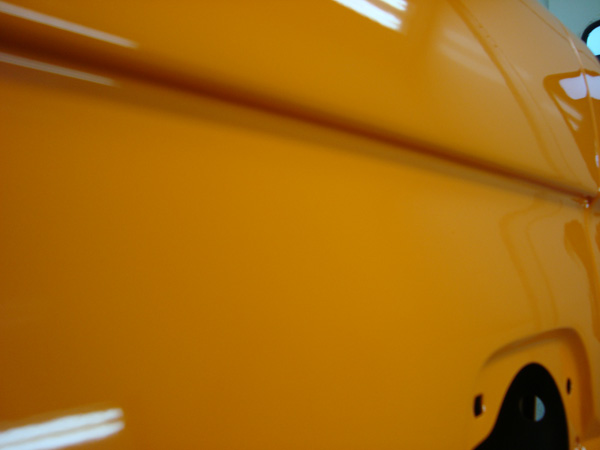

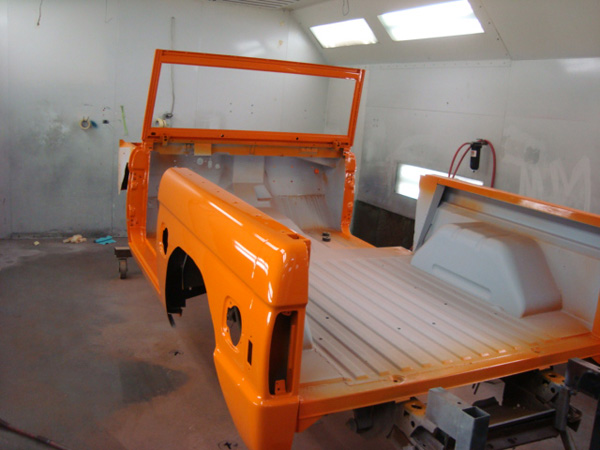

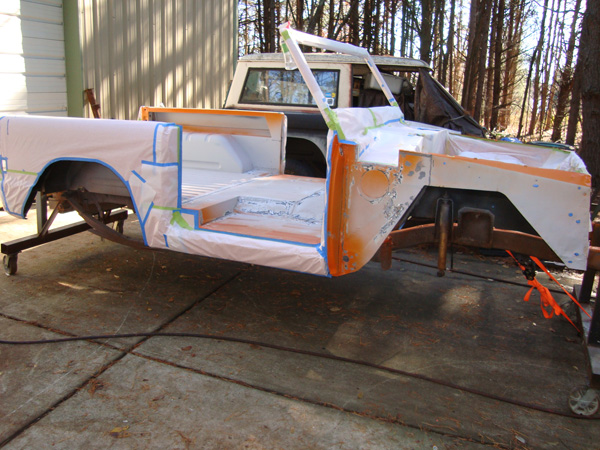

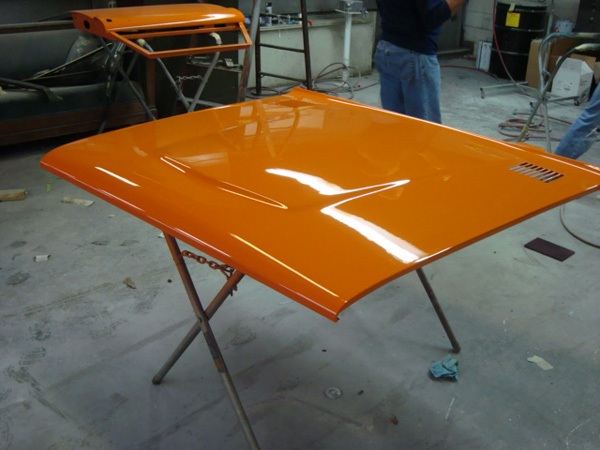

  • Body & paint by Chuck Schenck Autobody

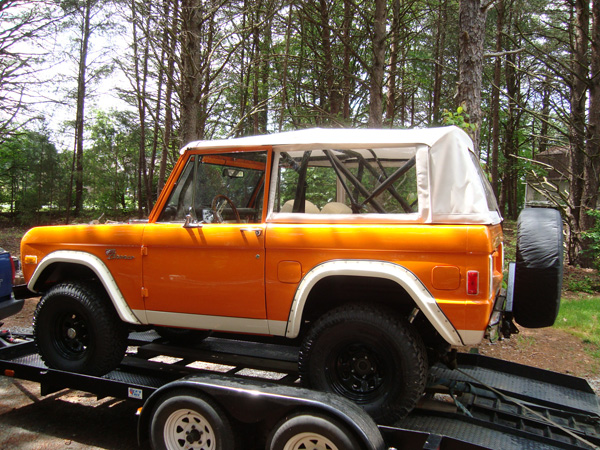

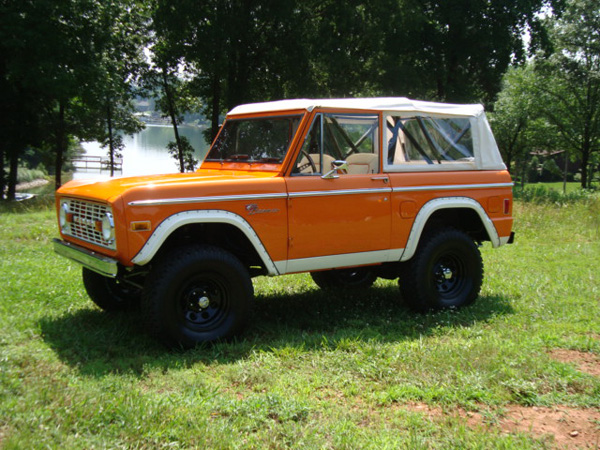

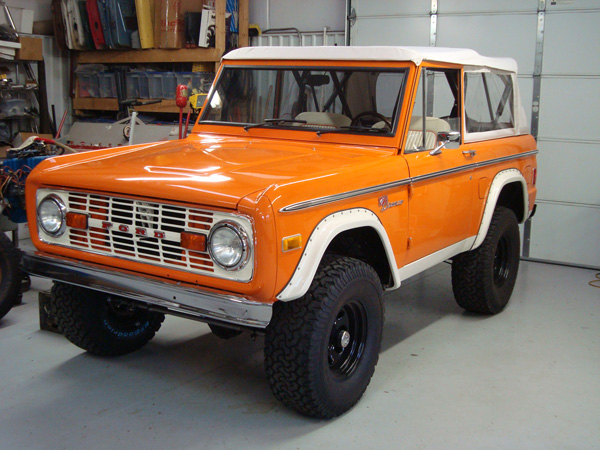

  • Color is GM truck solid orange & Ford Colonial White
  • all in base/clear coat
  • PPG paint products used throughout
  • 3M seam sealers used

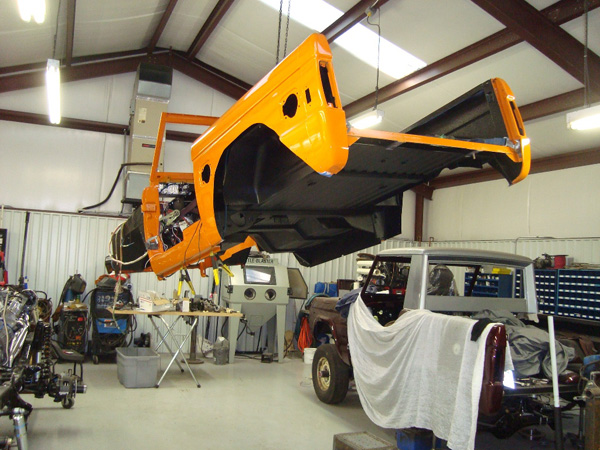

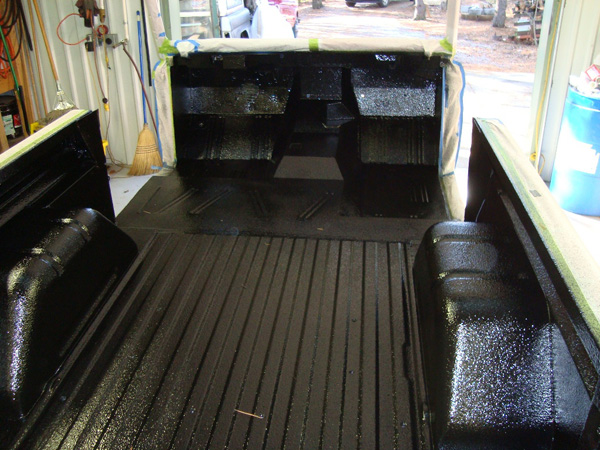

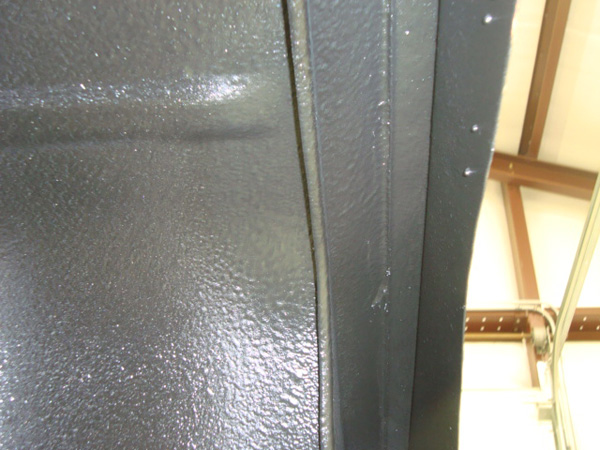

  • SEM spray in bed liner inside & underneath
  • NT drop wiper system with delay package
  • Urethane flares with stainless mounting hardware
  • Nickel plating used on various parts & hardware

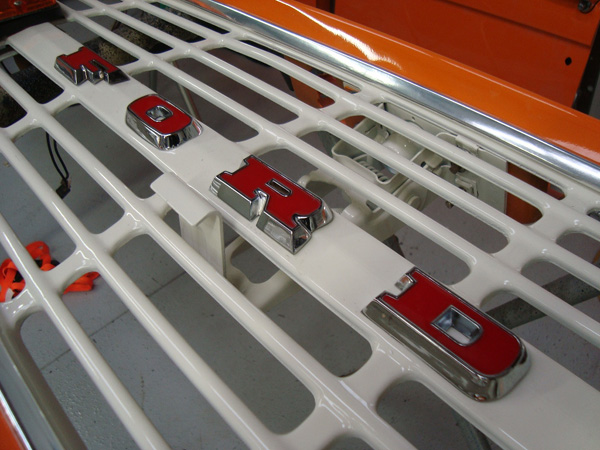

  • New brite work trim pieces
  • H4 headlights

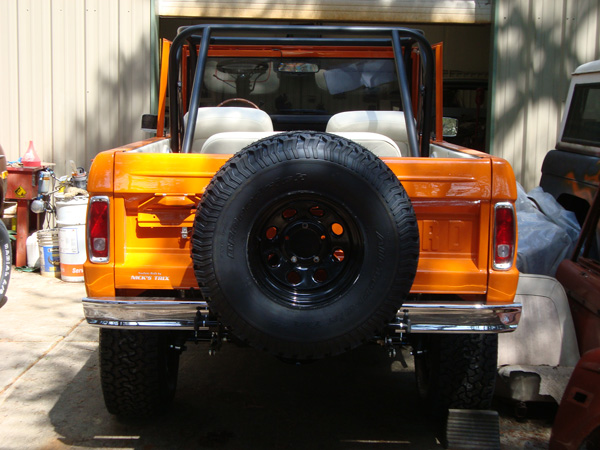

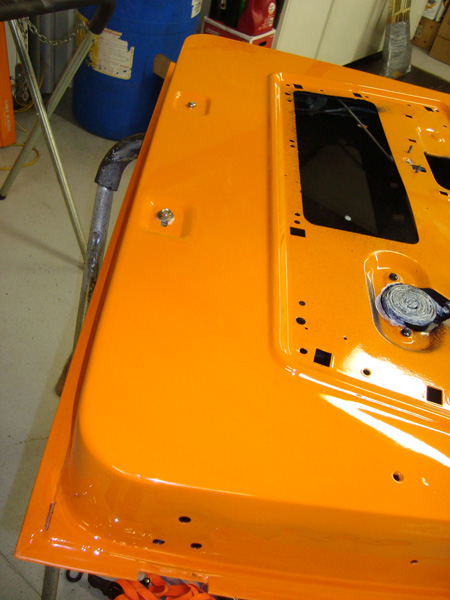

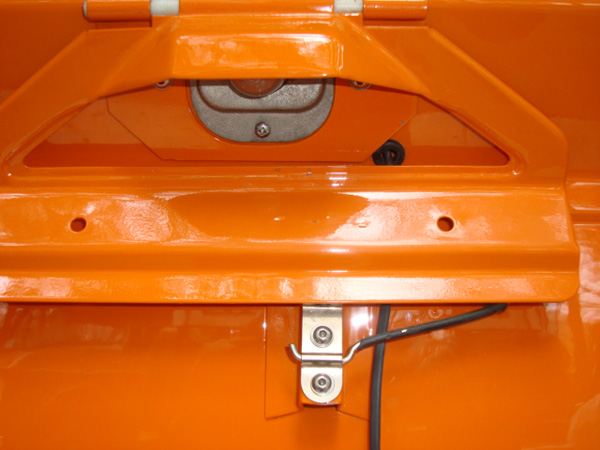

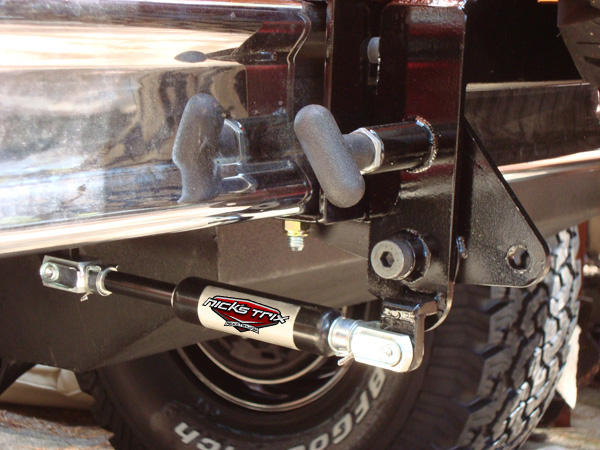

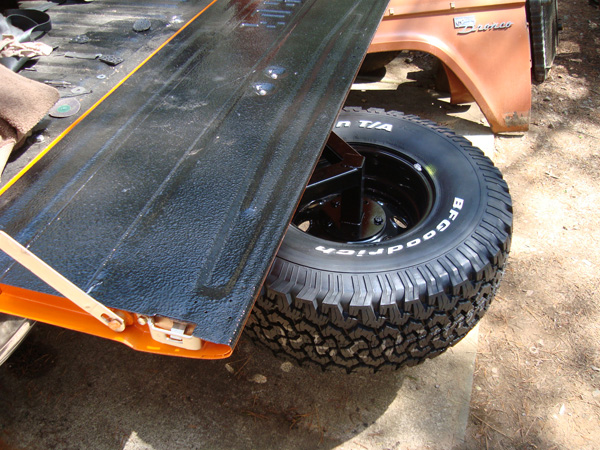

  • NT Drop down /gas assist tire carrier
Engine upgrade

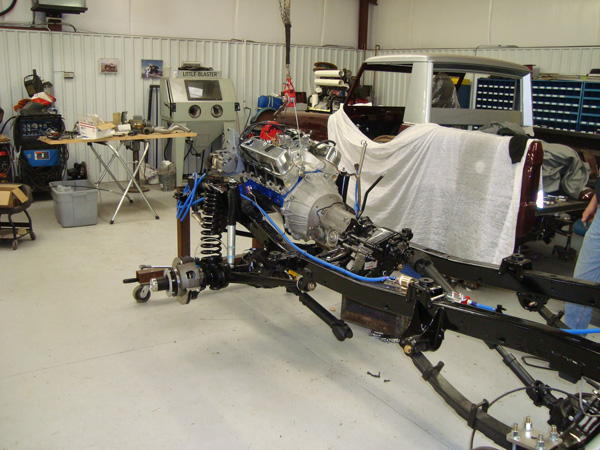

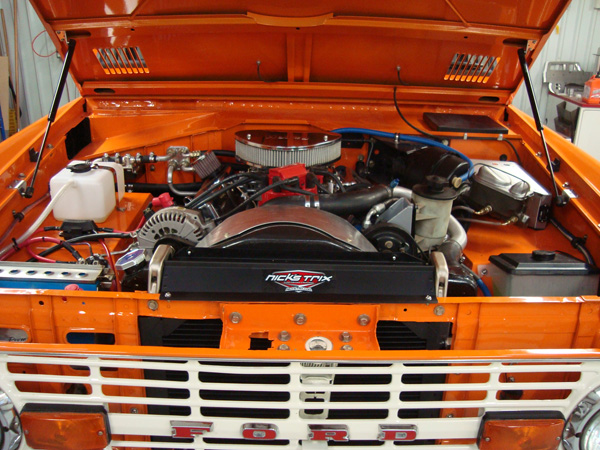

  • 347 stroker engine by Anderson Performace Engines
  • Serpentine belt drive system from Ford Explorer

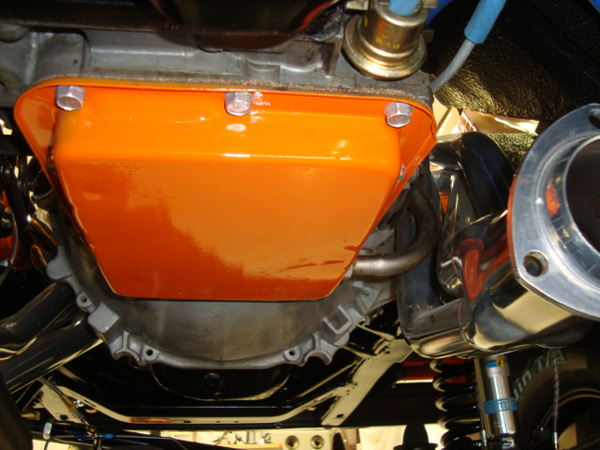

  • C4 trans with custom stall converter by Coretrans
  • Rebuilt transfer case

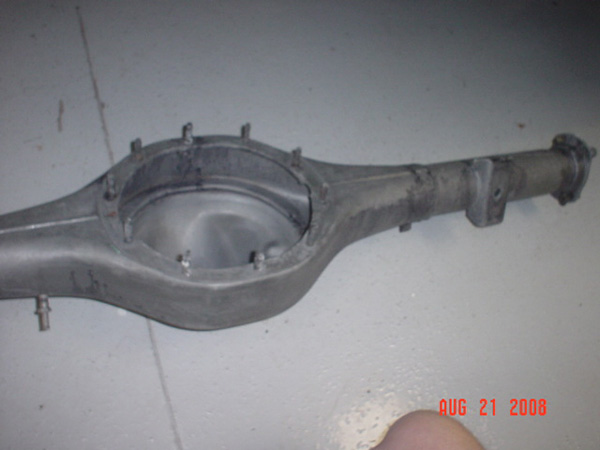

  • 4:11 gear ratio with Trac-Loc differentials

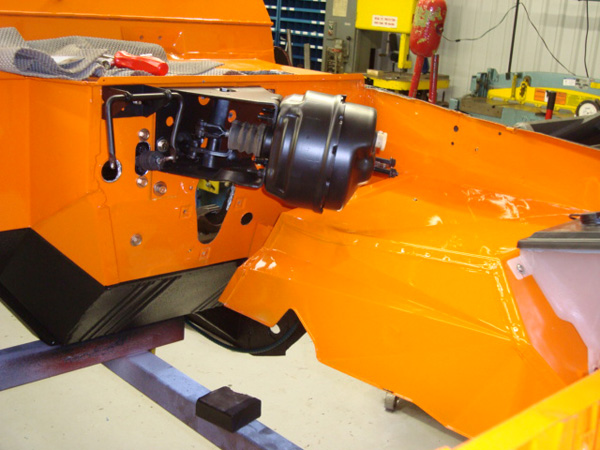

  • Disc brakes
  • Lengthened rear drive shaft
  • Bilstein 5100 series shocks
  • Wild Horses 2.5” lift coil springs

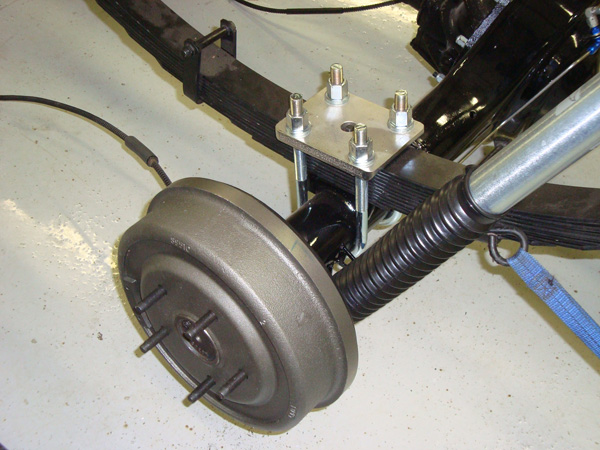

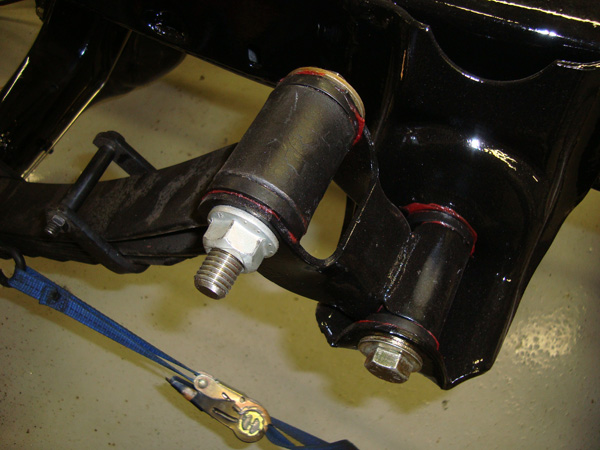

  • Wild Horses 2.5 lift leaf springs
  • Power Steering with close ratio box & updated pump
  • WH 3 way adjustable steering package
  • 33x12.50x15 BFG A/T tires on 8x15 wheels

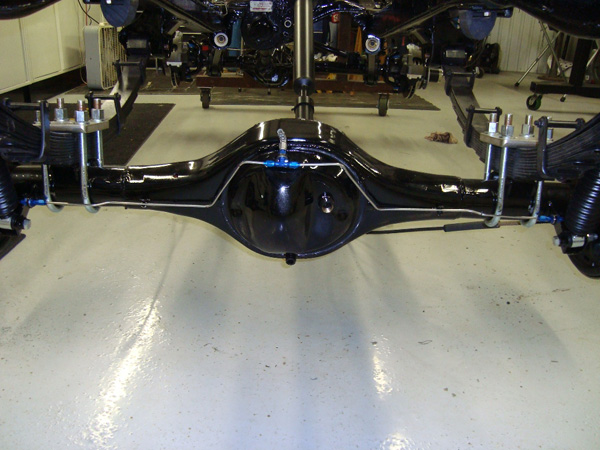

  • Goodridge plumbing & stainless hard lines
  • 130 Amp alternator

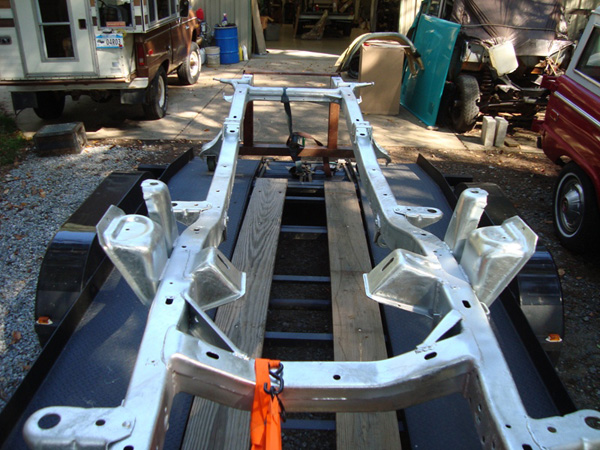

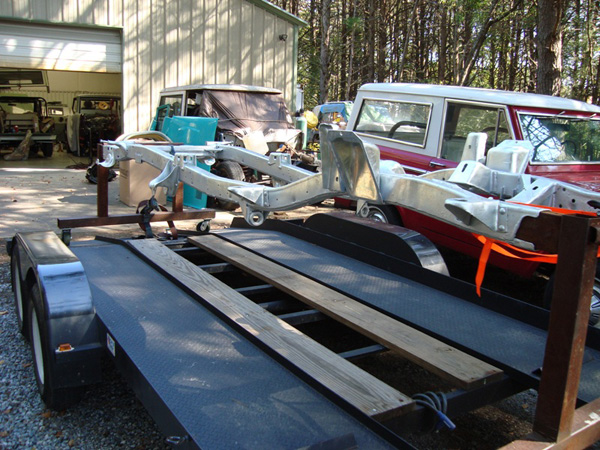

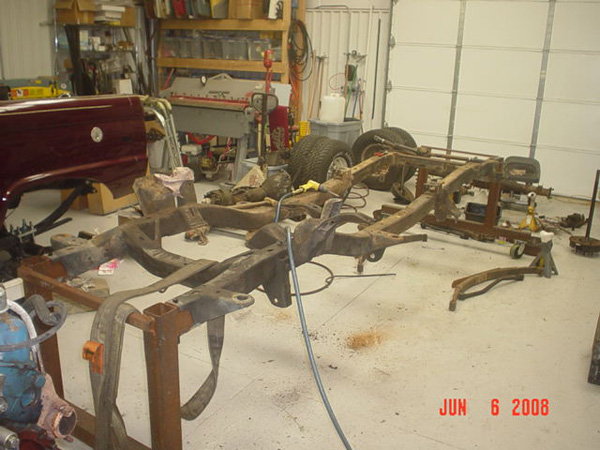

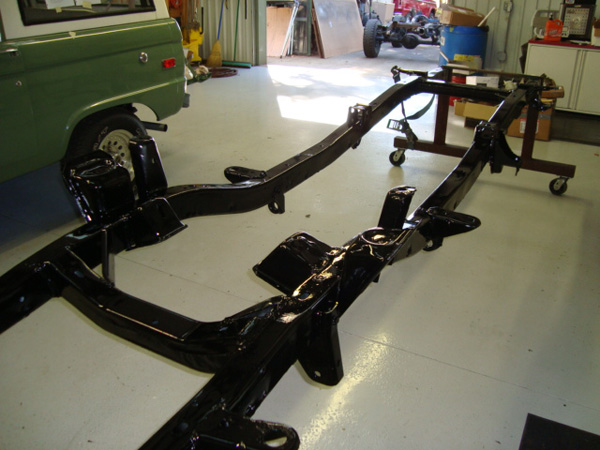

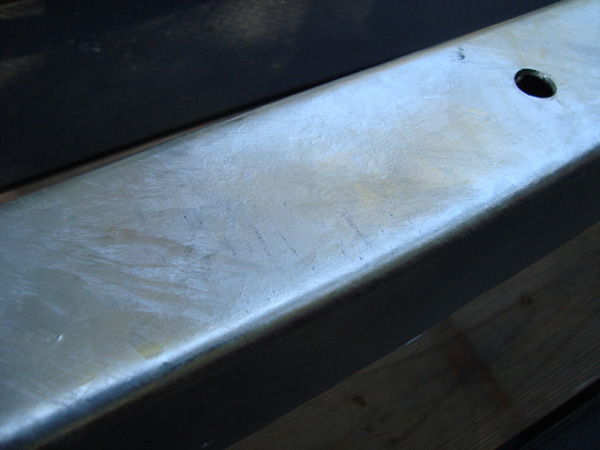

  • Frame is galvanized

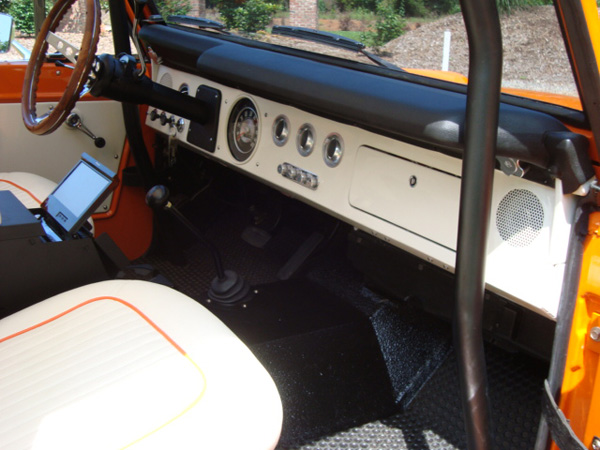

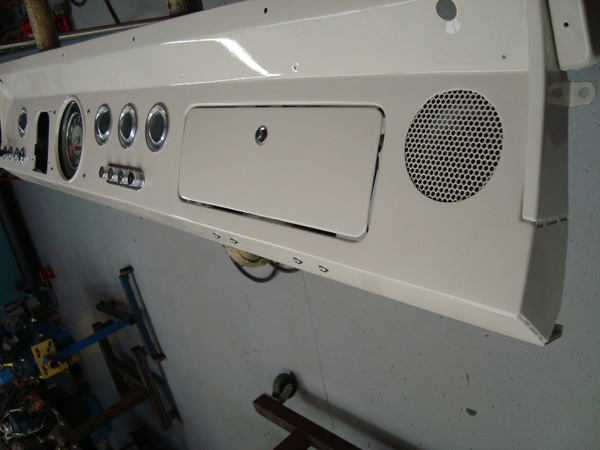

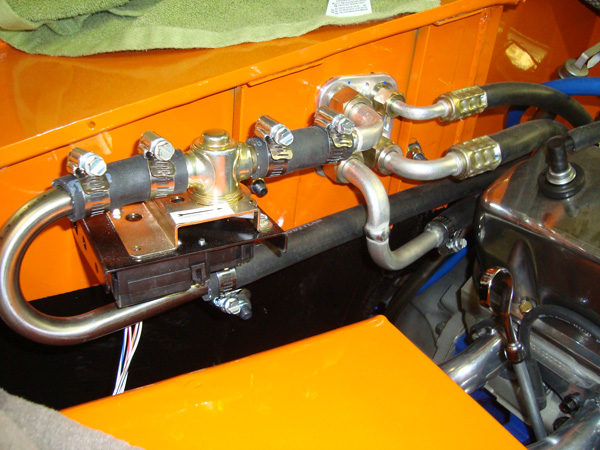

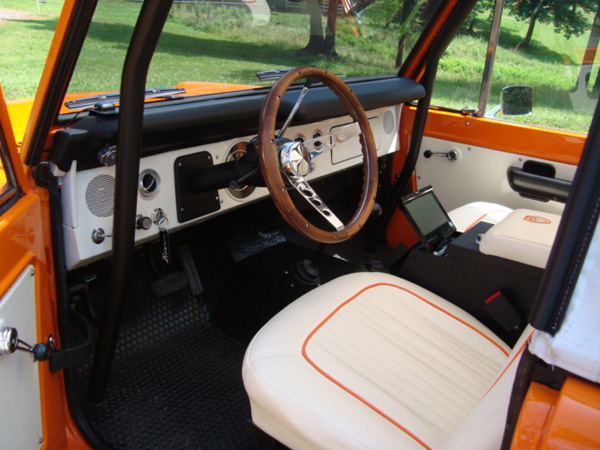

  • Custom dash with Vintage Air a/c package
  • Vintage Air billet A/C contols & vents
  • Pioneer Avic stereo with touch point GPS
  • Pioneer Ipod hook up
  • Rockford Fosgate & Kenwood amplifiers

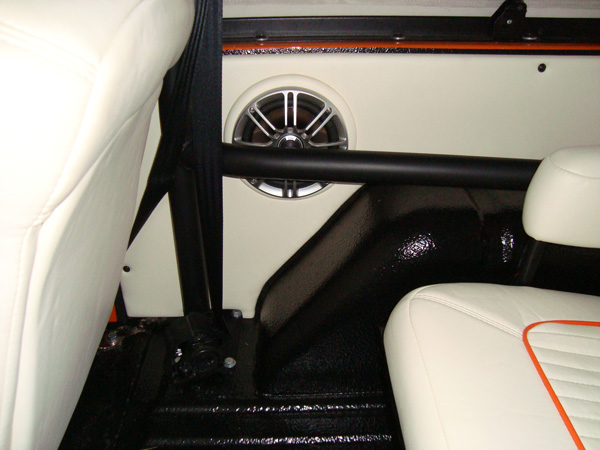

  • Polk speakers & Boston sub
  • Grant steering wheel
  • Sound deadener insulation inside
  • NT billet Retro Knobs

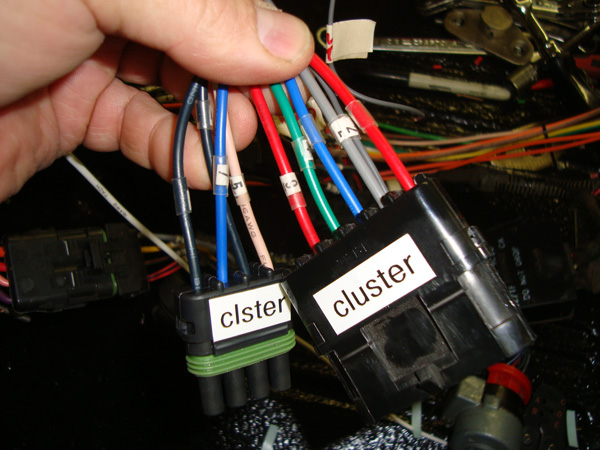

  • Custom wiring package

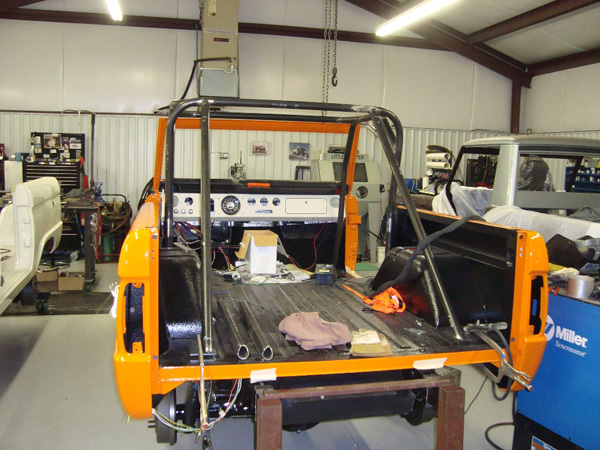

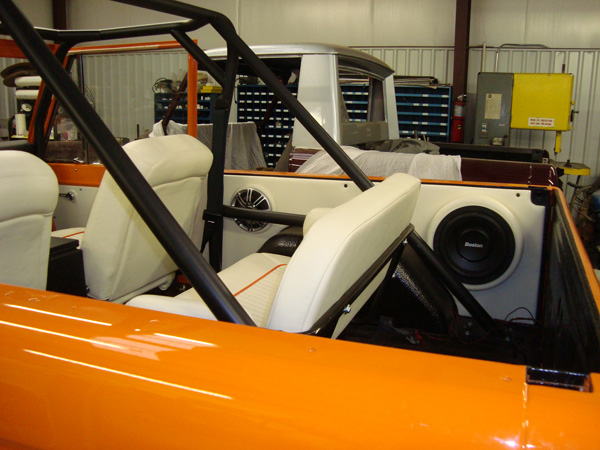

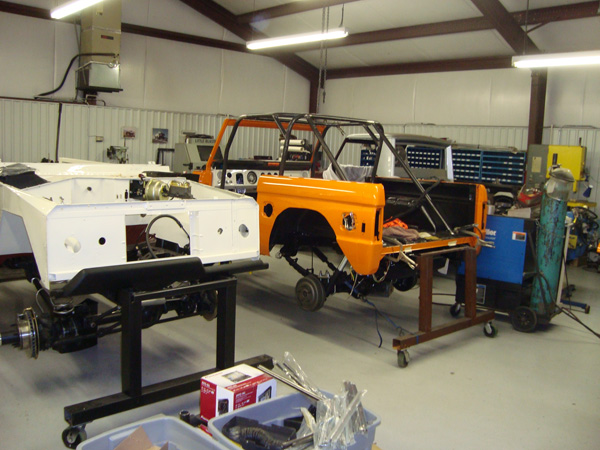

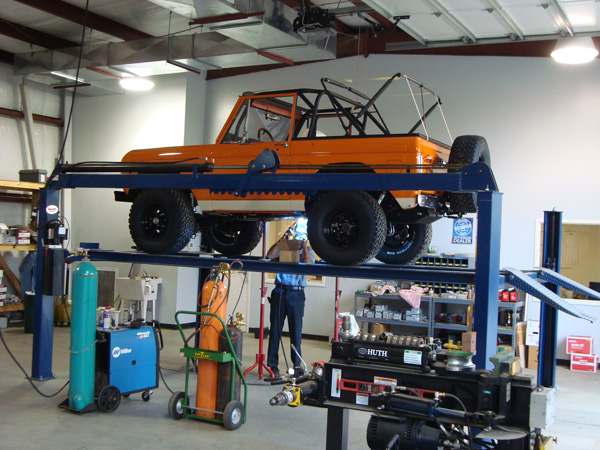

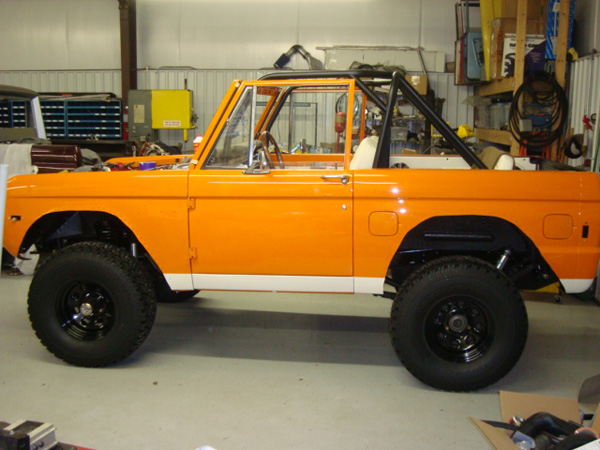

  • Custom Roll cage out of 4130 Chromoly 1.75x.125 tube
  • 3 pt seat belts

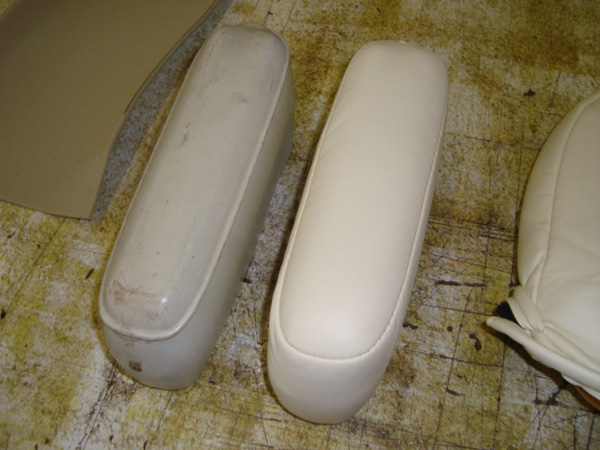

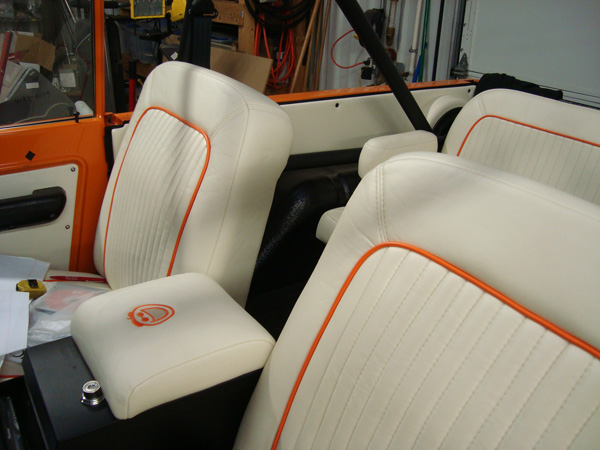

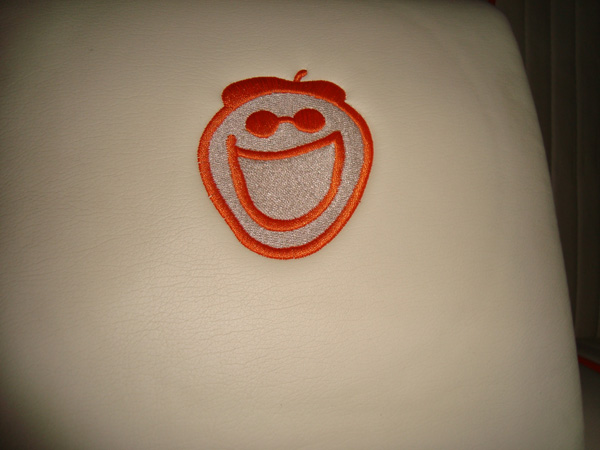

  • Seats in custom upholstery & embroidery on armrest

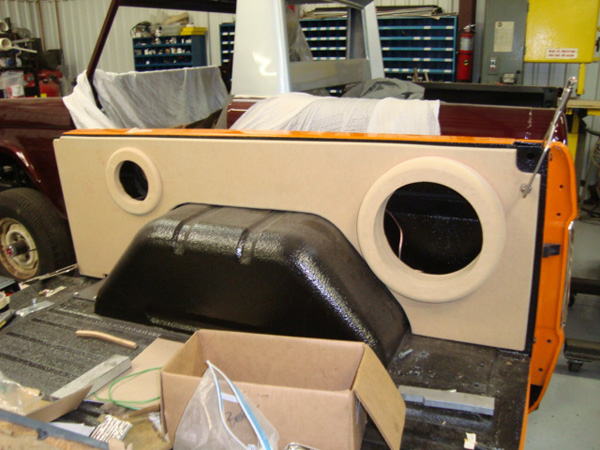

  • Custom rear panels wrapped to match seats

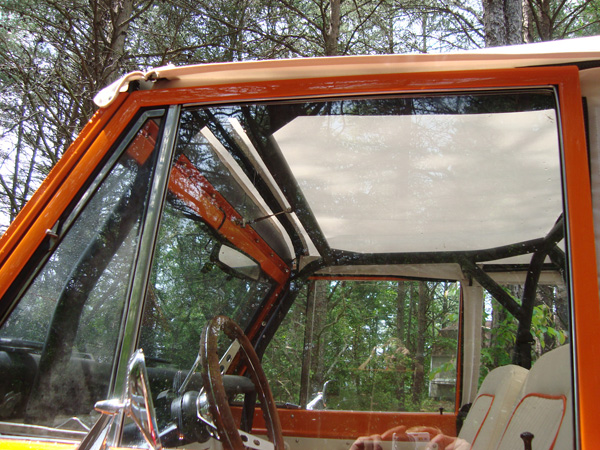

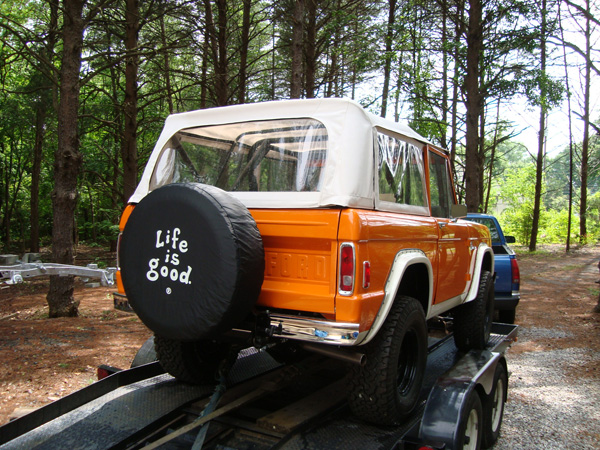

  • Custom Soft top in Sunbrella canvas
  • All by interior upholstery work by FinishLine Tops
